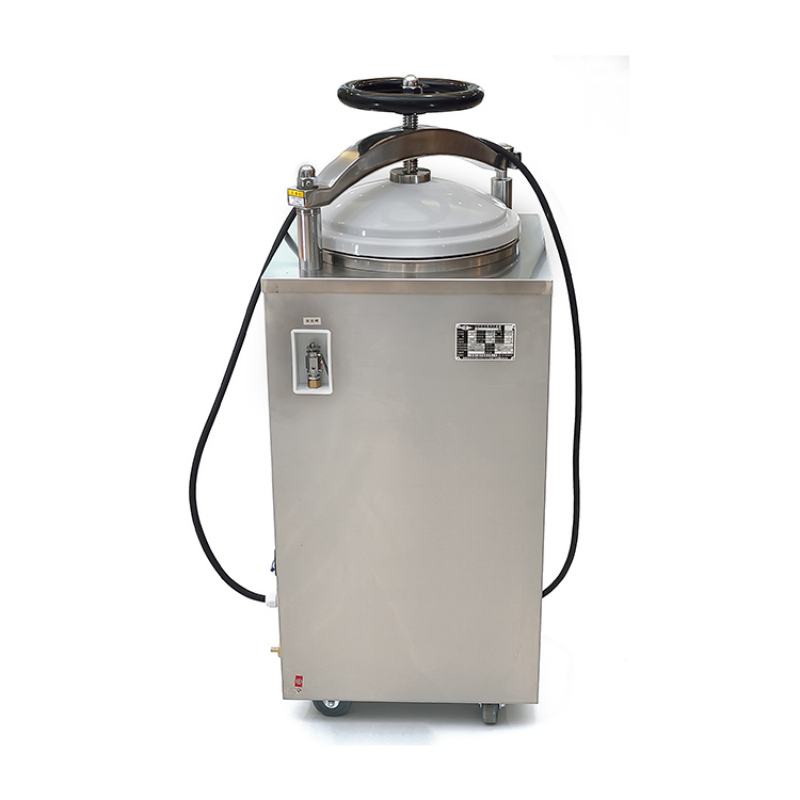

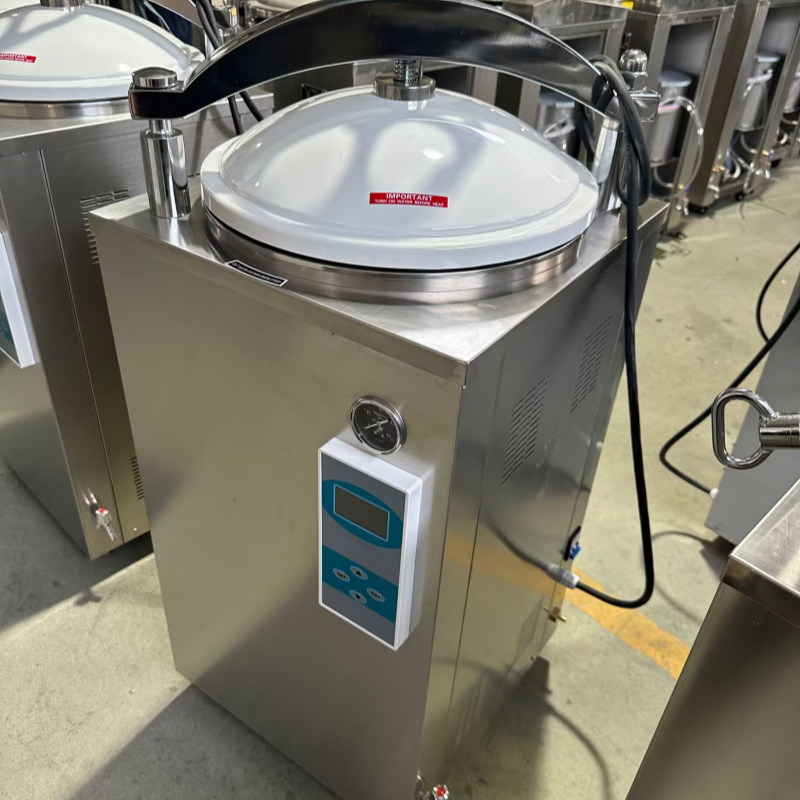

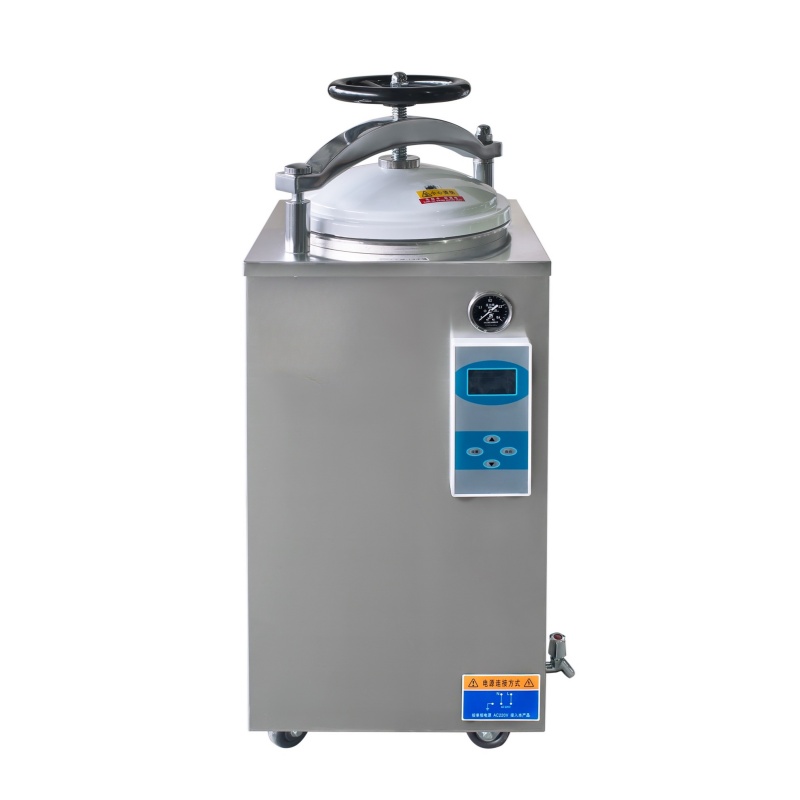

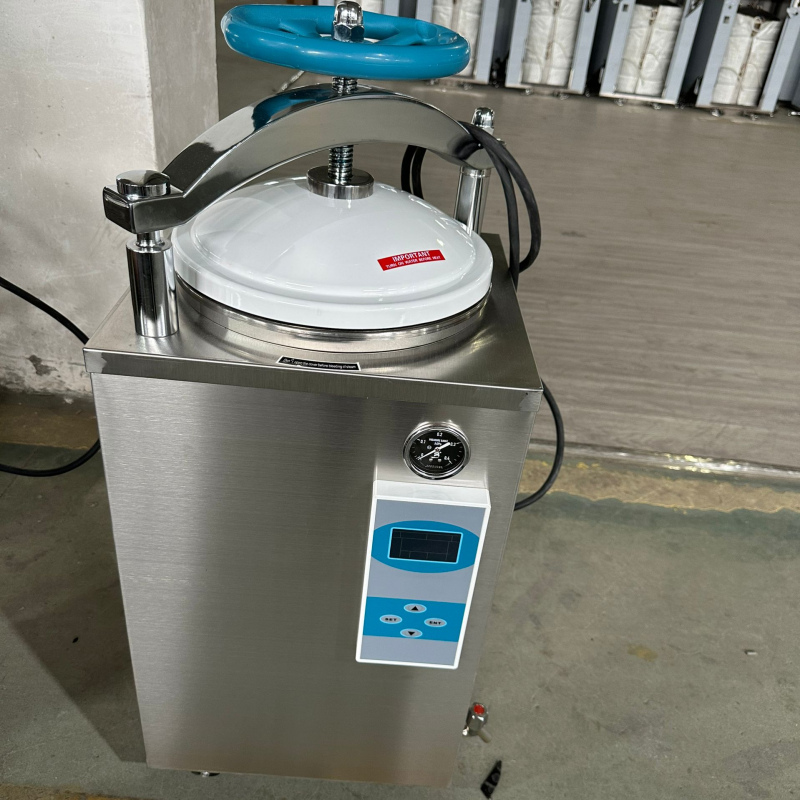

LS-35/50/75/100HD Vertical Pressure Steam Sterilizer
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. The
LS-35/50/75/100HD Vertical Pressure Steam Sterilizer
Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
◆Fully stainless steel structure.
◆Hand wheel type of quick-open door structure.
◆Door safety lock system.
◆LCD display of working status, touch type key.
◆Auto discharge the cool air, and steam discharge automatically after serilization.
◆Over temperature & over pressure auto-protection.
◆Safe protection of water lacking.
◆Self-inflating type seal.
◆Automatically shut off with beep reminding after sterilization.
◆Easy to operate, safe and reliable.

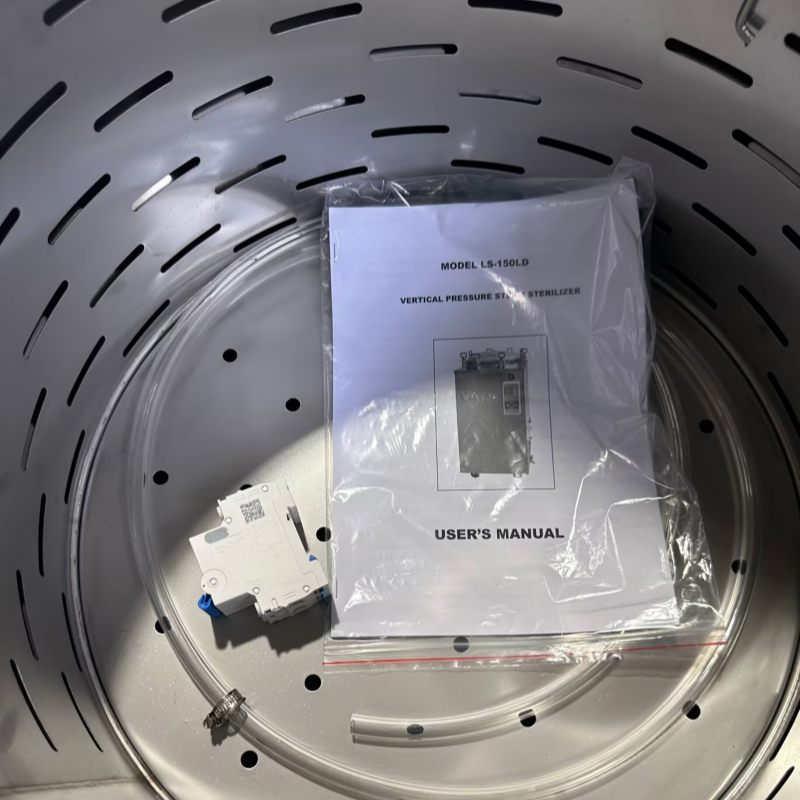

◆With two stainless steel sterilizing baskets.
◆Optional drying system
Technical Data

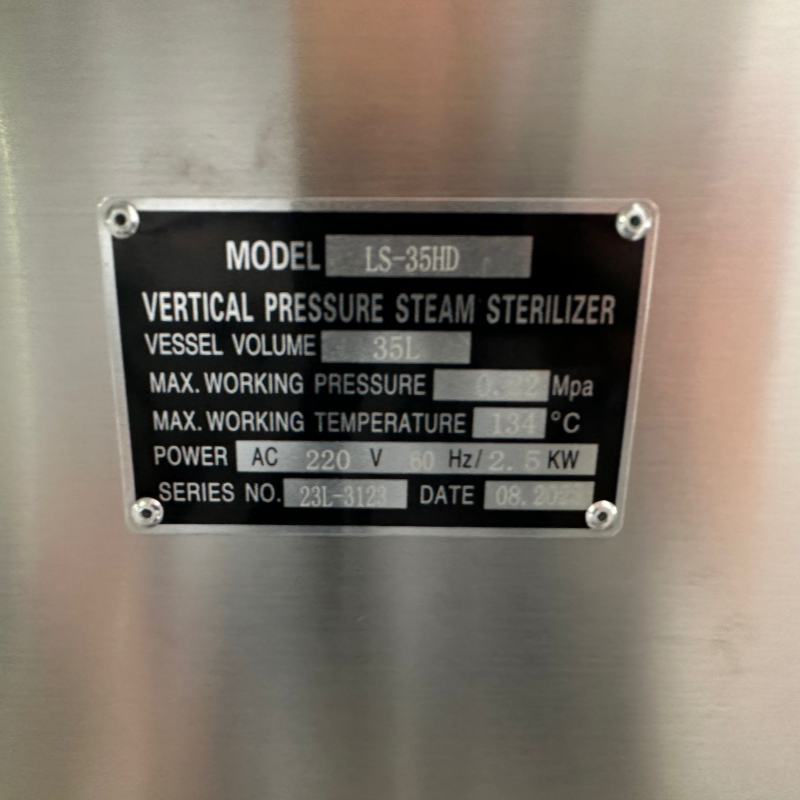

Technical Data MODEL MODE | LS-35HD | LS-50HD | LS-75HD | LS-100HD |
Chamber volume | 35L φ318×450mm | 50L φ340×550mm | 75L φ400×600mm | 100L φ440×650mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134℃ | |||
Max. working pressure | 0.23Mpa | |||
Heat average | ≤±1℃ | |||
Timer range | 0-99min or 0-99hour59min | |||
Temperature adjust range | 105-134℃ | |||
Power | 1X2.5KW/AC220V 50HZ | 2X1.5KW/AC220V 50HZ | 3X1.5KW/AC220V 50HZ | |
Overall dimension(mm) | 470×450×1020 | 520×490×1150 | 550×530×1180 | 580×560×1290 |
Transport dimension(mm) | 540×540×1140 | 580×580×1250 | 610×610×1280 | 640×640×1360 |
G.W/ N.W(wooden case) | 81Kg/63Kg | 94Kg/74Kg | 113Kg/93Kg | 131Kg/105Kg |
