Rapid moisture meter-LSC60A LSC50A

Rapid moisture meterProduct Features:◆ Bottom electromagnetic force sensor for precise, fast, and accurate weight data r

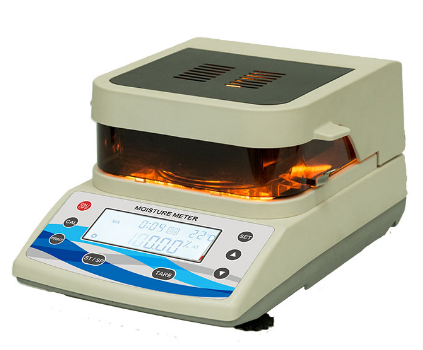

Rapid moisture meter


Product Features:

◆ Bottom electromagnetic force sensor for precise, fast, and accurate weight data readings.

◆ Halogen lamp and mirror-finish stainless steel secondary radiant heating design.

◆ Uniform and rapid heating.

◆ Optimized algorithm for calculating moisture content; multiple measurement modes available.

◆ External standard stainless steel weights for on-demand calibration.

◆ LCD backlit display for clear readings; display mode selectable for light and dark environments to protect eyesight.

◆ High precision, rapid response, accurate and reliable, easy to operate, and fully functional, meeting the needs of moisture content determination for various materials.


PRODUCT FUNCTIONS:

◆Auto mode—when the rate of change of moisture in unit time is smaller than the pre-set limit  value,  it  will  stop  the   measurement  automatically  and  get  the   results  of  the measurements.

◆ Time mode—finish the sample drying and get the result s of the measurements within the scheduled time.

◆Manual  mode—stop  the   measurements   by  pressing  the   key  and  get  the   results   of  the measurements.

◆Standard RS232 output interface connected with the computer and printer etc.


TECHNICAL PARAMETERS

MODEL

LSC-60A

LSC-50A



CAPACITY

60g

50g

TEMPERATURE

DISPLAY MODE

DEGREE CENTIGRADE

READ ABILITY

0.001g

0.0001g

MEASURING METHOD

AUTO,TIMEING,MANUAL

REPE ATABILITY (STANDARD

DEVIATION)

BIGGER       THAN       5g SAMPLE





0.1%





0.05%





DISPLAY TYPE





LCD DISPLAY





MEASURING METHODS

500W

RING HALOGEN LAMP HEATING

ELECTROMAGNETIC     FORCE

TRANSDUCER MEASURING





DISPLAY CONTENT





MOISTURE,TIME,TEMPERATURE

DATA OUTPUT

STANDARD RS-232

RANGE  OF  AMBIENT TEMPERATURE

10-40

SETTING TIME

1-99 MINUTES

TARE RANGE

FULL RANGE MEASURING

HEATING SOURCE

HALOGEN LAMPRING 500W

POWER

AC220V    50HZ

TEMPERATURE RANGE

60-200 INTERVAL 1

PAN SIZEmm

Φ90







DRYING PROCEDURES

STANDARD  DRYING:  REACH  THE SET   TEMPERATURE  IN  SHORT TIME

CONSTANT TEMPERATURE ON THE SET TEMPERATURE





EXT

DIMESION’WEIGHT







330X200X1550/5.5kg

STANDARD    SAPRE

PARTS

10 PIECES OF SAMPLE PANS,INSTRUCTION,MANUAL, POWERCORD,STANDARD WEIGHT
