Gloss Meter CS-300 SE CS-380 SE CS-300S SE
Gloss Meter CS-300 SE、CS-380 SE、CS-300S SE100000 ultra long endurance cycles1、Product featuresLithium ion battery chargi
Gloss Meter CS-300 SE、CS-380 SE、CS-300S SE
100000 ultra long endurance cycles
1、Product features
Lithium ion battery charging saves users on usage costs while ensuring an ultra long battery life of 100000 times；
A single machine can store 5000 pieces of data, solving the problem of user data storage.
Adopting a 320 * 240 color screen, the data display is clear at a glance
Standard QC software, data can be stored on the computer and reports can be exported
Adopting a universal Type-C interface to reduce user procurement costs
Meets the requirements of JJG 696-2015 glossmeter for more accurate data

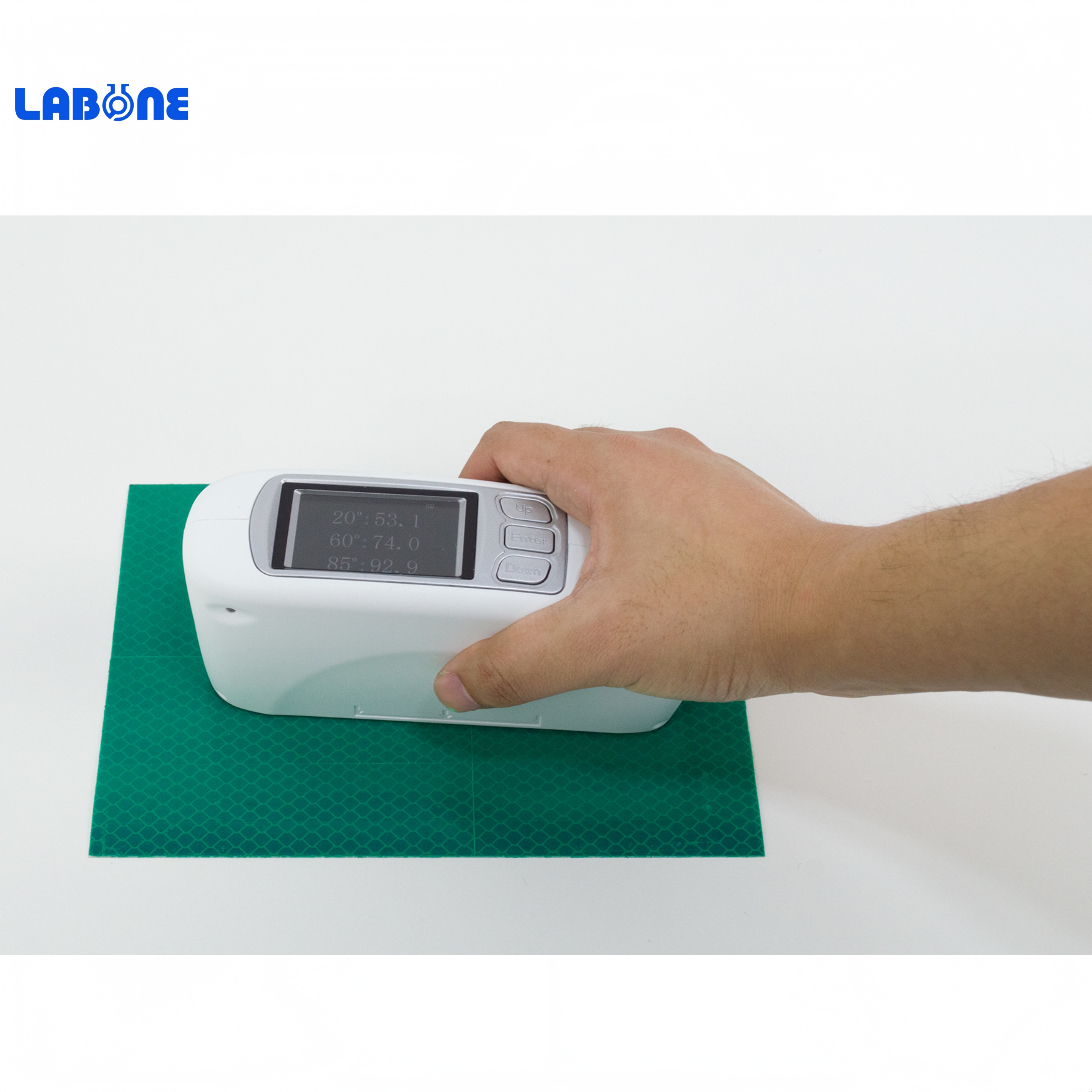

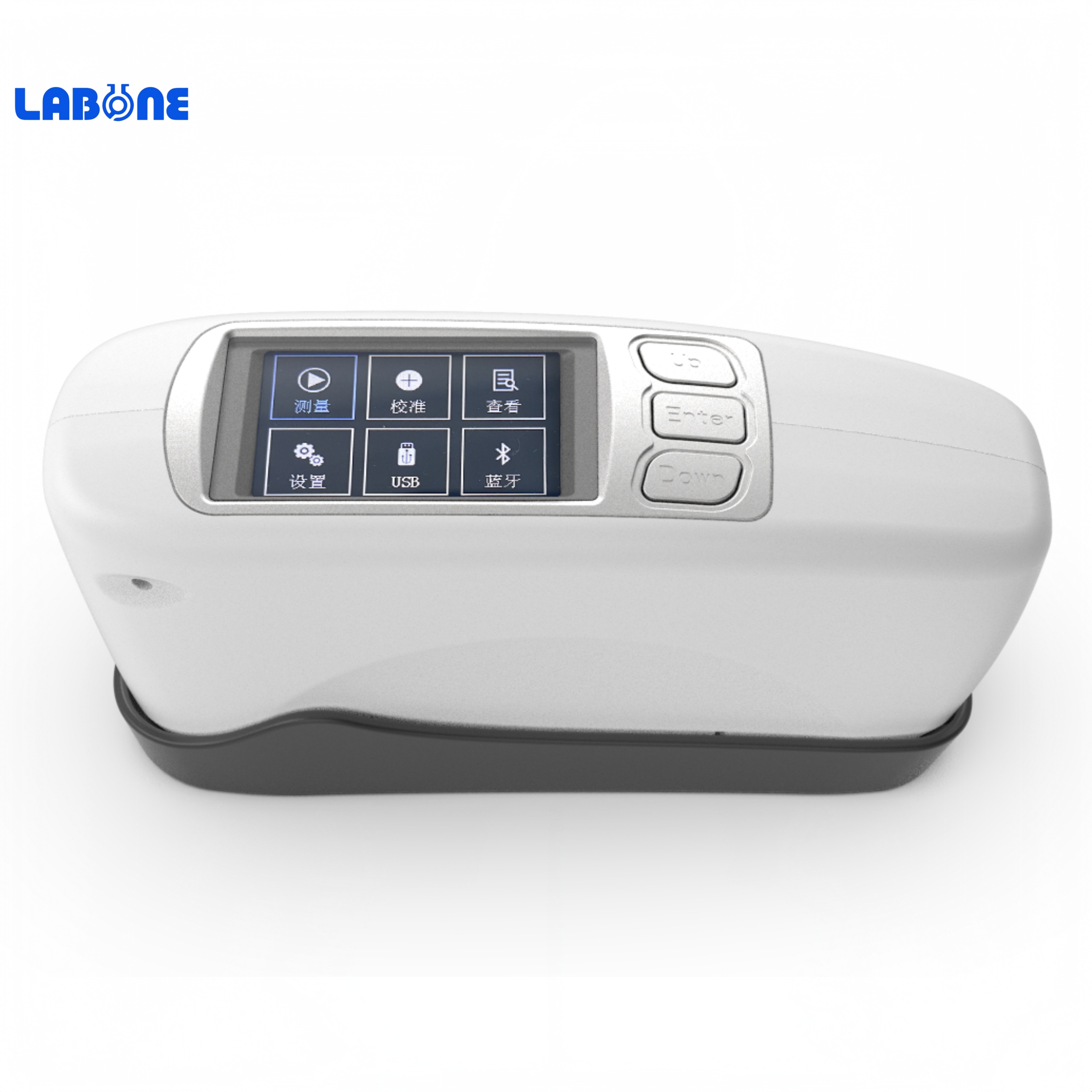

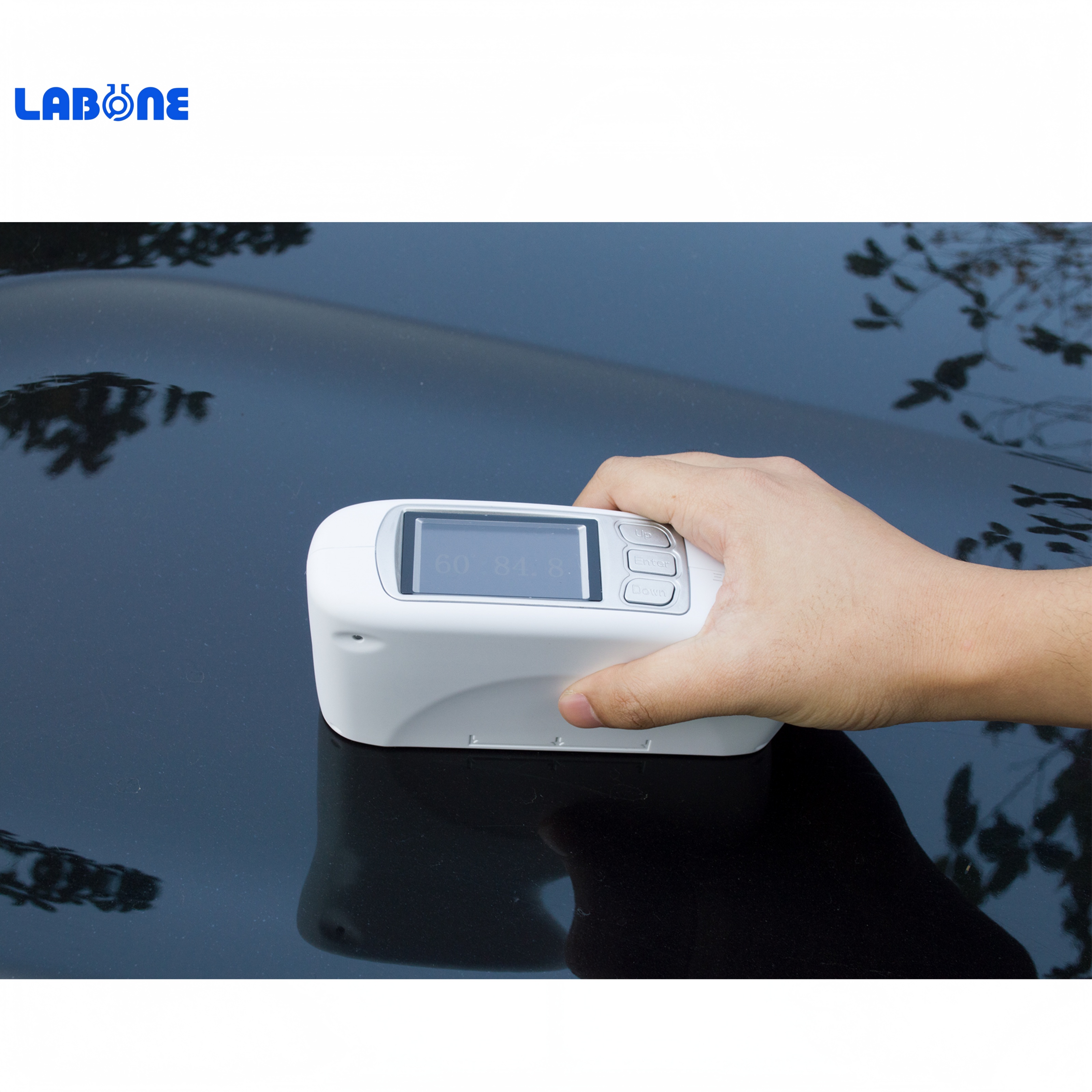

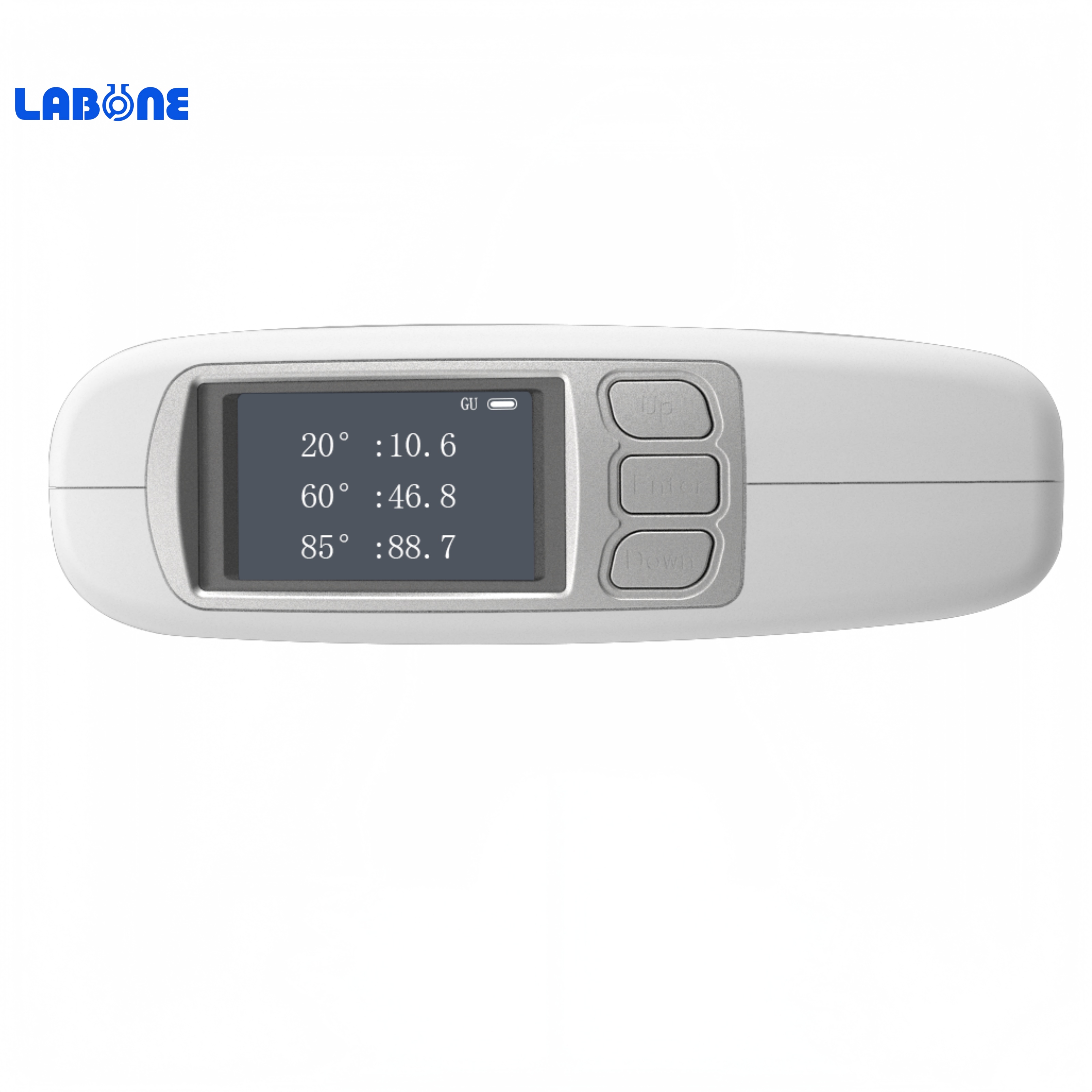

2、Product diagram
3、Model differentiation table
Model | CS-300 SE（Single angle） | CS-380 SE（Triangle angle） | CS-300S SE（Single angle，Small aperture） |
Measuring Angle | 60° | 20°、60°、85° | 60° |
Electricity level | Fully charged, can be used 100000 times | Fully charged, can be used 60000 times | Fully charged, can be used 100000 times |
Measuring range | 0-200GU | 20°:0-200GU | 0-200GU |
Measuring light spots | 9*15mm | 20°:10*10mm | 2*3mm（Small aperture） |
Display resolution | 0.1GU | 0-100:0.1GU;大于100:1GU | |
Repetitive accuracy | 0-100GU:0.2GU | ||
Measuring time | ＜1s | ＜1.5s | ＜1s |
4、Technical parameter
Model | CS-300 SE | CS-380 SE | CS-300S SE |
Measuring Angle | 60° | 20°、60°、85° | 60° |
Measuring light spots(mm) | 60°:9*15 | 20°:10*10；60°:9*15；85°:5*38 | 60°:2*3 |
Measuring range | 60°:0-200GU | 20°:0-200GU;60°:0-200GU; 85°:0-100GU | 60°:0-200GU |
Display resolution | 0.1GU | 0-100:0.1GU;大于100:1GU | |
Measurement repeatability accuracy※ | 0-100GU:0.2GU；100-200GU:0.2%GU | ||
Measurement mode | Simple mode and statistical mode | ||
Measurement accuracy | Meet the requirements of JJG 696-2015 | ||
Measurement time | ＜1s | ＜1.5s | ＜1s |
Data storage | 5000 pieces of data | ||
Volume | 165*51*77mm(L*W*H) | ||
Weight | 400g | ||
Language | Chinese，English | ||
Battery capacity | 3000mAh lithium battery | ||
Electricity level※※ | Fully charged, can be used 100000 times | Fully charged, can be used 60000 times | Fully charged, can be used 100000 times |
Interface | Type-C | ||
Screen size | 2.4 inches（Screen resolution320*240） | ||
Computer software | Yes | ||
Working temperature | 0-40℃ | ||
Working humidity | Less than 85%, no condensation | ||

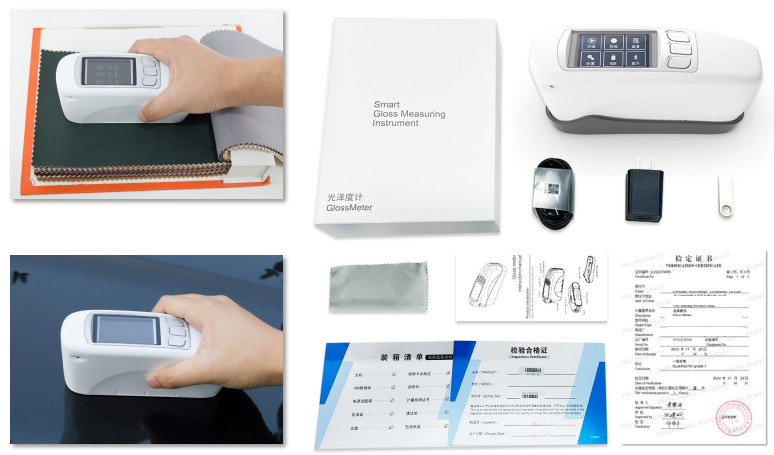

Accessory | 5V/2A charging head, data cable, manual, USB flash drive (upper computer software), calibration standard board, third-party calibration certificate | ||
Purpose | Paint and ink, coatings, electroplating, plastic electronics, hardware and other fields | ||
※ Measure the standard deviation 30 times continuously, and evaluate it with absolute value when the measurement value is less than 100GU; When the measured value is greater than 100GU, evaluate it as a percentage
※※ Before the instrument leaves the factory, the measurement data from the color spectrum standard laboratory
