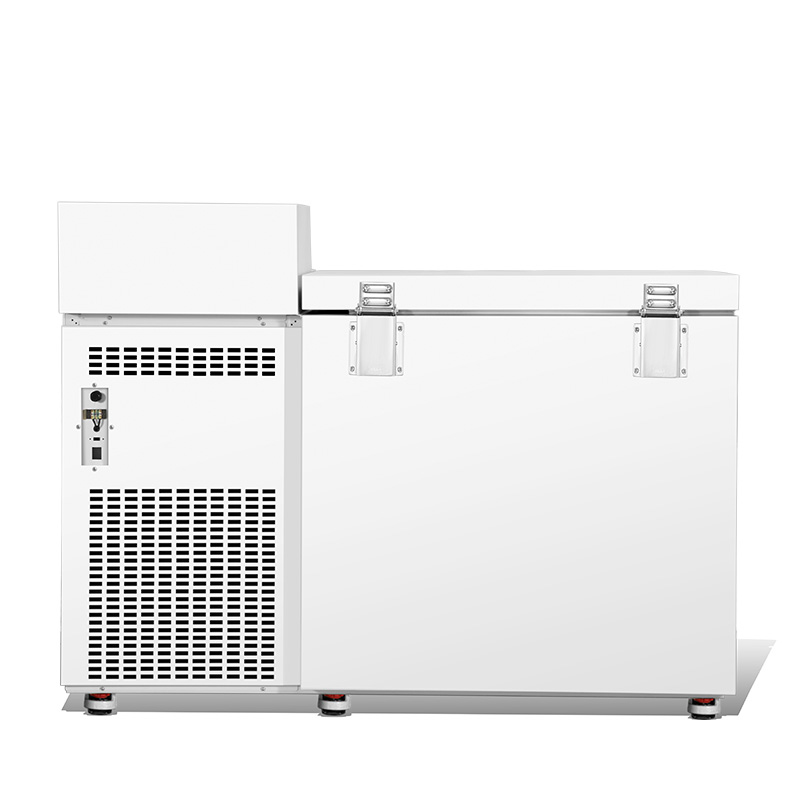

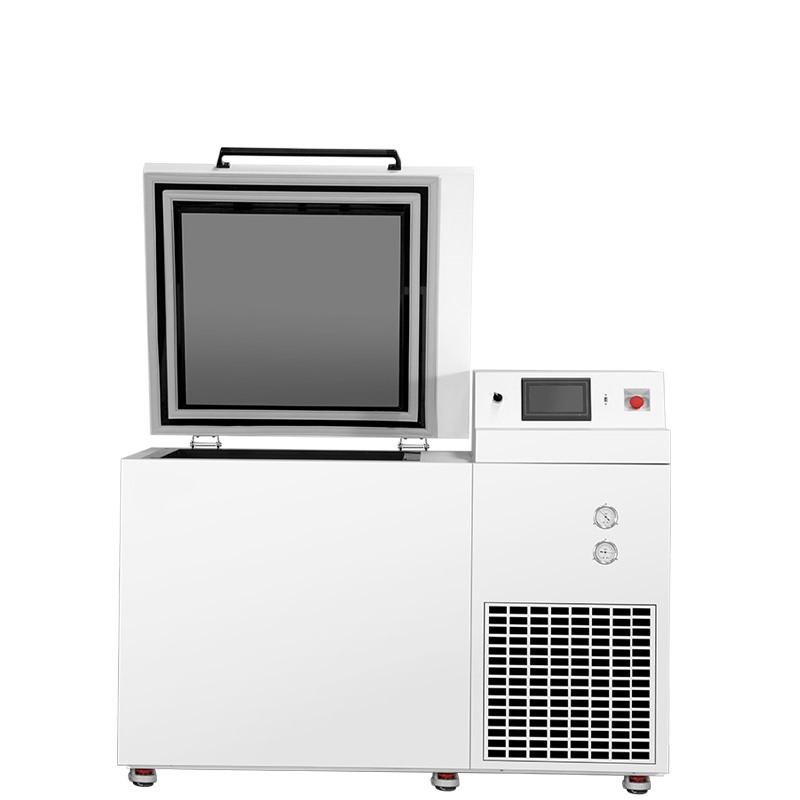

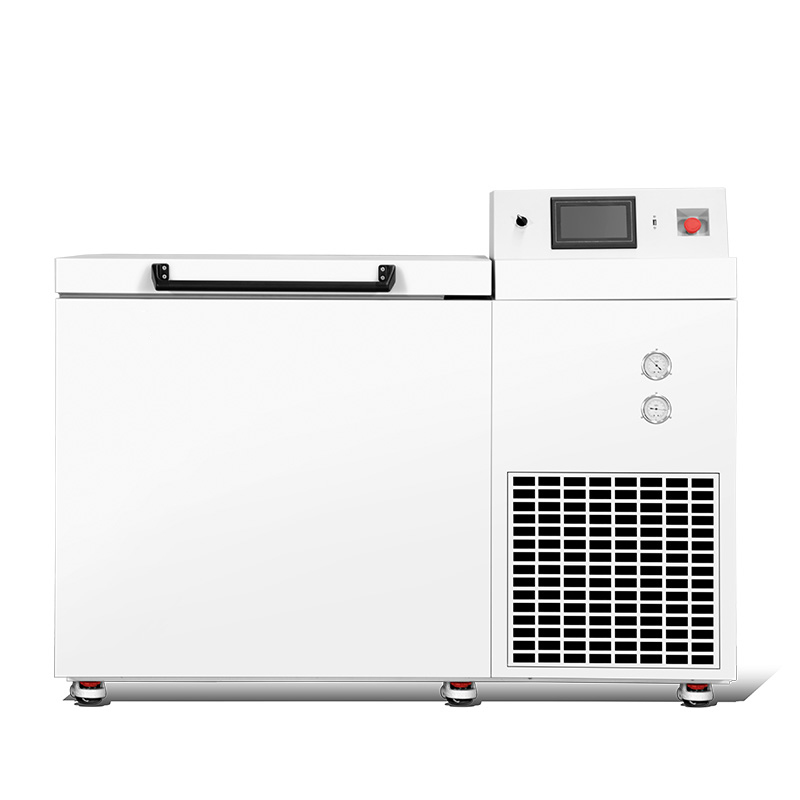

MDF-150H128 -150℃ Cryogenic Chest Freezer
-150℃ Cryo-freezer provides a safe, convenient and economical alternative long term storage solution for customers. Cryopreservation refers to the storage of a living organism, cell or tissue at ultra-low temperatures such that it can be restored to the same viable state as before it was frozen. Storage for an indefinite amount of time requires samples to be maintained below the glass transition temperature of aqueous solutions, approximately -130℃, the temperature at which frozen water no longer sublimes and recrystallizes.
World-leading refrigeration technology

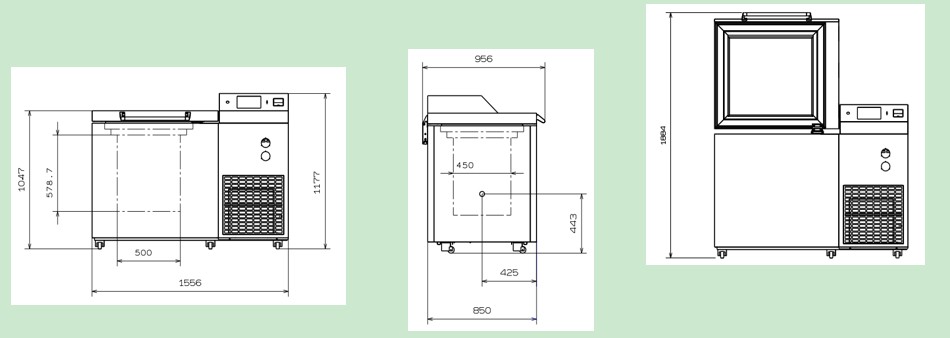

DIMENSIONS

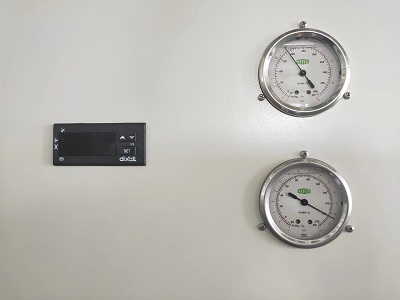

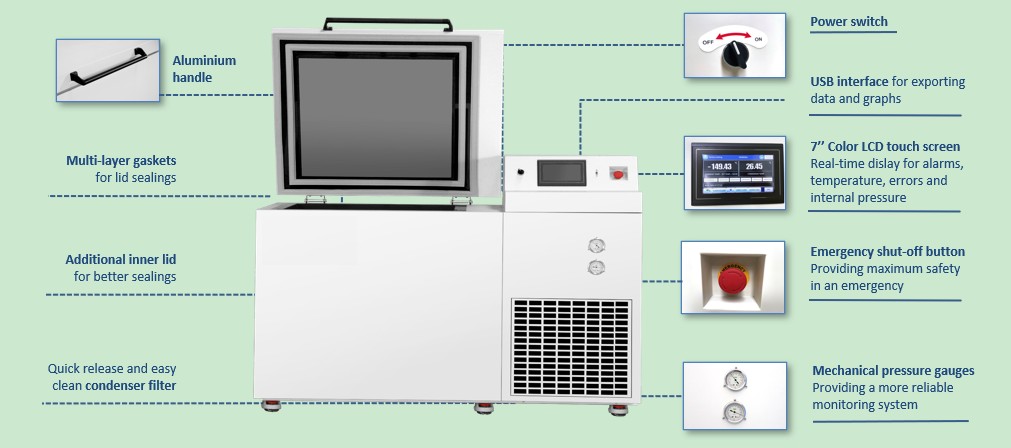

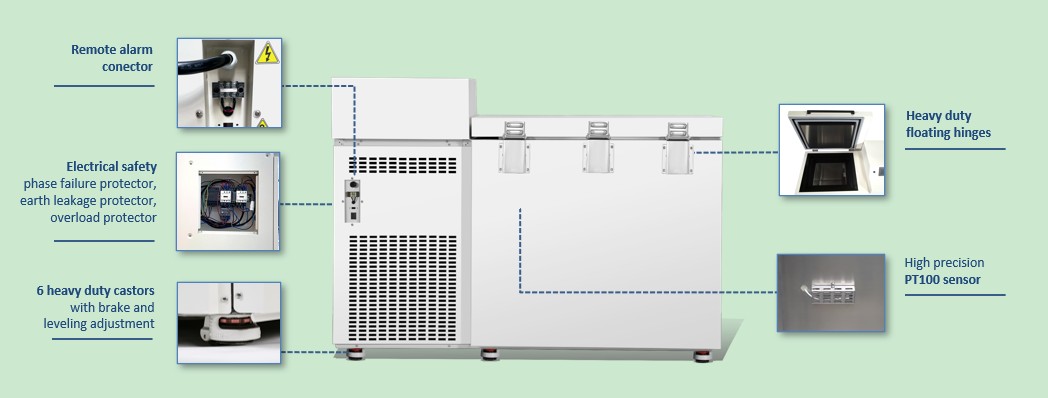

PRODUCT STRUCTURE

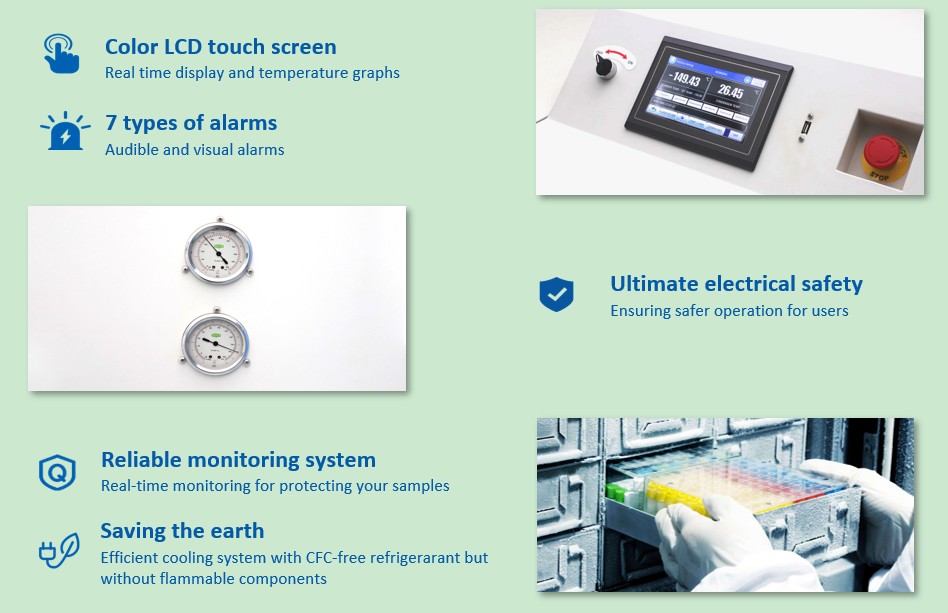

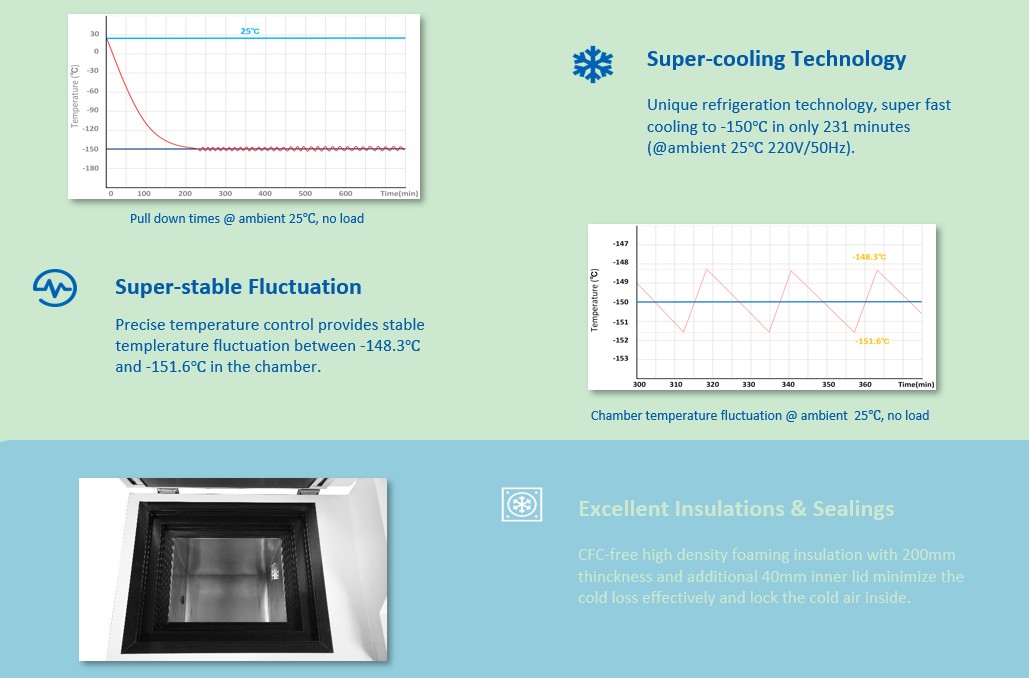

FEATURERS
SPECIFICATIONS
| Basic | Refrigeration System | Alarms | |||
| Cooling type | Direct Cooling | Refrigerant | R4001(mxed gas) | High/low temperature | Y |
| Defrost | Manual | Temp. controller | Microprocessor | Power failure | N/A |
| Temperature range | -40℃～-150℃ | System | Auto-cascade | Abnormal voltage | Y |
| Ambient temperature | 10~30℃ | Sensor | PT100 | Sensor error | Y |

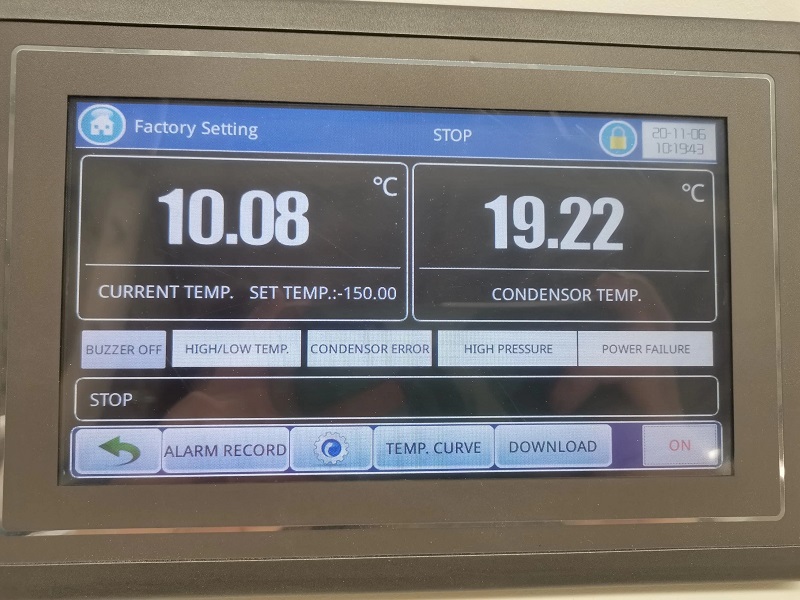

| Display | LCD touch screen | Compressor brand/QTY | TECUMSEH/1 | Door ajar | N/A |
| Access port QTY/Dia. | 1/25mm | Capacity(L/cu.ft) | 128/4.5 | Filter screen check | Y |
| USB Intereface | Yes/1 | Insulation | PURF | Thermostat failure | Y |
| Remote alarm Access | RS232/485 | Internal material | Foamed SUS304 | Low battery | N/A |
| Outside material | Color sprayed steel | Racks | 9pcs 10*1 | Condenser clean | Y |
| Inside material | SUS304 | Boxes (2 Inches) | 90 | High ambient temperature | Y |
| Castor | Universal | Samples(2ml) | 9000 | Power failure backup (alarm) | 72h |
| Electrical Data | Dimensions | Accessories | |||
| Voltage frequency(V/Hz) | 220V/50Hz | Package size(W*D*H)(mm) | 1637*970*1383 | Racks&box | Optional |
| Power(W) | 2550W | Exterior size(W*D*H)(mm) | 1560*957*1178 | Data logger | Optional |
| Current(A) | 14.2A | Interior size(W*D*H)(mm) | 500*450*578 | CO2 back up system | N/A |
| Power consumption | 38kWh/24h | Shipping CBM | 2.42 | LN2 back up system | Optional |
| Noise(db) | 50 | N.W/G.W(kg) | 303/332 | Gloves | Optional |
