JP300S Batch Transferring Peristaltic Pump
LABONE JP300S batch transfer peristaltic pump mainly used in industrial applications, The max flow rate is 33 L/min under normal pressure and the max pressure is 0.3Mpa. Compact and reasonable structure, easy to install the tube.The roller adopts the planetary gear transmission, safe and reliable, and prolong the tubing life.
Flow: Max 33L/min
Max: 1 Channel
Category: Batch Transfer Pumps
Tags: Batch Transferring Peristaltic Pump, dispensing peristaltic pump, hose pump, industrial hose pumps, industrial peristaltic pump, large flow peristaltic pump, LABONE Peristaltic Pump, Peristaltic Pump, peristaltic pump manufacturer
Applications
Biopharmaceutical
Food industry
Liquid medicine filtration
Fluidized bed supply
Liquid medicine transfer
Biocatalyst transfer
Function and features
• Wide flow range, can reach 2m³/hour.
• Pump head adopts planetary gear design, powerful.
• The roller driving force rotation, rolling friction with tube can prolong the tubing life.
• Open the lid ,the pump stop running, safe and reliable.
• Elastic pressure tube structure can prolong the tubing life.
• AC motor drive, external frequency control. It can be operated manually, also can be achieved networking operation with PLC, IPC and computer.
Specification
• Flow Range: 0.64~33L/min
• Tube: 88#,92#,193#,191#
• Shell Material: Aluminum alloy
• Rollers: 4
• Speed Range: 30～350rpm/min
• Gap adjustment: Adjustable
• Working environment: Temperature 0 ～ 40℃
• Power supply: AC380V/220V
• Power consumption: 400W
• IP grade: IP54（Not include frequency converter）
Applicable pump head and tube, flow parameters
Drive | Pump head | Channel | Tube | Flow rate （L/min） |
JP300S-A3（AC380V） | PL48
| 1 | 88#92#193#191# | 0.64~33 |
JP300S-A（AC220V） |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

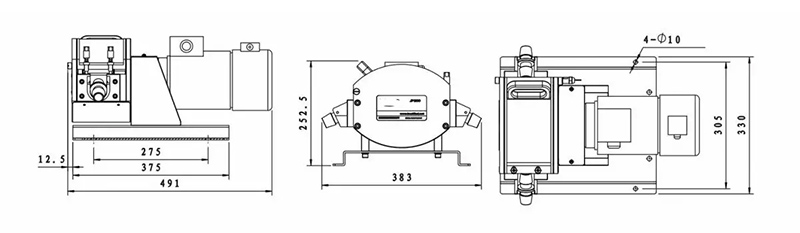

Dimension（mm）
Statement：The final explanation right of above information belongs to LABONE.
