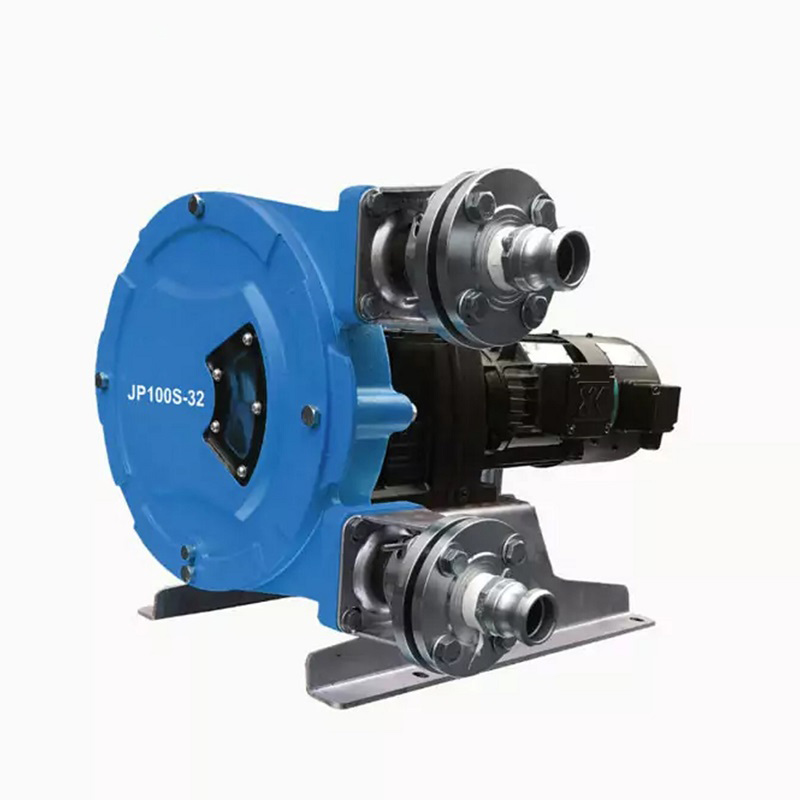

JP100S Series Batch Transferring Peristaltic Pump

Send request

JP100S Series Batch Transferring Peristaltic Pump

LABONE JP100S batch transferring peristaltic pumps can deliver fluids with up to 80% solid content through the operation mode of high-strength rotors continuously squeezing the pump tube.Industrial-grade application design,up to 9 meters suction lift, 10 Bar transfer pressure, tube life up to 2500～3000 hours,simple maintenance and low cost.It is an ideal choice to meet various long-distance, high-viscosity, high-solid content pumping requirements.

Flow: 12L-530L
Max: 1 Channel

Category: Batch Transfer Pumps

Tags: Batch Transferring Peristaltic Pump, dispensing peristaltic pump, Explosion-Proof Peristaltic Pump, hose pump, industrial hose pumps, industrial peristaltic pump, intelligent peristaltic pump, LABONE Peristaltic Pump, Peristaltic Pump

Applications

• Food industry
• Mining sector
• Chemical industry
• Textile printing and dyeing industry
• Animal feed
• Beer, wine brewing, beverages
• Sewage and Industrial wastewater treatment
• Cosmetics industry
• Fishery
• Recycling

Function and Feature

Suitable for conveying fluids containing corrosiveness, high viscosity, high density, high solid content or sensitive to shear.

Multi-layer compound tube with high transfer pressure up to 10Bar.

Stable flow, high accuracy.

Can transfer fluids up to 80℃.

Can run dry and self-priming, no one-way valve, flushing system and dry-running protection, and the max suction range can reach 9 meters.

Reverse operation can suck or discharge the blockage from the pipeline.

The fluid only touches the pump tube, no pollution in the whole process.

Daily maintenance is simple, generally only need to replace the pump tube.

Parameters

Product model	JP100S-20	JP100S-25	JP100S-32	JP100S-40	JP100S-65
Flow rate	12L/min	28L/min	60 L/min	130 L/min	530 L/min
Speed range	10～100rpm	10～100rpm	10～100rpm	10～100rpm	10～80rpm
Recommended speed	≤60rpm	≤60rpm	≤60rpm	≤60rpm	≤50rpm
Inlet pressure	≤0.9 Bar	≤0.9 Bar	≤0.9 Bar	≤0.9 Bar	≤0.9 Bar
Outlet pressure	≤10 Bar	≤15 Bar	≤15 Bar	≤15 Bar	≤16 Bar
Tube material	NB—Standard NBR EPDM
Connector	DN20 Pagoda （SS304）	DN32 Flange （SS304）	DN32 Flange （SS304）	DN40 Flange （SS304）	2-1/2″ Flange （SS304）
Drive model	AC gear motor（standard） Explosion-proof motors（optional，Explosion-proof grade EXDIIBT4）
Power supply	three phase AC380V
Power consumption	0.75 KW	1.5KW	1.5 KW	2.2KW	7.5 KW
Environment	Temperature 0～40℃, relative humidity<80%
Dimension（L×W×H）	517×385×307mm	688×516×460mm	688×516×460mm	786×690×613mm	1170×680×1030mm

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

Remarks：
• Choose pump tubing according to different material characteristics

• Pump tube life is inversely proportional to speed

• The life of the pump tube of the three materials is the same
（1）NR：Normal use, smooth inside, good wear resistance, suitable for transmission of weakly corrosive and muddy materials
（2）NBR：It is made from butadiene and acrylonitrile through emulsion polymerization, resistant to grease, alkali and detergent, and has good performance
（3）EPDM：It is a copolymer of ethylene, propylene and a small amount of non-conjugated diene. It has excellent chemical resistance, especially ethanol and strong acids.
