MDF-86V728D -86℃ Ultra Low Temperature Freezer
DUAL SYSTEM ULT SERIES
-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.

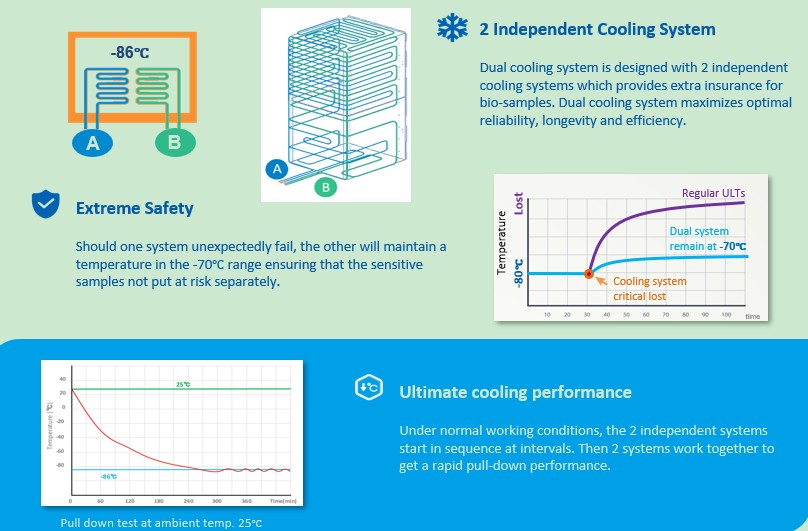

DUAL SYSTEM

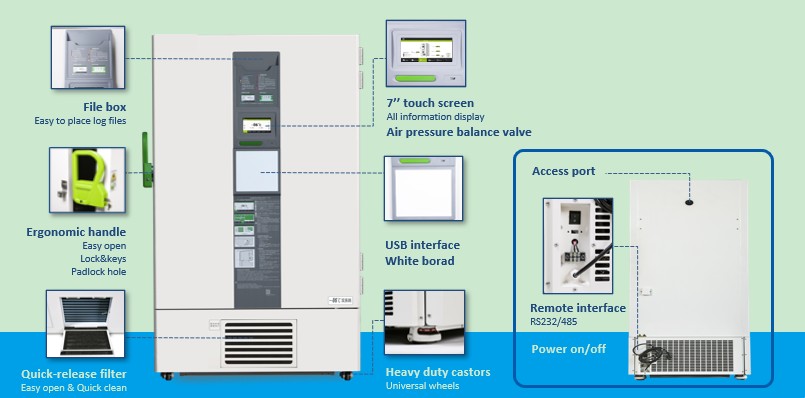

EXTERNAL STRUCTURE

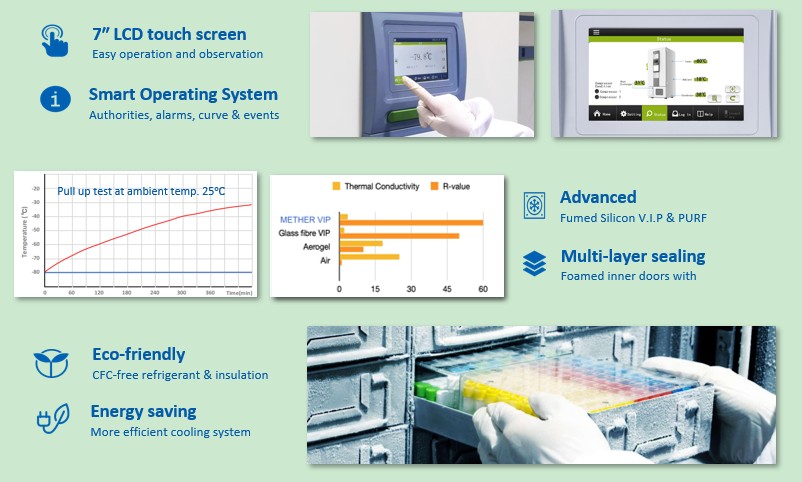

FEATURERS

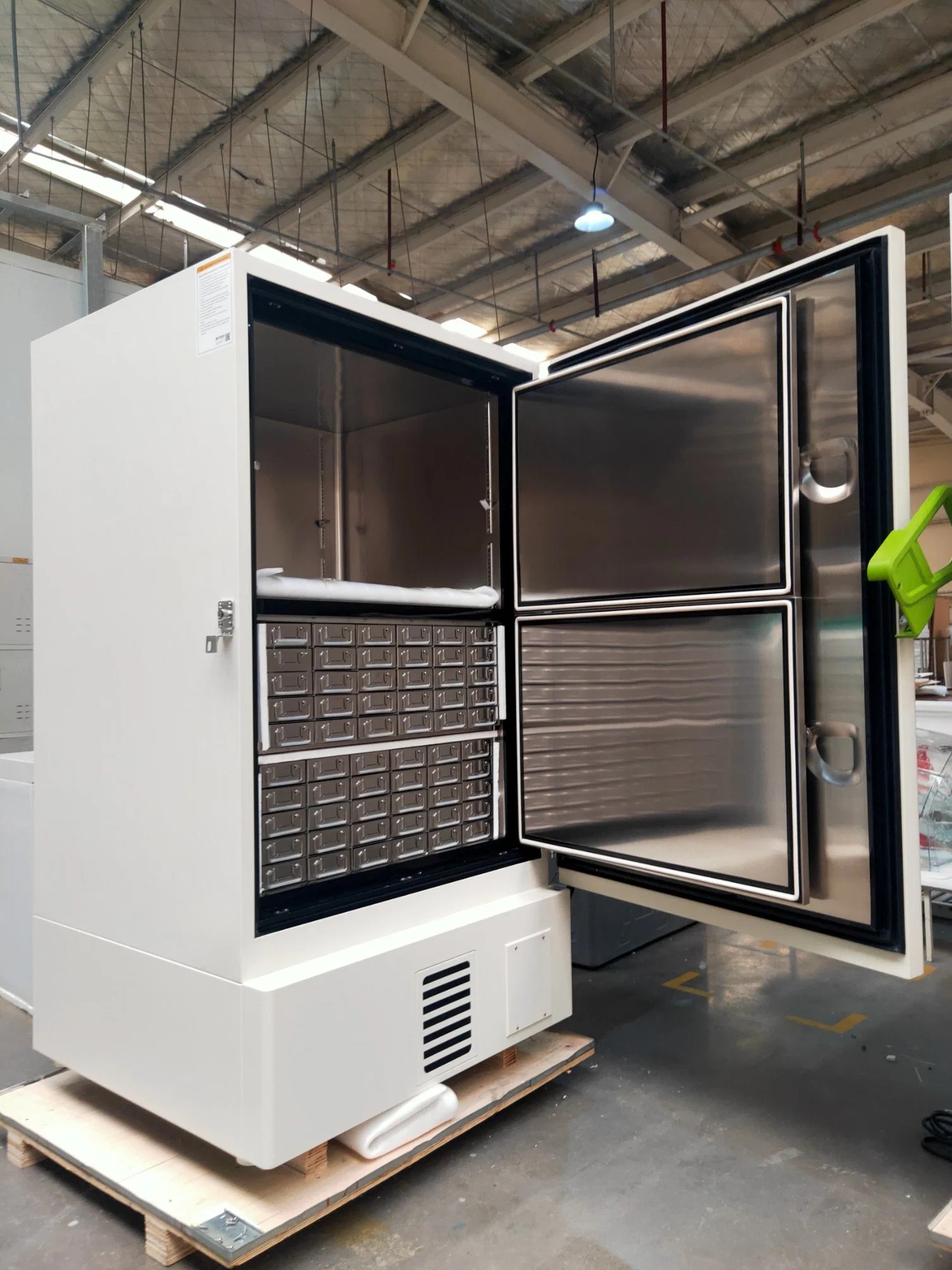

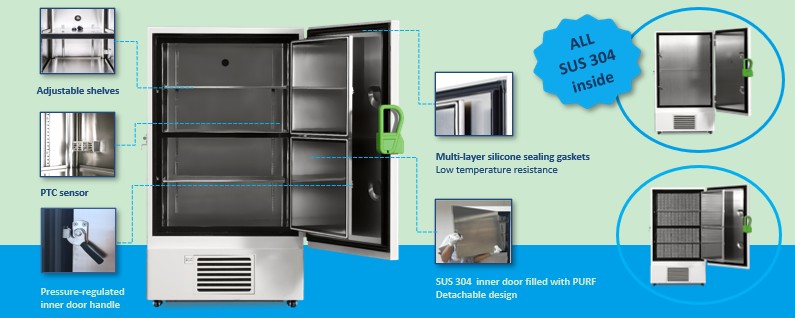

INTERNAL STRUCTURE

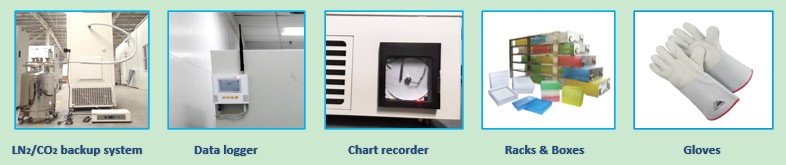

ACCESSORIES
SPECIFICATIONS
| Basic | Refrigeration System | Alarms | |||
| Cooling method | Direct Cooling | Refrigerant | R4001 (mixed gas) | High/low temperature | Y |
| Defrost | Manual | Temp. controller | Microprocessor | Power failure | Y |
| Temperature range | -40℃～-86℃ | System | Dual system | Abnormal voltage | Y |
| Ambient temperature | 10~32℃ | Sensor | PTC | Sensor error | Y |
| Display | 7'' LCD touch screen | Compressor brand/QTY | SECOP/2 | Door ajar | Y |
| Access port QTY/Dia. | 1/25mm | Capacity(L/cu.ft) | 728/25.70 | Filter screen check | Y |
| USB Access | Y | Insulation | PURF+VIP | Thermostat failure | Y |
| Remote alarm Access | RS232/485 | Inner door material/QTY | Foamed SUS304/2 | Low battery | Y |
| Outside material | Color sprayed steel | Racks | 18(5x4)+6(6x4) | Condenser clean | Y |
| Inside material | SUS304 | Boxes (2 Inches) | 504 | High ambient temperature | Y |
| Castor | Universal | Samples(2ml) | 50,400 | Door ajar | Y |
| Power failure backup (alarm) | 72h | ||||
| Electrical Data | Dimensions | Accessories | |||
| Voltage frequency(V/Hz) | 220V 50Hz/60Hz | Package size(W*D*H)(mm) | 1320*970*2185 | Chart recorder | Optional |
| Power(W) | 1400W | Exterior size(W*D*H)(mm) | 1248*975*1994.5 | Data logger | Optional |
| Current(A) | 10.37A | Interior size(W*D*H)(mm) | 963*558*1350 | CO2 back up system | Optional |
| Power consumption | 23.44Wh/24h | Shipping CBM | 2.8 | LN2 back up system | Optional |
| Noise(db) | 55 | N.W/G.W(kg) | 380/400 | Gloves | Optional |
