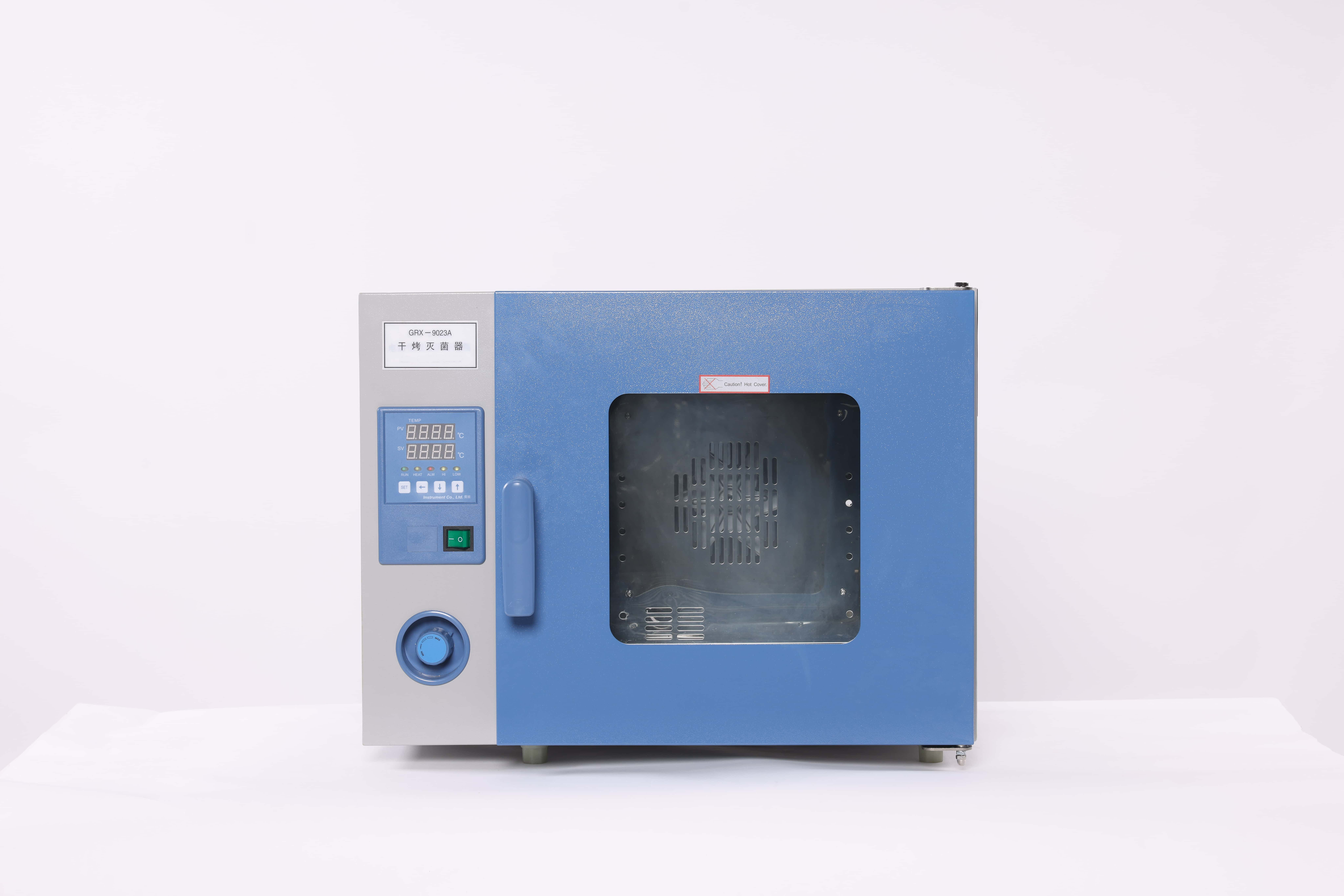

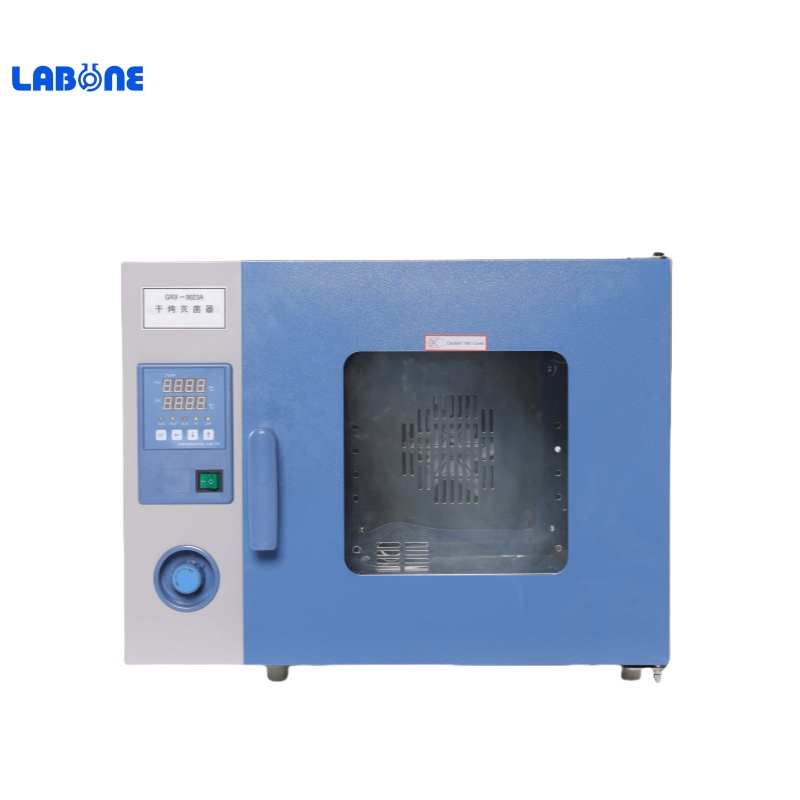

GRX-9023A Dry-Heat Sterilizer (Hot Air Sterilization Box)

By making use of high-temperature and dry-heat technology, the equipment can poison microorganisms by oxidizing them, and causing denaturation of protein and concentration of dielectrics. It damages protoplasm of cells by oxidization to cause microorganis

GRX-9023A Dry-Heat Sterilizer (Hot Air Sterilization Box)



Purposes

By making use of high-temperature and dry-heat technology, the equipment can poison microorganisms by oxidizing them, and causing denaturation of protein and concentration of dielectrics. It damages protoplasm of cells by oxidization to cause microorganisms die. Hence, in certain heating time, all microorganisms can be killed.

Features

1.Digital display microcomputer temperature controller with timing function; precision and reliable temperature control.

2.Quick temperature rise, forced convection; dry and hot air can directly pass through the heated object for dry and sterilization, which apparently shortening the time.

3.The equipment can automatically break off, if limited temperature is exceeded, to ensure safety.

4.Adjustable ventilation door; spacing of shelves can be arbitrarily adjusted.


Specifications

Model

GRX Series of Dry-Heat Sterilizer (Hot Air Sterilization Box)

GRX-9023A

GRX-9053A

GRX-9073A

GRX-9123A

GRX-9203A

GRX-9403A

GRX-9603A

Power voltage

220V 50HZ

380V 50HZ

Temperature controlling range

RT+10~300

Temperature resolution

0.1℃

Temperature fluctuation

±1

Input power

870w

1120w

1570w

2070w

2470w

3300w

4200w

Ambient temperature for operations

5~40

Inner dimension(mm)

340x325x320

420x395x350

400x450x450

550x450x550

600x600x650

600x550x1300

800x600x1300

Outline dimension(mm)

620x490x490

720x590x520

740x590x630

840x570x730

880x750x825

780x760x1800

980x800x1800

Carrier(standard configuration)

2 pieces

3 pieces

4 pieces

Timing range

1-9999 minutes

Conditions of no-load performance test: ambient temperature: 20, and ambient humidity: 50%RH;



Options:

1. Intelligent programming temperature controller.

2. Independent temperature limiter;

3. Printer;
