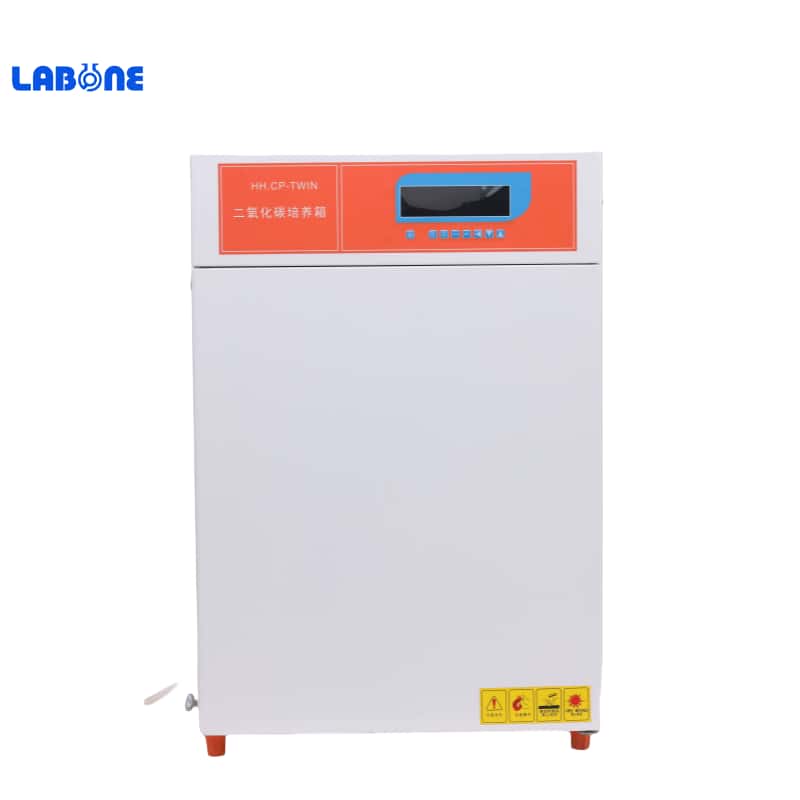

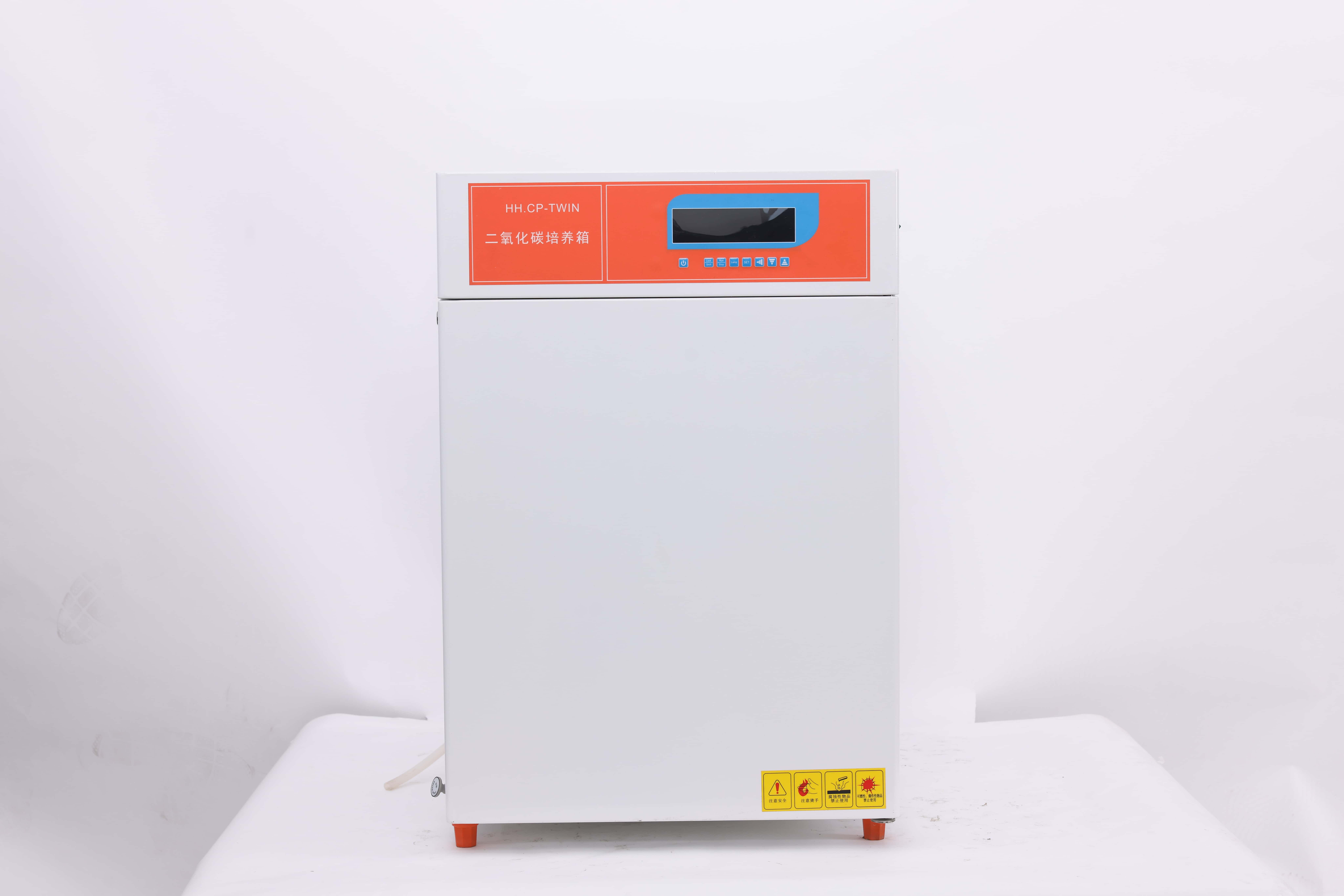

HH.CP-TWIN CO2 Incubator
CO2 incubator is the advanced equipment for cell, bacteria and micro organism culture, is the essential product for research of immunoligy, genetics and bioengineering, and is widely applied to research and production of medical science, agricultural scie
HH.CP-TWIN CO2 Incubator
Purposes
CO2 incubator is the advanced equipment for cell, bacteria and micro organism culture, is the essential product for research of immunoligy, genetics and bioengineering, and is widely applied to research and production of medical science, agricultural science and pharmacology.
Features
The new generation of HH.CP. Series of CO2 incubator is produced by the company through importing advanced technologies and materials, having high performance and features of quick heating and precision temperature control.
1.Digital-display microcomputer controller with timing function, having tiny temperature fluctuation.
2.Argo-arc welded by mirror stainless steel to wire-drawing board; half-arc corners for easy cleaning.
3.Regular disinfection can be made by the ultraviolet germicidal lamp in the tank, to effectively prevent contamination of cells during culture.
4.Door temperature is controlled to effectively prevent dew of glass door.
5.Special reducing valve is for CO2 incubator equipped in the tank.
6.Imported infrared CO sensor is adopted for“IN"series.
Specifications
Model | HH.CP Series of CO2 Incubator | |||||||
HH.CP-T | HH.CP-TIN | HH.CP-01 | HH.CP-01IN | HH.CP-TW | HH.CP-TWIN | HH.CP-01W | HH.CP-01WIN | |
Volume | 80L | 80L | 160L | 160L | 80L | 80L | 160L | 160L |
Power voltage | 220V50Hz | |||||||
Heating method | Air-jacket
| Water-jacket
| ||||||
Temperature controlling range | RT+5°℃~50°℃ | |||||||
Temperature controlling accuracy | ±0.3℃ | |||||||
Temperature resolution | 0.1℃
| |||||||
CO2 temperature controlling range | 0~20%(Air-adjusting type)
| |||||||
CO2 recovery time | ≤Concentration Value x1.2min
| |||||||
Humidity method | Natural evaporation | |||||||
Input power | 450w | 770w | 730w | 1000w | ||||
Ambient temperature for operations | 5°℃~35°℃ | |||||||
Inner dimension(mm) | 500×400x400 | 500×500x650
| 400×400x500
| 500×500×650
| ||||
Outline dimensions(mm) | 760×530×560 | 770x630x810
| 710x540x720
| 805x640x870
| ||||
Carrier(standard configuration) | 2pieces | 3pieces
| 2pieces | 3pieces
|
·Conditions of no-load performance test: ambient temperature:20°C, and ambient humidity: 50%RH;
·Operating conditions for equipment: ambient temperature:5~30°℃;
