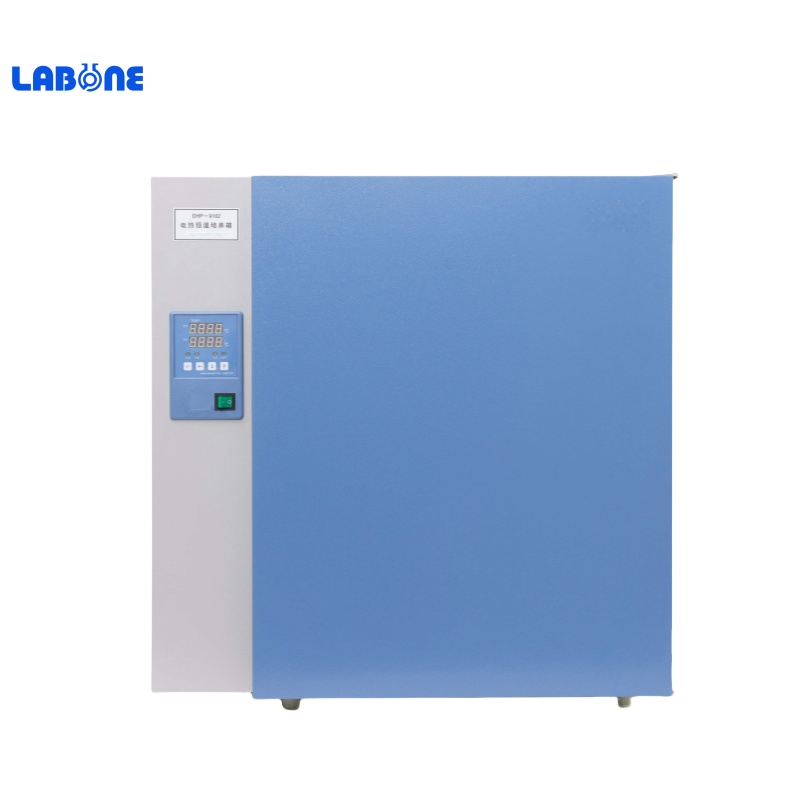

DHP-9162 Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatic incubator)

Essential equipment for colleges and universities,and biological agricultural and RD sectors for strain storing,biological culture and research.

DHP-9162 Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatiincubator)



Purposes

Essential equipment for colleges and universities,and biological agricultural and R&D sectors for strain storing,biological culture and research.



Features

1.Digital-displaymicrocomputercontrollerwithtimingfunction,stable and reliable.

2.Dual-door structure,with glass interior door.

3.Mirror stainless steel tank;electrothermal-film heating with quick heating speed.

4.With independent temperature limiting alarm system,the heating will be automatically broken off if upper temperature limit is exceeded to ensure safe operation of the experiment,without occurrence of accident.(optional)

5.In"Dseriesliquid crystal temperature controller is contained.


Specifications

Model

DHP Series of Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatiincubator)

DHP-9052

DHP-9052D

DHP-9082

DHP-9082D

DHP-9162

DHP-9162D

DHP-9272

DHP-9272D

DHP-9402

DHP-9402D

DHP-9602

DHP-9602D

Heating method

Electrothermal-film

Electrothermal-tube

Temperature controlling range

RT+5℃ ~ 65

Temperature resolution

0.1

Temperature fluctuation

±0.5

Power voltage

220V 50HZ

Input power

250w

360w

560w

760w

1100w

1500w

Ambient temperature for operations

5~35

Inner dimension(mm)

410x360x360

500x400x400

500x500x650

600x600x750

600x520x1300

800x580x1300

Outline dimension(mm)

680x500x500

770x530x540

790x630x810

890x710x910

780x760x1800

980x800x1800

Carrier(standard configuration)

2 pieces

3 pieces

4 pieces

Timing range

1-9999 minutes

Conditions of no-load performance test: ambient temperature: 20, and ambient humidity: 50%RH;

Operating conditions for equipment: ambient temperature: 5-30;



Options:

1. Intelligent programming liquid-crystal temperature controller;

2. Independent temperature limiter;

3. RS485 interface and communication software;
