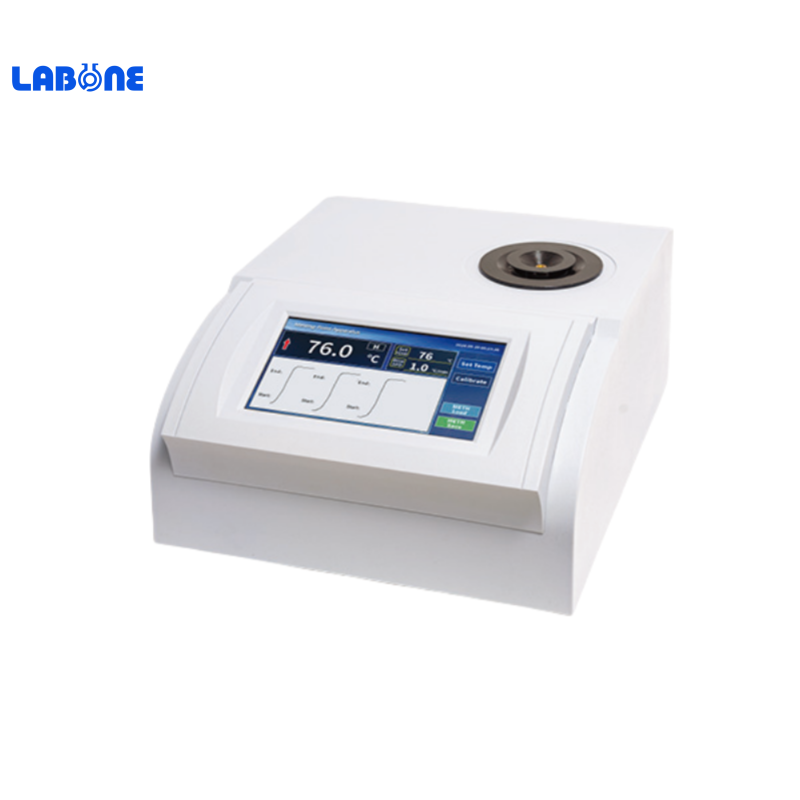

WRS-2C/WRS-2A/WRS-1C/WRS-1B/WRS-2Auto Melting Point Apparatus
To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.Use PID PWM to control the temperature.Automatically records the melting curve.Calculate average value of initial and final melting points automat
Characteristics
lTo be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
lUse PID & PWM to control the temperature.
lAutomatically records the melting curve.
lCalculate average value of initial and final melting points automatically
lEquipped with clock function.
lCan connect to a computer for data transferring.
lTouch Screen.
Specifications
Parameters/Model | WRS-2C | WRS-2A | WRS-1C | WRS-1B | WRS-2 |
Measuring range | RT ~ 360℃ | RT ~ 300℃ | RT ~ 400℃ | RT ~ 320℃ | RT ~ 300℃ |
Measuring mode | Auto | ||||
Measuring methods | 8 | ||||
Resolution | 0.1℃ | ||||
Linear heating-up rate | 0.1°C/min -10°C/min | ||||
Accuracy | ≤ 200℃±0.4℃;>200℃±0.7℃ | ||||
Repeatability | 0.3°C(heating rate: 1.0°C/min) | ||||
Linear heating rate error | ±10% | ||||
Number of capillary | 3 | 1 | |||
Capillary dimensions | Outer diameter: Φ1.4mm Inner diameter: Φ1.0mm Length: 90mm | ||||
Height of sample | 3mm | ||||
Data storage | 1000sets | / | 1000sets | / | / |
Display | 7 inch touch LCD | ||||
Printer(Thermal) | Standard accessory | / | Optional accessory | Optional accessory | / |
interface | RS232，USB | ||||
Power supply | 100~240VAC，50/60Hz，100W | ||||
Package Dimension | 580mmx445mmx320mm | 500mmx445mmx330mm | |||
Weight(Gross) | 13KG | 11KG | |||
