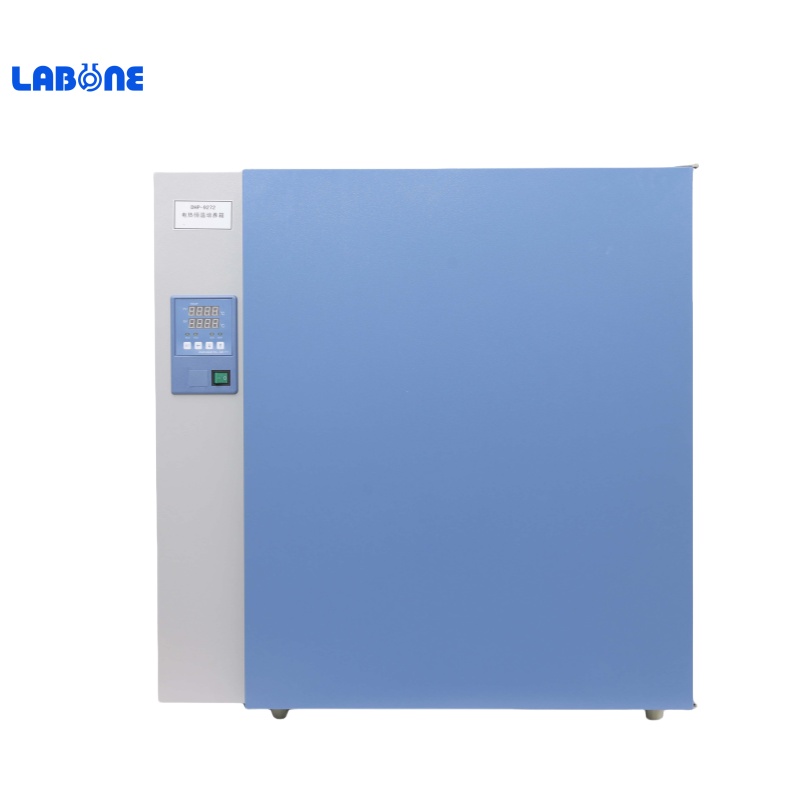

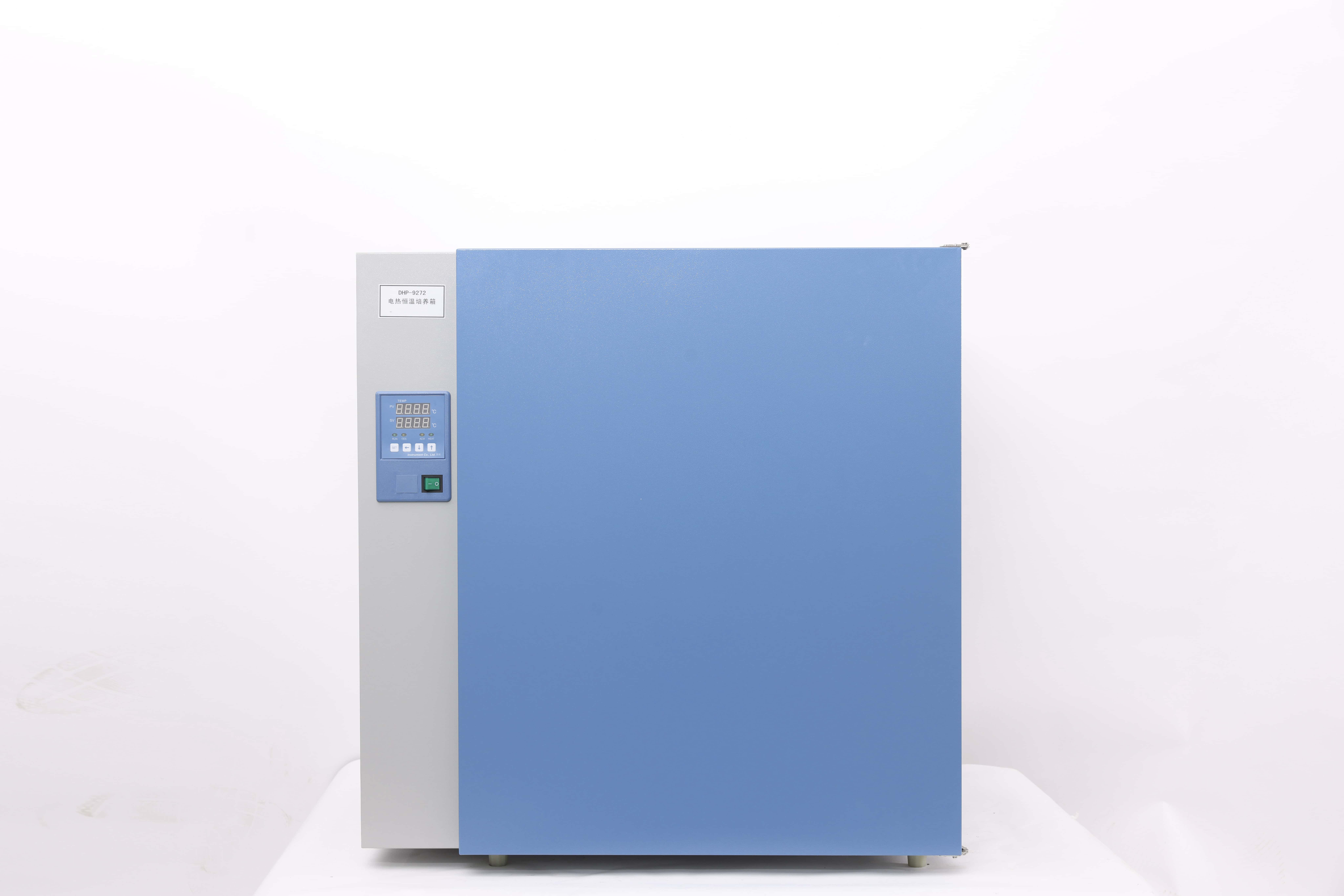

DHP-9272 Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatic incubator)
Essential equipment for colleges and universities,and biological agricultural and RD sectors for strain storing,biological culture and research.
DHP-9272 Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatic incubator)
Purposes
Essential equipment for colleges and universities,and biological agricultural and R&D sectors for strain storing,biological culture and research.
Features
1.Digital-displaymicrocomputercontrollerwithtimingfunction,stable and reliable.
2.Dual-door structure,with glass interior door.
3.Mirror stainless steel tank;electrothermal-film heating with quick heating speed.
4.With independent temperature limiting alarm system,the heating will be automatically broken off if upper temperature limit is exceeded to ensure safe operation of the experiment,without occurrence of accident.(optional)
5.In"D”series,liquid crystal temperature controller is contained.
Specifications
Model | DHP Series of Electrothermal Thermostatic Incubator (Electrothermal-Flm Thermostatic incubator) | |||||
DHP-9052 DHP-9052D | DHP-9082 DHP-9082D | DHP-9162 DHP-9162D | DHP-9272 DHP-9272D | DHP-9402 DHP-9402D | DHP-9602 DHP-9602D | |
Heating method | Electrothermal-film | Electrothermal-tube | ||||
Temperature controlling range | RT+5℃ ~ 65℃ | |||||
Temperature resolution | 0.1℃ | |||||
Temperature fluctuation | ±0.5℃ | |||||
Power voltage | 220V 50HZ | |||||
Input power | 250w | 360w | 560w | 760w | 1100w | 1500w |
Ambient temperature for operations | 5℃~35℃ | |||||
Inner dimension(mm) | 410x360x360 | 500x400x400 | 500x500x650 | 600x600x750 | 600x520x1300 | 800x580x1300 |
Outline dimension(mm) | 680x500x500 | 770x530x540 | 790x630x810 | 890x710x910 | 780x760x1800 | 980x800x1800 |
Carrier(standard configuration) | 2 pieces | 3 pieces | 4 pieces | |||
Timing range | 1-9999 minutes |
Conditions of no-load performance test: ambient temperature: 20℃, and ambient humidity: 50%RH;
Operating conditions for equipment: ambient temperature: 5-30℃;
Options:
1. Intelligent programming liquid-crystal temperature controller;
2. Independent temperature limiter;
3. RS485 interface and communication software;
