PMULP-4C Portable Three-Chlorine Meter Free Chlorine Total Chlorine Combined Chlorine High Accuracy
PMULP-4CPortable Three-Chlorine Meter In the field of water quality monitoring and analysis, Free Chlo

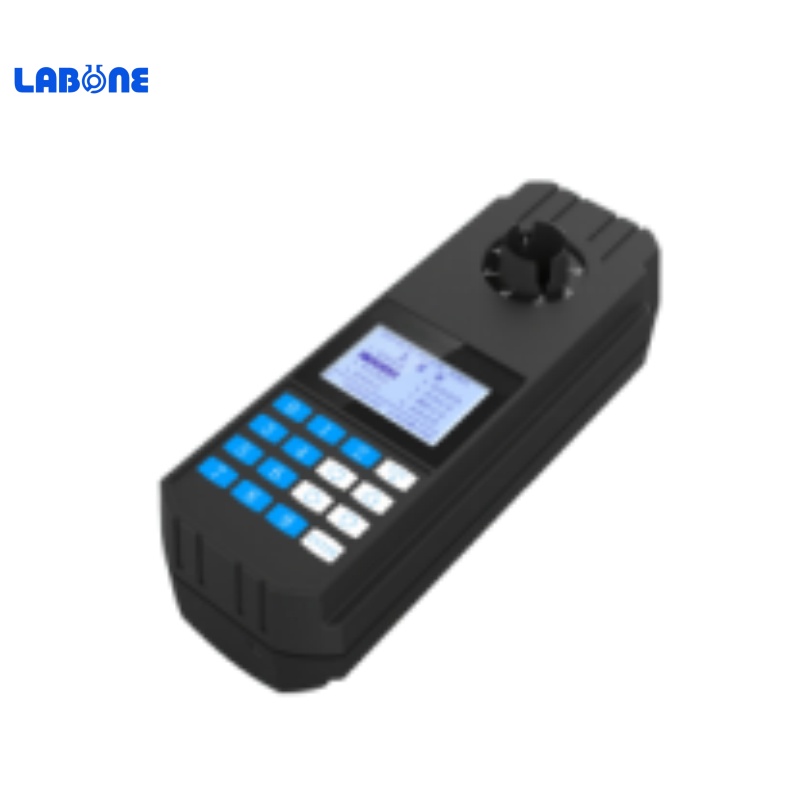

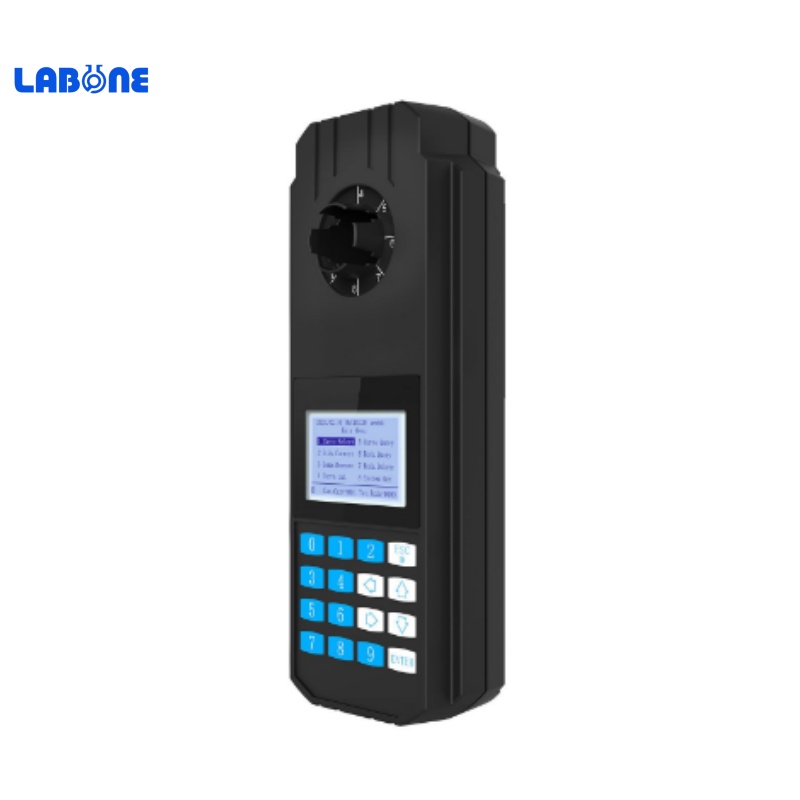

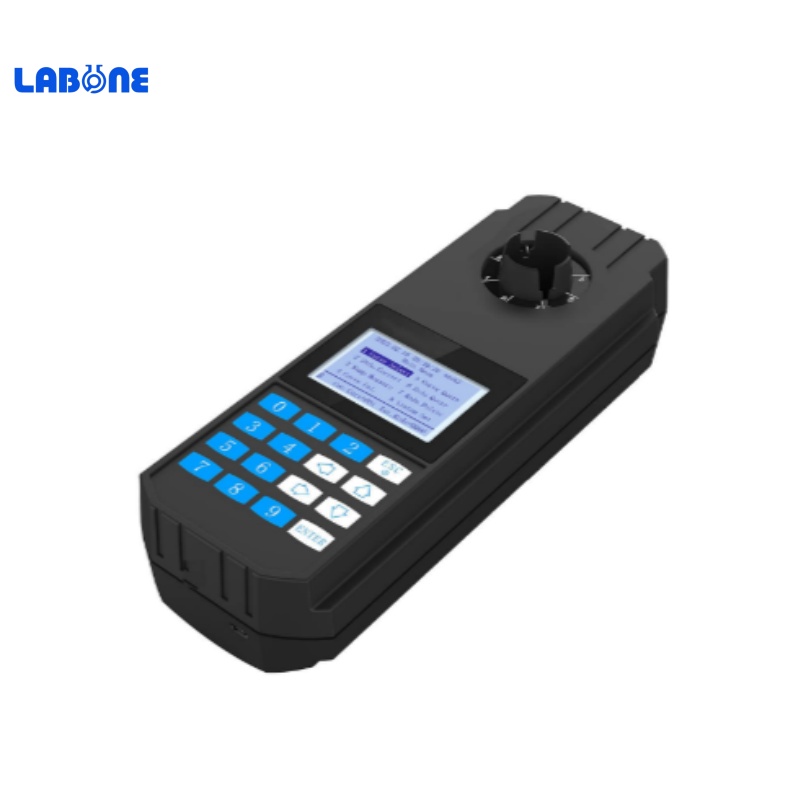

PMULP-4C Portable Three-Chlorine Meter
In the field of water quality monitoring and analysis, Free Chlorine, Total Chlorine, and Combined Chlorine are key indicators for assessing the chlorine content in water. To meet the demand for efficient and convenient on-site testing, the "Three-in-One" meter integrating Free Chlorine, Total Chlorine, and Combined Chlorine detection has been developed. This instrument integrates the detection functions for Free Chlorine, Total Chlorine, and Combined Chlorine, providing users with an integrated, high-precision water quality analysis solution. It is widely used in drinking water treatment, wastewater treatment, industrial production, food processing, swimming pool management, scientific research, education, and many other fields.
Technical Specifications
Parameter | Free Chlorine | Total Chlorine | Combined Chlorine |
Measurement Range | 0-10mg/L | 0-10mg/L | 0-10mg/L |
Resolution | 0.01mg/L | 0.01mg/L | 0.01mg/L |
Indication Error | 5%F.S | ||
Repeatability | ≤±2% | ||
Optical Stability | Absorbance drift less than 0.002A within 20 minutes | ||
Detection Standard | GB/T 5750.11-2023 / HJ586-2010 | GB/T 5750.11-2023 / HJ586-2010 | GB/T 5750.11-2023 / HJ586-2010 |
Analysis Method | DPD or TMB Method | DPD or TMB Method | DPD or TMB Method |
Data Storage | Can store 250 factory calibration curves, 749 user calibration curves, and 9999 groups of measurement data | ||
Display | Large screen Chinese character LCD display | ||
Power | 10W | ||
Dimensions | 88mm*230mm*52mm | ||
Weight | Main Unit: 0.5 kg | ||
Power Supply | High-capacity rechargeable lithium battery | ||
Charging/Data Interface | Mini USB | ||
Operating Conditions | (1) Ambient Temperature: 5 ~ 40℃; (2) Relative Humidity: ≤85%; (3) No significant vibration or electromagnetic interference, avoid direct sunlight | ||
Functional Features：
High-performance, high-capacity rechargeable lithium battery.
Large LCD screen with full Chinese character display, convenient and intuitive operation.
The instrument is compact and lightweight, making it easy to carry for on-site testing.
One-key factory reset function prevents loss or accidental deletion of curves.
Can store 250 factory calibration curves, 749 user calibration curves, and up to 9999 records (including concentration values with time stamps, absorbance, and transmittance).
Equipped with a USB interface for connecting to a computer, allowing stored data to be printed.
Cold light source and narrow-band interference optical system ensure good optical stability.
Data power-off protection function.
The main unit housing is made of molded ABS material, providing excellent corrosion resistance, dustproof, and waterproof performance

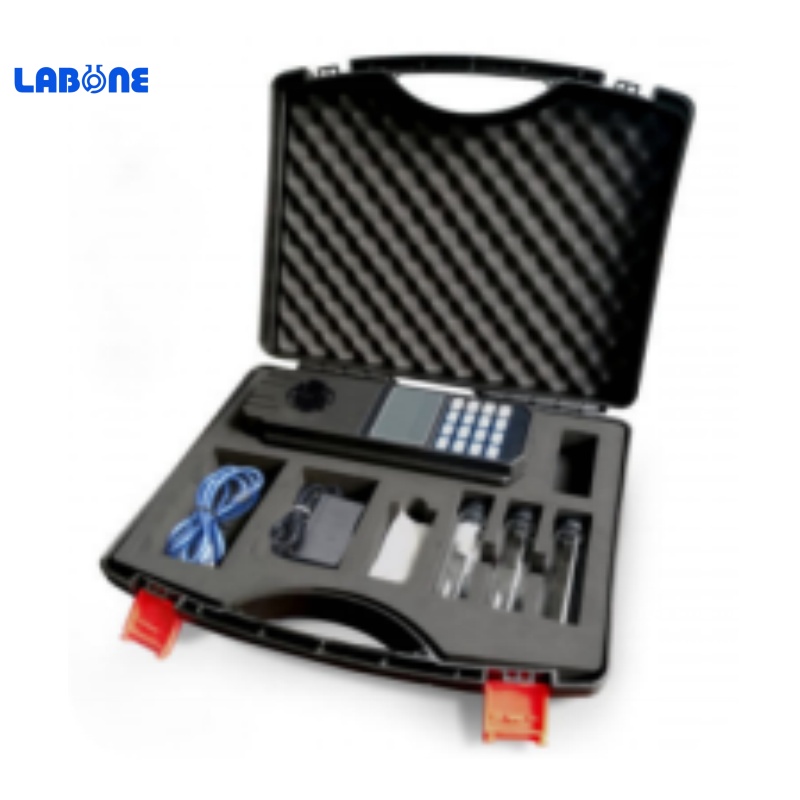

Packing List
Main Unit (1 unit),
Free Chlorine and Total Chlorine Reagent Kits (1 set each),
Cuvettes/Test Tubes (6 pieces),
Test Tube Rack (1 unit),
Portable Carrying Case (1 unit),
USB Cable (1 piece),
Charger (1 piece),
Data Acquisition Software (1 copy),
Instruction Manual (1 copy),
Product Certificate of Quality (1 copy),
Warranty Card (1 copy).
