QCOD-3M COD Rapid Digestion Analyzer Dual Touch Screen Host & Digester Bilingual Operation 1000 Groups Data Storage Lab Use

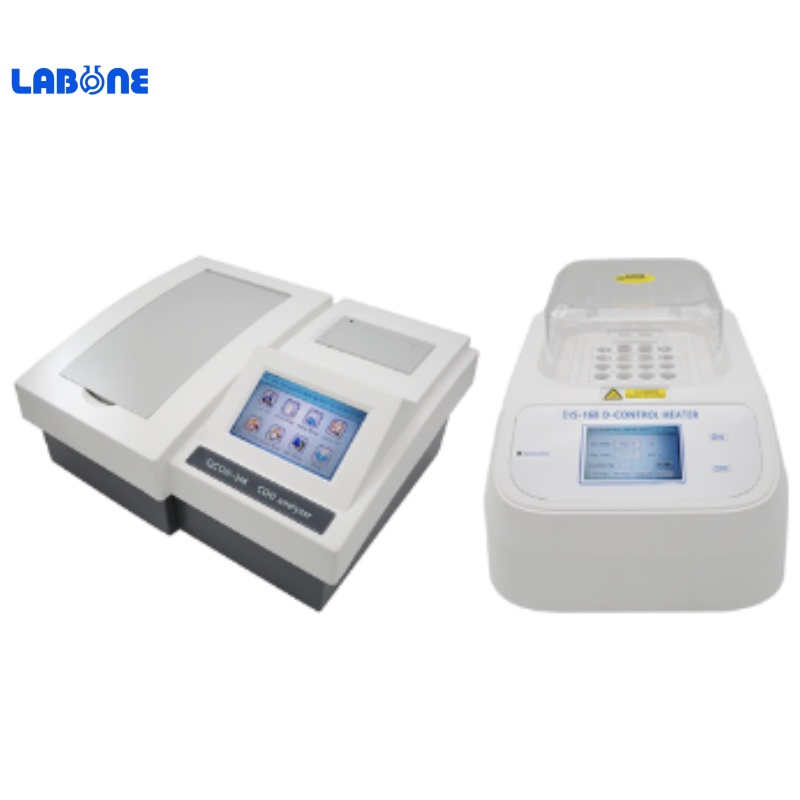

QCOD-3M-COD Analyzer[Product Overview]The QCOD-3M COD water quality measurement instruments, developed and produced by S

QCOD-3M-COD Analyzer

[Product Overview]

The QCOD-3M COD water quality measurement instruments, developed and produced by Shenchanghong, use advanced cold light source, narrow-band interference technology and microcomputer to automatically process data. The instrument first digests the sample with sealed catalyst, and then measure them by colorimetric method.





[Application Area]

Widely used in drinking water, groundwater, surface water, municipal sewage, industrial sewage, environmental monitoring, colleges and universities, scientific research institutions and other fields water measurements.


QCOD-3M type COD Analyzer

1. Designed according to the latest national standard COD measurement method;

2. Easy to operate, good precision and stability;

3. With print and USB data upload function;

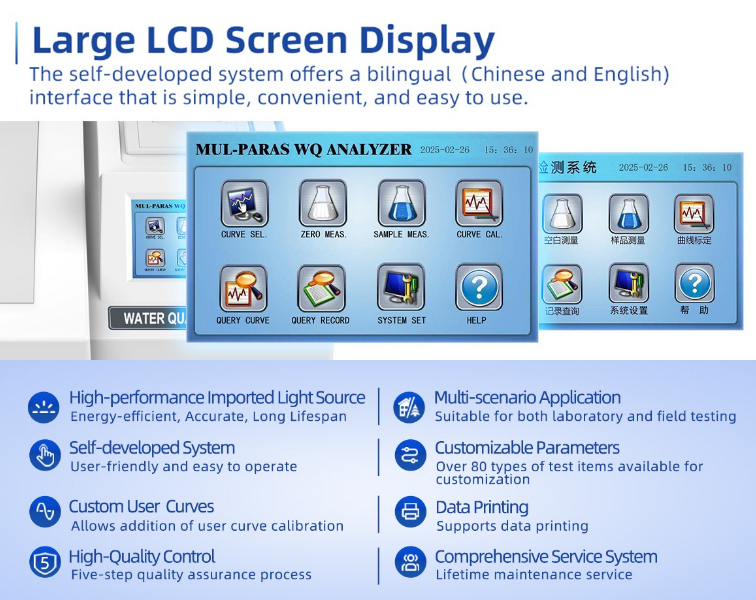

4. Large screen color touch screen, both Chinese and English display;

5. With one-click recovery function;



Product Overview:

It uses sealed catalytic digestion and then conducts colorimetric measurement.

With advanced cold light source, narrow-band interference technology and automatic data processing by microcomputer, it can directly display and print the COD (mg/L) value of the sample.

It is widely applicable to departments such as environmental monitoring, sewage treatment, colleges and universities, and scientific research institutions.


Technical Indicators

Measurement range

COD: 5~200mg/L ;200~2000mg/L(dilute if excess the measuring range)

Measuring accuracy

0.1 mg/L;1mg/L

Indication error

≤±5 %

Repeatability

≤±2%

Anti-chlorine interference

≤2000mg/L

Optical stability

Absorbance drift ≤0 .002A/20min; Light source lifespan 100,000 hours

Testing standard

HJ/T 399-2007

Analytical method

Closed Vessel Digestion and Colorimetric Method (Colorimetric Tubes)

Digestion capacity

16 samples per run

Temperature control system

COD digestion temperature: 165℃;Temperature range: room temperature ~200℃;  Accuracy:±0.5℃;Time period:1~9999min

digestion time

15min

Curve and Storage

3500 user-defined curves; Can store 100,000 records.

Display

Instrument: 5 inch 800*480 color touchscreen; Digester: 3.5 inch 480*320 color touchscreen

Power consumption

Instrument: 30W      Digester: 300W

Printer

Built-in thermal printer

Dimension

Instrument:400mm×320mm×182mm;Digester :249mm×350mm×199mm

Weight

Instrument:4.75kg      Digester:5.6kg

Working environment

(1)  Ambient temperature: 5~40℃

(2) Relative humidity: ≤85%

(3) Power supply:  Power supply: AC 220 (165V-240V)

(4) No significant vibration and electromagnetic interference, avoid direct sunlight.
