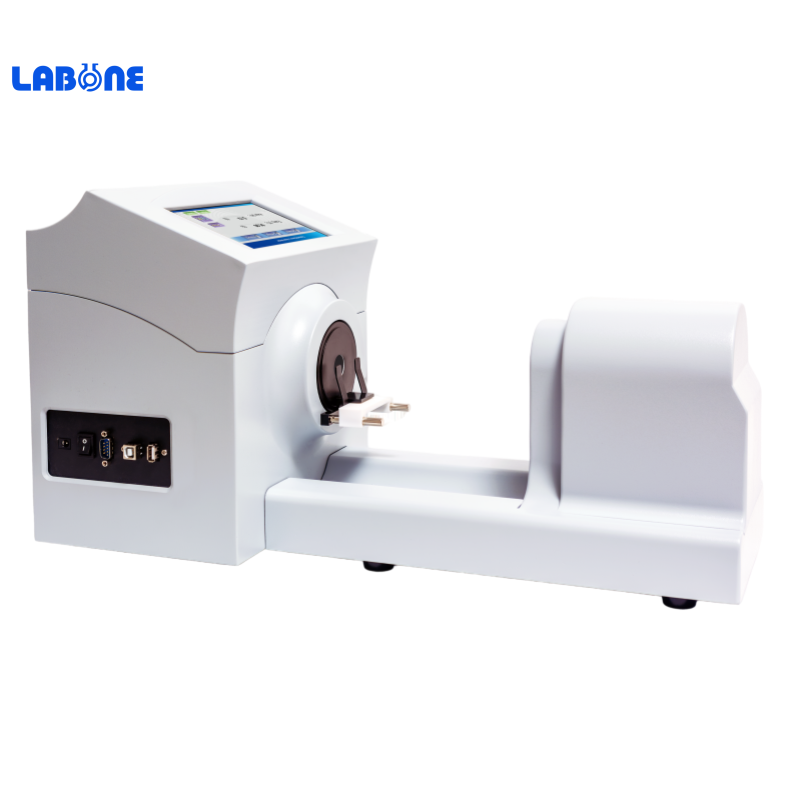

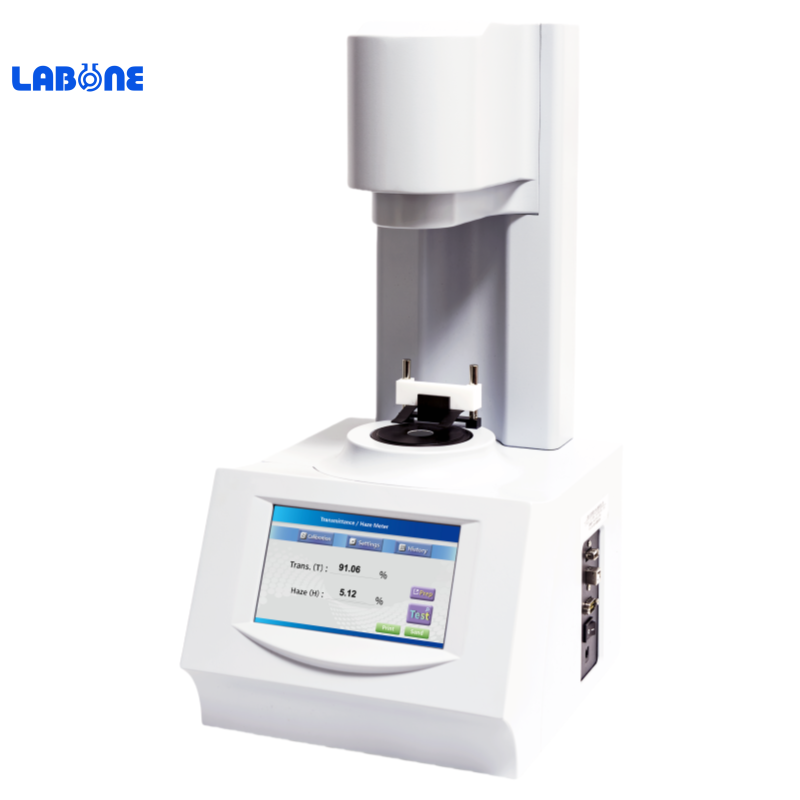

SGW-806 Hazemeter
Meet ASTM D1003-61(2007).Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.Use silicon photovoltaic cells as signal receiver.Computer operating system, automatic data processing system, no- knob operation and
Characteristics
Meet ASTM D1003-61(2007).
Parallel illumination, scattering hemisphere and integrating sphere optical receiving mode.
Use silicon photovoltaic cells as signal receiver.
Computer operating system, automatic data processing system, no- knob operation and very easy to use.
Smart Design with Horizontal or vertical set-up.
Reliable and precise transmittance and haze data.
The LED light source assures long-term stable results for many years.
Specifications
Parameters/Model | SGW-806 |
Illuminant | A light（2856K）、C light（6774k）、D65 light（6500K) |
Light Source | LED |
Measurement range | Transmittance: 0-100 % Haze: 0-100% |
Minimum reading | 0.01%(transmittance); 0.01%(haze) |
Accuracy | Transmittance: ≤±1 %(Standard neutral density filter); Haze: ≤±5 % |
Repeatability | Transmittance: ≤0.1% Haze: ≤0.1 |
Sample window size | 25mm(incident window) 21mm(exit window) |
Display | Large LCD touch screen |
Interface | USB、U disk |
Power supply | 220V±22V，50Hz±1Hz，100w |
Overall dimensions | 740mm×515mm ×486mm |
Weight (Gross) | 18kg |
