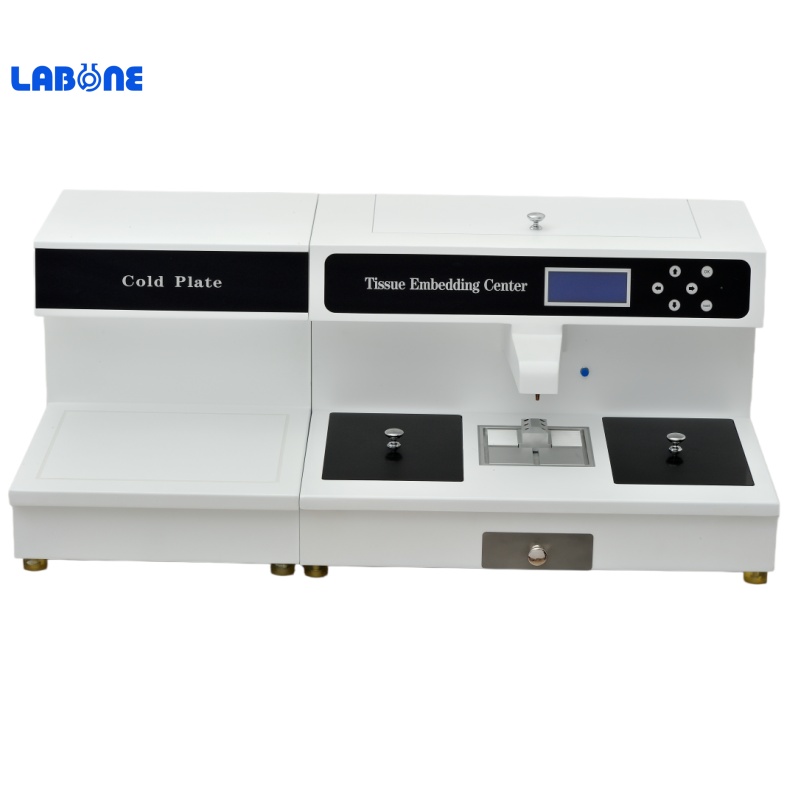

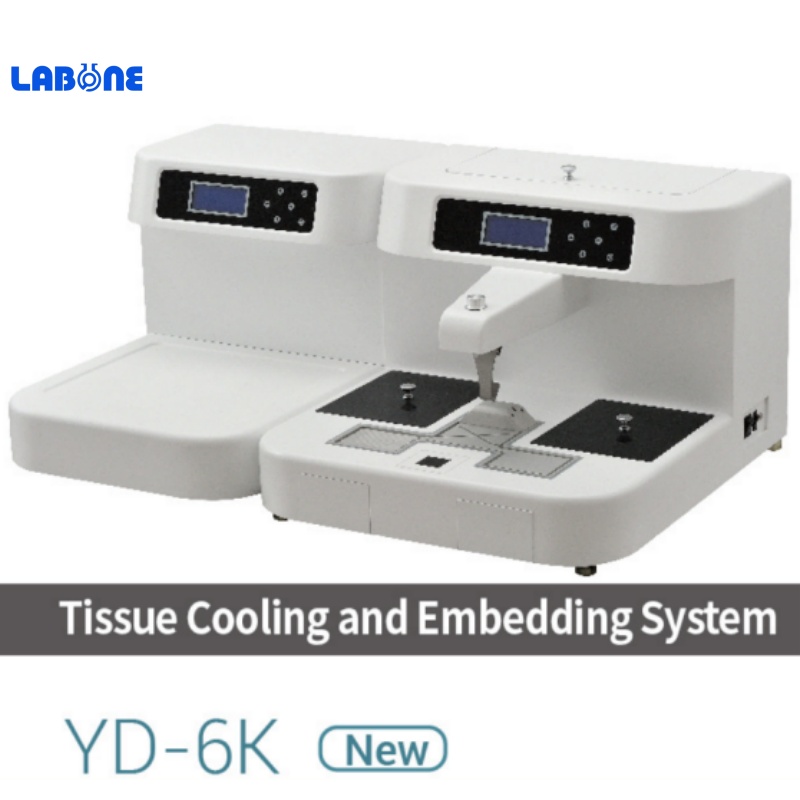

Tissue Embedding Center (with Cold Plate ) YD-6K

Tissue Embedding Center (with Cold Plate ) YD-6K

Features:

●Integrated design, fast heat up, high safety factor, long working life, good sealing properties and no wax dripping situation

●The newest high technology and Button Panel Control, new type of heating material

●The machine is made up of embedding system, cooling part .the design can be flexibly selected between embedding machine and cooling part.

●Memory function and Auto Recover feature, Automated control system make it possible for presetting the Embedding system or Cold plate switch on / off with setting time and temperature on schedule

●Special nano technical make it heat up quickly and equably.

●The LCD display can show the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.

●Low voltage lighting systems and Adjustable wax flow speed

● Small cold spot in working table .

●Large capacity paraffin bath can contain enough paraffin for use at one time.

● The heating function with multilevel security protection system.

●There are 3 heating hole for forceps in two side of the paraffin nozzle .

●Magnifying glass with lamp is optional accessory

●Collection drawer to collect paraffin from working table

Specification:

● Capacity of the paraffin pan : 6000 ml.

● Temperature range of Paraffin pan: 0 ~99℃

● Temperature range of working table: 0 ~99℃

● Temperature range of left and right warming box: 0 ~99℃

● Freezing temperature range of cold plate: 0 ~ -20℃

● Freezing temperature range of small cold spot in working table : 0 ~ -10℃

● Control mode: manual touch plate or foot switch

● About 120pcs of molds or 140pcs cassettes for each hot reservoir

● Capacity of Cold plate :About 50-80pcs of Tissue mold or cassettes

● Environment temperature: 0℃~ 40℃

● Time control: Switch on and switch off time of the machine is set in 24 hours optionally.

●Nominal voltage: AC110V-220V±10％.

●Rated frequency:50Hz/60Hz

●Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W

●Dimension: Embedding center (60x66x42cm), Cold plate (47x66x42cm)

●Gross /Net Weight: 50/25kg(for Cold plate ) 115/60kg(for YD-6K)

Standard Accessory

1 Foot Switch

4 pcs Tissue Molds

1 pc Power Wire

2 pcs Fuse

Optional accessory

Magnifying glass with lamp

Paraffin

Cassettes

See Price list for more detail !
