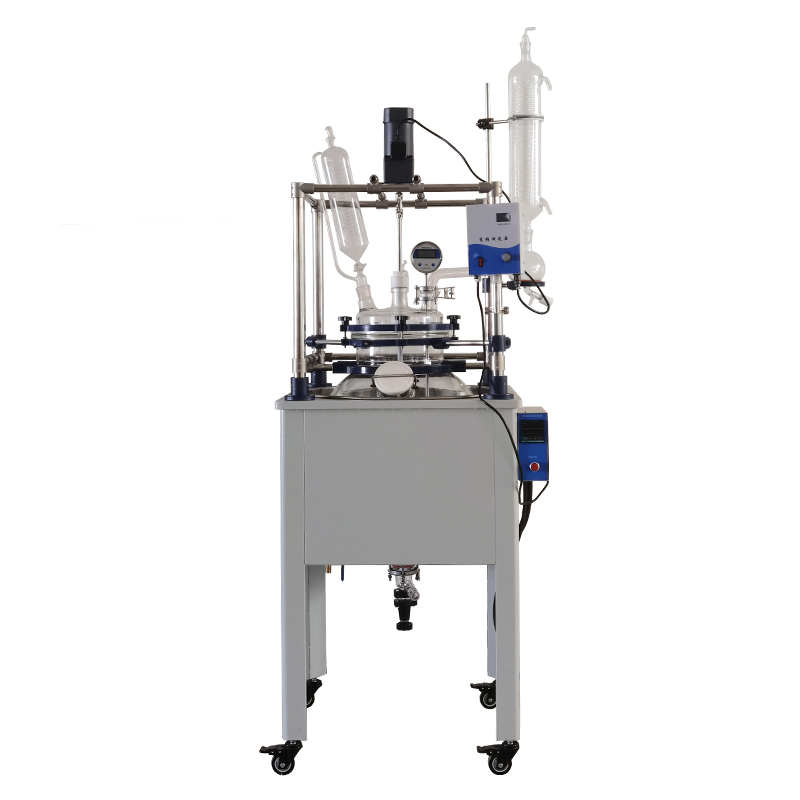

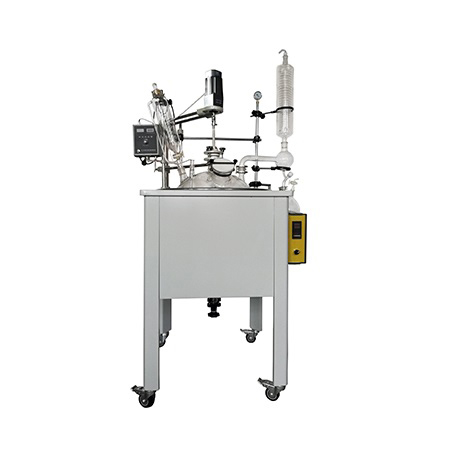

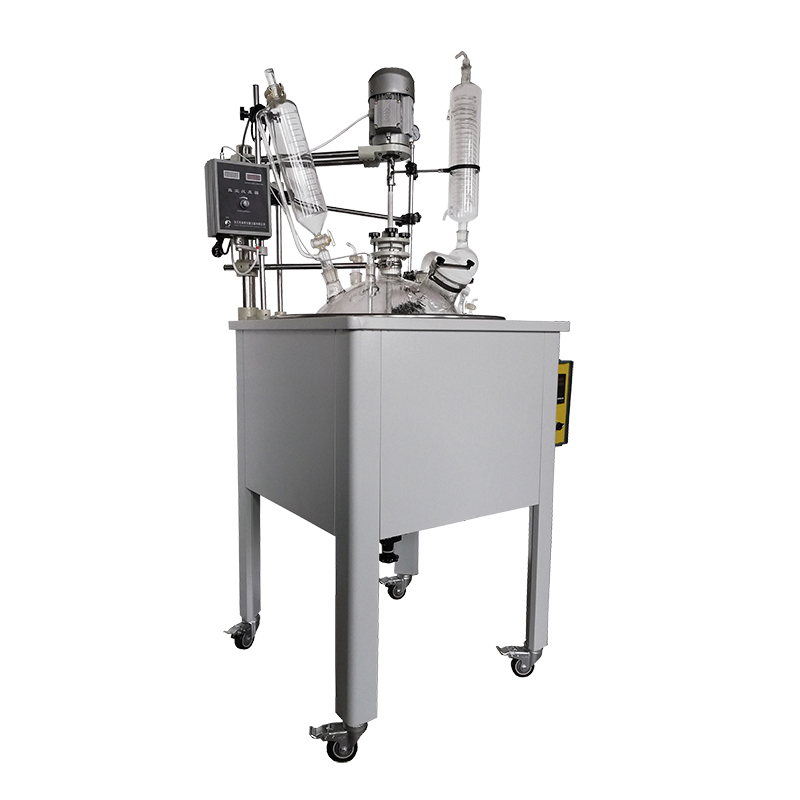

F-100L 100L single-layer glass reactor

Product parameters

Explosion-proof speed control box displays the rotation speed and temperature of materials in the kettle, explosion-proof stirring motor, and explosion-proof heating pot control the set temperature.

working principle

The single-layer glass reactor has a stirring system, a condensation reflux system, a dropping system, and a heating system. While stirring the materials, the bath pot heats the materials in the kettle, which can improve the evaporation efficiency under vacuum conditions (a vacuum device needs to be connected). The solvent vapor is cooled into a liquid when passing through the glass condensation coil (a cooling device needs to be connected), and can be refluxed. In the kettle, it can also be recycled through the valve at the bottom of the return elbow. After the reaction is completed, the material can be released from the side outlet at the bottom of the kettle. The use of this series of products requires supporting system devices such as vacuum devices and cooling circulation devices.

Features

1. This product is unique equipment. The whole machine adopts cold plate electrostatic spraying + stainless steel frame structure. It is compact, sturdy, non-deformable, and easy to move.

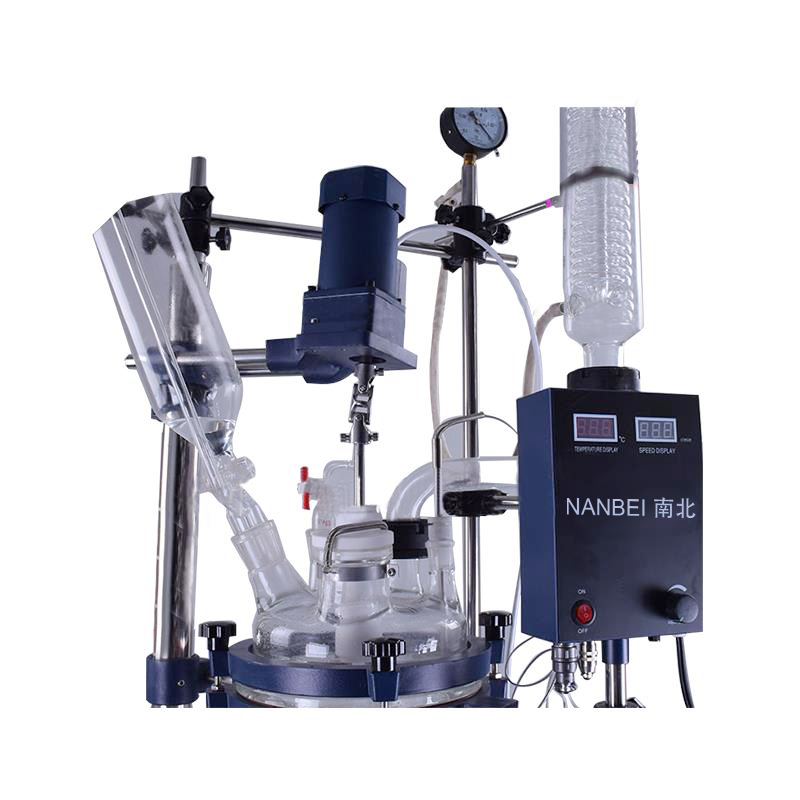

2. Explosion-proof speed control box, which displays the rotation speed and temperature of materials in the kettle, explosion-proof stirring motor, and explosion-proof heating pot to control the set temperature.

3. The mixing system adopts ceramic bearings and mechanical seals to prevent the mixing rod from wearing and chipping. It is resistant to high temperatures, wear and tear, and has good sealing effect.

4. Use PT100 temperature sensor and glass thermometer sleeve.

5. The vacuum pressure gauge displays real-time vacuum and the pointer displays.

6. Crescent stirring paddle, 304 stainless steel + PTFE stirring blade; stirring rod material is 304 stainless steel. Covered with PTFE pipe, it has high strength and strong corrosion resistance.

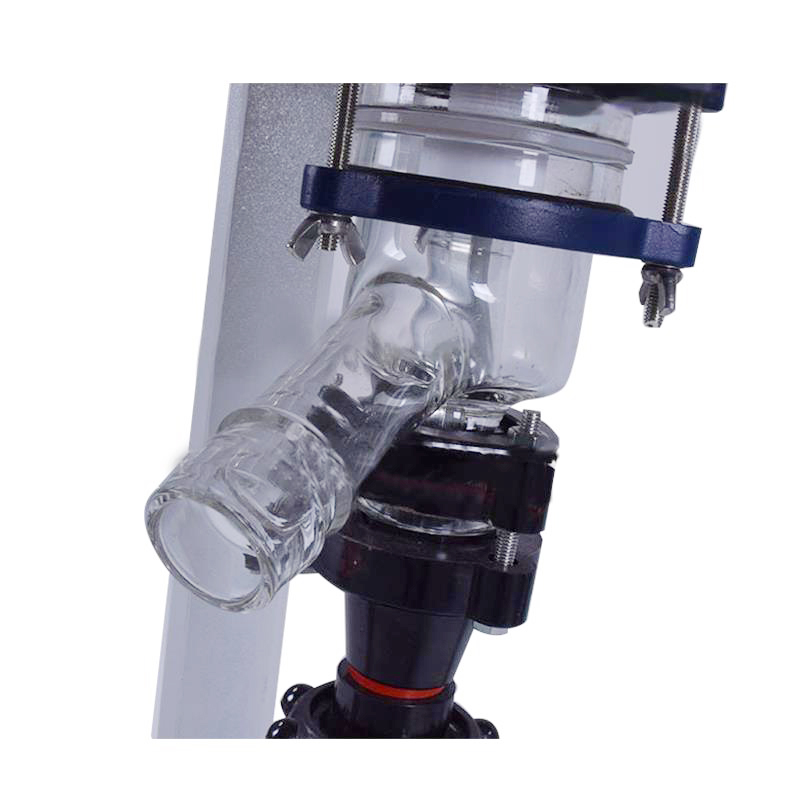

7. Glass + PTFE discharge valve, no liquid accumulation side discharge, recovery of solution is very fast.

8. The constant temperature bath pot has a built-in heating ring, and the heating bath pot has independent temperature control and high temperature control accuracy.

9. The bottom of the bath pot is equipped with a drain port for easy replacement.

10. The bottom of the machine is equipped with a universal wheel with brakes, which can be moved as a whole and is easy to operate.

Specification:
