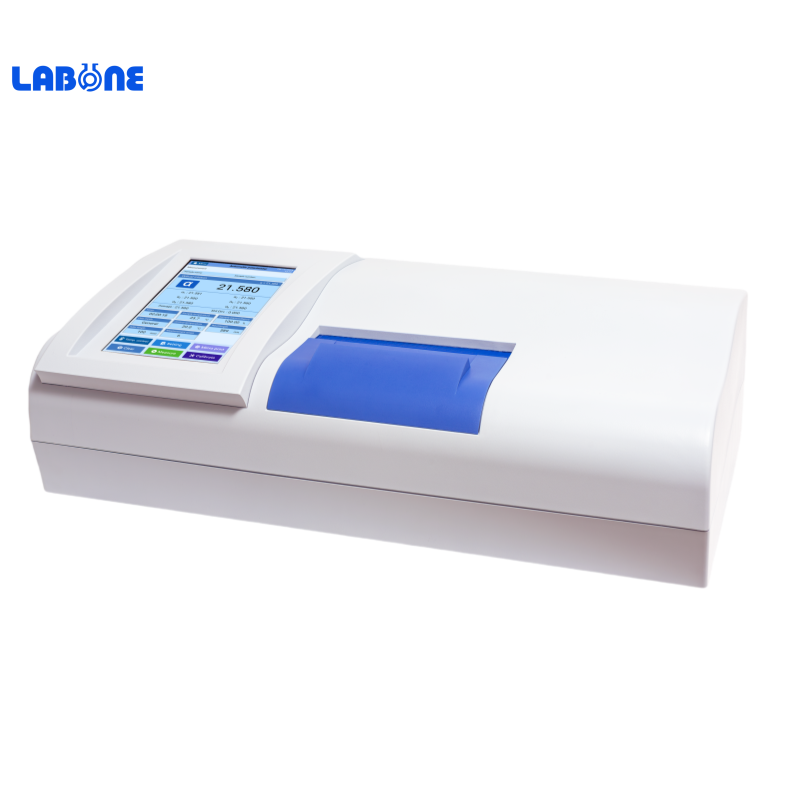

SGW-568A/SGW-537A/SGW-533AHigh-Speed Automatic Polarimeter

Unique and state-of-art control technology, equipped with high quality prisms.High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.LED light source that lasts over 100000 hours.Large database, and

Send request

Ask for price

Characteristics

lUnique and state-of-art control technology, equipped with high quality prisms.

lHigh response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.

lLED light source that lasts over 100000 hours.

lLarge database, and user hierarchical management, Up to 1000 pre-stored measurement methods.

lFast and stable temperature control minimizes measuring time.

lComply with phara standards and audit trail function is optional.

lAccess control (4 grades) and 500 users accounts.

lSGW-537 has eight different wavelengths to select. (365 nm to 880 nm, various combinations)

Specifications

Parameters/Model	SGW-568A	SGW-537A		SGW-533A
Measuring mode	Optical Rotation, Specific Rotation, Concentration, International Sugar Scale and User defined
Light source	LED +precision interference filters	Tungsten halogen lamp (20W)	LED +precision interference filters	LED+precision interference filters
Wavelength	589nm	Multiple wavelength	Dual wavelength	589nm
		Standard:546,589nmOptional:365,405,436,578,633nm	Standard:589nmOptional(one):365,405.436,546,578,633,880nm
Measuring range	±90°(OR) ±259°Z(ISS )
Resolution	0.0001°	0.001°		0.001°
Accuracy	±0.003°	±0.004°		±0.004°
Repeatability	≤0.002°
Min.transmission	0.01％	0.1％		0.05％
Response speed	8°/S
Measuring time	6 times/26s
Temp. Control range	Peltier temperature control: 10-50°C
Temp. accuracy	±0.2℃
Operating system	Android
Display	10.1 inch color touch LCD
Calibration method	Multi-point automatic calibration
Data storage	128G
GMP Regulations	Qualified
Audit trail	Optional
Interface	RS232,USB,Udisk,Keyboard,Mouse ,WIF,Ethernet
Test tubes	Standard: 200mm(regular),100mm(regular), 100mm(temp control)Optional: 50mm(regular), 200mm(temp control)
Power supply	220V+22V，50Hz+1Hz，200w
Overall dimensions	860mmx510mmx470mm
Weight(Gross)	36KG
