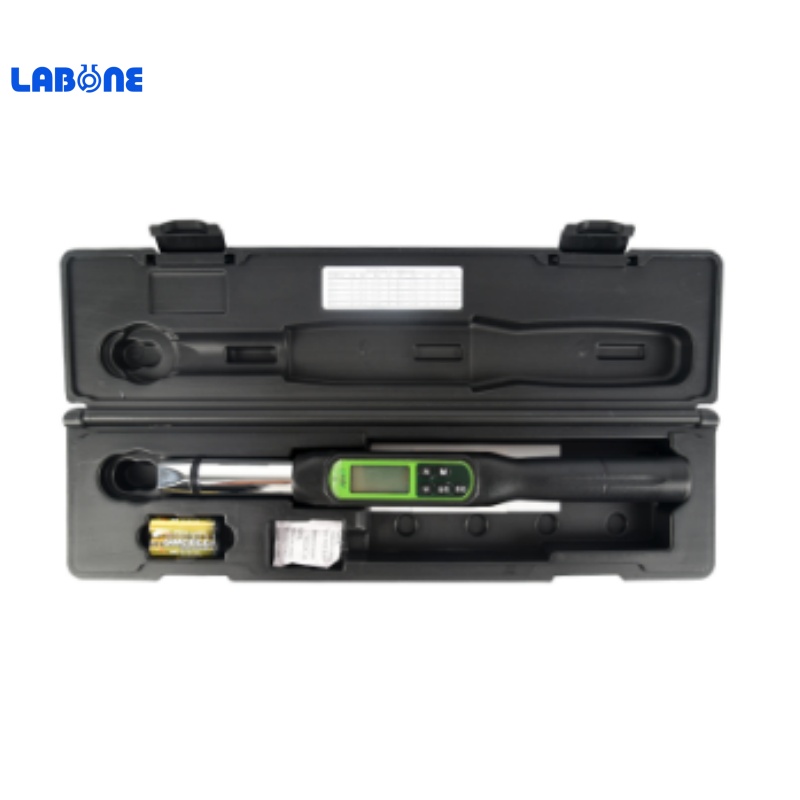

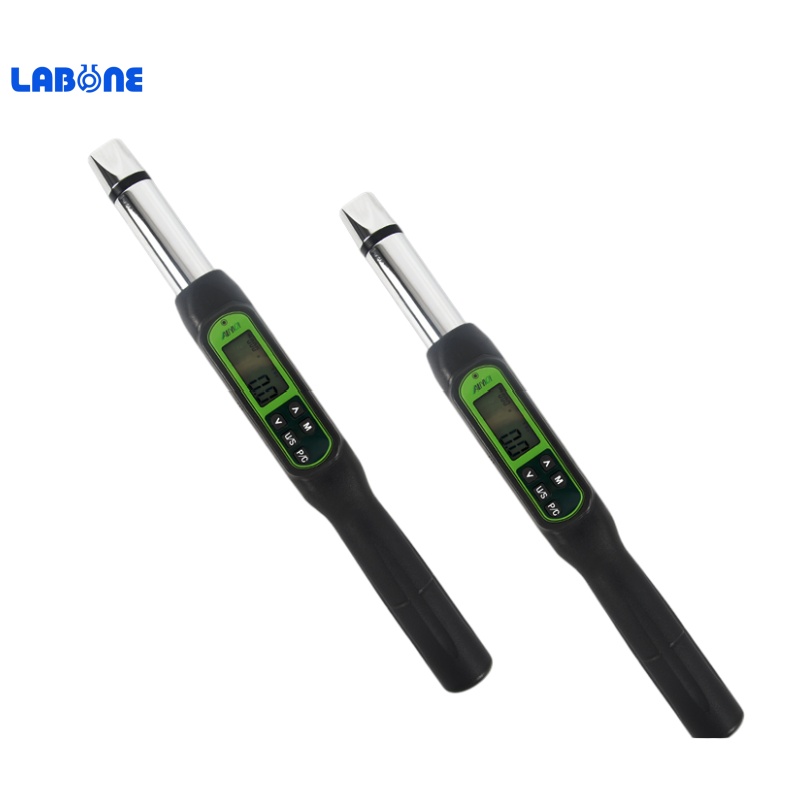

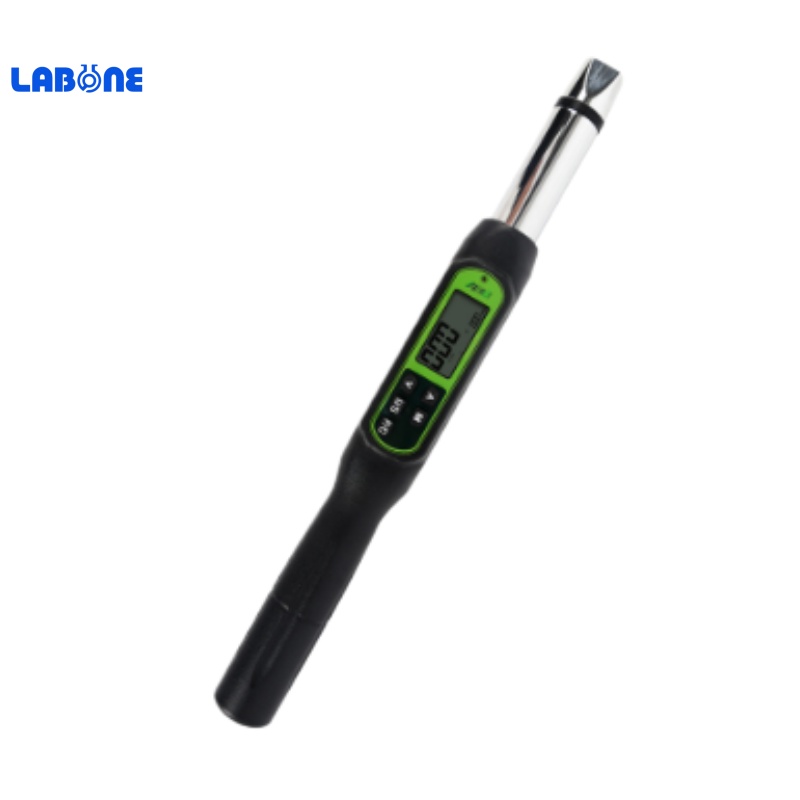

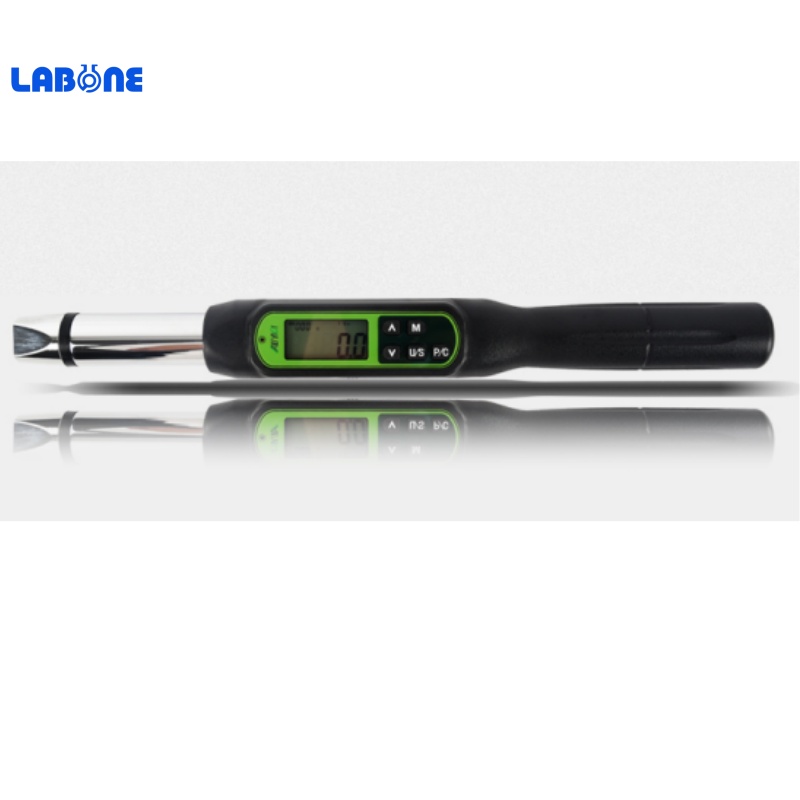

AWJC1-B-10 Interchangeable Head Digital Torque Wrench
AWJC1-B-10 Interchangeable Head Digital Torque WrenchLarge digital display, backlit function, audible and visual alarmTh
AWJC1-B-10 Interchangeable Head Digital Torque Wrench
Large digital display, backlit function, audible and visual alarm
Three measurement modes: Real-time mode, Peak mode, Preset mode
Model | Standard | 010 | 030A | 030B | 060 | 085 | 135A | 135B | 200 | 340 | ||
Interchangeable Head | 010 | 030A | 030B | 060 | 085 | 135A | 135B | 200 | 340 | |||
Minimum Graduation | 0.01 | 0.1 | ||||||||||
Maximum Operating Range | (N.m) | 10 | 30 | 30 | 60 | 85 | 135 | 135 | 200 | 340 | ||
1bf.ft | 7.37 | 22.12 | 22.12 | 44.25 | 62.69 | 99.57 | 99.57 | 147.5 | 250 | |||
1lbf.in | 88.50 | 265.5 | 265.5 | 531.04 | 752.31 | 1195 | 1195 | 1770 | 3009 | |||
kgf.cm | 101.97 | 305.91 | 305.91 | 611.82 | 866.75 | 1376.61 | 1376.61 | 2039.43 | 3467.03 | |||
Interchangeable Head Connection Dimensions | 9X12 | 14X18 | ||||||||||
Length | 390 | 420 | 535 | 655 | ||||||||
Accuracy | Clockwise: ±2% Counterclockwise: ±2.5%
| |||||||||||
Number of Ratchet Teeth | 36
| |||||||||||
Ratchet Type | Two-way ratchet head
| |||||||||||
Unit | N.m, lbf.in, lbf.ft, kgf.cm
| |||||||||||
Operating Mode | Peak mode (P)/Real-time mode (T)/Preset mode (Pre)
| |||||||||||
Battery | 2 1.5V AA batteries
| |||||||||||
Operating Mode | Peak mode (P)/Real-time mode (T)/Preset mode (Pre)
| |||||||||||
Battery | 2 1.5V AA batteries
| |||||||||||
Operating Temperature | -10°C~60°C
| |||||||||||
Storage Temperature | -20°C~70°C
| |||||||||||
Humidity | Non-condensing up to 90%
| |||||||||||
Drop Test Height | 1 meter
| |||||||||||
Vibration Test Bar | 10G
| |||||||||||
Life Test | 10000 cycles | |||||||||||
