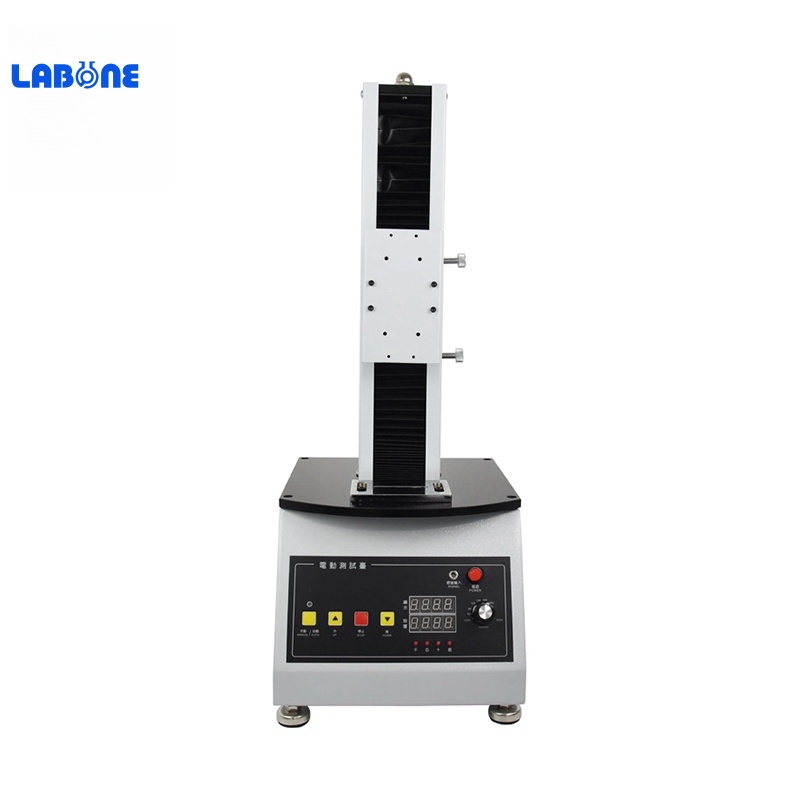

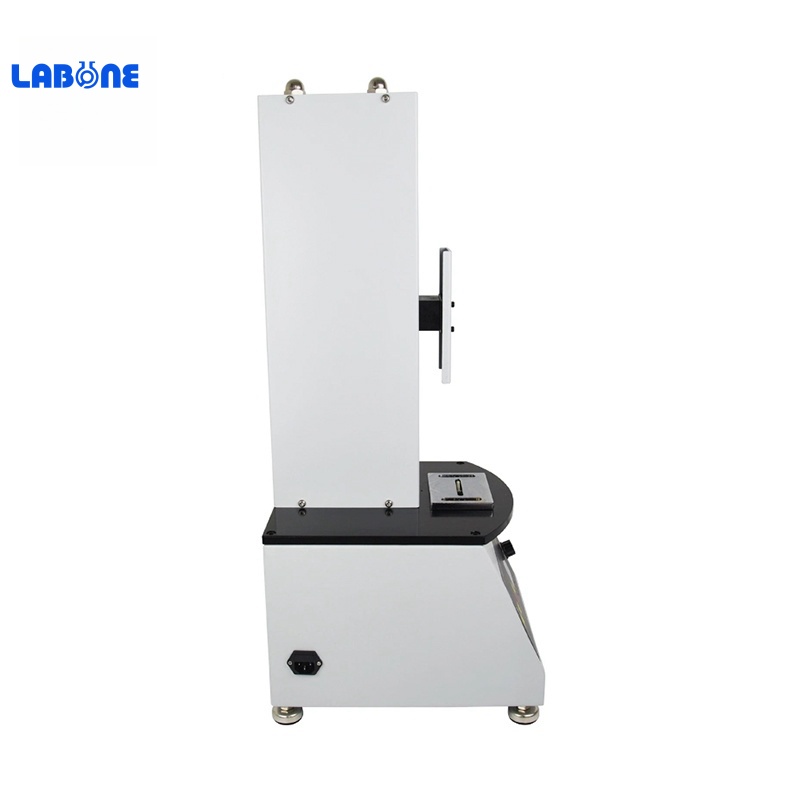

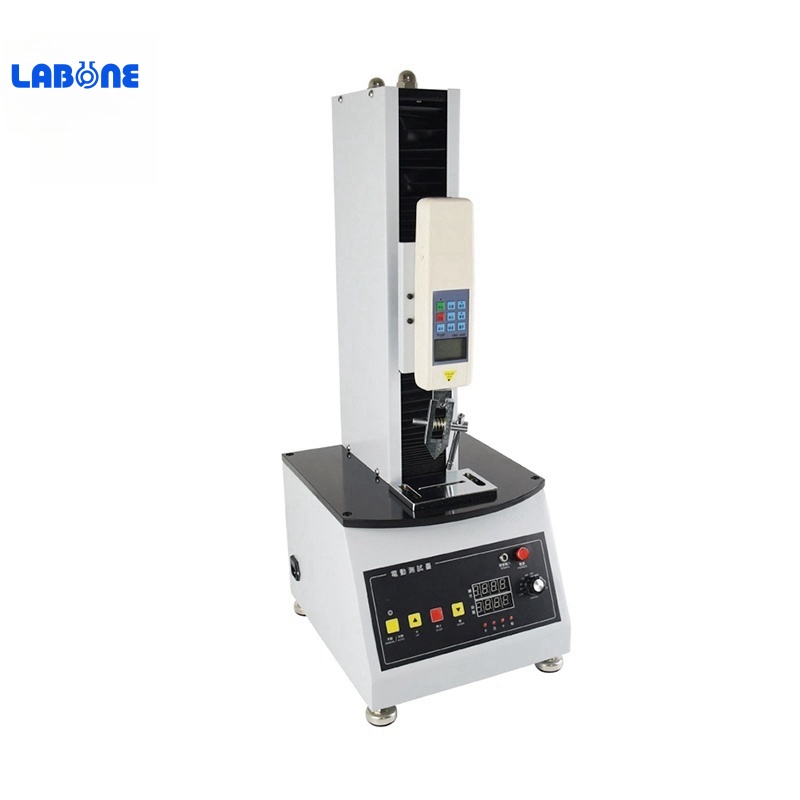

AEL single column vertical machine
The AEL single column vertical machine is a push-pull load test bed for the HF series and NK series push-pull gauges.This product adopts double-pole structure, which has the advantages of good stability, wide application range, convenient use, etc. It als
AEL single column vertical machine
Function:
The AEL single column vertical machine is a push-pull load test bed for the HF series and NK series push-pull gauges.This product adopts double-pole structure, which has the advantages of good stability, wide application range, convenient use, etc. It also has the function of stepless speed regulation, manual (inching) and automatic control switching.Applicable to rubber and plastic, light industrial textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery, scientific research institutions and other industries push-pull load, insertion force, destruction test and other tests.
Special features:
1. Electric loading, stepless speed regulation, gear transmission
2, compact structure, smooth transmission
3, simple operation, and can use a variety of fixtures
Specification parameters:
Maximum load | 500N |
Effective stroke | 200mm 400mm 700mm optional |
Test speed | 0-280 mm/min |
Operating voltage | 220V |
Dimensions (mm) | 280*340*780(200mm) 80*340*980(400mm) 280*340*1270(700mm) |
Net Weight | 30k |
