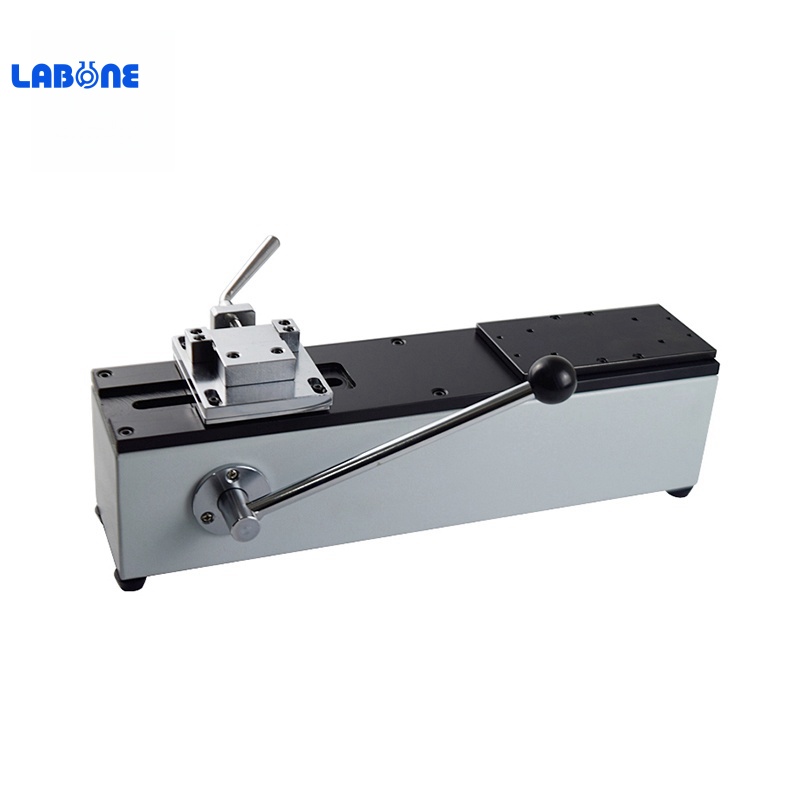

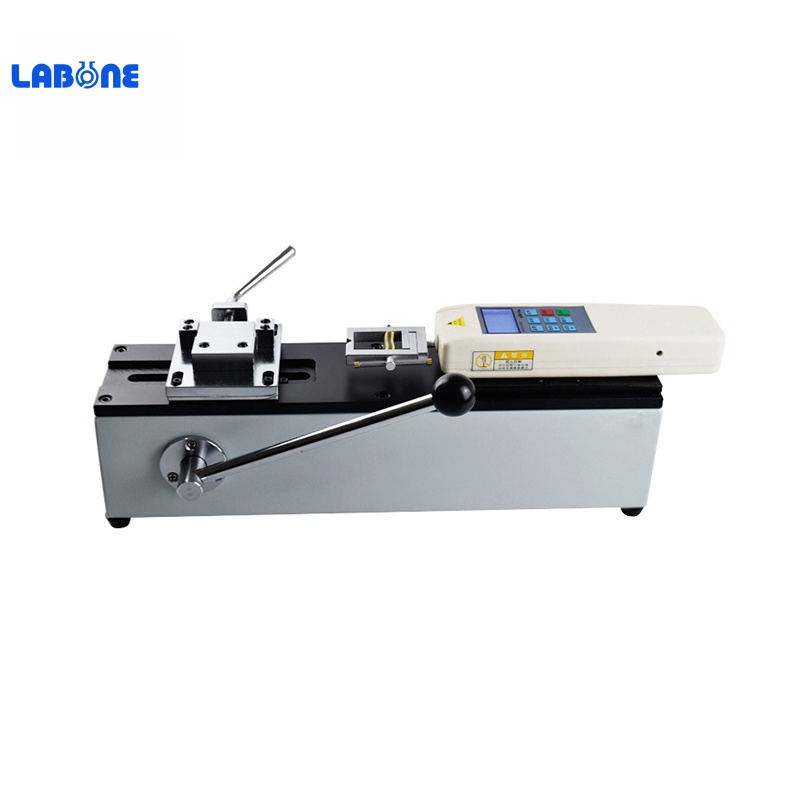

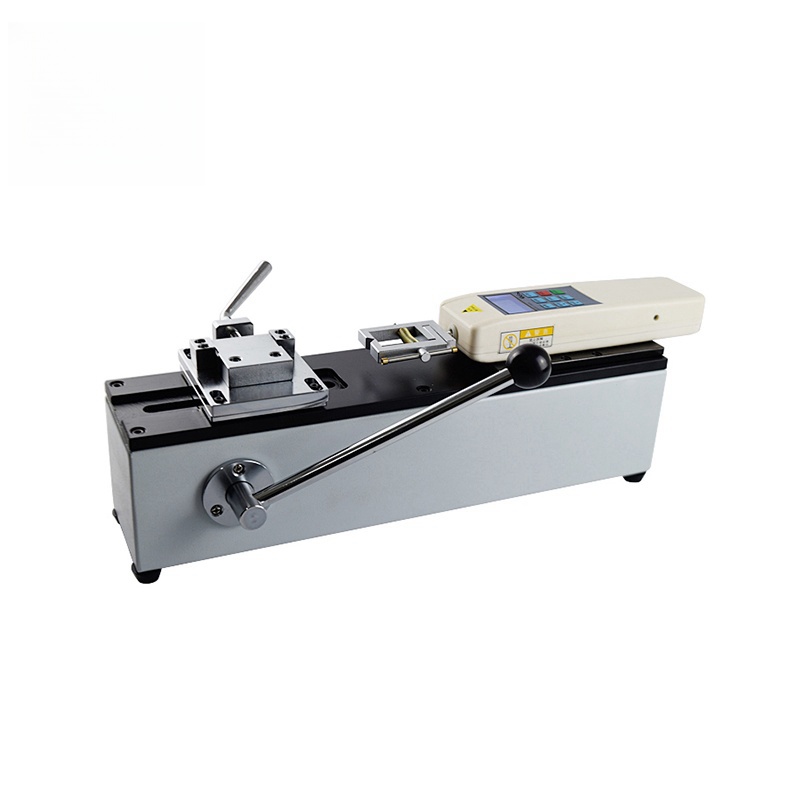

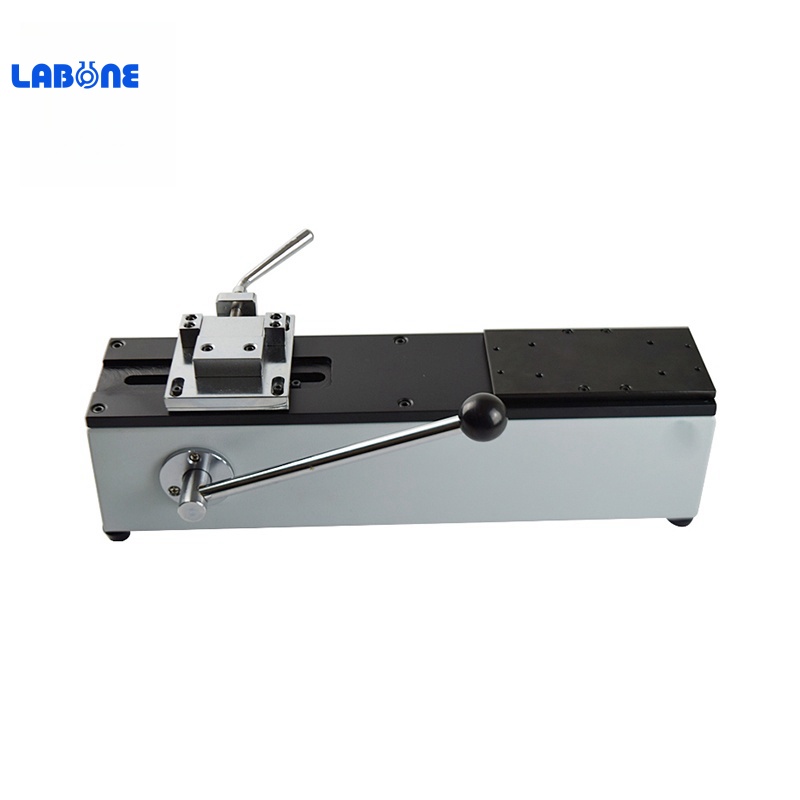

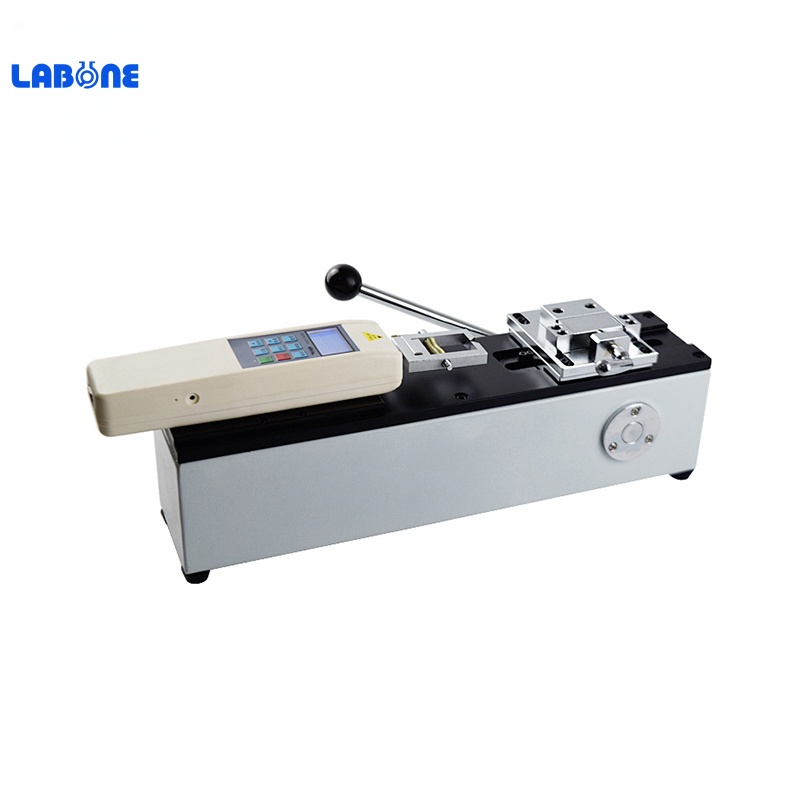

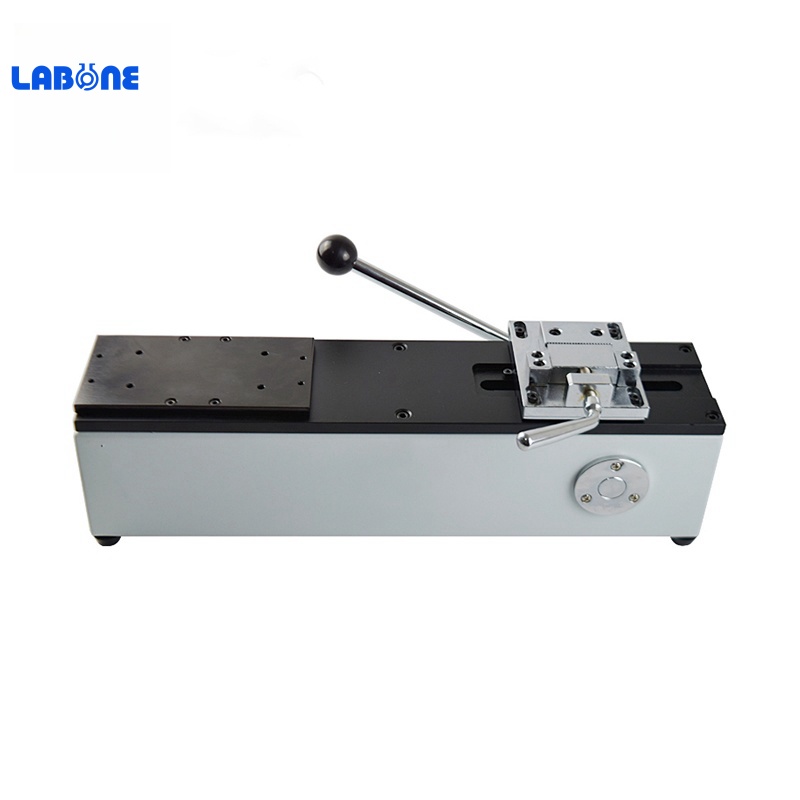

ADL terminal tensile tester

Introduction:

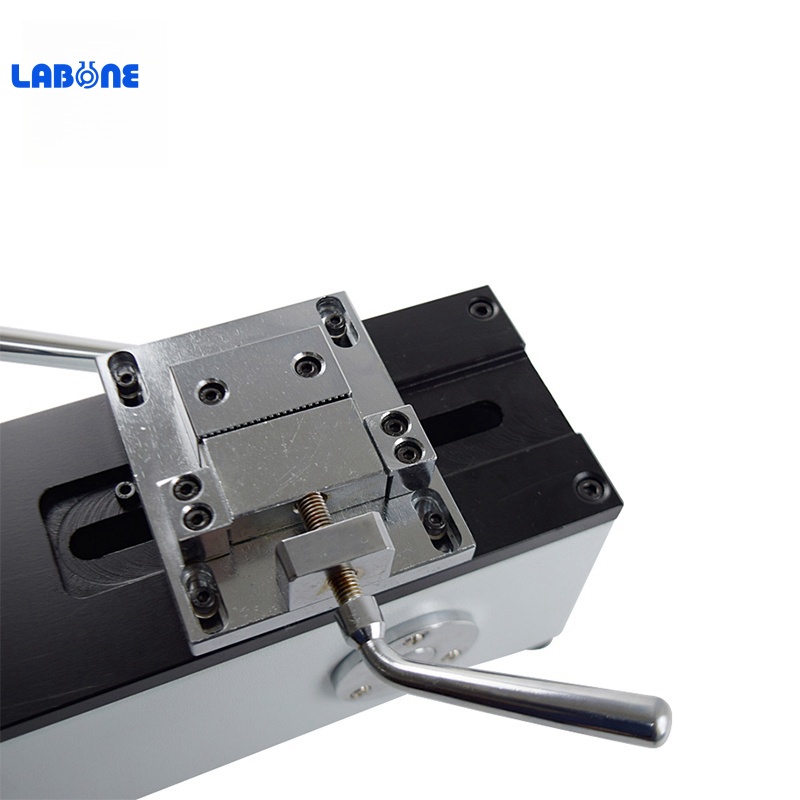

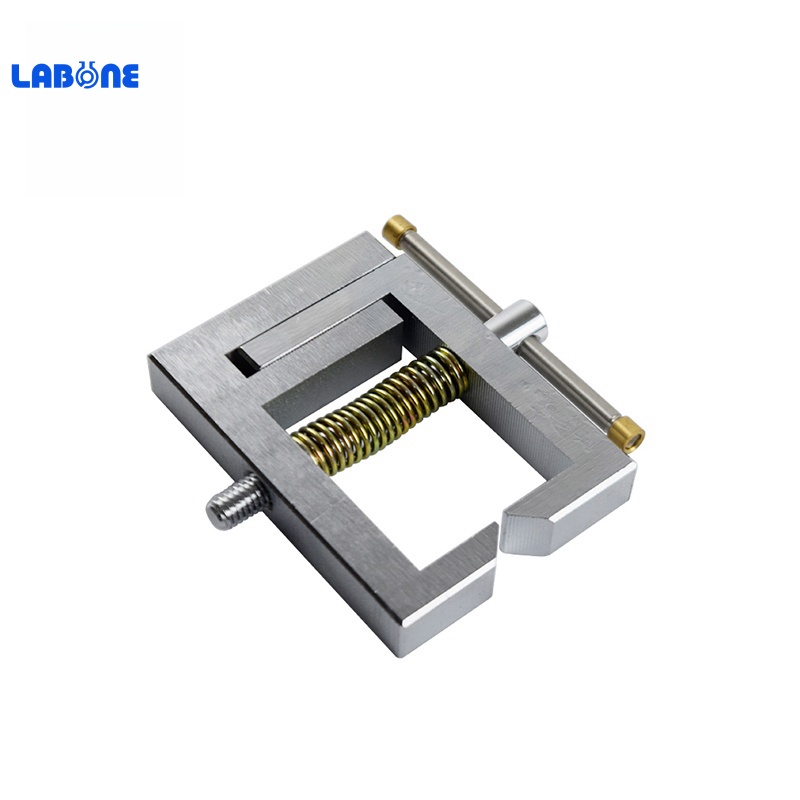

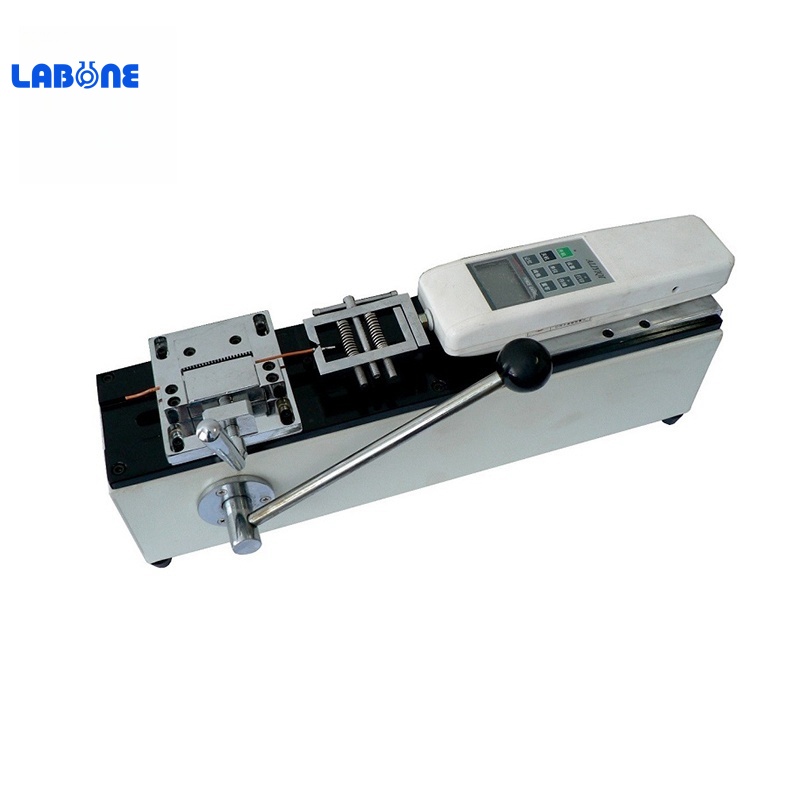

ADL Terminal Force Tester is a kind of testing equipment developed by our company for the wire harness and electronic industry. It is designed to detect the pull-off force of various wire harness terminals.NK, HF push force gauges and special fixtures can be configured. This instrument has the characteristics of small equipment, accurate control, high measurement accuracy, easy installation of test pieces, simple operation, etc. It is an ideal equipment for wire harness manufacturers to ensure product quality.

Horizontal installation.

· Manual operation, simple and stable operation.

· The machine can be installed on a table (table) to make the rack more stable.

·long ×wide×high:450mm×260mm×160mm.

· Effective stroke: 50mm.

· Rated load: 500N.(Also can be configured 1000N)

· Net weight: 10.6Kg.

1, the instrument's push pull force meter:

General standard configuration is a digital push-pull force gauge HF-500.(You can also configure pointer push-pull gauge NK-500, the price is different)

(1) Digital push-pull force gauge

Model	HF-500.
The maximum load	500N (Kg, N and ib three units can be automatically converted).
Resolution	0.01N.
Accuracy	±0.5%.
Output Interface	RS 232 9 hole socket.
Charging power	220V/AC;
Battery continuous working time	6 to 8 hours.
Stability	temperature drift 0.2uV/°C (0~60°C);
zero drift	≤ 0.1%/8 hour/FS.
Calibration range	full scale calibration.
Ambient temperature	0 to +60°C.
Environmental humidity	≤ 80%.
Allow overload	150%.
Power supply	No. 5 nickel-cyanide battery pack /220V AC Charging for 4 to 6 hours.

(2) Pointer force gauge

Model	NK-500.
Maximum load	500N (50Kg).
Push-pull rod stroke	10mm.
Working temperature	20°C & plusmn; 10°C.
Transport temperature	-27°C to +70°C.
Relative humidity	15% to 80% RH.
Working environment	There are no earthquake sources and corrosive media around.
The customer can configure the dynamo meter with the corresponding specifications as required	The pointer force gauge specifications are NK-10, 20, 30, 50, 100, 200, 300, 500.
Digital push-pull gauge specifications:	HF-2, 5, 10, 20, 50, 100, 200, 500, 1000 and so on.
