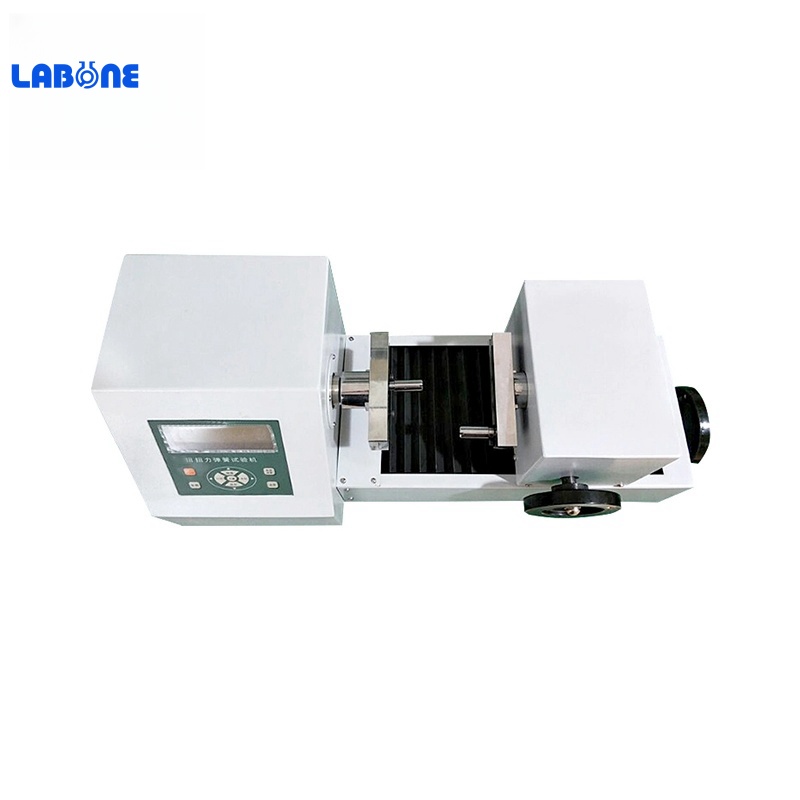

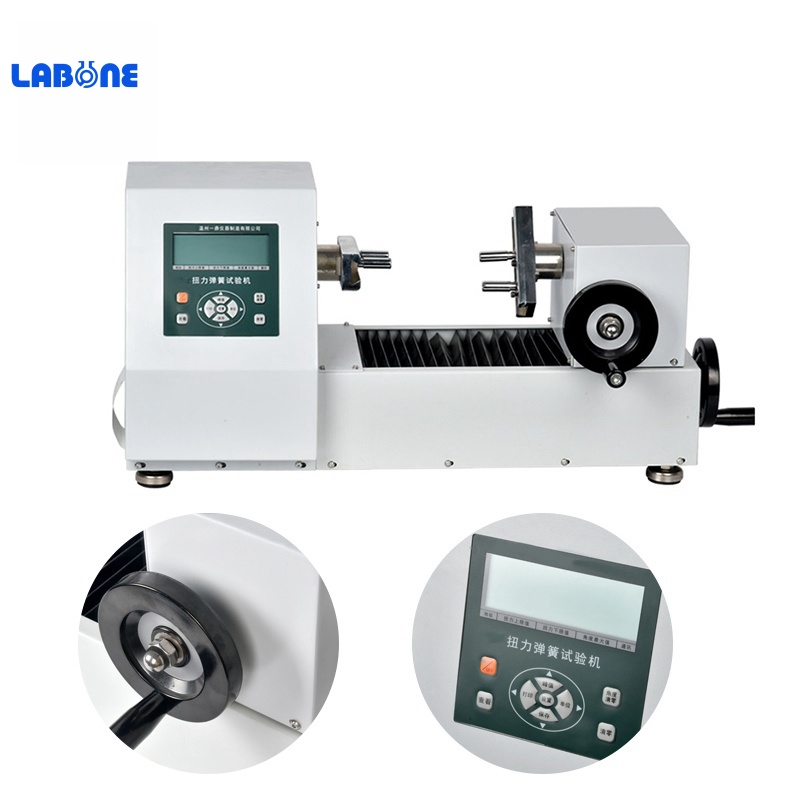

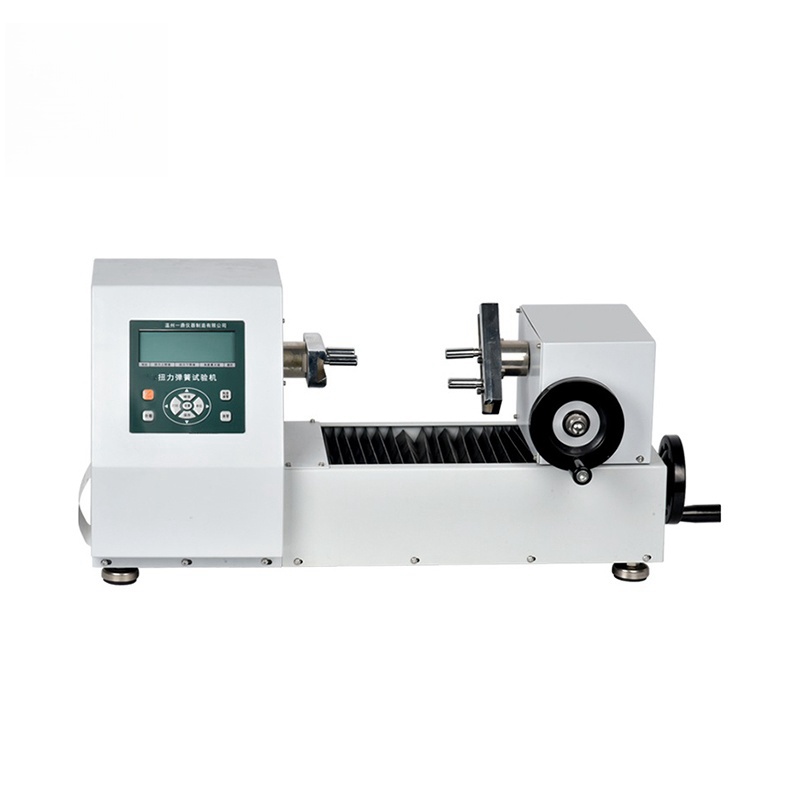

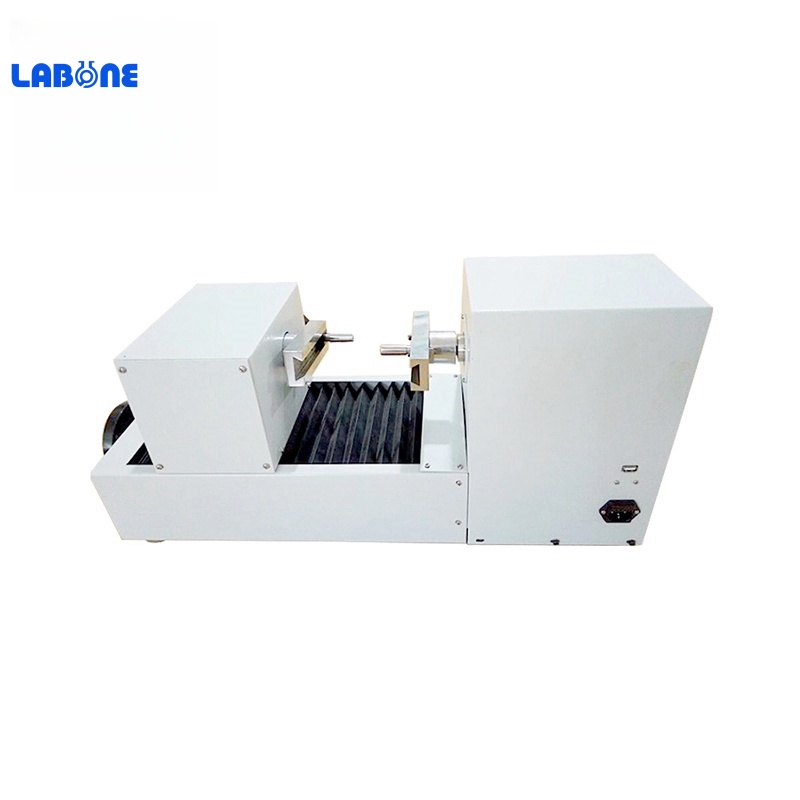

ADT series horizontal torsion spring testing machine

Functional characteristics:

ADT horizontal torsion spring testing machine is an intelligent multifunctional measuring instrument designed and manufactured for testing and testing various torsion springs.It can be used for torque testing of torsion springs, spiral springs and other elastic torsion pieces of various shapes. It has the characteristics of simple operation, high precision, full function, easy to carry, etc. It is widely used in various electrical, light industry, machinery manufacturing, scientific researchInstitutions and other industries.

Main features:

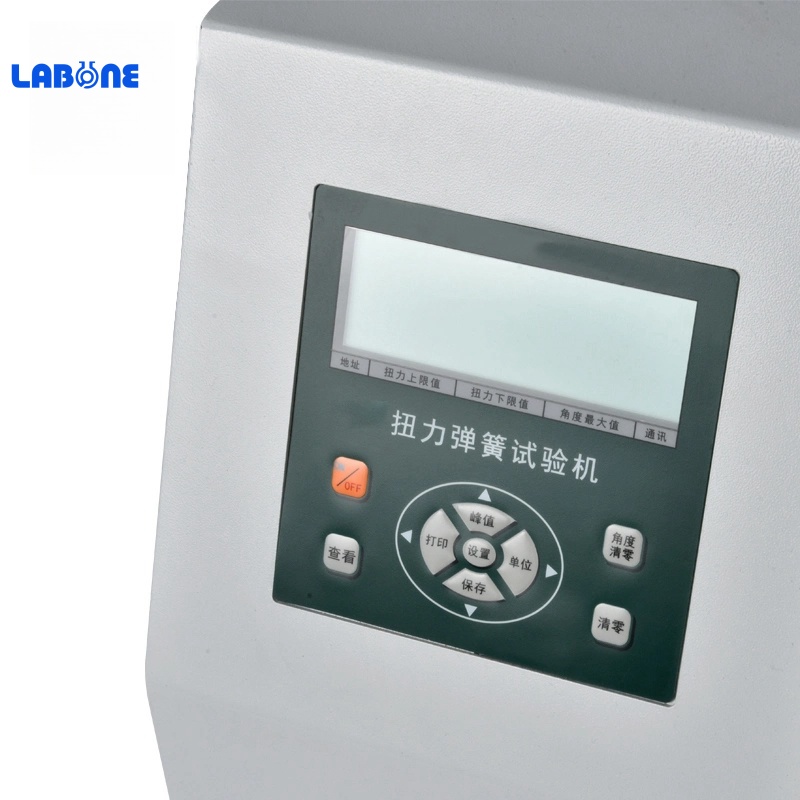

1, high precision, high resolution, fast sampling speed, large screen display.

2, the upper and lower limit can be set, with sound and light alarm

3. Three kinds of parameters are displayed (torque value, rotation angle, spring stiffness).

4, the three units N & middot; m, kgf & middot; cm, Ibf & middot; in mutual conversion.

5, real-time, peak, automatic peak three modes can be freely switched.

6, peak hold, automatic release function, release time free setting.

7, no operation automatic shutdown function, time can be set freely.

8, storage capacity, can save 99 sets of test data.

9, no operation automatic shutdown function, time can be set freely.

10, built-in micro-printer (optional).

11, USB interface and PC communication, can be connected to the computer for synchronization testing.

measurement parameters:

Parameter model	Maximum test torque	Measuring range	Minimum reading (N.mm)
ADT-500A	500 mN.m	5~500 (mN.m)	0.01 mN.m
ADT-1000A	1000 mN.m	10 to 1000 (mN.m)	0.1 mN.m
ADT-2000A	2000 mN.m	20 to 2000 (mN.m)	0.1 mN.m
ADT-3000A	3000 mN.m	30 to 2000 (mN.m)	0.1 mN.m
ADT-5000A	5000 mN.m	50 to 5000 (mN.m)	0.1 mN.m
ADT-1	1 N.m	0.01 to 1 (N.m)	0.0001 N.m
ADT-2	2 N.m	0.02 to 2 (N.m)	0.0001 N.m
ADT-5	5 N.m	0.05 to 5 (N.m)	0.0001 N.m
ADT-10	10 N.m	0.1 to 10 (N.m)	0.001 N.m
ADT-20	20 N.m	0.2 to 20 (N.m)	0.001 N.m
ADT-30	30 N.m	0.3 to 30 (N.m)	0.001 N.m
ADT-50	50 N.m	0.5 to 50 (N.m)	0.001 N.m

Specification parameters:

Angle resolution	0.1°
measuring the range of rotation angle	0~ ±9999.9°
the sample rotation diameter	φ100mm
specimen length	150mm

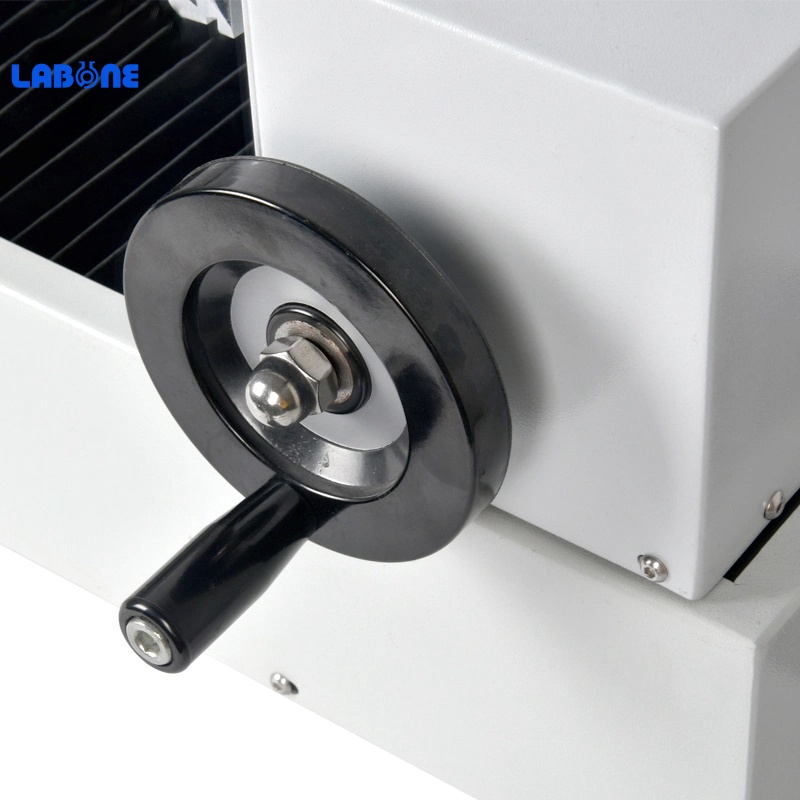

loading method	manual
accuracy	± 1%
power supply	AC220V 50Hz
Dimensions	710×320×290(mm)
weight	about 37.5Kg
