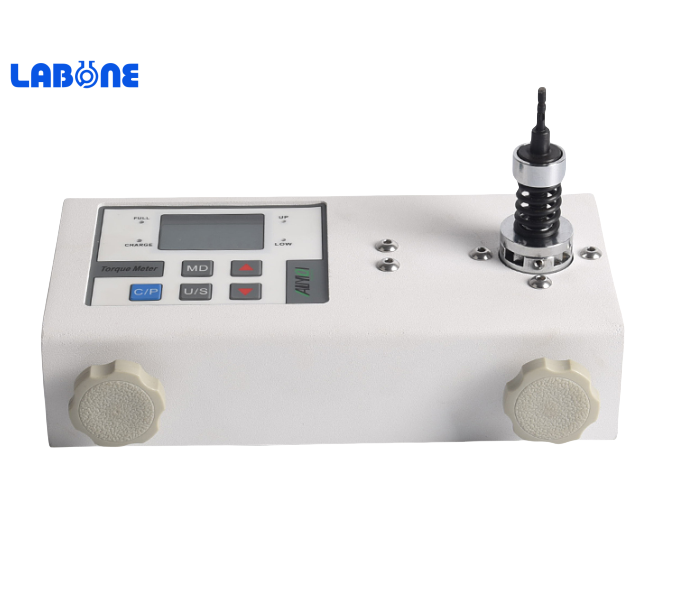

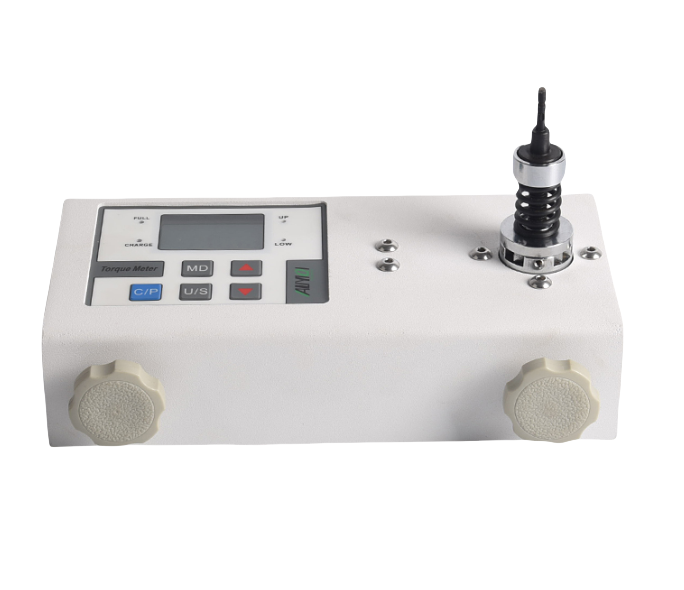

ANL-B economic torque tester

Application:

The economical torque tester is a precision measuring instrument for detecting and testing and calibrating various torques. It is used to detect and correct various electric screwdrivers, torque screwdrivers and torque wenches. Various products involve testing of tightening force and torsion of parts. Sex test, etc. Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industries.

Product Features:

1.Accuracy ±1%.2.Four units: N.m, kgf.cm, ft.lbf, in.lbf.

3.Test mode has peak hold, first peak and real time mode.

4.USB communication function, the data format uses Modbus communication.

5.Automatic shutdown for preset time.

6.Buzzer and LED light warning.

7.Preset target value function: The target value and target value tolerance range can be preset.

Product Specifications:

model	unit	ANL-1B	ANL-2B	ANL-5B	ANL-10B	ANL-20B
Torque measurement Quantity range	N.m	0.1000~1.0000	0.200~2.000	0.500~5.000	1.000~10.000	2.00~20.00
	Kgf.cm	1.0197~10.197	2.039~20.39	5.098~50.98	10.197 ~ 101.97	20.39~203.9
	Ft.lbf	0.07375~0.7375	0.1475~1.475	0.3687~3.687	0.7375~7.375	1.475~14.75
	In.lbf	0.8850~8.850	1.770~17.70	4.425~44.25	8.850~88.50	17.70~177.0
Graduation value	N.m	0.0001	0.001	0.001	0.001	0.01
	Kgf.cm	0.001	0.01	0.01	0.01	0.1
	Ft.lbf	0.0001	0.001	0.001	0.001	0.01
	In.lbf	0.001	0.01	0.01	0.01	0.1
Precision	±1%
Transmission function	Support USB transfer
Operating mode	First peak / real time mode / peak hold
Unit selection	N.m/kgf.cm/ft.lbf/in.lbf
Operating temperature	5°C~40°C
Storage temperature	-20 ° C ~ 70 ° C
humidity	No condensation can reach 90%
power supply	7.4V lithium battery
charger	Input: AC 220V 50HZ Output: DC 12V 300/500mA
Weight (Kg)	1.58
