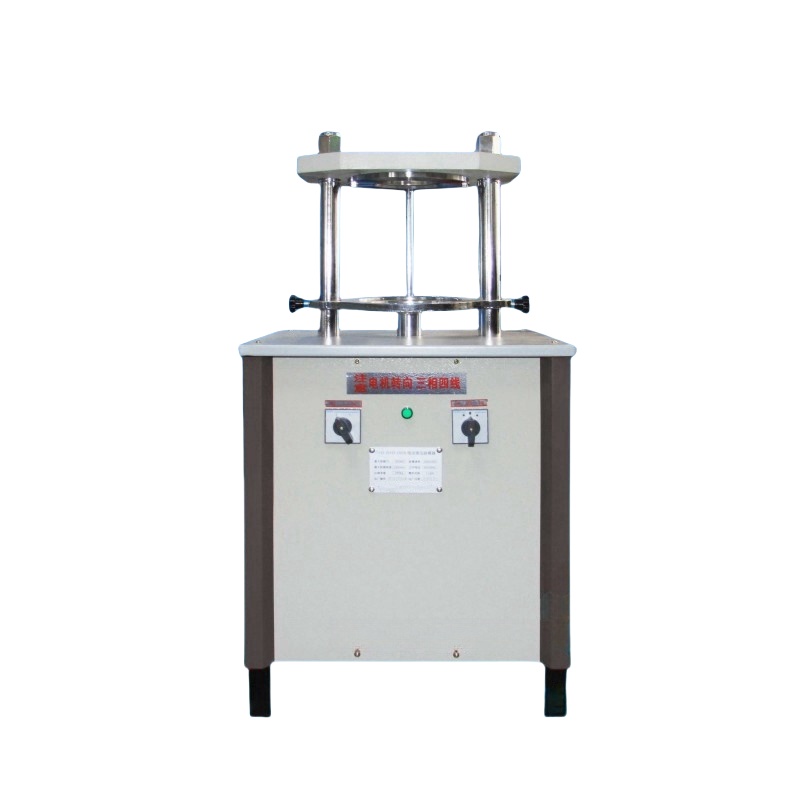

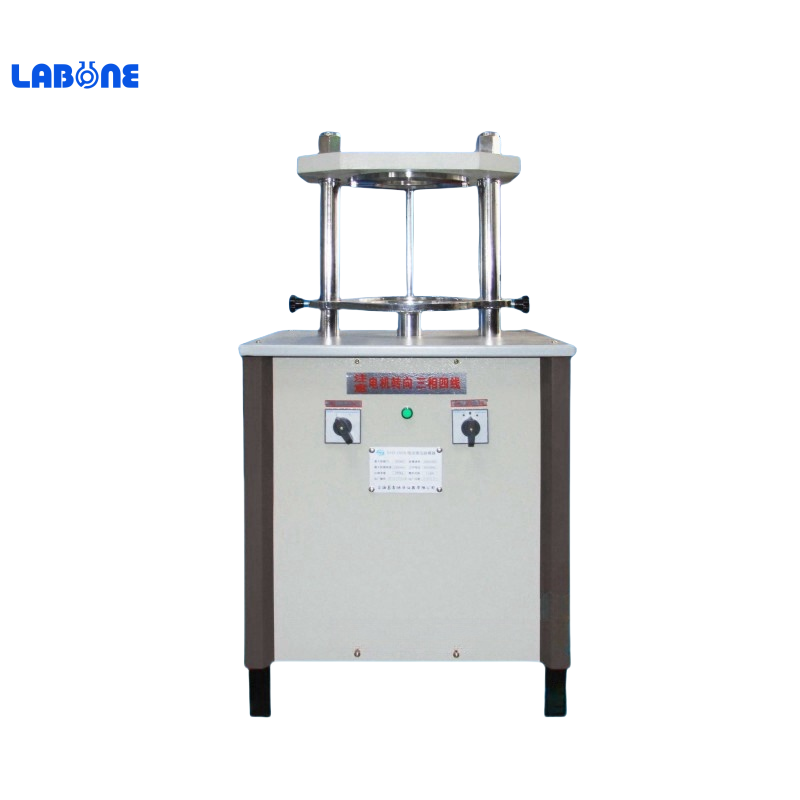

SYD-200S-1 Electric Hydraulic Pressure Ejector


Summary:
The instrument adopts the electric hydraulic transmission to load the pressure,the reasonable structure design,convenient operation,stable work and reliability.It’s mainly used in round specimen to demould,especial in asphalt mixture,cement mixture and higher density specimen by highway industries,constructions industries,universities and colleges,and scientific research institutions ect.laboratory.
It’s matched with our products SYD-0702,SYD-0702A,SYD-0702A-1 Marshall electric compactors.



I.Main technical characteristics

1. This instrument can be used for demoulding many kinds of samples

① Marshall stability test model

② Concrete compression test model

③ Model test of heavy (light) compaction instrument for geotechnical engineering

2. High demoulding efficiency and low noise.

3. The instrument is made of all steel parts, which is strong and durable.

4. Two way working cylinder, lift and drop freely.



II.Main technical parameters and index

Peakload

 20kN

Maximun stripper length

230mm

Oil pump working pressure

30MPa

Demoulding speed

200mm/min

Motor power

1.1kW

Power supply

AC380V/50Hz

Machine gross weight

250kg

Outline dimension

550mm*500mm*1100mm(L*W*H)
