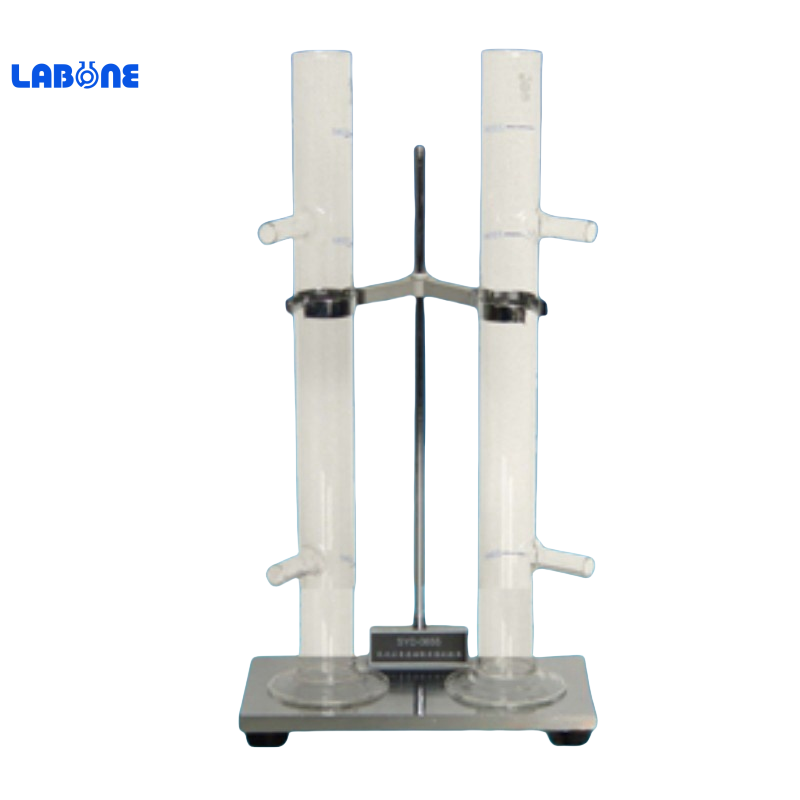

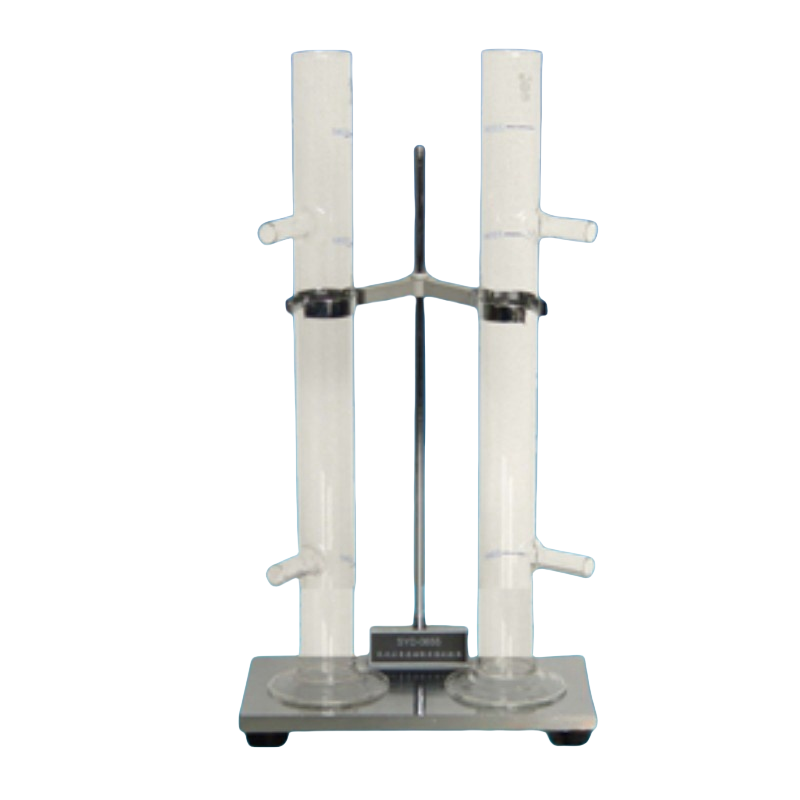

SYD-0655 Emulsified Asphalt Storage Stability Tester
Summary
The instrument is designed and made as per T 0655“Test Method for Emulsified Asphalt Storage Stability ” in the Industry Standard of People’s Republic of China JTG E20-2011 “Highway Engineering Bitumen and Bituminous Mixtures Test Code”,and it is suitable to determine the storage stability of kinds of emulsified asphalt .
I.Main technical characteristics
1.The baseboard adopts 10 mm chrome plating steel plate ,it is stable and reliable .
2.The structure of the glass sample gripper is unique ,and it can be adjusted up and down .
3.The total structure design is reliable ,beautiful and elegant .
II.Main technical parameters and specifications
Glass tube | effective height is (310+10)mm |
Signal line | 250 ml |
Entrance of the sample | Φ (32+0.1)mm |
Physical dimension | 210mm*110mm*370mm |
Dimension | 210mm*110mm*370mm |
III.Choice of the accessories
1.Balance：weigh 1000g ,reciprocal sensibility is less than 0.1g
2. Colatorium： sieve pore is 1.8μm
