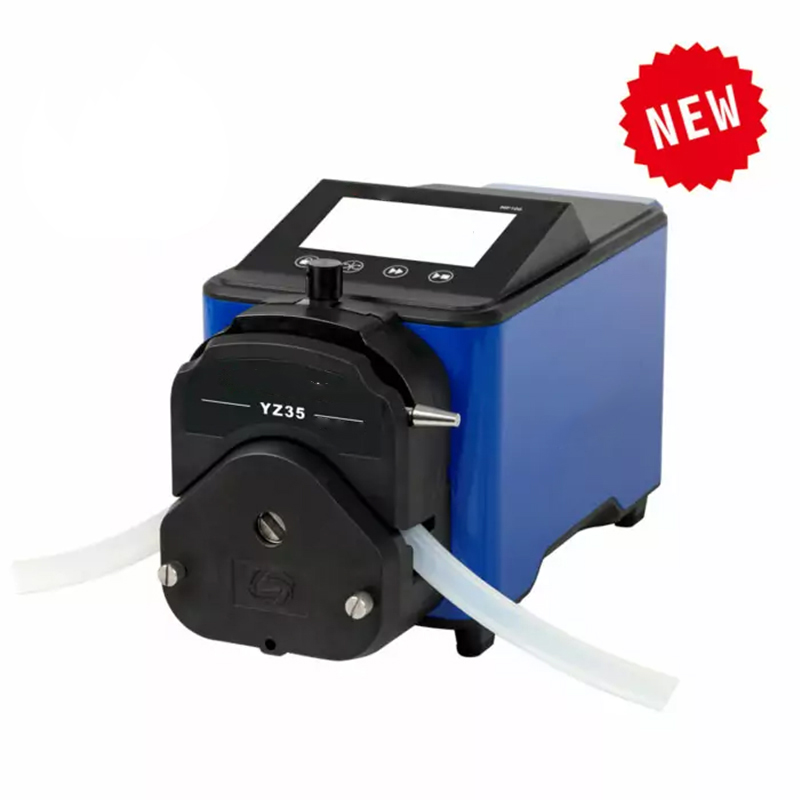

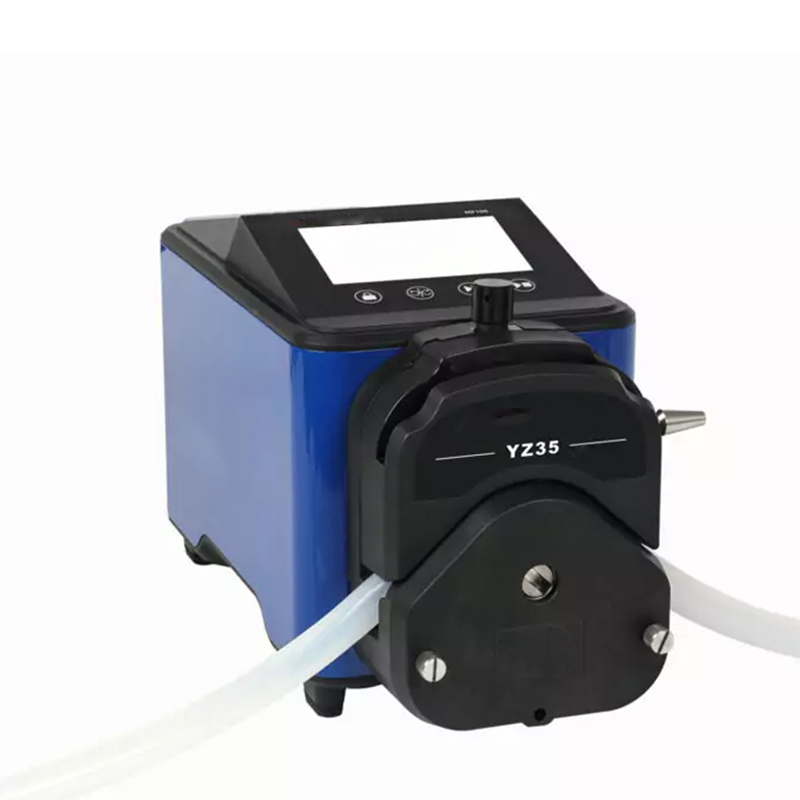

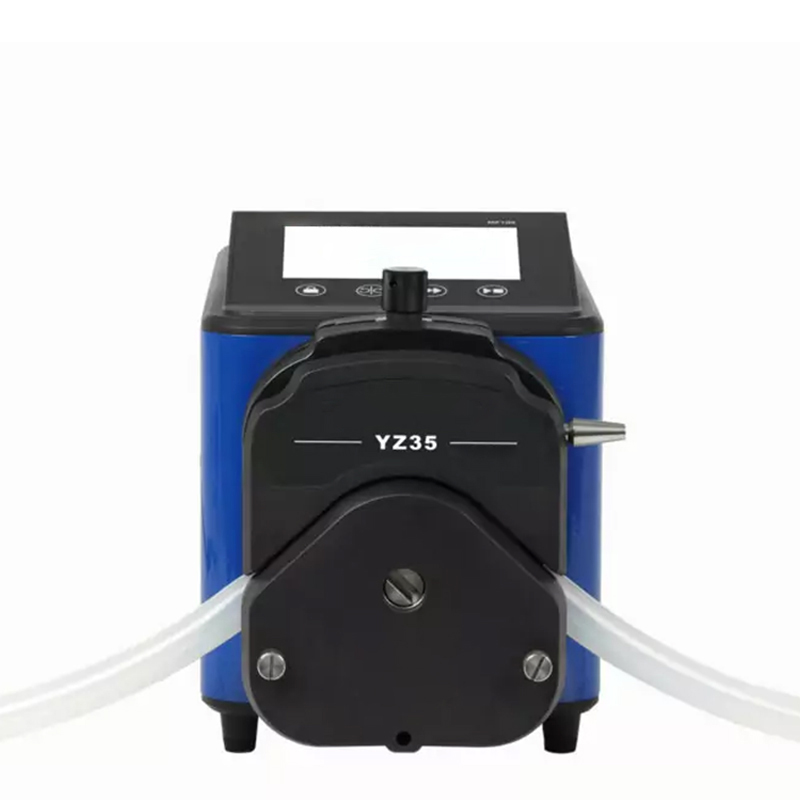

MF106 High Protection Peristaltic Pump

MF106 High Protection Peristaltic Pump

MF106 high-protection peristaltic pump is operated by a color LCD touch screen and buttons with a simple and intuitive user interface, which is easy to use and control. It is compatible with various pump heads and pump tubes of different specifications and materials, with a maximum flow rate of 7920ml/min, which can meet most flow transmission requirements. It is mainly used for quantitative distribution and flow transmission control of various complex liquids.
The controller is equipped with multiple communication interfaces such as built-in RS232, RS485, Ethernet, etc., with standard MODBUS communication protocol, which is easy to connect with other control devices, and can quickly realize the integration configuration of automation control system.
In addition, the pump has a high protection level of IP66 and strong stability and adaptability, which is suitable for relatively harsh industrial production environments such as dust, humidity, weak acid and alkali salt fog.

Flow: 0.005-7920mL/min
Max: 4 Channels

Category: High Protection Peristaltic Pump

Feature

• Strong stability and high pressure bearing capacity:
The product adopts double-layer isolation design and circuit board plus spray three-proof paint process to achieve dustproof and moisture-proof effect, ensuring the stability and reliability of the equipment. In addition, the product has an IP66/IP67 protection level and c an operate stably in harsh environments for a long time .
• High torque output, multiple pump heads c an be used in combination:
It supports high torque output and multiple pump heads c an be installed t o realize the combination of different pump heads and drivers, providing a wider flow range and outlet pressure, suitable for different application scenarios.
• Supports a variety of working modes:
Five working modes are supported, including flow rate, time dispensing, volume dispensing, programming dispensing and external control mode, so that user s can choose ac cording to different needs. In the time dispensing, volume dispensing mode , five sets of formula parameters can be pre-stored.
• The operation interface is easy to use：
Equipped with a 5-inch c olor touch screen, with guided prompts for operation, easy and fast to use. At the same time , it supports the wizard-style flow correction function, which c an achieve higher liquid flow accuracy.
• Multiple control modes:
The speed c an be adjusted by external analog signal, and the start -stop and working directions can be controlled by digital signal level or pulse . At the same time , it is integrated with digital interfaces such as RS485 bus interface, network interface, RS232 serial interface, and the communication parameters can be customized. Optional foots witch is available to realize dispensing and filling functions.
• Excellent anti-interference capability:
With wide voltage design, suitable for all kinds o f complex power supply environment.
• Durable and easy to clean pump shell:
The house is made of metal aluminum, which is easy to clean and effectively prevents the corrosion of organic solvents,extending the servic e life of the equipment .

Technical Parameter

MF106 Applicable Pump Head and Tube,Speed, Flow

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

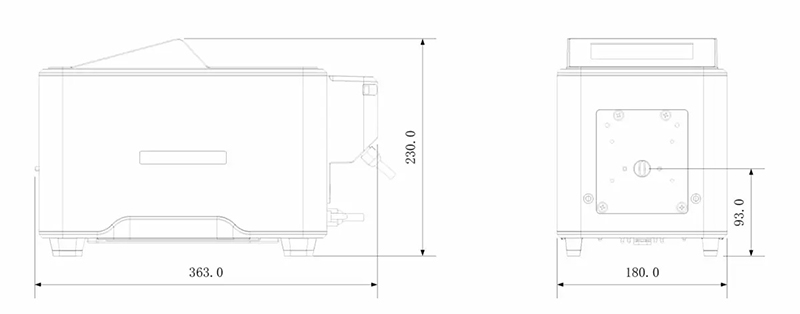

Dimension(mm)

Statement：The final explanation right of above information belongs to LABONE.
