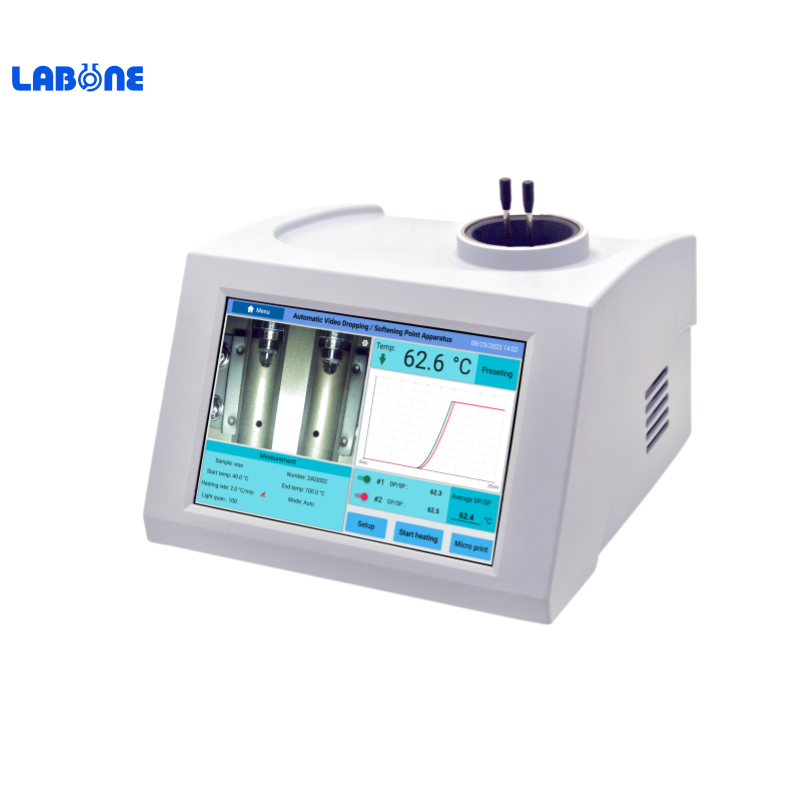

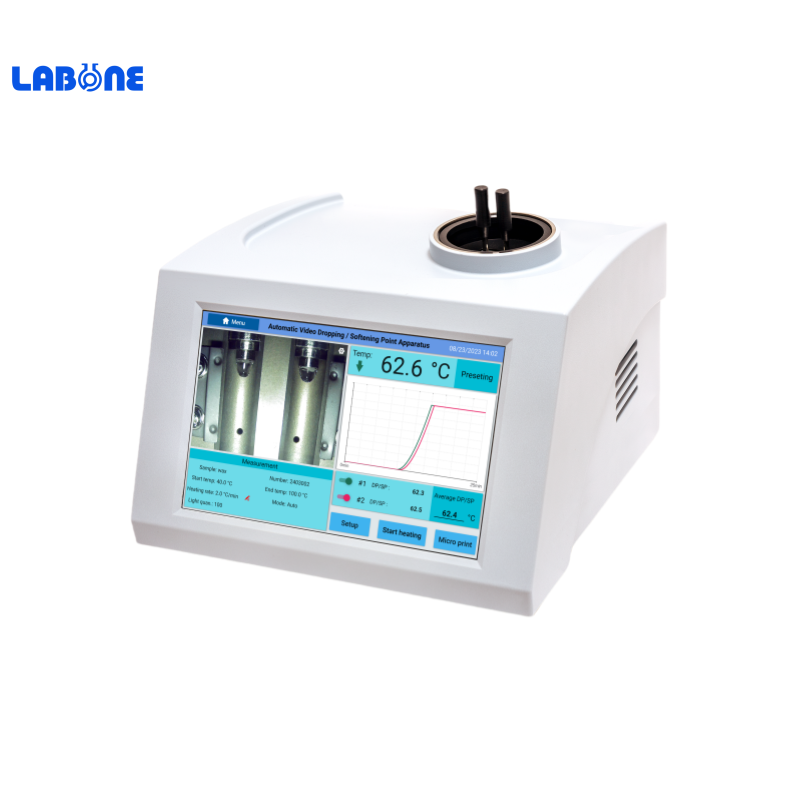

WQD-400 / WQD-360 Dropping-point and softening-point Apparatus

HD video detection system,observing 2 samples at the same timeAutomatically record measuring process, support video playback and data recalling.Compliant with ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090Touchscreen, user-friendly operation.Widel

Send request

Ask for price

Characteristics

lHD video detection system,observing 2 samples at the same time
Automatically record measuring process, support video playback and data recalling.

lCompliant with ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090

lTouchscreen, user-friendly operation.

lWidely used to component control and quality test of tar , asphalt , paraffin , resin, fats , rosin,lubricant , Vaseline , medical ointment , ointment , suppository , edible grease.

Specifications

Parameters/Model	WQD-400	WQD-360
Measuring range	Room temperature-400℃	Room temperature-360℃
Measuring modes	Auto / Visual	Auto / Visual
Number of sample	2	2
Measurement methods	600	400
Number of Users	200	150
Audit trail	Optional	Optional
Minimum reading value	0.1℃
Linear heating rate	0.1℃ / min~20℃ / min
System	Android
Data storage	128G	64G
Display	10.1 inch touch screen, 720P HD camera
Interface	1 x RS232，3 x USB ，1 x RJ-45
Power Supply	100-240V，50 / 60Hz ，150w
Package Dimensions	495mm×493mm×350mm
Weight (Gross)	5 kg
