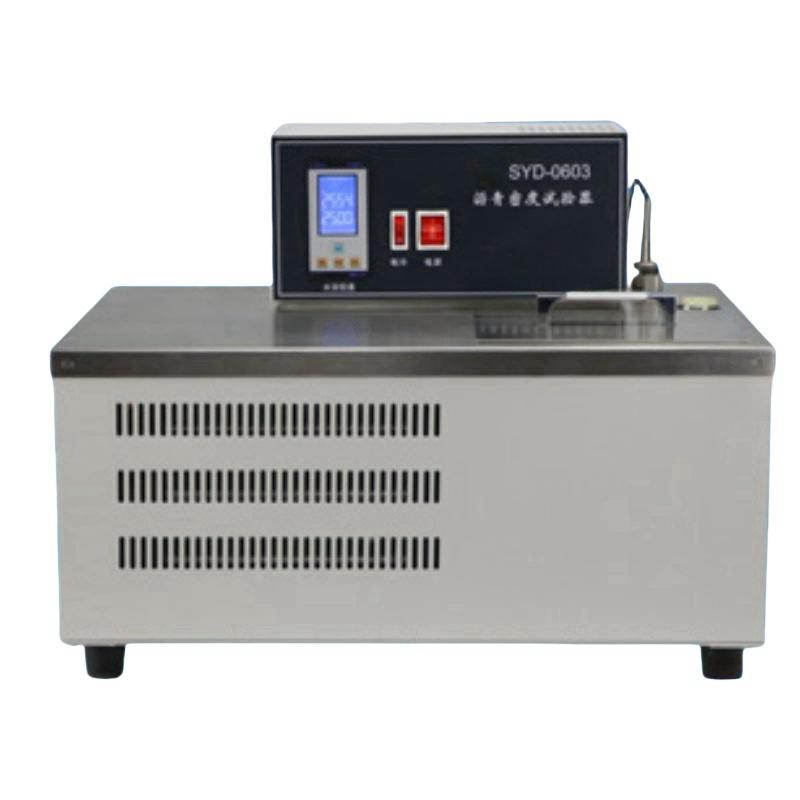

SYD-0603 Bitumen Density and Specific Gravity Tester
Summary
This instrument is designed and made as per industrial standard T 0603-2011 Standard Test Method for Density and Specific Gravity of Bitumen in JTG E20-2011. It is used to determine the density and specific gravity of bituminous materials.
I. Main technical features
1. Desktop and unibody design. Stainless steel bath cover. Two temperature regulating system(heating and cooling). The temperature can be controlled automatically.
2. High temperature control precision. Temperature maintaining effect is good.
3. A circulation system is equipped in the constant temperature bath. The bath can be used for a multifunctional purpose.
II. Main technical specifications
Power supply | AC（220±10%）V, 50Hz |
Maximum power consumption | 1100W |
Pycnometer | 20ml～30ml |
Bath volume | 10L |
Temperature range | (-10～95)℃ |
Temperature precision | ±0.1℃ |
Water circulating rate | ≥4L/min |
Ambient temperature | -10℃～+30℃ |
Relative humidity | ≤85％ |
Dimension | 540mm*390mm*420mm |
