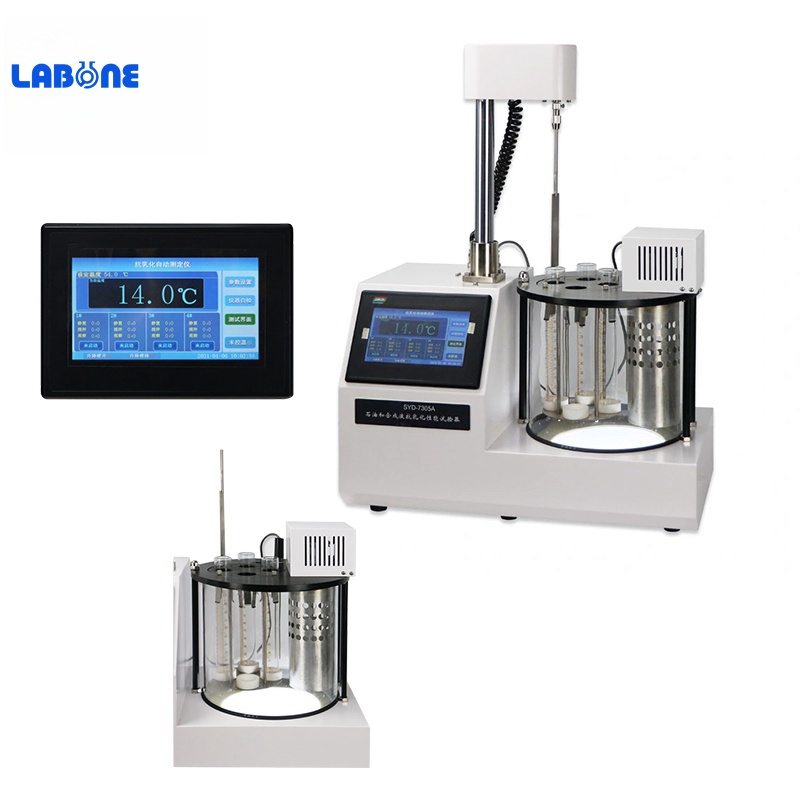

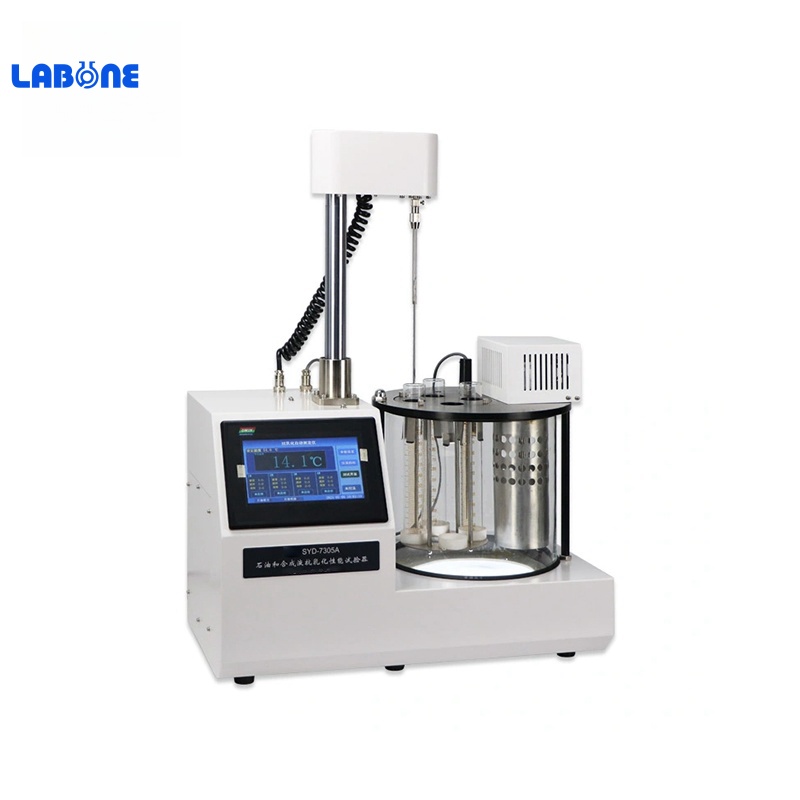

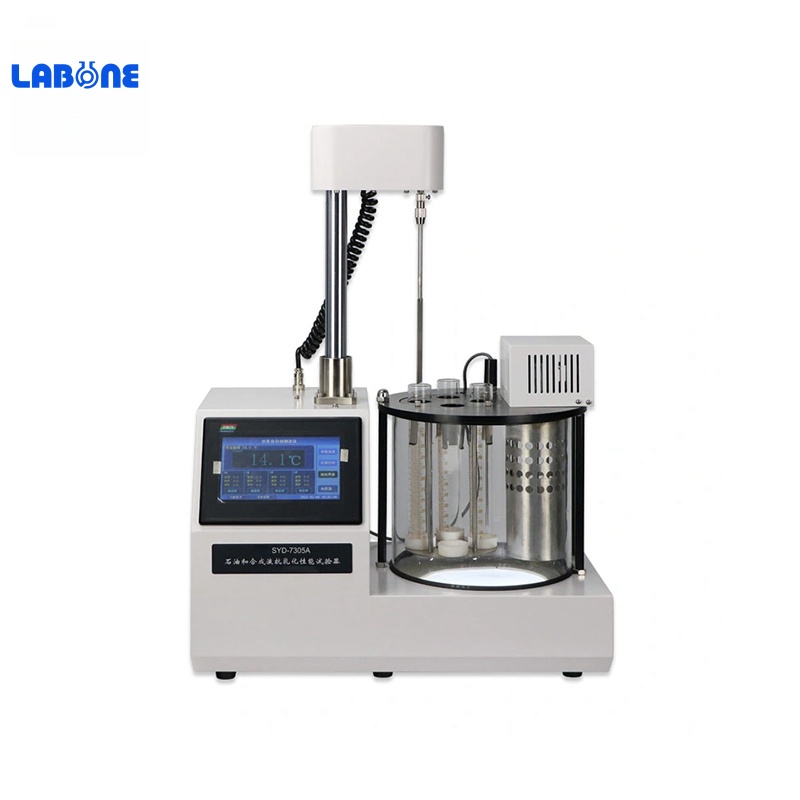

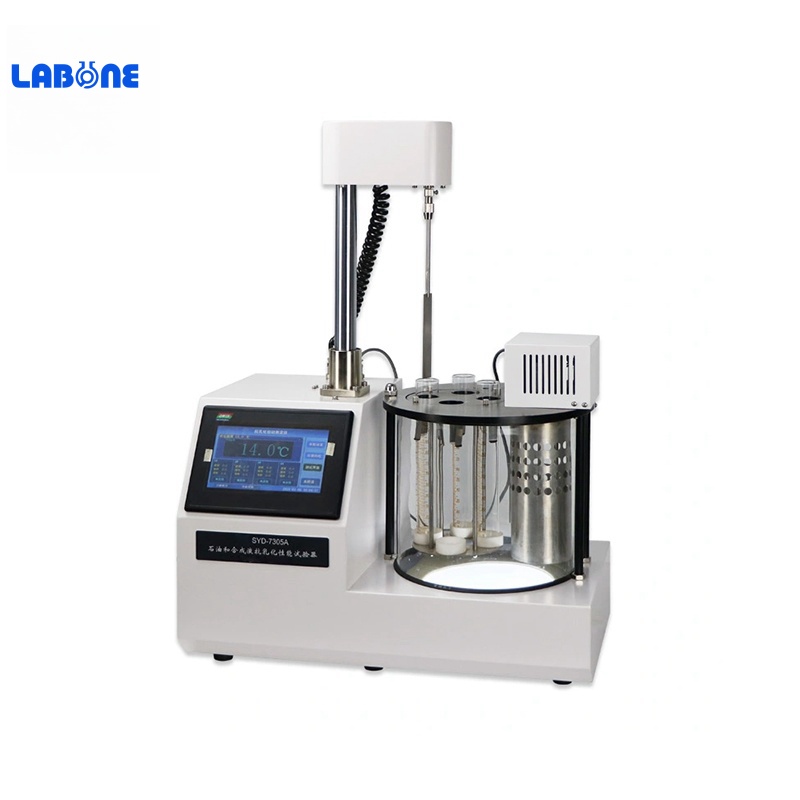

SYD-7305A Automatic Demulsibility Characteristics Tester
Summary This instrument complies with the standards of GB/T7305 Determination of the anti-emulsification properties of petroleum and synthetic fluids, GB/T7605 Determination of the anti-emulsification properties of turbine oils in use
SYD-7305A Automatic Demulsibility Characteristics Tester
Summary
This instrument complies with the standards of GB/T7305 "Determination of the anti-emulsification properties of petroleum and synthetic fluids", GB/T7605 "Determination of the anti-emulsification properties of turbine oils in use" and ASTM D1401 "Standard Test Method for Water Separability of Petroleum and Synthetic Fluids" Design and manufacture. . Suitable for determining the water separability of petroleum and synthetic fluids. It can be widely used in petroleum, electric power, chemical industry, colleges and universities, scientific research institutions and other fields.
Main technical features:

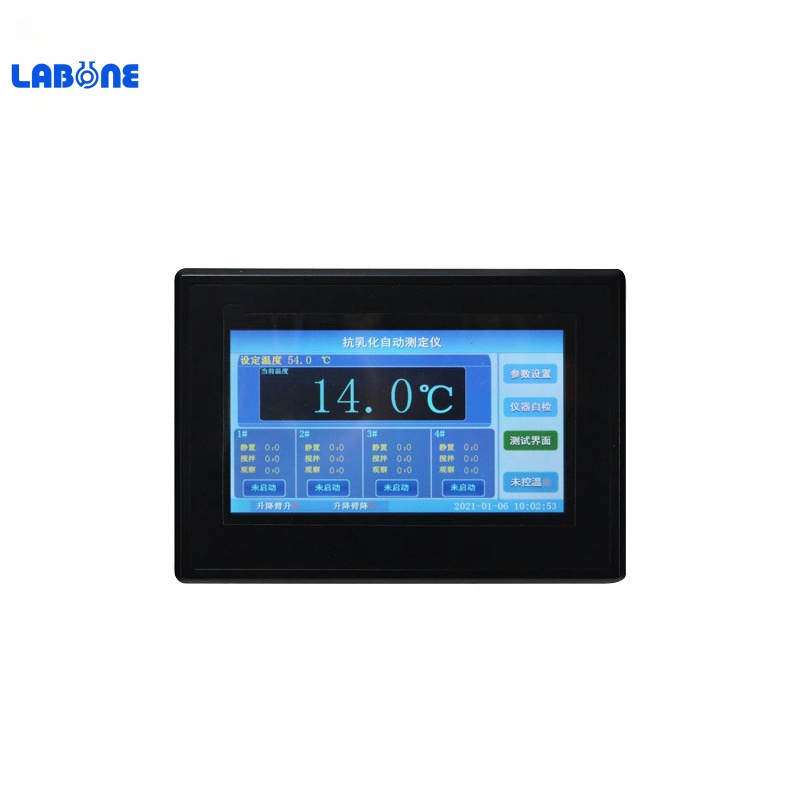

1. Use LCD to display graphics. Intuitive and clear
2. Human-machine dialogue. Menu input, easy to use.
3. The stirring device is easy to lift. The mixing paddle and the cylinder have good concentricity. Do not tremble or touch the cylinder wall.

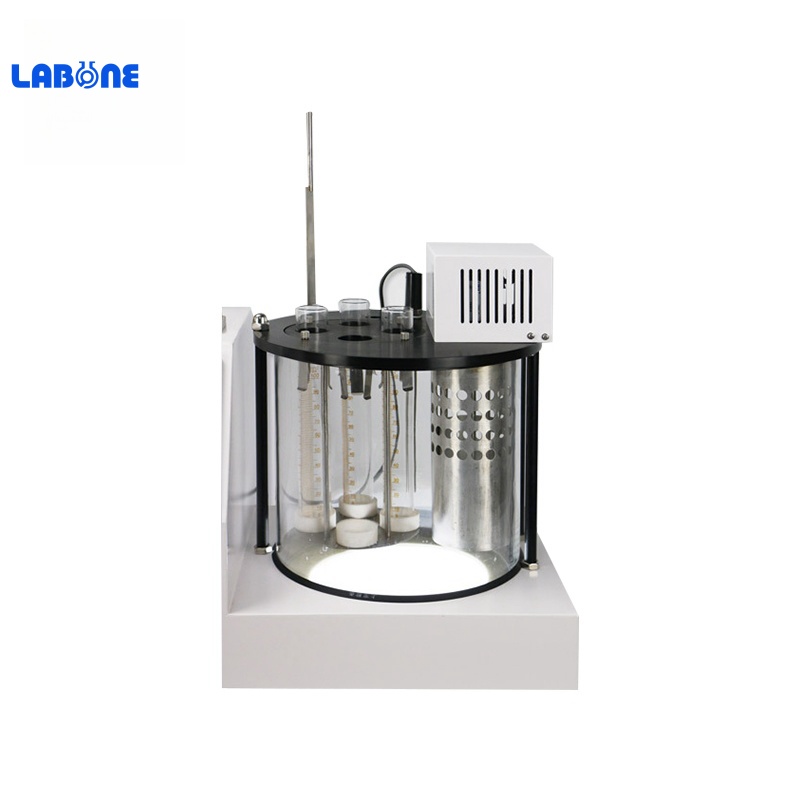

4. This instrument adopts small water bath type and desktop structure. The temperature is accurate and even. Easy to operate and beautiful.
Main technical specifications:
Temperature range | (Room temp.∼110)℃ |
Temperature control accuracy | ±0.02℃ |
Stirring rate | (1500±15)r/min |
Stirring time | (0~99)min Timing:(0~99)h |
Testing hole | 4 sample |
Power supply | AC(220±10%)V, 50Hz |
Maximum power consumption | 1500W |
Ambient temperature | (5∼40)℃ |
Relative humidity | ≤85％ |
Note: If the required temperature is lower than room temperature,it can equip ZL-1 portable cooler manufactured by our company.
