SYD-7305 Demulsibility Characteristics Tester

Summary This instrument is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Flui

Send request

Ask for price

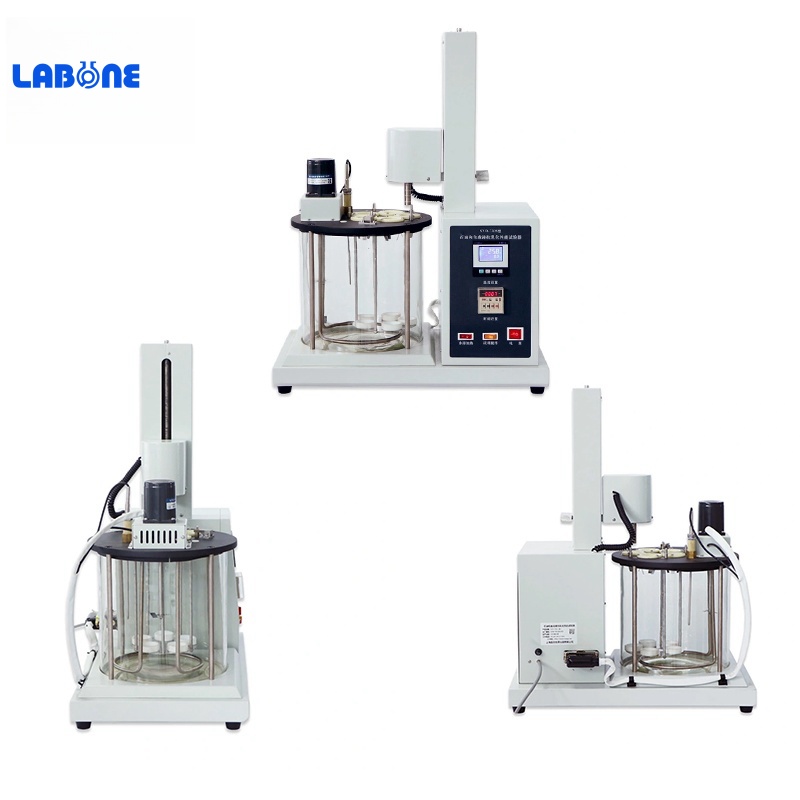

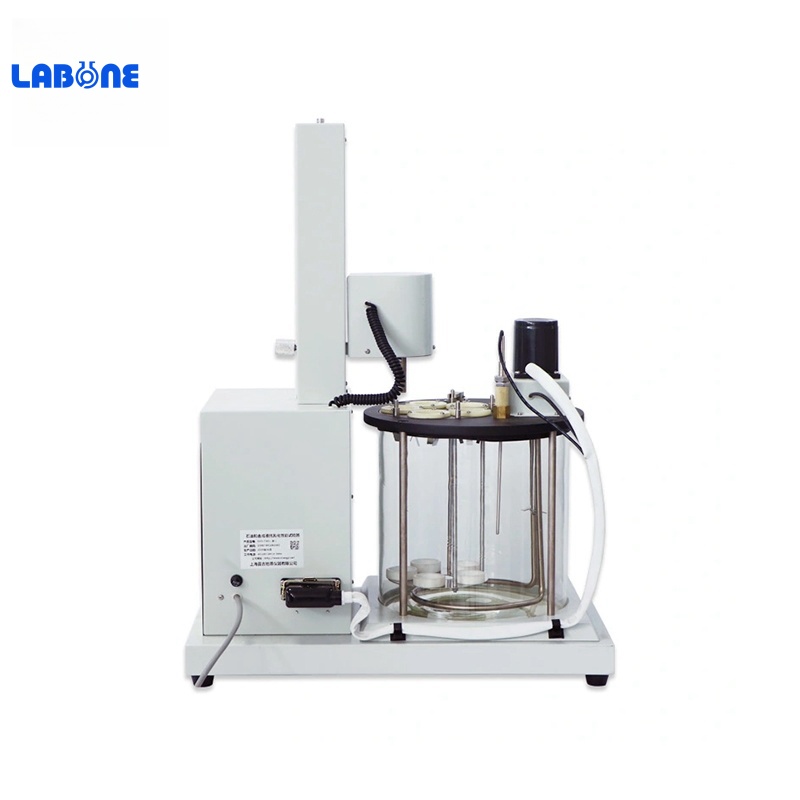

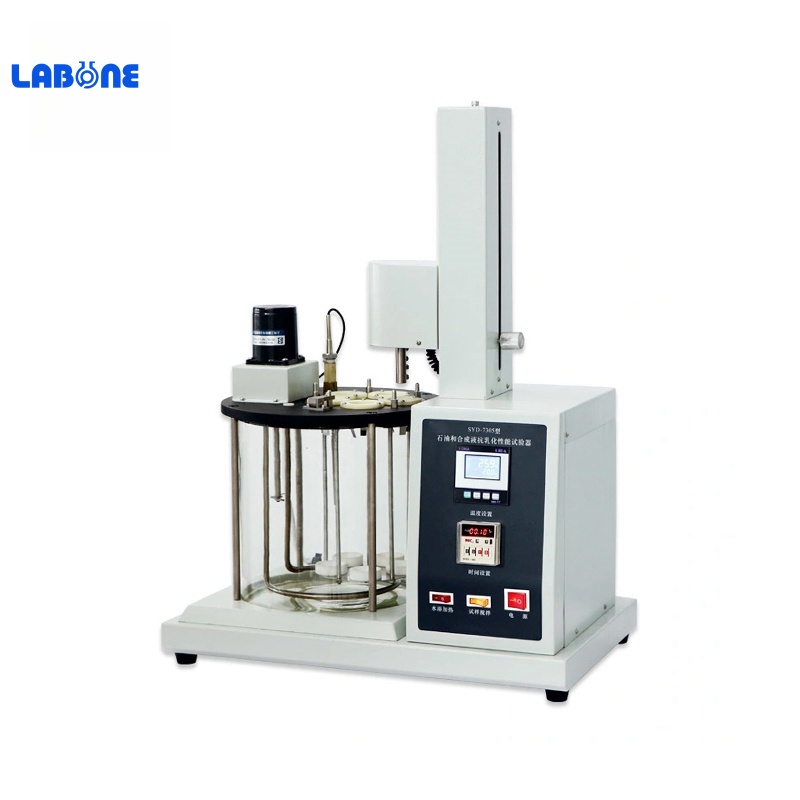

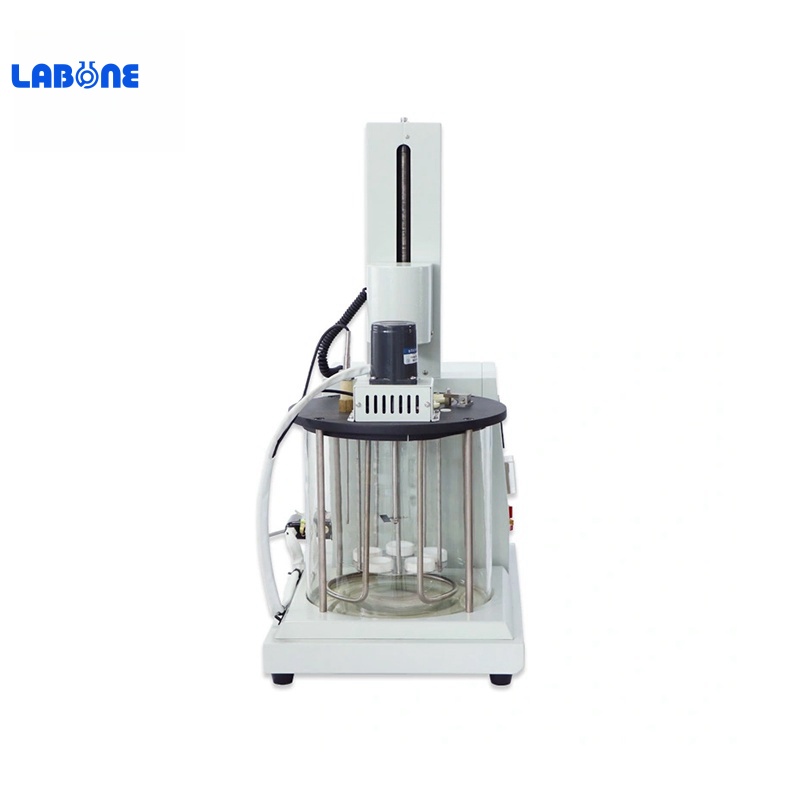

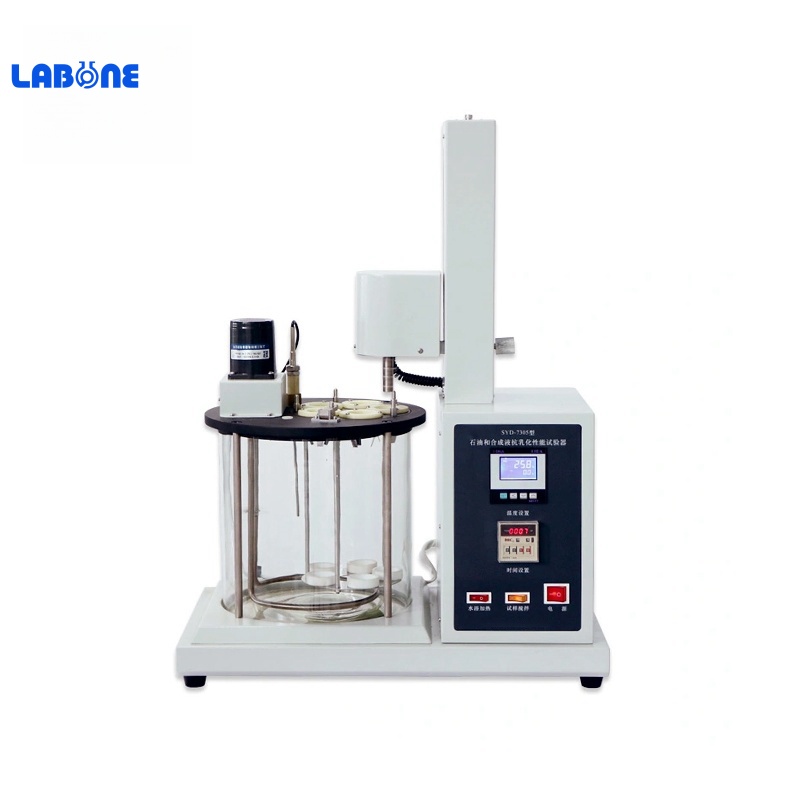

SYD-7305 Demulsibility Characteristics Tester (Desktop structure)

Summary
This instrument is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.

I. Main technical features
1. This instrument adopts small bath and desktop structure. It is easy to operate and good-looking.
2. It adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.
3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.

II. Main technical specifications

Power supply	AC(220±10%)V, 50Hz
Total Power consumption	≤1200W
Temperature range	(Room temp.+5∼99.9)℃
Temperature control accuracy	±1℃
Resolution	0.1℃
Temperature display	Digital
Timing range	1s∼9min59s
Stirring rate	(1500±15)r/min
Ambient temperature	(15∼35)℃
Relative humidity	≤85％
Dimension	500mm×340mm×720mm
Net weight	22kg

Note: If the required temperature is lower than room temperature,it can equip ZL-1 portable cooler manufactured by our company.
