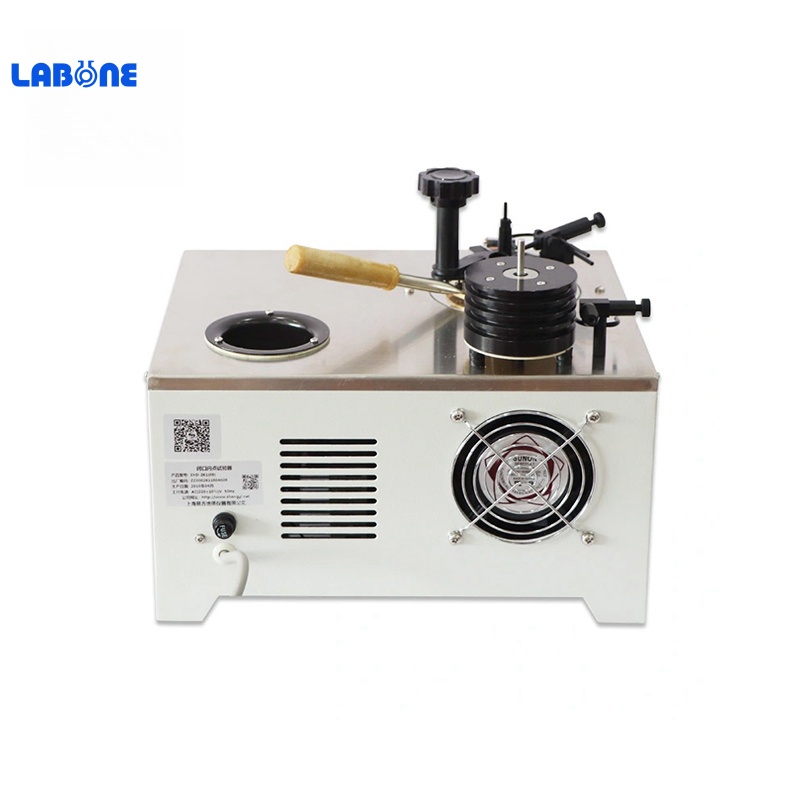

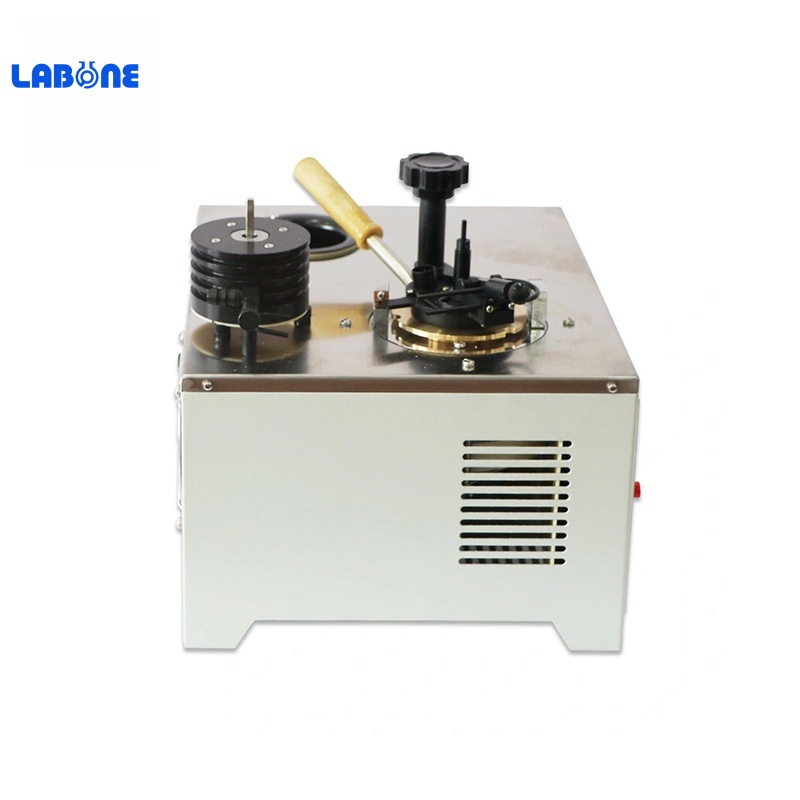

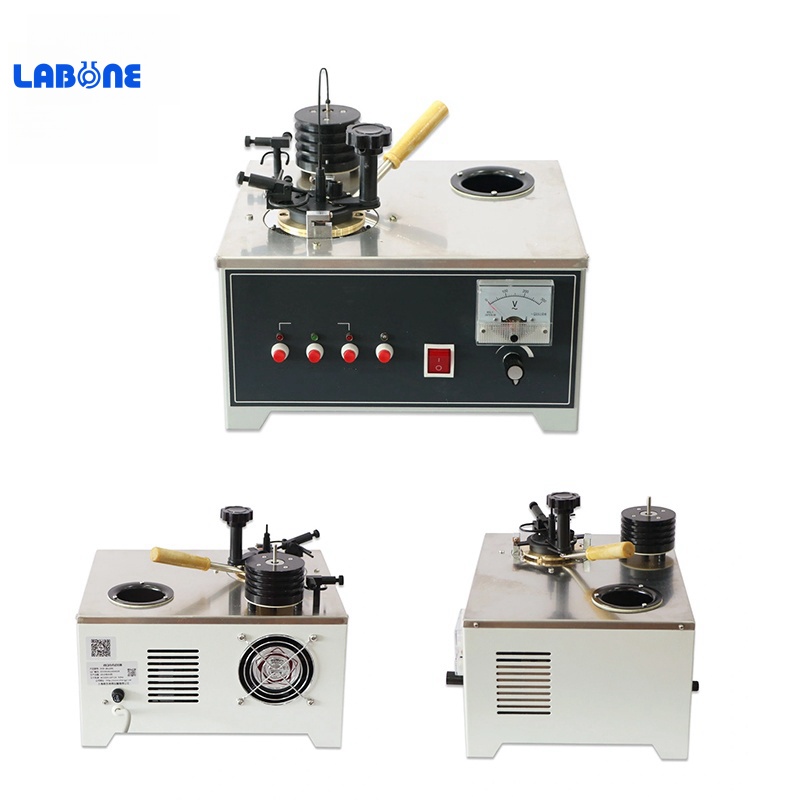

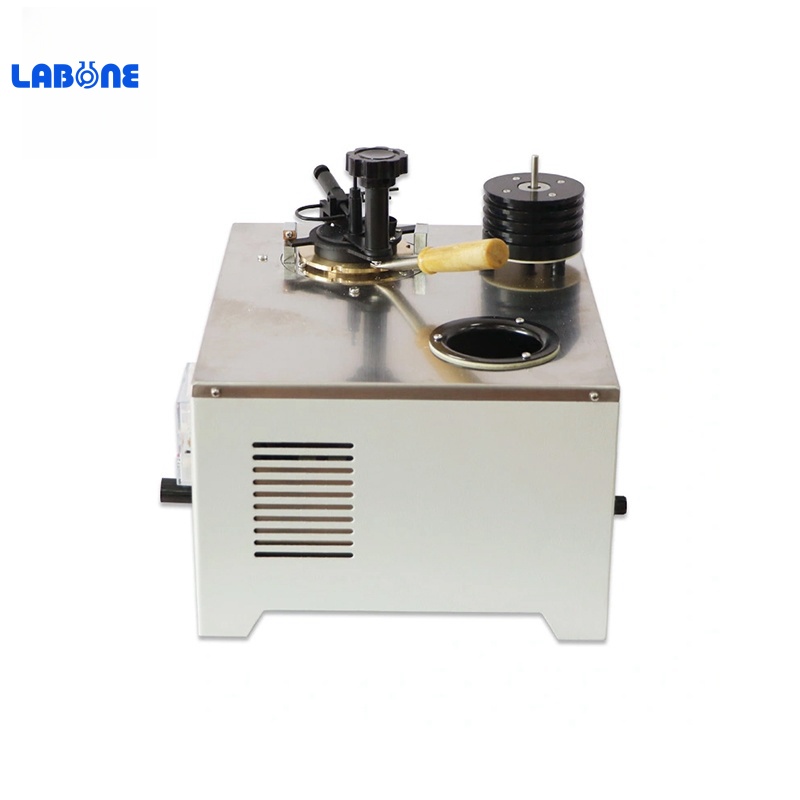

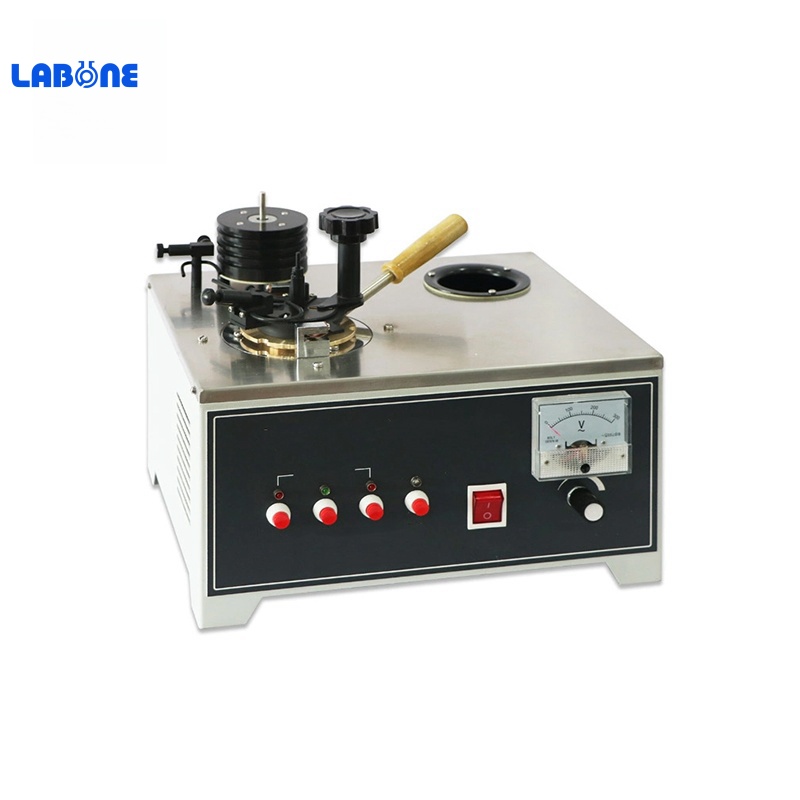

SYD-261 Pensky-Martens Closed-Cup Flash Point Tester



Summary

This instrument is designed and manufactured as per standardsGB/T 261-2021 Determination of Flash Point - Pensky-Martens Closed Cup MethodandASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.



I. Main technical features

1. This instrument is designed as per GB/T261 and ASTM D93.

2. The heating power is continuously adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.



II. Main technical specifications

Power supply

AC (220±10%)V, 50Hz

Total power consumption

≤650W

Heating device

The furnace body is made of silicon carbide

Heating power is adjustable from (0-600) w

Heating mode

Adjust by manual

Stir mode

Mechanical drive stirring

 Stirring rate

  Procedure A: (90120)RPM

Procedure B: (250±10)RPM

Procedure C: (90120)RPM

Oil cup

Inner diameter: 50.7mm50.8mm

Depth: 55.7mm56.0mm

 The scribed line depth of capacity of testing oil: 33.9mm34.3mm

Capacity of testing oil:about 70ml



Igniting source

gasor other civilian fuelsthe same below

Thermometers:Mercury-in-glass thermometer.Specifications are as below:

Scale -5℃110℃, division 0.5℃

Scale 20℃150℃, division 1℃

Scale 90℃370℃,division 2℃

Ambient temperature

1535

Relative humidity

≤ 85

Dimension

370mm×320mm×300mm

 Net Weight

7kg
