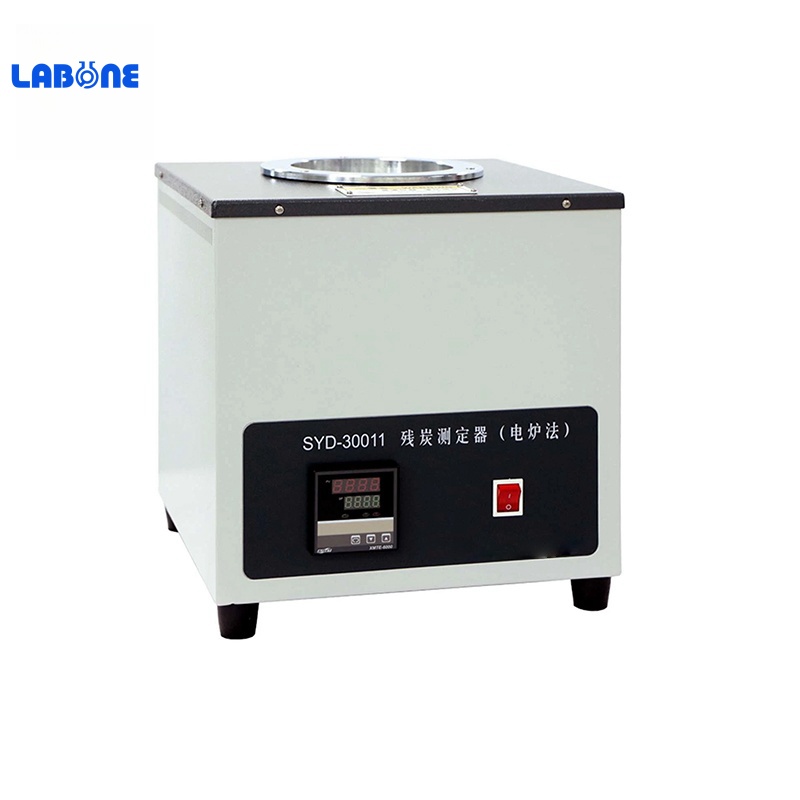

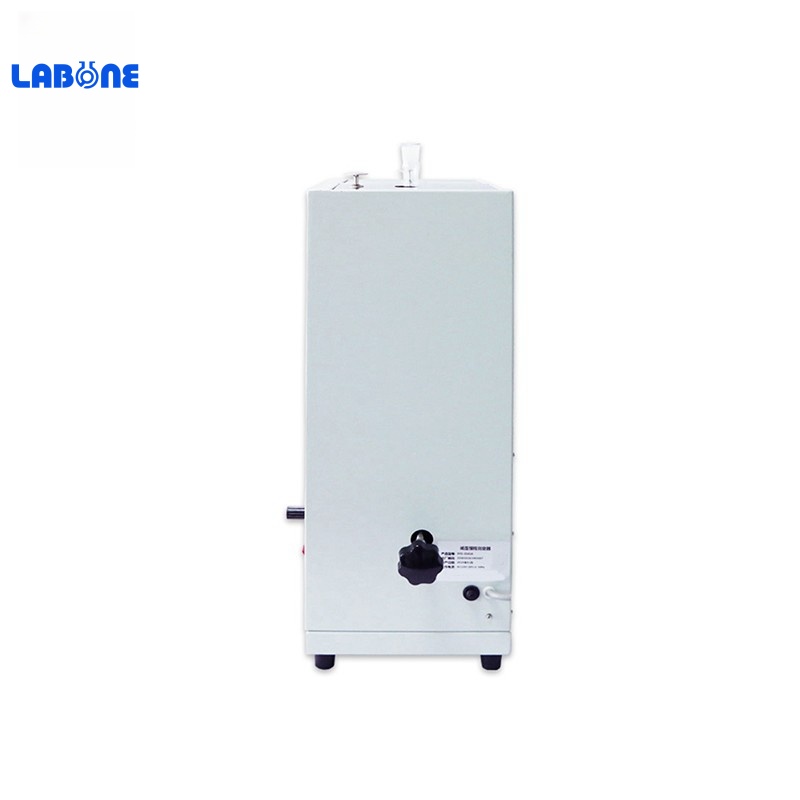

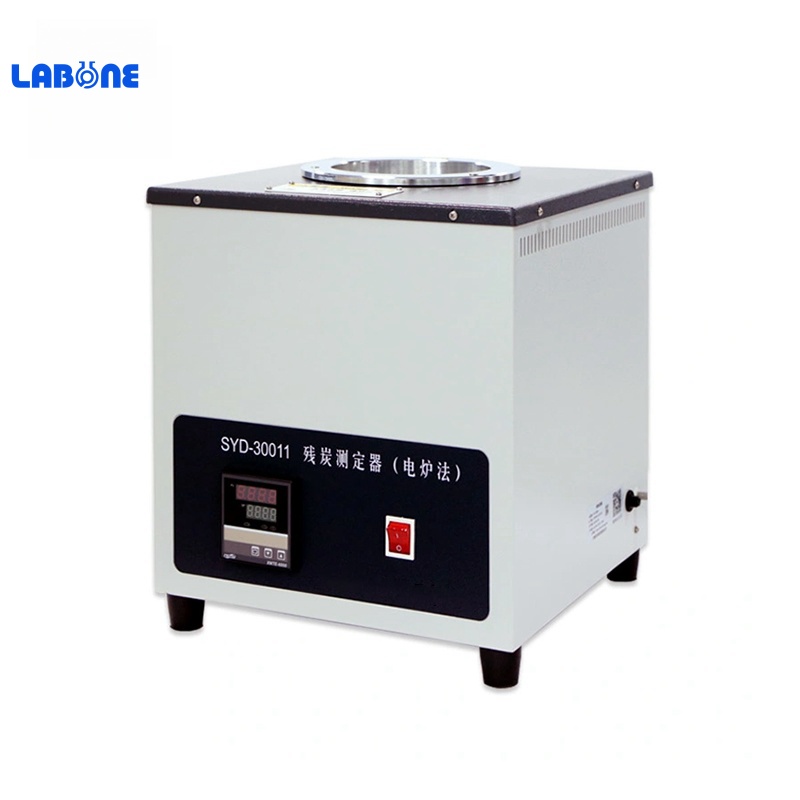

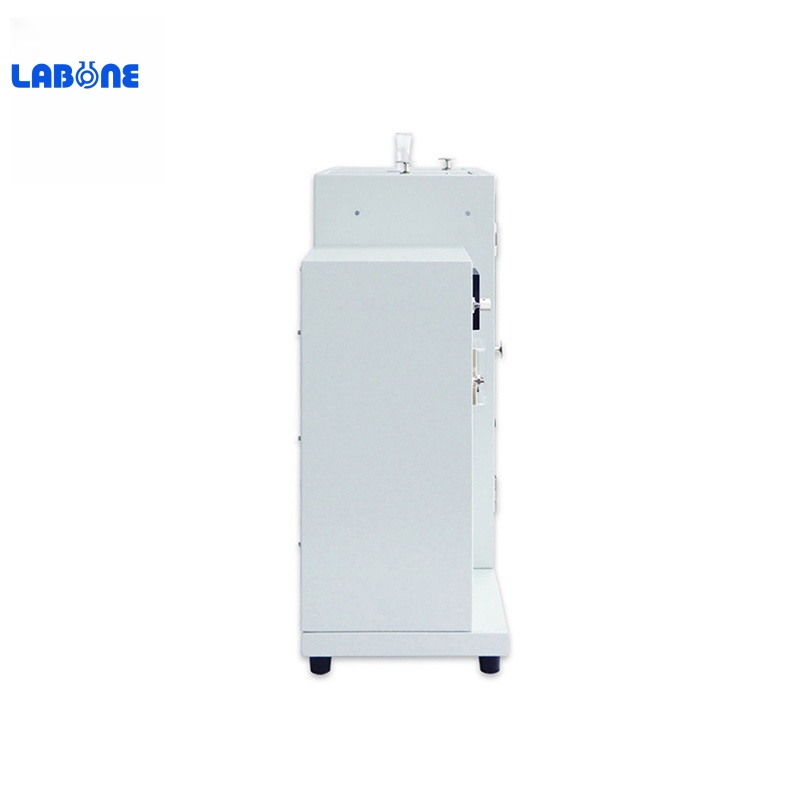

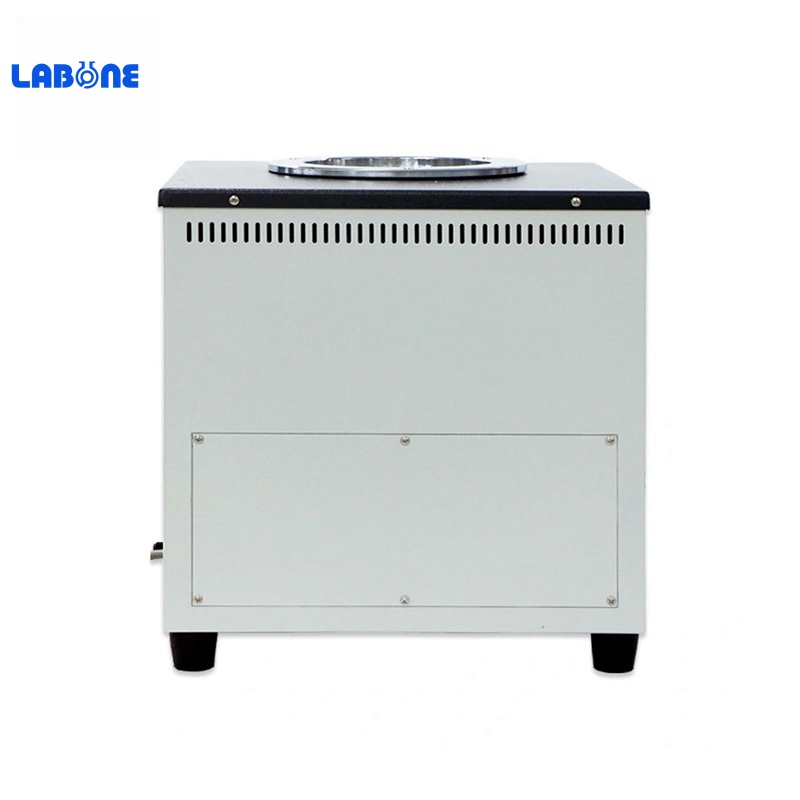

SYD-30011 Carbon Residue Tester(Electric Furnace Method)

Summary
The instrument is designed and made as per industrial standard of People’s Republic of China SH/T 0170 Test Method for Carbon Residue of Petroleum Products-electric furnace method. It is suitable to determine the carbon residue of lubricating oils, heavy liquid fuels and other petroleum products.

I. Main technical features
1. The instrument adopts desktop configuration. The heating furnace and controller are assembled to all-in-one machine. Small dimension and easy to use.
2. The max temperature of heating furnace can reach 520℃. It adopts digital temperature controller. The temperature control accuracy can reach ±5℃.
3. It can do four sample determinations concurrently. The test efficiency is high.

II. Main technical specifications

Power supply	AC（220±10%）V, 50Hz
Maximum power consumption	1300W
Heating mode	Electric furnace
Temp. Control range	(0～520)℃
Temp. Control accuracy	±5℃
Test furnace	One furnace with four holes
Ambient temperature	Room temperature～ 35℃
Relative humidity	≤85％
Dimension	350mm×360mm×370mm
Net Weight	24kg
