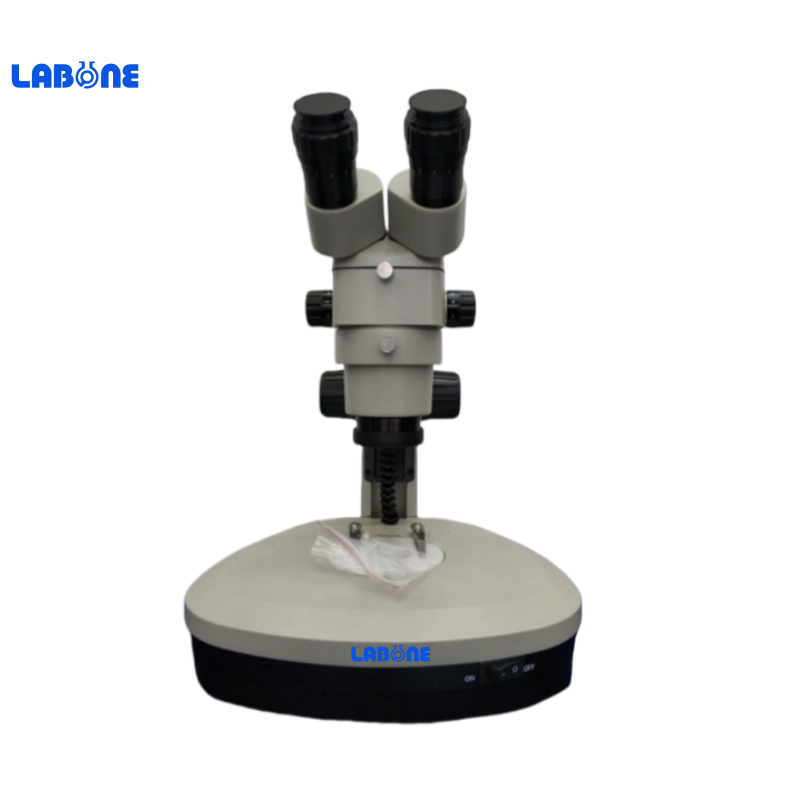

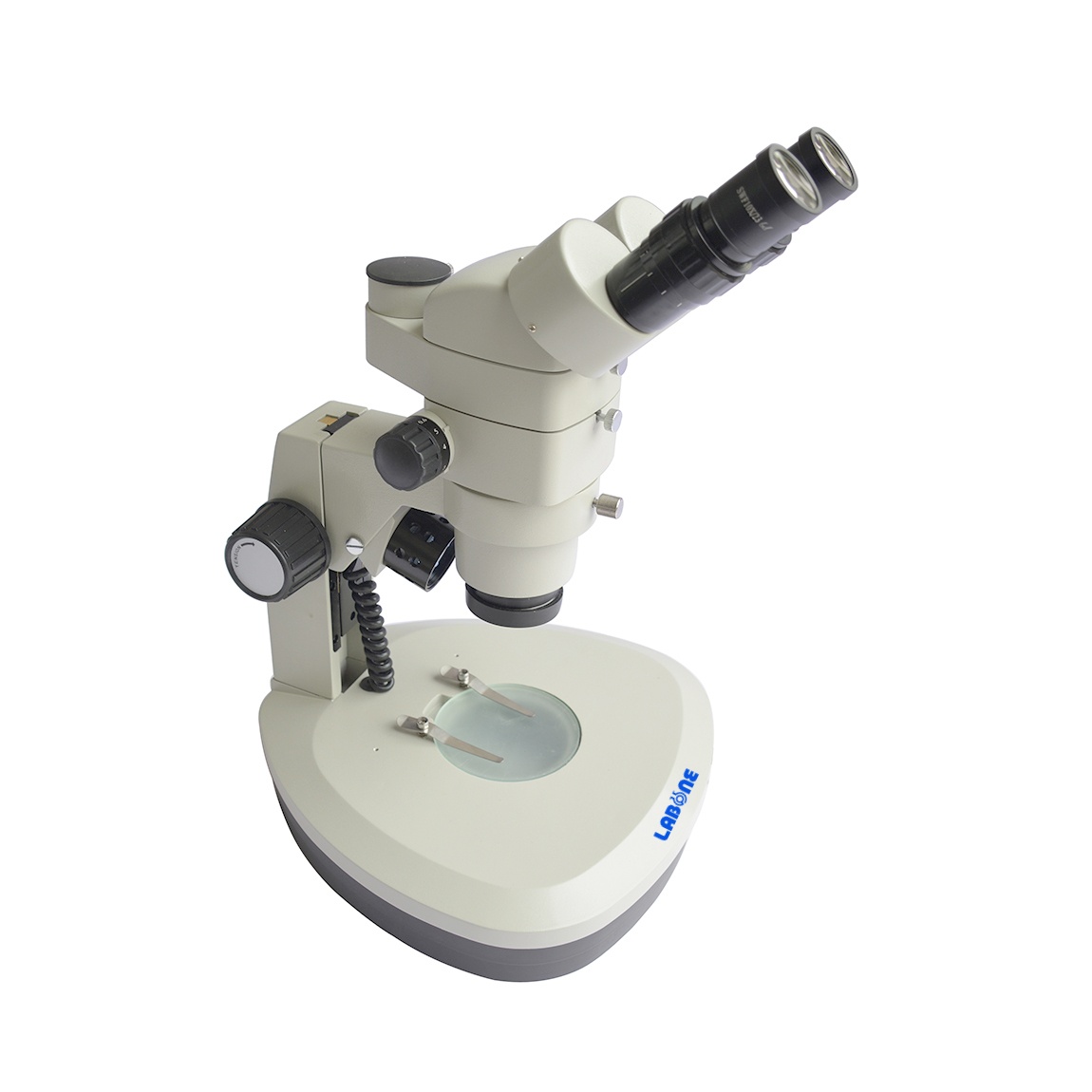

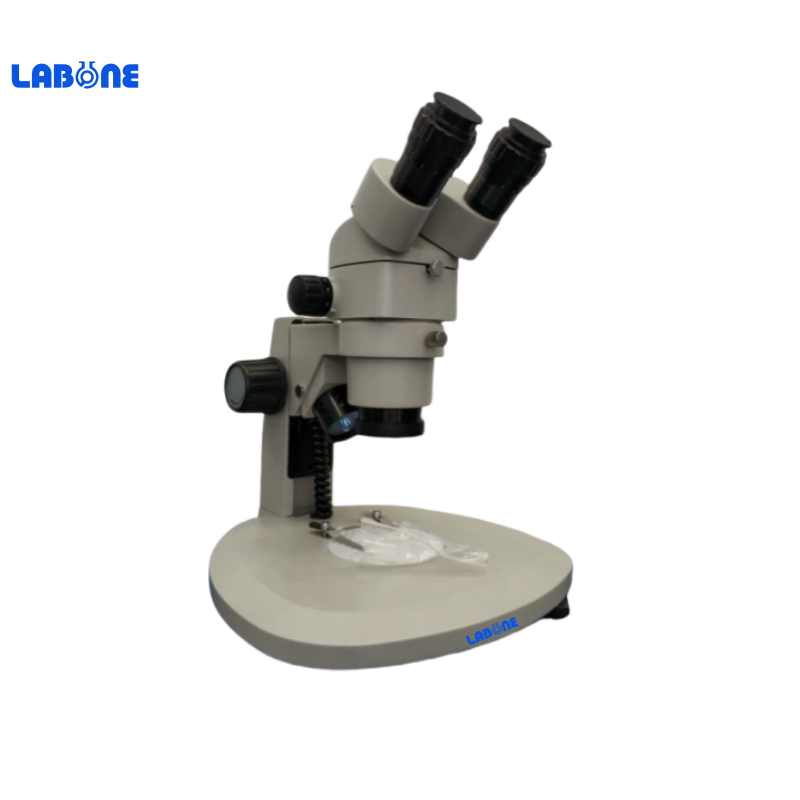

XPZ-830TI Stereo Microscopes
Product description:
XPZ830 is a big zoom stereo microscope with high performance, the zoom ratio is 1:8.3. The series adopt building block structure and can easily and quickly mount the functional components, such as photo (Trinocular with Reflected and Transmitting illuminator)
Technical data
Project | Auxiliary Objective | Eyepiece | Working distance(mm) | ||||||||
SWF10X | WF15X | WF20X | WF25X | ||||||||
Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cation | Visual field | ||||
Data | 0.3X | 1.8X-15X | 122-14.6 | 2.7X-22.5X | 88.8-10.7 | 3.6X-30X | 72-8.6 | 4.5X-37.5X | 66.6-8 | 300 | |
0.5X | 3X-25X | 73-8.8 | 4.5X-37.5X | 53.3-6.4 | 6X-50X | 43.3-5.2 | 7.5X-62.5X | 40-4.8 | 200 | ||
1X | 6X-50X | 36.7-4.4 | 9X-75X | 26.7-3.2 | 12X-100X | 21.6-2.6 | 15X-125X | 20-2.4 | 95 | ||
Main data | |||||||||||
zoom ratio | 1:8.3 | ||||||||||
Objective zoom range | 0.6X-5X | ||||||||||
Eyepice | SWF10X/23mm | ||||||||||
Working distance | 95mm | ||||||||||
Interpupillary distance adjustment range | 48mm-75mm | ||||||||||
Binocular head | inclination of 45。 | ||||||||||
Diopter adjustment | ±5 diopter | ||||||||||
Optical Body Rotation。 | 360 | ||||||||||
Voltage input | 110V/60HZ or 220V/50HZ | ||||||||||
Top halogen lamp | 6V15W adjustable brightness | ||||||||||
Bottom fluorescent lamp | 5W | ||||||||||
