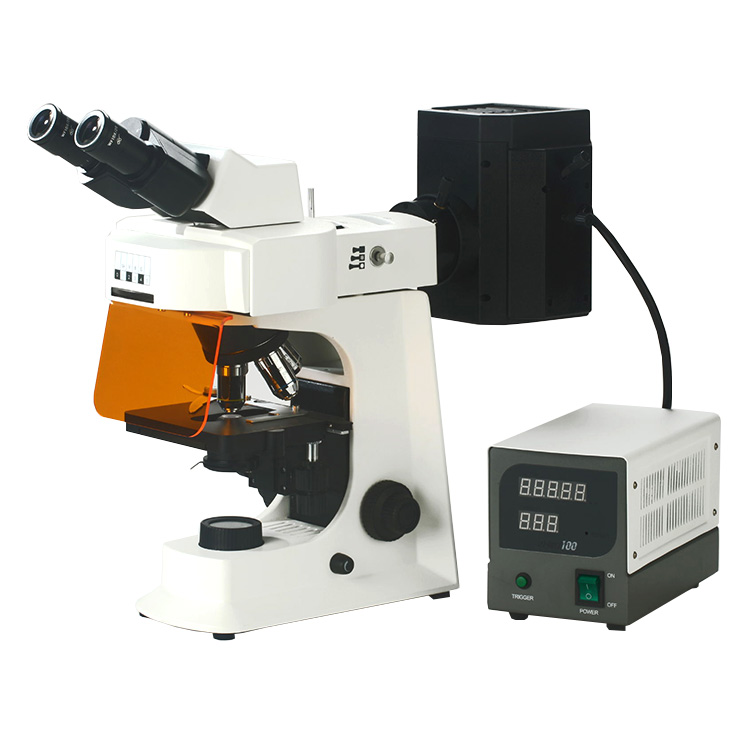

Smart-FL Fluorescence Microscope
Performance characteristics:
● Excellent OTICS infinity optical system, outstanding resolution and definition.
● Original integrated stand for excellent stability.
● Unique aspheric illumination system, provide bright and comfortable lighting.
● Various colorful matching looking can provide lively environment and happy mood.
● Various accessories for upgrading.
● Back handle and observing hole convenient for carry and operation.
● Alternative color for main body.
● Wire winding device convenient for carry and storage (optional)
● Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)
● Polarizer, analyzer for simple polarizing unit.
● Dry Dark Field Condenser
● Mirror

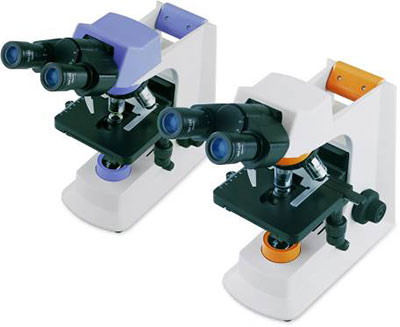

SMART Series Biological Microscope Outfits
Items | Specification | SMART-3 | SMART-4 |
Eyepiece | WF 10X-18mm | ||
WF 10X- 20mm | ●● | ●● | |
Finity Achromatic Objective | 4X | ● | |
10X | ● | ||
40X(S) | ● | ||
100X/1.25 (Oil) (S) | ● | ||
Infinity Plan Objectives | 4X | ● | |
10X | ● | ||
40X (S) | ● | ||
100X (Oil) (S) | ● | ||
Plan 20X | ○ | ○ | |
Plan 60X (S) | ○ | ○ | |
Butterfly Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● |
Butterfly Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ |
3MP/5MP Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 | ○ | ○ | |
Nosepiece | Quadplex | ● | ● |
Quintuple | ○ | ○ | |
Mechanical Stage | Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | ● | ● |
Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, | ○ | ○ | |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● |
Illumination | 3W-LED Illumination Systems | ● | ● |
12V/20W Halogen Lamp | ○ | ○ | |
12V/30W Halogen Lamp | ○ | ○ | |
Field Diaphragm | ○ | ○ | |
Dark Field Condenser | Dry, apply to 4X - 40X objective | ○ | ○ |
Polarizing Attachment | Analyzer/Polarizer | ○ | ○ |
Independent phase contrast unit | 10X /20X /40X /100X | ○ | ○ |
Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ● | ● |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ○ | |
Filter | Blue /Green /Yellow | ○ | ○ |
C-Mount | 1X/ 0.5X/0.75X （Focus adjustable） | ○ | ○ |
Mirror | ○ | ○ | |
Wire Winding Device | ○ | ○ |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 390mm×280mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs

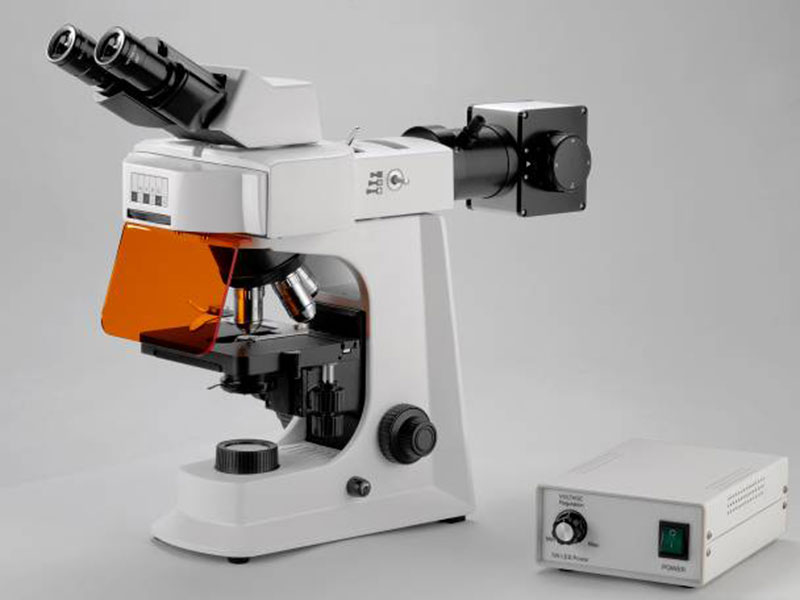

SMART Series Fluorescence Microscope Outfits
Items | Specification | SMART-3FL | SMART-4FL |
Eyepiece | WF 10X- 20mm | ●● | ●● |
Infinity E-Plan Objectives | 4X | ● | |
10X | ● | ||
40X (S) | ● | ||
100X (Oil) (S) | ● | ||
Infinity Plan Objectives | 4X | ● | |
10X | ● | ||
40X (S) | ● | ||
100X (Oil) (S) | ● | ||
Plan 20X | ○ | ○ | |
Plan 60X (S) | ○ | ○ | |
Butterfly Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● |
Butterfly Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ |

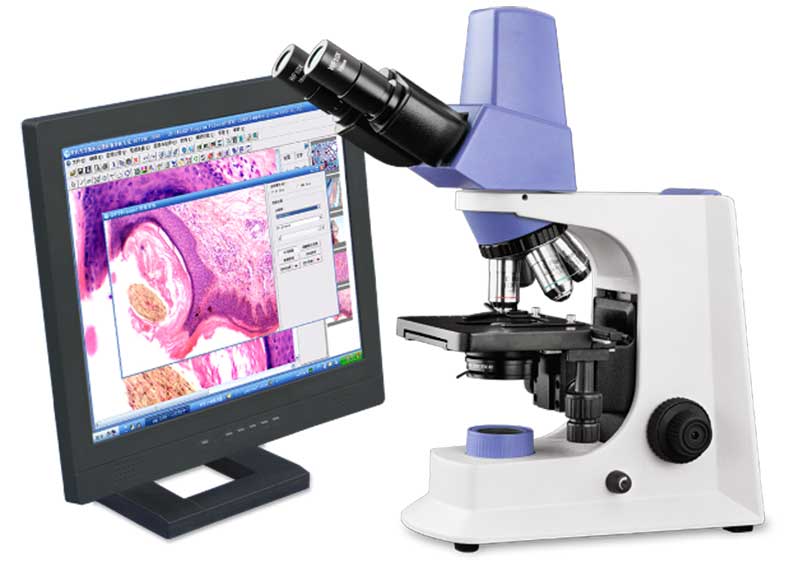

3MP/5MP Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 | ○ | ○ | |
Nosepiece | Quadplex | ● | ● |
Quintuple | ○ | ○ | |
Mechanical Stage | Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | ● | ● |
Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, | ○ | ○ | |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● |
Illumination | 3W-LED Illumination Systems（DC input） | ● | ● |
12V/20W Halogen Lamp | ○ | ○ | |
12V/30W Halogen Lamp | ○ | ○ | |
Field Diaphragm | ○ | ○ | |
Dark Field Condenser | Dry, apply to 4X - 40X objective | ○ | ○ |
Polarizing Attachment | Analyzer/Polarizer | ○ | ○ |
Independent phase contrast unit | 10X /20X /40X /100X | ○ | ○ |
Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | ○ |
Chinese Blue fluorescence filter | ● | ● | |
Chinese Green fluorescence filter | ● | ● | |
Chinese Violet fluorescence filter | ○ | ○ | |
Chinese Ultraviolet fluorescence filter | ○ | ○ | |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ● | ● | |
Filter | Blue /Green /Yellow | ○ | ○ |
C-Mount | 1X/ 0.5X/0.75X （Focus adjustable） | ○ | ○ |
Mirror | ○ | ○ |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
