WT600F Intelligent Dispensing Peristaltic Pump

WT600F Intelligent Dispensing Peristaltic Pump

WT600F intelligent dispensing peristaltic pumps adopts LF-Touch-OS software system, color LCD touch screen with intuitive and clear displaying interface. Brushless servo motor drive with large torque, free maintenance. Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements. The standard communication protocol, the pump is easier to be connected with other equipments. With intelligent temperature control fan, reduce noise, stainless steel housing, easy to clean, corrosion resistant.

Flow: 0.005～6600mL/min
Max: 2 Channels

Category: Dispensing Pumps

Tags: dispensing peristaltic pump, hose pump, industrial hose pumps, industrial peristaltic pump, intelligent peristaltic pump, Peristaltic Pump, peristaltic pump manufacturer

Functions and Feature

• Color LCD display, touch screen and button operation,easy to operate.
• Four working mode: flow rate mode, volume dispensing, time dispensing, copy dispensing, suitable for different working requirements.
• Each dispensing mode can store five groups of working parameters. Simply select when using.
• Start/stop, reversible direction, full speed, adjust speed, state memory(power-down memory).
• Display and control flow rate, accumulate dispensing volume automatically.
• Speed resolution 0.1rpm.
• Brushless servo motor drive, large torque, high efficiency, and maintenance free.
• Wizard flow calibrating function.
• Infrared remote control function (optional)
• Peristaltic pump expert system, wizard prompt operation, more convenient
• Intelligent temperature-control cooling fun reduces working noise.
• External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• The circuit board is sprayed with three anti paint processes to achieve dustproof and moisture-proof effects.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, easy to clean, corrosion resistant.
• Large torque output, cascading multiple pump heads, realize the combination of different pump heads and drivers.
• Connect foot switch control start-stop for dispensing fluid

Specifications

Flow Range: 0.005～6600mL/min

Speed Range: 0.1～600rpm

Speed resolution: 0.1rpm

Dispensing volume: 0.001μL～9999L(It is recommended to have a minimum fill of 50μL).

Dispensing time: 1～999，“0”Infinite cycle

Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable

Speed accuracy: ＜±0.2%

Power supply: AC100～240V，50Hz/60Hz

Power consumption: ＜150W

External control: External control input level 5V, 12V(Standard), 24V (Optional). External control analog 0-5V(Standard)，0-10V, 4-20mA (Optional)

Communication interface: RS485 communication interface, Modbus protocol is available, DB15 external control interface

Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

IP grade: IP31

Dimension（L×W×H）: 286mm×180mm×230mm

Weight: 5.5kg

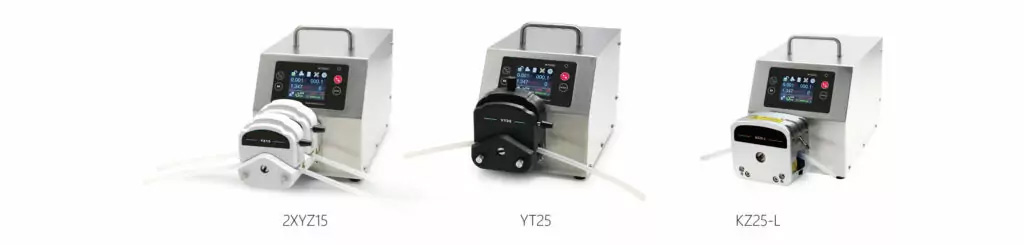

WT600F Applicable Pump Heads and Tubings, Flow Parameters

Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.

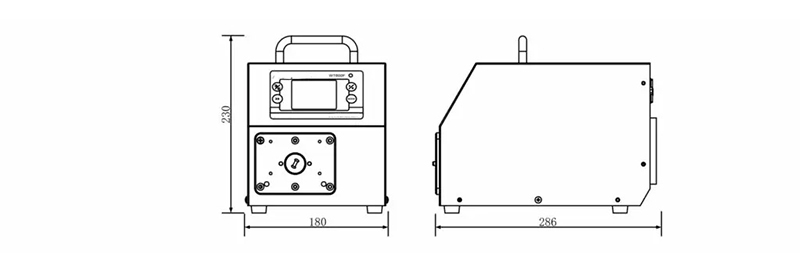

Dimension（mm）

Statement：The final explanation right of above information belongs to LABONE.
