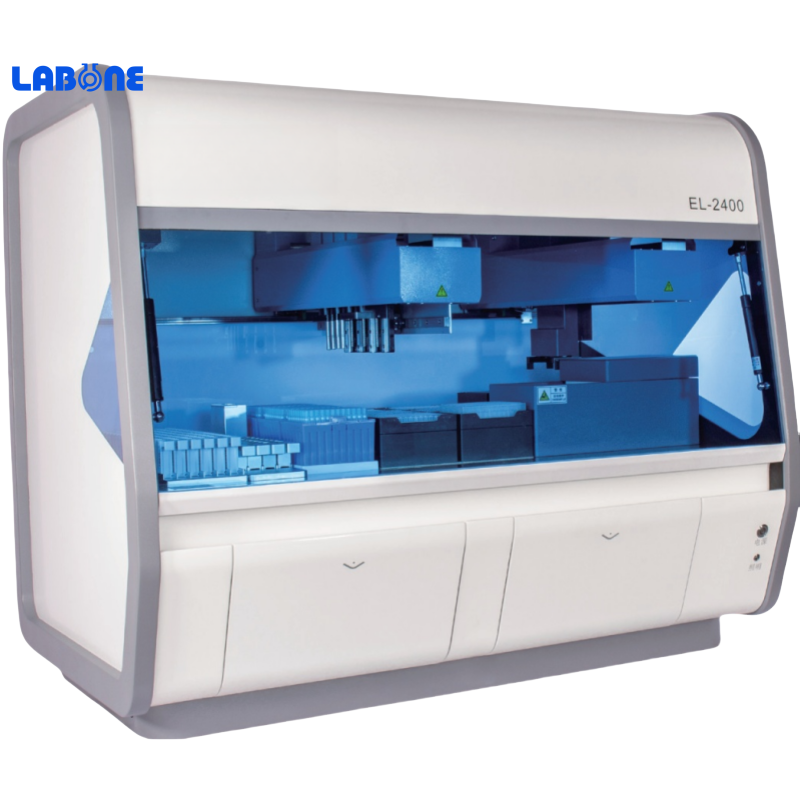

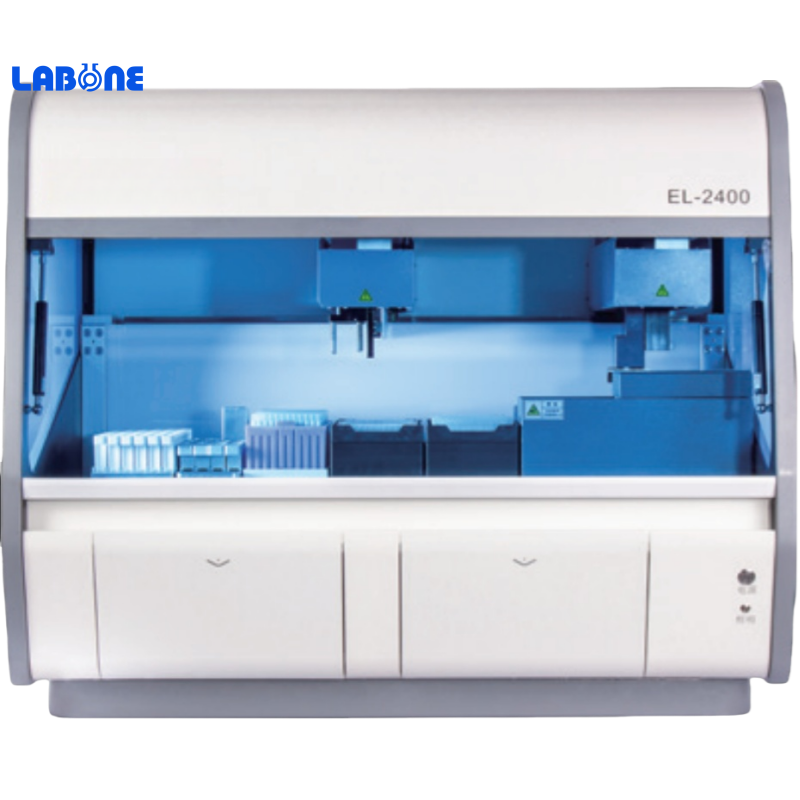

Automatic sample processing system - EL2400
EL-2400 automatic sample processing system has the advantages of simple operation,fast speed, stability, low failure rate, convenient maintenance, etc., used in Plate type of Luminescence detection, plate type of Enzyme immunity detection, ALT detection,b
FUNCTION INTRODUCTION：
Liquid level detection and clot detection:
Pressure sensing Liquid surface induction and Clot detection technology is adopted.
Flexible operation:
Flexible reagent bit, suitable for various shapes, it can be adapt-ed to various shapes, specifications of reagents, and can be placed arbitrarily.Automatic identification function.
Modular design：
All modules can work together or independently (such as sample addition, shaking, incubation, washing plate), greatly improve the working efficiency of the instrument, it can greatly reduce the occurrence of failure.
Zero pollution：
Using the latest high precision micro pump, high precision sample adding, good repeatability. Prevent towing pollution.
Sample adding module：
Each module of the sample arm can move independently or in combination in X,Y and Z directions, flexibly realizing the sample addition with equal spacing and unequal spacing.
Oscillating and incubation module：
Multi-point heating mode is distributed in the upper and lower layers of the shaking and incubation module. Oscillating and incubating position can work independently, and all parameters.
Washing module：
Double row, 16 channel design, closed washing mode, prevent washing liquid splash, washing machine can work independently, The washing parameters can be set flexibly.
Technical parameter:
Basic parameter | ||
projects | parameters | |
Sampling Mechanical arm | 1 mechanical arm | |
Mechanical arm of grabing | 1 arm, It can grab weight up to 400g | |
Sample location | 96 pieces | |
Reagent location | Up to 18 reagents can be placed simultaneously | |
Scanner | With internal scanner | |
Management module | Sample, reagent , quality control, standard product | |
Process monitoring | Dynamic monitoring of the working process | |
Power on self check | Initialization, results of the log message will be saved automatically | |
Communication protocol | CAN communication bus, high efficiency, reliable | |
Dimension | 1140mmx727mmx950mm | |
Weight | 130Kg | |
Sample module | ||
projects | parameters | |
Sample module | 1 board sample adding (supports multiple board splicing function) | |
Liquid surface detection | with liquid surface detection and clot detection, alarm function | |
Sample volume | Max.volume:1000ul, Min.Volume: 10ul | |
Sampling accuracy (Sample medium: pure water) | ||
Sample volume | Accuracy(CV) | Deviation |
100μL | ≤1% | 士2.0% |
100μL | ≤0.5% | 士1.0% |
Sampling Speed | ||
projects | parameters | |
Sample | 10 min./96 well | |
allocation | 3 min. /96 well | |
The module of washing | ||
projects | parameters | |
Washing head channel | Double row 16 channels | |
Injection grade | Low, medium, high and strong four grades | |
Soaking time | 0~250s | |
Cleaning frequency | 1~10times | |
Cleaning row number | 1~12 | |
Volume of residual fluid | <1uL/well | |
The module of shaking and incubation | ||
projects | parameters | |
Incubation board | 6 independent control board positions, compatible with dilution board | |
shaking level | 0~2 degree | |
shaking time | 0~250min with a step of 1 sec | |
Range of temperature for incubation | 30 'C to 75°c, with a step of 0.1°C | |
Time of incubation | 0~250min | |
