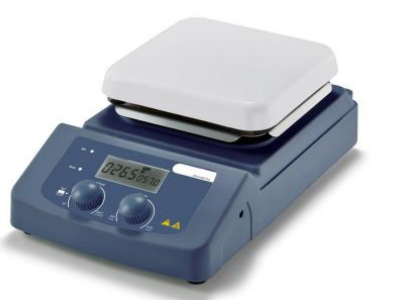

MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
MS-H380-Pro LCD Digital Magnetic Hotplate StirrerFeatures：Maximum heating temperature Is 380°CHigh resolutio
MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
Features：
Maximum heating temperature Is 380°C
High resolution LCD displays actual temperature and speed
Brushless DC motor is malntenance free
Aluminum ceramlc coating work plate,allowing Immediate heat transfer
Extemal temperature control is possible with temperature sensor PT1000
Digital speed control with maximum speed up to 1500rpm
Maximum stirring quantity of H2O at 5L.
Specifications | MS-H-ProA | MS-H-PRO+ | MS-H-PROT | MS-H-S | MS-H380-Pro | MS-H280-Pro |
Work plate Dimension [W x D] | Ø135mm（5 inch） | Ø135mm（5 inch） | Ø135mm（5 inch） | Ø135mm（5 inch） | 140x140mm | Ø135mm（5 inch） |
Work plate material | Aluminum cover | stainless steel cover | stainless steel cover | stainless steel cover | Aluminum cover with | stainless steel cover |
with ceramic coating | with ceramic coating | with ceramic coating | with ceramic coating | ceramic coating | with ceramic coating | |
Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
Max. stirring quantity, [H2O] | 20L | 20L | 20L | 20L | 5L | 3L |
Max. magnetic bar[length] | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
Speed range | 100-1500rpm resolution ±1rpm | 100-1500rpm resolution ±1rpm | 100-1500rpm resolution ±1rpm | 0-1500rpm | 200-1500rpm | 200-1500rpm |
Speed display | LCD | LCD | LCD | Scale | LCD | LED |
Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
Heating temperature range | Room temp.-340℃, increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃ | Room Temp. ±5-380℃ | Room Temp. ±5-280℃ |
Heating liquid temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | - | ±1℃(<100℃) ±1%(>100℃) | ±1℃ (<100℃) ±1% (>100℃) |
Overheating temperature protection | 420℃ | 420℃ | 420℃ | 420℃ | 420℃ | 320℃ |
Temperature display accuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.5℃ | ±0.1℃ | ±1℃ |
External temperature sensor | PT1000 ( accuracy±0.2℃ ) | PT1000 ( accuracy±0.2℃ ) | PT1000 (accuracy ±0.2℃) |
- | PT1000 ( accuracy±0.2℃ ) | PT1000 ( accuracy±0.2℃ ) |
"Hot" warning | 50℃ | 50℃ | 50℃ | - | - | 50℃ |
Data connector | RS232 | RS232 | RS232 | - | - | - |
Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
Timer function | - | - | 1min to 99h59min | - | - | - |
Motor rating input | 18W | 18W | 18W | 18W | 2.4W | 5W |
Motor rating output | 10W | 10W | 10W | 10W | 1.8W | 3W |
Power | 650W | 550W | 550W | 530W | 510W | 515W |
Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
Voltage,Frequency | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz | 100-120/200-240V， 50/60Hz |
Dimension [WxDxH] | 280x160x100mm | 160x280x100mm | 160x280x100mm | 160x280x100mm | 320x180x108mm | 150x260x100mm |
Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
Permissible ambient temperature and humidity | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH |
