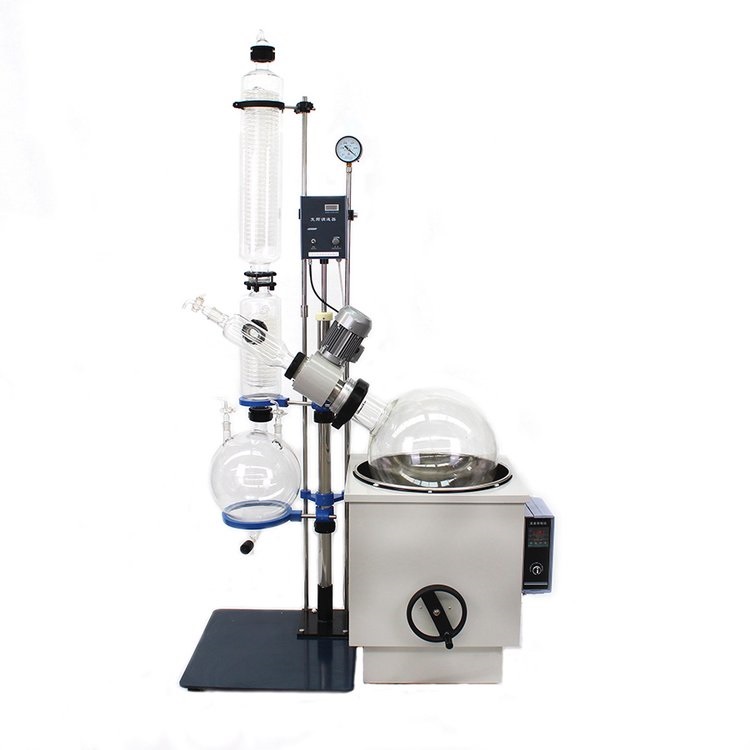

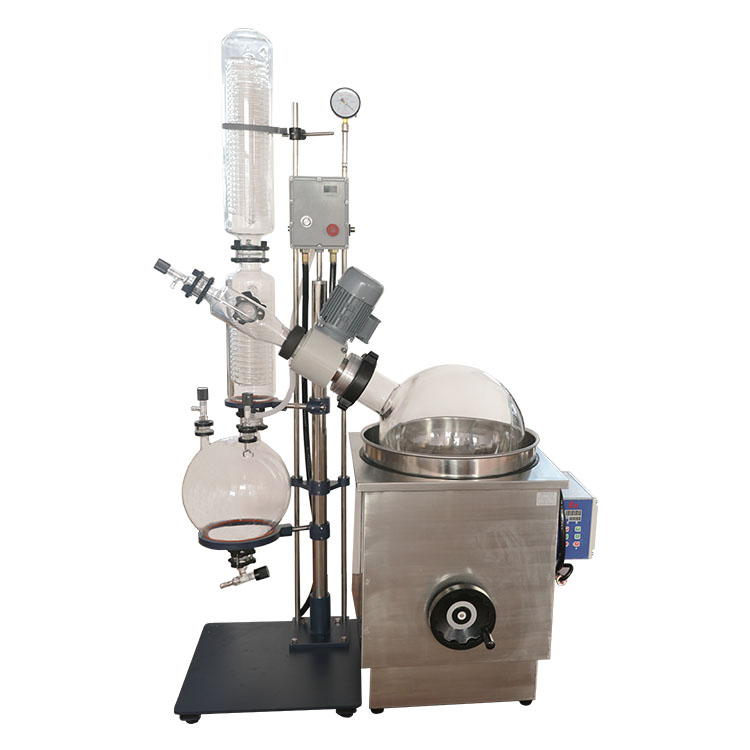

Large Manual Rotary Evaporator RE-1002 10L
Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .
1, Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .
2, USES the main and secondary efficient double condenser to ensure high recovery rate.
3, Rotating bottle with nut connection, it is easy to load and unload.
4, There is tap valve under the collection bottle mouth, recycled solvent is very fast.
5, Feeding continuously.
6 Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

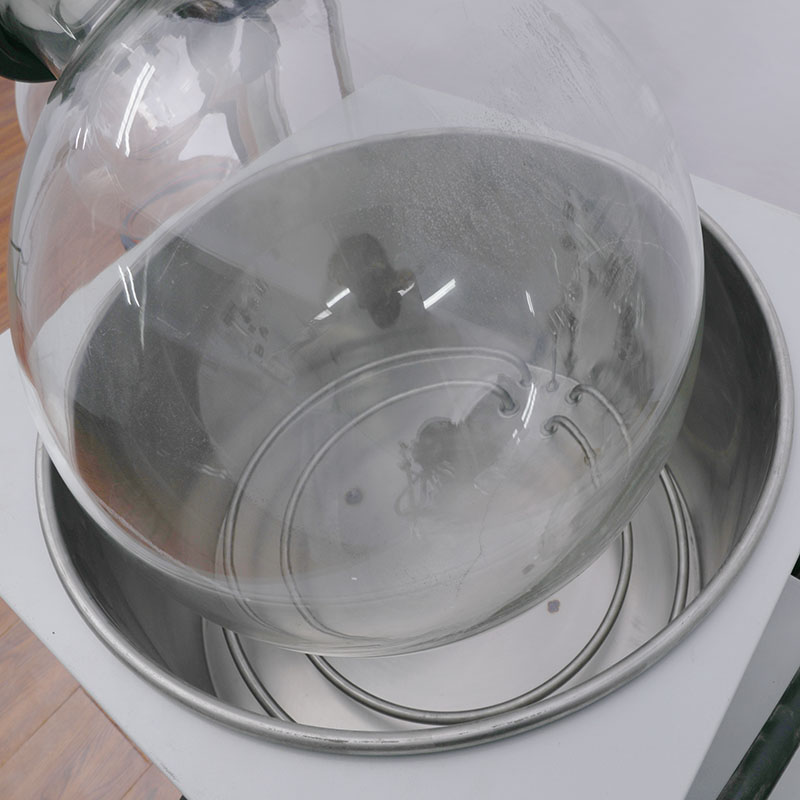

7, Water bath with digital and continuous temperature controlling.
8, Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.
Model | RE-1002 | RE-2002 | RE-3002 |
Glass material | GG-17 | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 490*430*540mm | Spray anti-corrosion 630*534*638mm | Spray anti-corrosion 710*620*700mm |
Pot bravery | Stainless steel 350*220mm | Stainless steel 450*250mm | Stainless steel 000*280mm |
Plate size | 474*474 | 534*504 | 804*574 |
Evaporator flask | 10L flange mouth:Φ95mm | 20L flange mouth:Φ95mm | 30L flange mouth:Φ125mm |
Collect flask | 5L flange mouth:Φ50mm | 10L flange mouth:Φ60mm | 20L flange mouth:Φ60mm |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM | 0-110RPM |
Rotary power | 120W | 120W | 180W 220V/50HZ |
Heating power | 3KW | 5KW | 8KW 380V/50HZ |
Heating temp. | 0-400℃ | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ | ±1℃ |
Lifting stroke | 180mm | 180mm | 180mm |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension | 970*480*1950 | 1170*540*2200 | 1520*620*2470mm |
Packing size | 1350*350*400 1280*570*660mm | 1370*700*680 700*680*740mm | 1450*390*440 1150*840*660 790*730*790mm |
Packing weight | 100kg | 123kg | 170kg |
Configuration list | |||
Speed mode | Frequency Control speed | Frequency Control speed | Frequency Control speed |
Speed Display | digital | digital | digital |
Temp. display | K type sensor digital display | K type sensor digital display | K type sensor digital display |
Temp. control | intelligent temp. control | intelligent temp. control | intelligent temp. control |
Sealing method | PTFE | PTFE | PTFE |
Condenser | Vertical efficiency three reflux condenser Main:120*640mm | Vertical efficiency three reflux condenser Main:130*680mm | Vertical efficiency three reflux condenser Main:160*840mm |
Continuous collection | non-return valve control | non-return valve control | non-return valve control |
Lifting mode | Manual lifting | Manual lifting | Manual lifting |
Temp. measurement methods | 19# | 19# | 19# |
Continuous feed | 34# Standard mouth feed valve | 34# Standard mouth feed valve | 40# Standard mouth feed valve |
Discharge mode | PTFE Discharge valve flange mouth:Φ50mm | PTFE Discharge valve flange mouth:Φ60mm | PTFE Discharge valve flange mouth:Φ60mm |
Vacuum Display | Vacuum gauge | Vacuum gauge | Vacuum gauge |
Option | |||
Lifting mode | Automatic electric lifting | ||
Collection device | Double collect bottle | ||

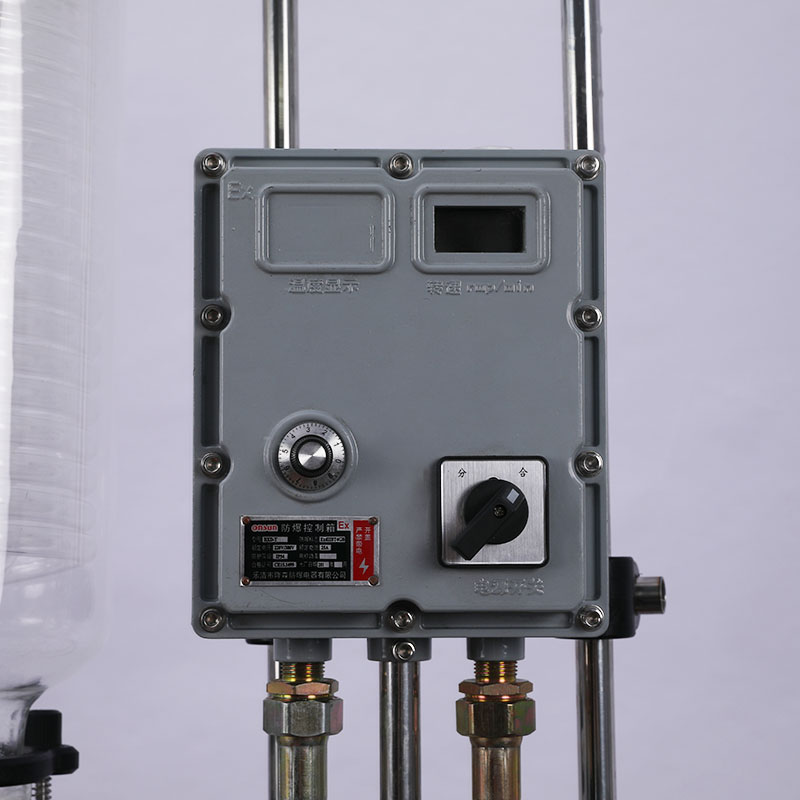

Explosion-proof | Explosion-proof motor&Explosion-proof inverter EX120W | ||
Frame portion | Spray PTFE | ||
Bath pot Material | Full 304SUS | ||
Model | RE-5003 | RE-100L |
Glass meterial | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 710*620*700mm | Spray anti-corrosion 820*820mm |
Pot bravery | Stainless steel 550*320mm | Stainless steel 795*330mm |
Plate size | 804*574mm | 1600*830mm |
Evaporator flask | 50L flange mouth:Φ125mm | 100L flange mouth:Φ180mm |
Collect flask | 20L flange mouth:Φ60mm | 50L ball mouth:Φ40mm |
Vacuum degree | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM |
Rotary power | 180W 220V/50HZ | 400W 220V/50HZ |
Heating power | 8KW 380V/50HZ | 12KW 380V/50HZ |
Heating temp. | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ |
Lifting stroke | 180mm | 180mm |
Dimension | 1520*620*2470mm | 1700*850*2600mm |
Packing size | 1450*390*440mm 1150*840*660mm 790*730*790mm | |
Packing weight | 170kg | 400kg |
Speed mode | Frequency Control speed | Frequency Control speed |
Speed Display | digital | LCD |
Temp. display | K type sensor digital display | K type sensor digital display |
Temp. control | intelligent temp. control | intelligent temp. control |
Sealing method | PTFE | PTFE |
Condenser | Vertical efficiency three reflux condenser Main:160*840mm | Vertical efficiency three reflux condenser Main:230*950mm |
Continuous collection | non-return valve control | non-return valve control |
Lifting mode | Manual lifting | Automatic lifting |
Temp. measurement methods | 19# | |
Continuous feed | 40# Standard mouth feed valve | 29# Standard mouth feed valve |
Discharge mode | PTFE Discharge valve flange mouth:Φ60mm | PTFE Discharge valve flange mouth:Φ60mm |
Vacuum Display | Vacuum gauge | Vacuum gauge |
