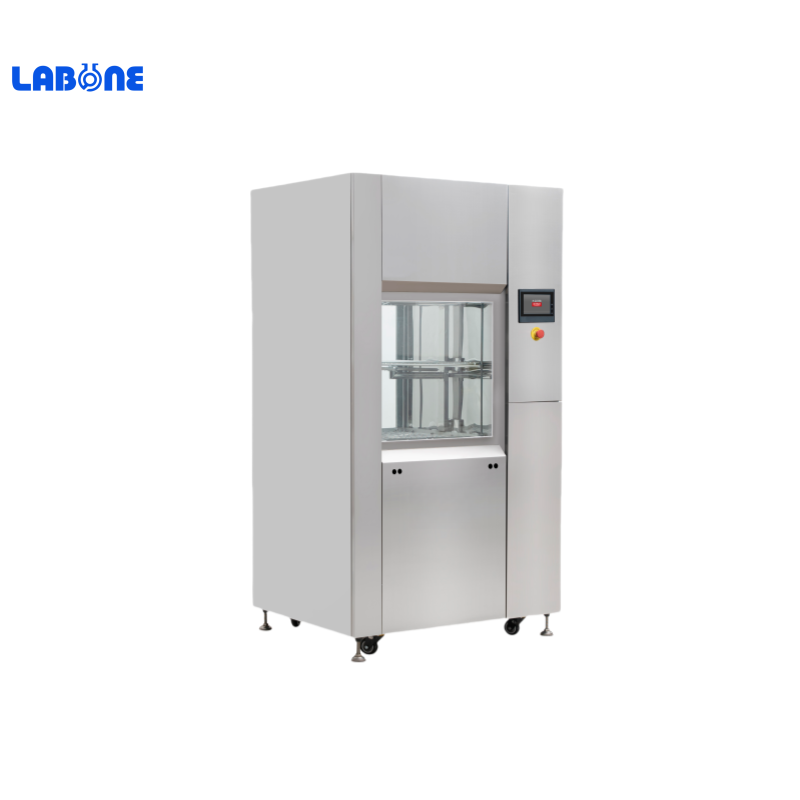

Cleaning washer CTLW-420

The significance of automated cleaning：

1. Standardized cleaning treatment ensures uniform cleaning effect and reduces uncertain factors caused by human operation;

2. Easy to verify and save records, convenient for traceability management;

3. Reduce the risk for staff and avoid injury or infection during manual cleaning process;

4. Cleaning, disinfection, and drying are fully automated, reducing equipment and labor costs and saving costs;

Design features：

1. Material: Cleaning chamber: SUS316L, shell: SUS304;

2. Imported high-efficiency circulation pumps from Europe, with stable and reliable cleaning pressure;

3. Design and arrange cleaning positions based on fluid mechanics principles to ensure the cleanliness of each item during cleaning;

4. Optimize the rotating spray arm of the flat mouth nozzle design to ensure 360 ° coverage without dead corners during spraying;

5. Dual water temperature control ensures the entire cleaning water temperature;

6. Cleaning solution can be set and automatically added;

7. Built in HEPA high-efficiency filter ensures the cleanliness of dry air; Synchronize the drying water circulation pipeline to avoid moisture contamination of the cleaning system; Dual temperature control to ensure dry temperature;

8. Front and rear double doors, electrically controlled door body;

Operation control

1. PLC (Programmable Logic Controller) control system, stable and reliable;

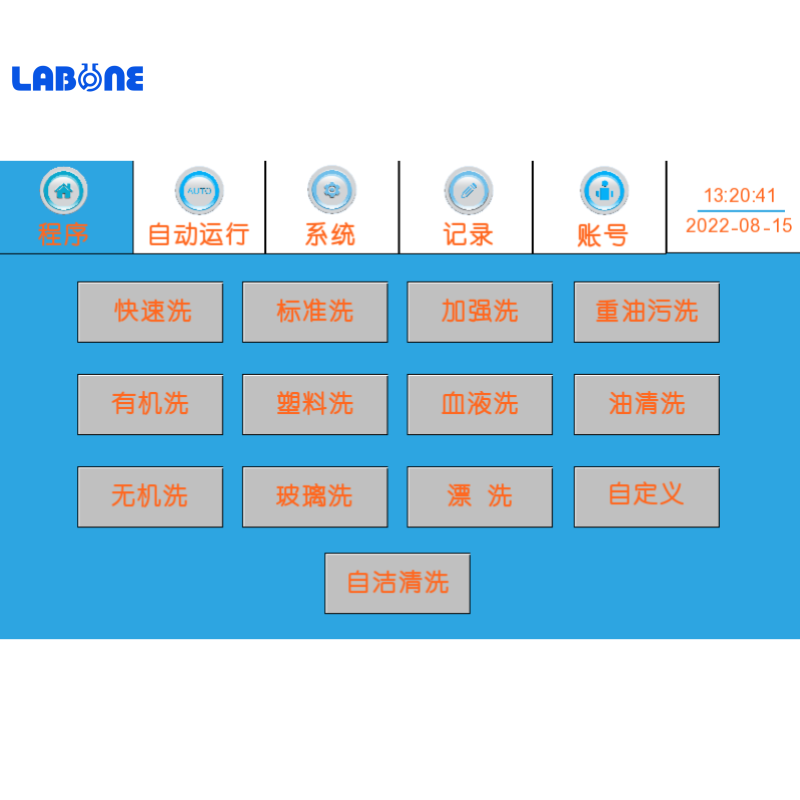

2. The cleaning program can be freely combined and used as needed;

3. 7-inch color LCD touch screen, with all device operation information displayed in text;

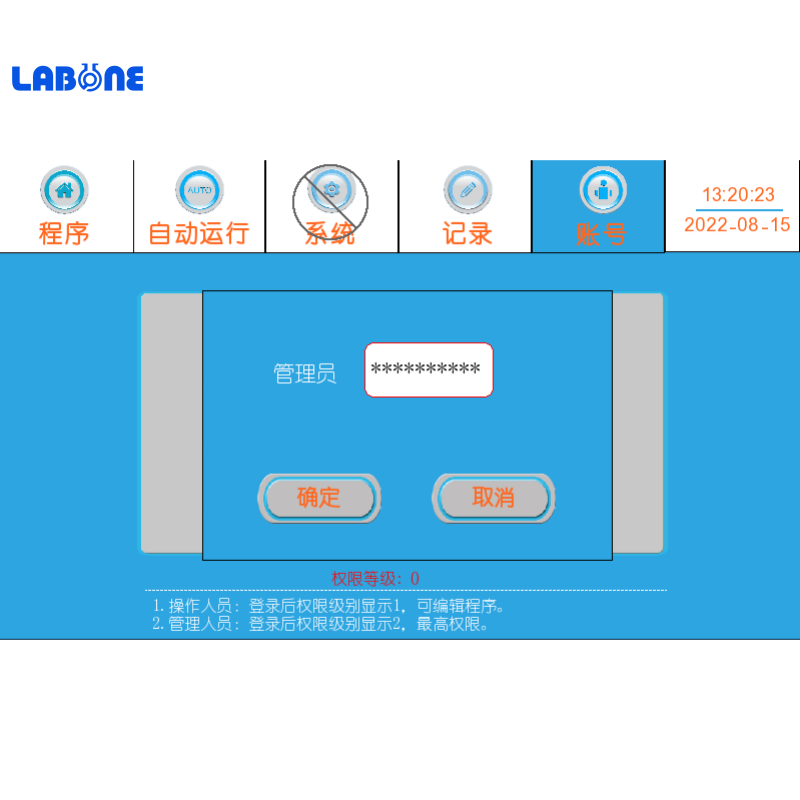

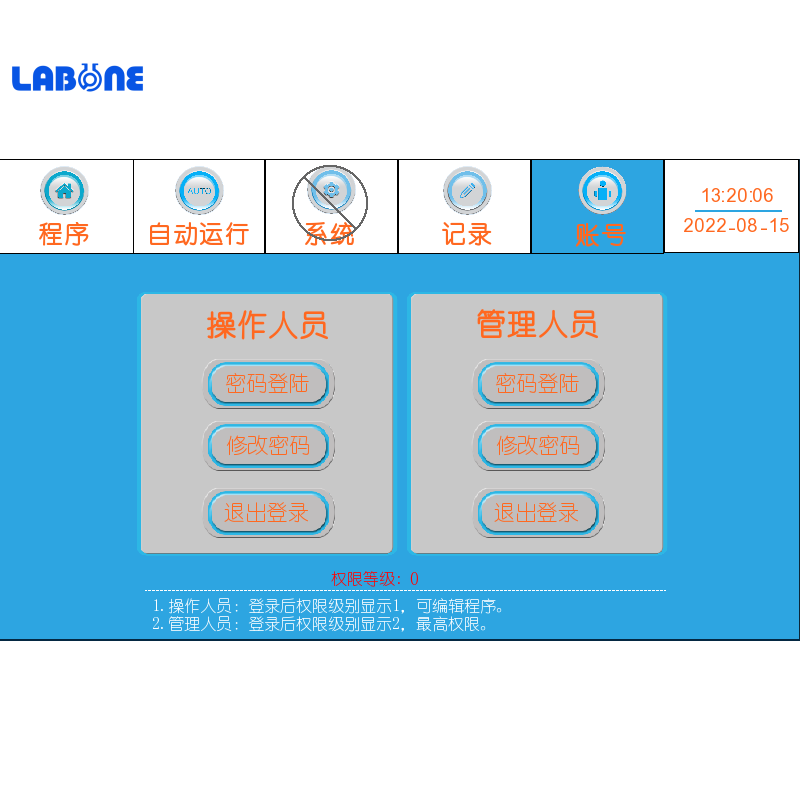

4. Level 3 password management, which can meet the use of different management permissions;

5. Equipment fault self diagnosis and sound/text prompts;

6. Automatic data storage function for cleaning;

7. USB cleaning data export function;

8. Micro printer data printing function (optional);

Security protection function：

1. Two point electronic door lock to prevent arbitrary opening;

2. Dual temperature protection for water temperature and air temperature;

3. High temperature automatic protection for circulating pumps;

4. Power outage protection function;

5. Design water seals for drainage pipelines to prevent back flow of sewage;

Specifications：
