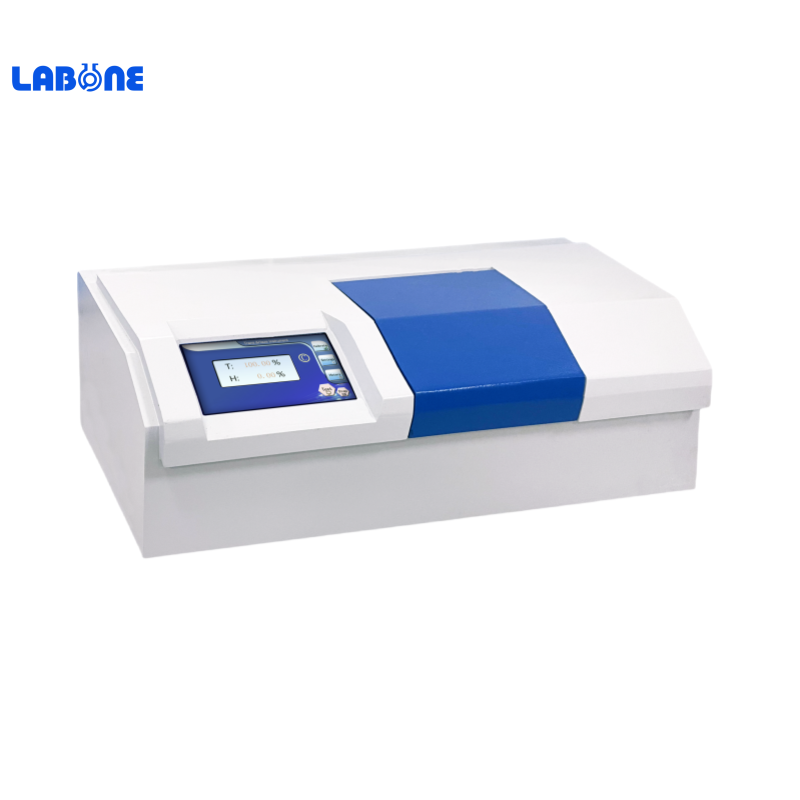

SGW-800/800L Hazemeter
Meet GB/T2410-2008, ASTM D1003-2007, JIS K7105-81.Measurement of optical characteristics of the transparent and translucent planes materials and plastic membranes.Closed measurement compartment is suitable for small samples,reducing the impact of ligh
Characteristics
Meet GB/T2410-2008, ASTM D1003-2007, JIS K7105-81.
Measurement of optical characteristics of the transparent and translucent planes materials and plastic membranes.
Closed measurement compartment is suitable for small samples,reducing the impact of light.
Standardized operating procedures guides the measurement.
Color touch screen simplifies operation and improves detection speed.
Specifications
Parameters/Model | SGW-800 | SGW-800L |
Illuminant | C light（6774k） | |
Light Source | Tungsten lamp | LED |
Range | Transmittance: 0-100% Haze: 0-30% | |
Minimum reading | Transmittance: 0.01% Haze: 0.01% | |
Accuracy | Transmittance: ±1.5%(Standard neutral density filter) Haze: ±0.5% | |
Repeatability | Transmittance: ≤0.5% Haze: ≤0.2 | |
Sample size | 50mm×50mm | |
Display | 5 inch color touch screen | |
Interface | USB、U disk、RS232 | |
Data storage | 1000 sets | |
Power supply | 220V±22V，50Hz±1Hz，30w | |
Overall dimensions | 530mm×380mm×300mm | |
Weight (Gross) | 9kg | |
