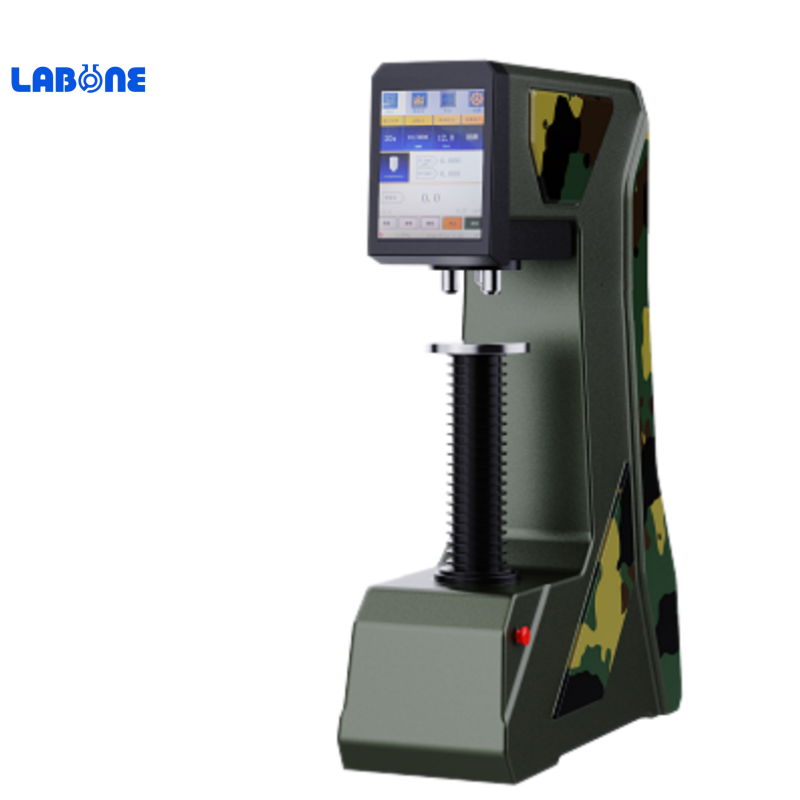

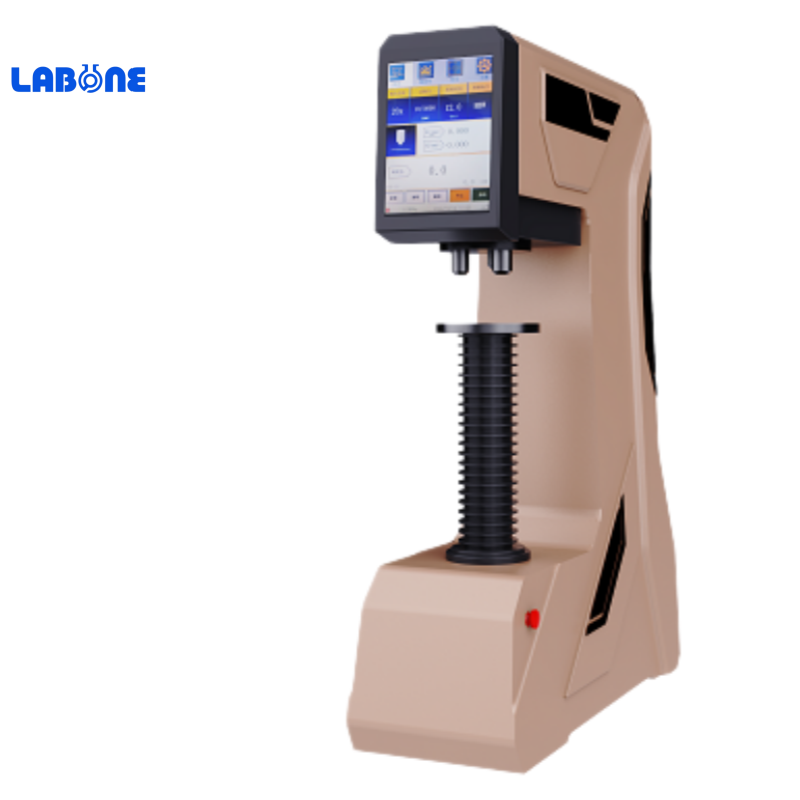

Visual Direct-Reading Brinell Hardness Tester

      Product Overview

The VHBS-3000AET Visual Direct-Reading Brinell Hardness Tester is equipped with a 10-inch industrial control integrated tablet computer and a high-speed ARM processor. It offers intuitive display, user-friendly human-computer interaction, and simple operation. With its fast computing speed, massive database storage, automatic data correction, it also provides data line graph reports.

      Product Features

   1. An industrial tablet computer is installed on the front of the machine body. It has a built-in industrial-grade camera and uses CCD image software processing. Data and images can be directly exported, and both manual and automatic measurements of the images can be completed, which is convenient and  fast.

  2. The machine body is cast in one piece with high-quality cast iron and then processed with automotive baking paint technology, presenting a smooth and beautiful appearance.

  3. It is equipped with an automatic turret function, enabling automatic switching between the indenter and the lens, which makes it more convenient to use.

  4. The maximum and minimum values of the hardness can be set. When the test value exceeds the set range, an alarm sound will be emitted.

  5. It has a software function for hardness value correction, allowing the hardness value to be directly corrected within a certain range.

  6. It has a database function. The test data are automatically grouped and saved. Each group can store 10 data, and more than 2000 data can be stored in total.

  7. It has a hardness value curve display function, which can visually show the change of hardness values.

  8. It can automatically convert the units of the full hardness scale.

  9. The test force is applied under electronic closed-loop control, fully realizing the automated operation of loading, holding, and unloading.

 10. It is equipped with high-definition optical double objectives, which can measure indentations of different diameters under different standard test forces.

 11. Data can be output through RS232 and USB (optional) interfaces.

 12. Its accuracy complies with GB/T231.2, ISO 6506-2, and ASTM E10 standards of the United States.

      Applications

1. Determination the brinell hardness of ferrous metal, non-ferrous metal and bearing alloy materials;

2. Hard cast steel, aluminum alloy, copper alloy, malleable castings, soft steel, tempered steel, annealed steel, bearing steel, etc.

Technical Parameter

Standard Configuration Of Accessories

The above is the standard configuration. Actual products are subject to physical objects.
