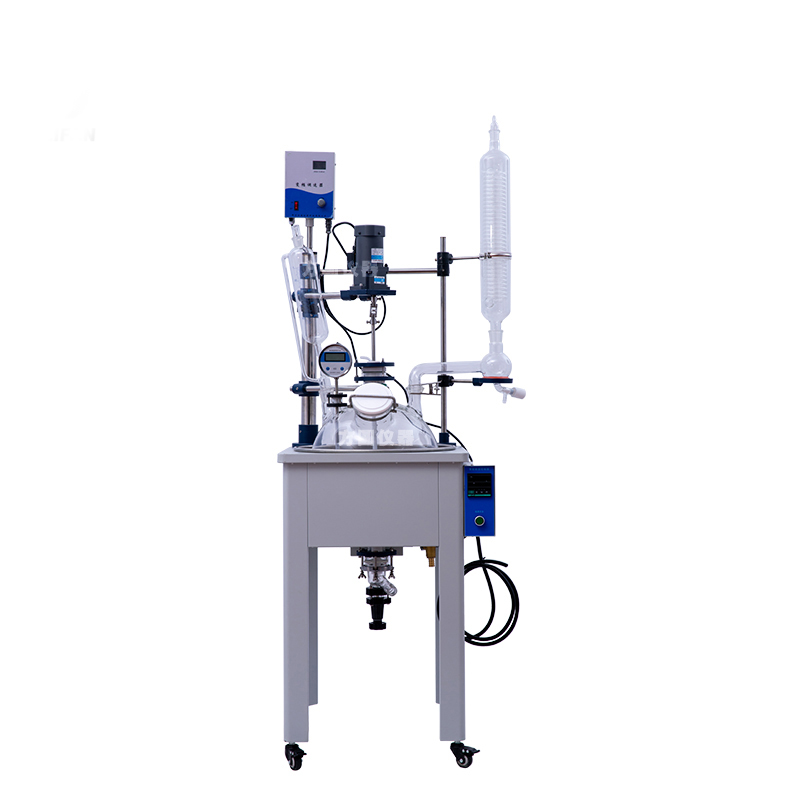

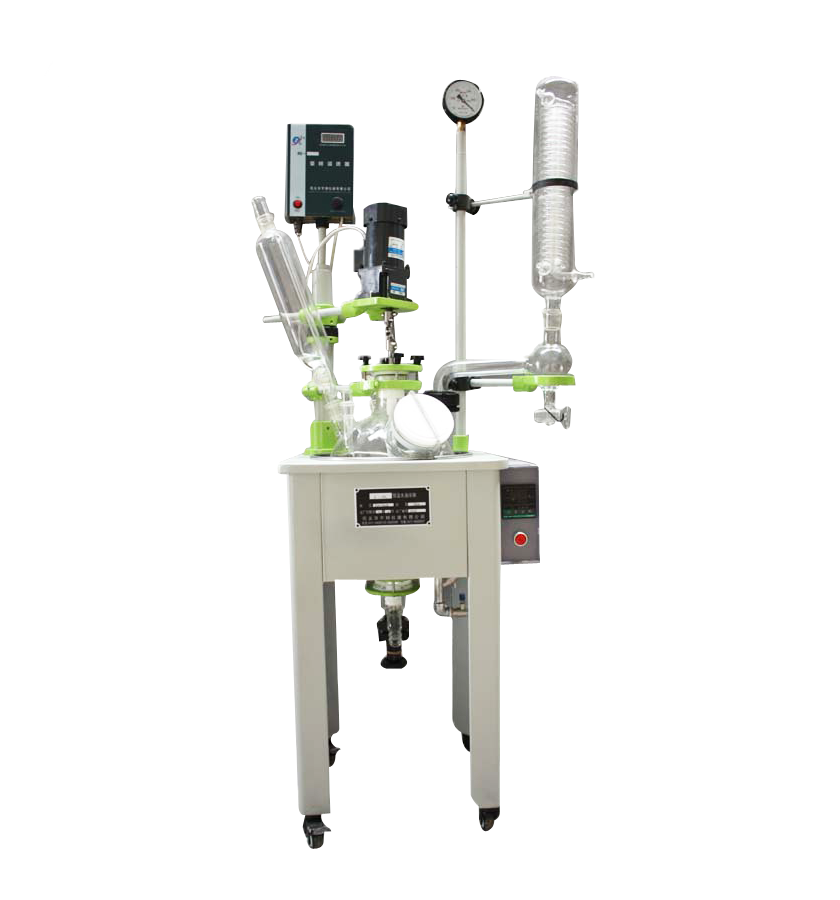

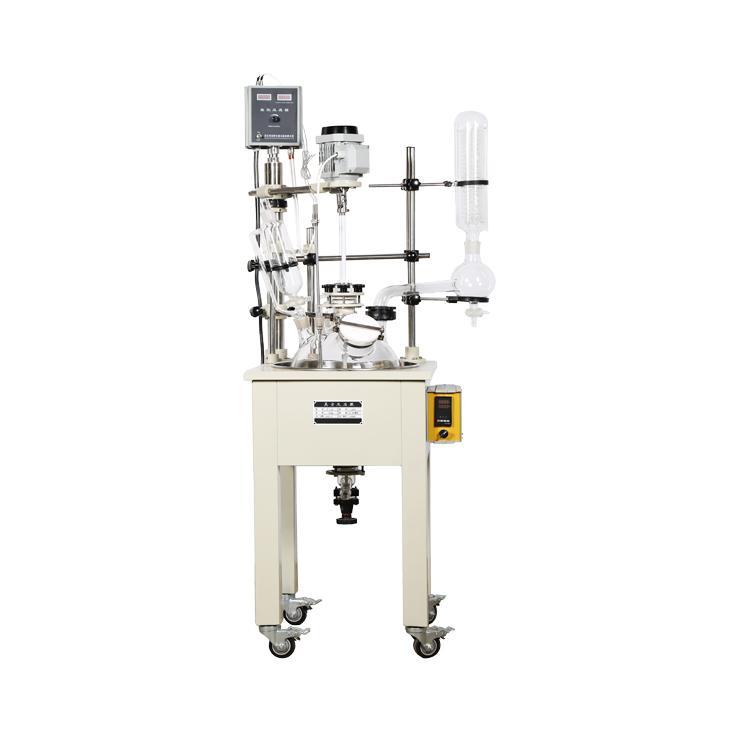

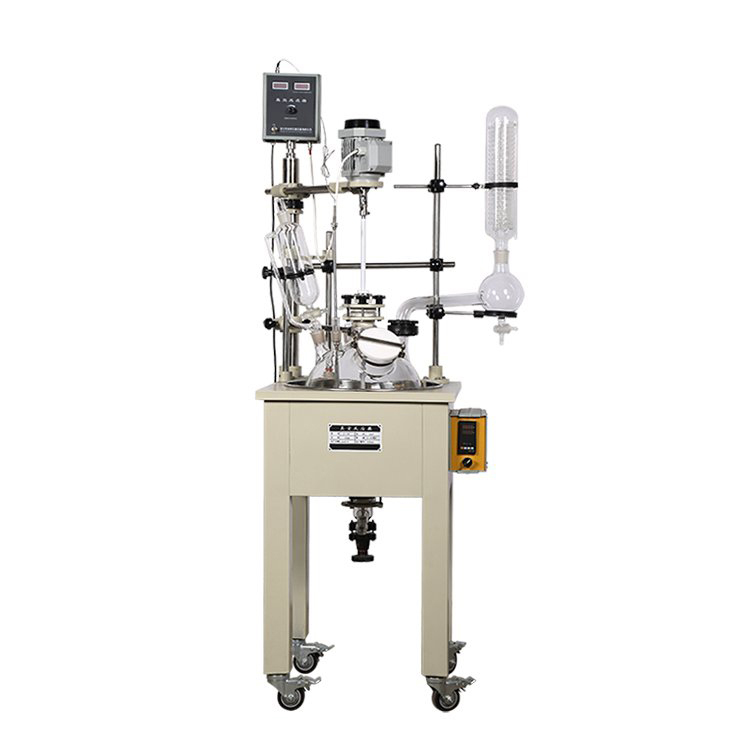

F-10L 10L Single layer glass reactor

Product parameters about 10L Single layer glass reactor:

The single-layer glass reactor uses a crescent-shaped stirring paddle, 304 stainless steel + PTFE stirring blade; the stirring rod is made of 304 stainless steel. Covered with PTFE pipe, it has high strength and strong corrosion resistance.

Working principle about 10L Single layer glass reactor:

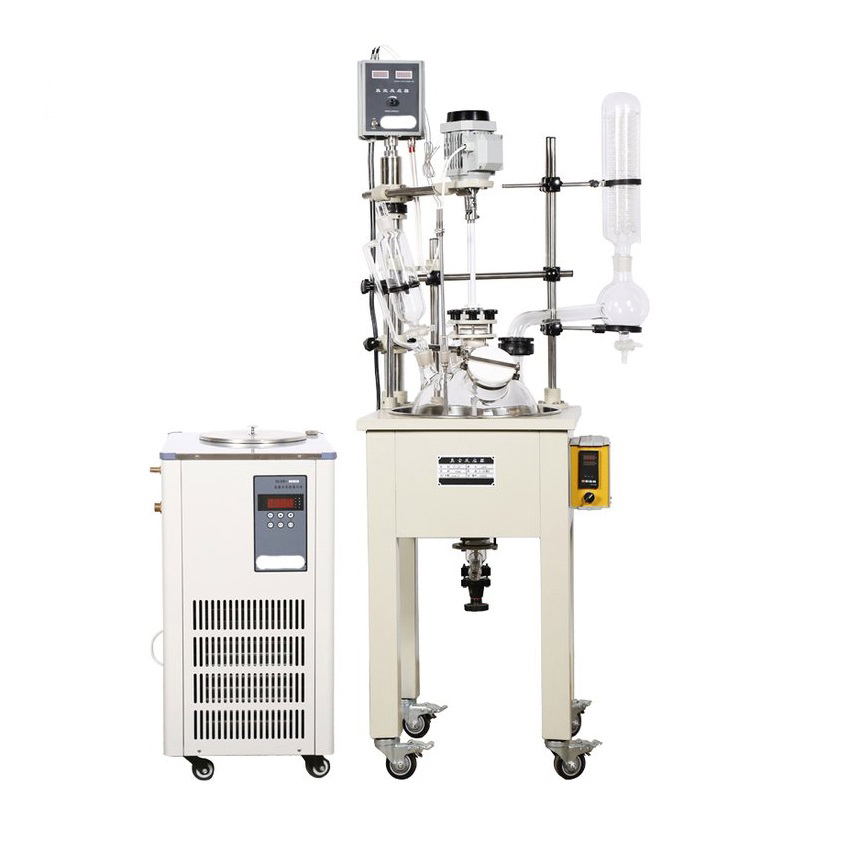

The single-layer glass reactor has a stirring system, a condensation reflux system, a dropping system, and a heating system. While stirring the materials, the bath pot heats the materials in the kettle, which can improve the evaporation efficiency under vacuum conditions (a vacuum device needs to be connected). The solvent vapor is cooled into a liquid when passing through the glass condensation coil (a cooling device needs to be connected), and can be refluxed. In the kettle, it can also be recycled through the valve at the bottom of the return elbow. After the reaction is completed, the material can be released from the side outlet at the bottom of the kettle. The use of this series of products requires supporting system devices such as vacuum devices and cooling circulation devices.

Features about 10L Single layer glass reactor:

1. This product is unique equipment. The whole machine adopts cold plate electrostatic spraying + stainless steel frame structure. It is compact, sturdy, non-deformable, and easy to move.

2. The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE, which have stable performance and are not prone to chemical reactions with the material, making it easy and safe to use.

3. Unique frequency conversion speed regulation allows you to operate at medium to high and low speeds with ideal accuracy and ease. Optional full explosion-proof system, dual-display explosion-proof box digitally displays the rotation speed and material temperature in the kettle, stable performance, clear display of control and data plane, Simple and easy to operate.

4. The stirring system adopts ceramic bearings and mechanical seals to prevent the stirring rod from wearing and chipping. It is resistant to high temperatures, wear and tear, and has good sealing effect.

5. Use PT100 temperature sensor and glass thermometer sleeve.

6. The vacuum pressure gauge displays real-time vacuum and the pointer displays.

7. Crescent stirring paddle, 304 stainless steel + PTFE stirring blade; stirring rod material is 304 stainless steel. Covered with PTFE pipe, it has high strength and strong corrosion resistance.

8. Glass + PTFE discharge valve, no liquid accumulation side discharge, recovery of solution is very fast.

9. The constant temperature bath pot has a built-in heating ring, and the heating bath pot has independent temperature control and high temperature control accuracy.

10. The bottom of the bath pot is equipped with a drain port for easy replacement.

11. The bottom of the machine is equipped with a universal wheel with brakes, which can be moved as a whole and is easy to operate.
