SYD-0059A Lubricating Oil Evaporating Loss Tester
Summary The Instrument is designed and manufactured according to Industry standard NB/SH/T 0059-2010 and ASTM D5800 Standard test method for evaporation loss of lubricating oils by the Noack A method.It’s suitable to determine lubricating oil(especiall

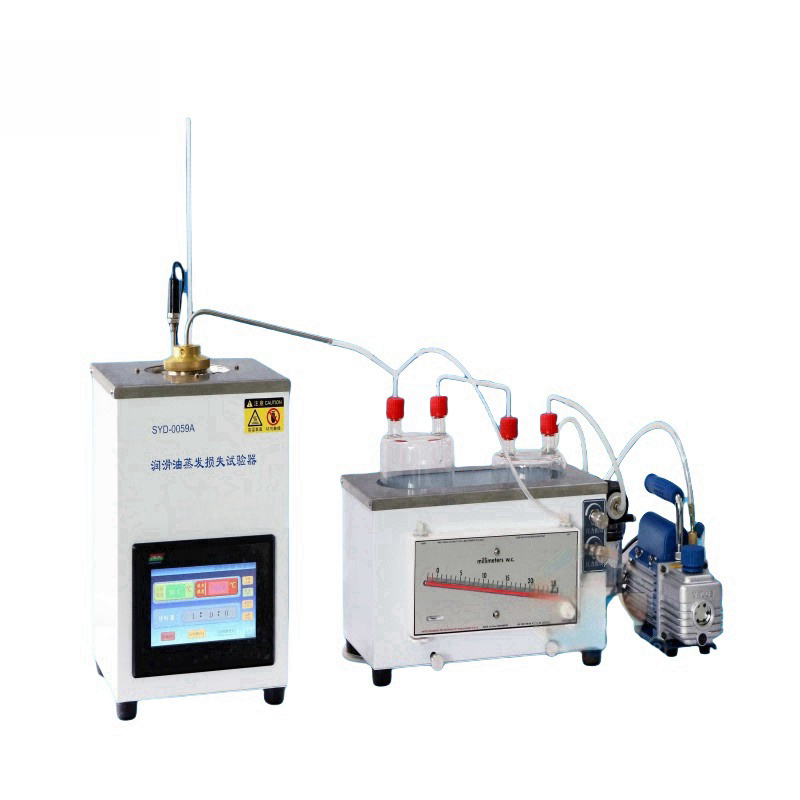

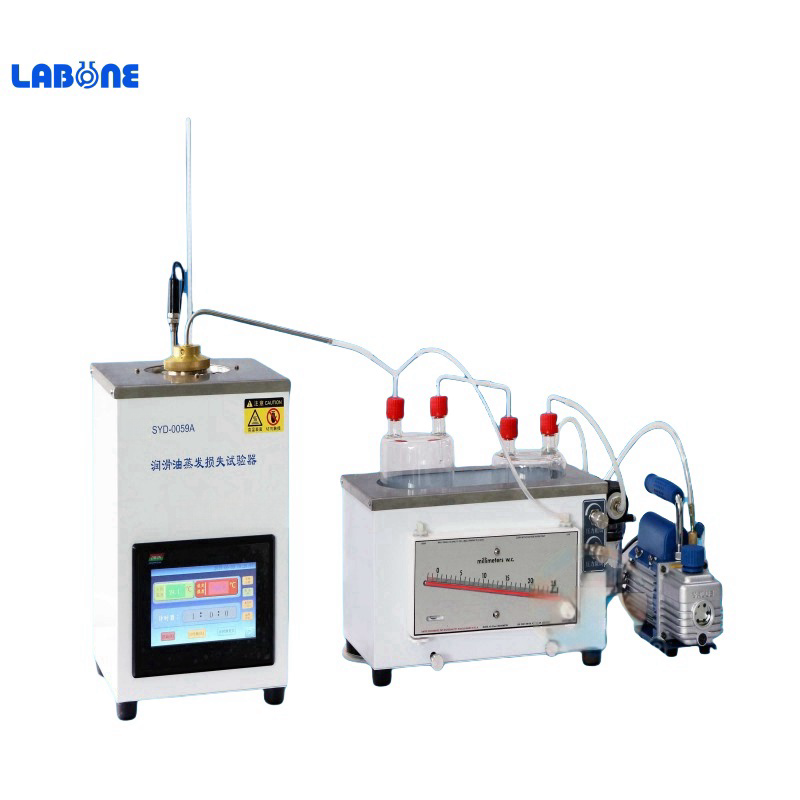

SYD-0059A Lubricating Oil Evaporating Loss Tester(Noack A method)
Summary
The Instrument is designed and manufactured according to Industry standard NB/SH/T 0059-2010 and ASTM D5800 Standard test method for evaporation loss of lubricating oils by the Noack A method.It’s suitable to determine lubricating oil(especially internal combustion engine oil) and the evaporation loss of lubricating base oil at 250℃.
I. Main technical features
1. The evaporation bath is made of aluminum alloy casting. The heating body is closely matched with the bath body. Combined with the selection of good insulation materials, the instrument has the advantages of uniform heating, strong durability and reliability.
2. The instrument adopts color touch screen for automatic temperature control, automatic timing, automatic alarm, real-time display of sample temperature, easy to operate and the display is intuitive.
3. The whole set of instrument has reasonable design, perfect configuration. It is easy to operate, reliable, beautiful and durable.
II. Main technical specifications
Power supply | AC（220 ±10%）V, 50 Hz |
Total Power Consumption | ≤1600W |
Temperature control range | Room Temperature～250℃ |
Temperature controlling accuracy | ±0.5℃ |
Temperature control mode | Automatic |
Heating way | Metal bath heating |
Heating Power | 1200W |
Suction way | vacuum pump |
Working environment | Temperature 15℃～35℃ |
Relative humidity:≤85% | |
Dimension | Main unit(heating control part) 320mm×280mm×500mm |
Auxiliary machinery(stable pressure suction section) 410mm× 320mm×450mm |
