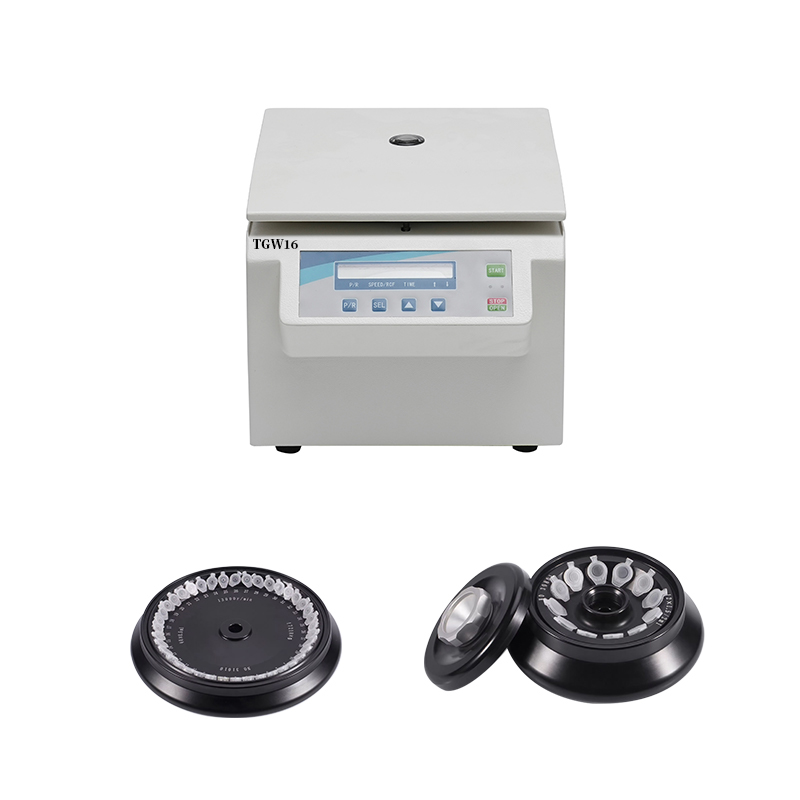

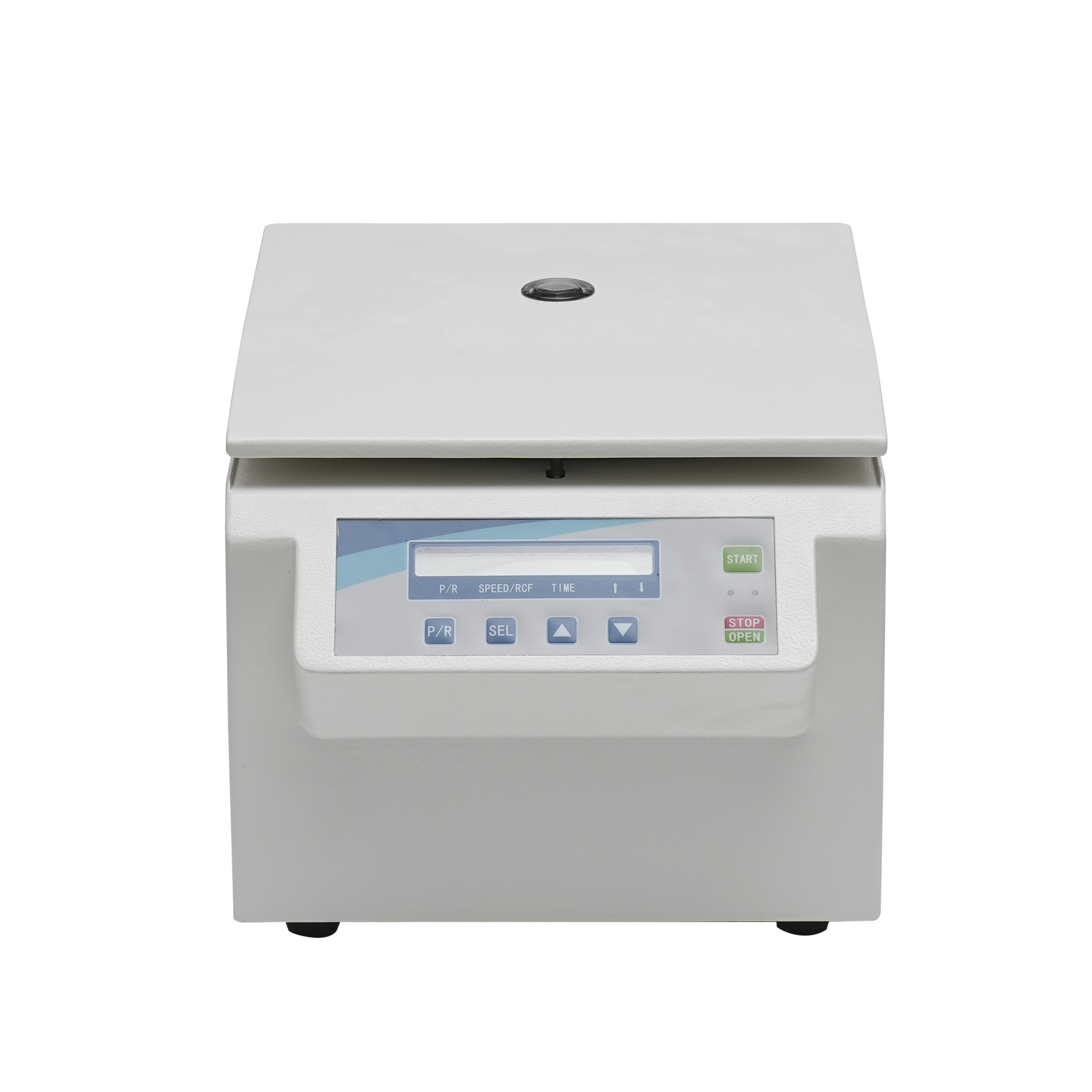

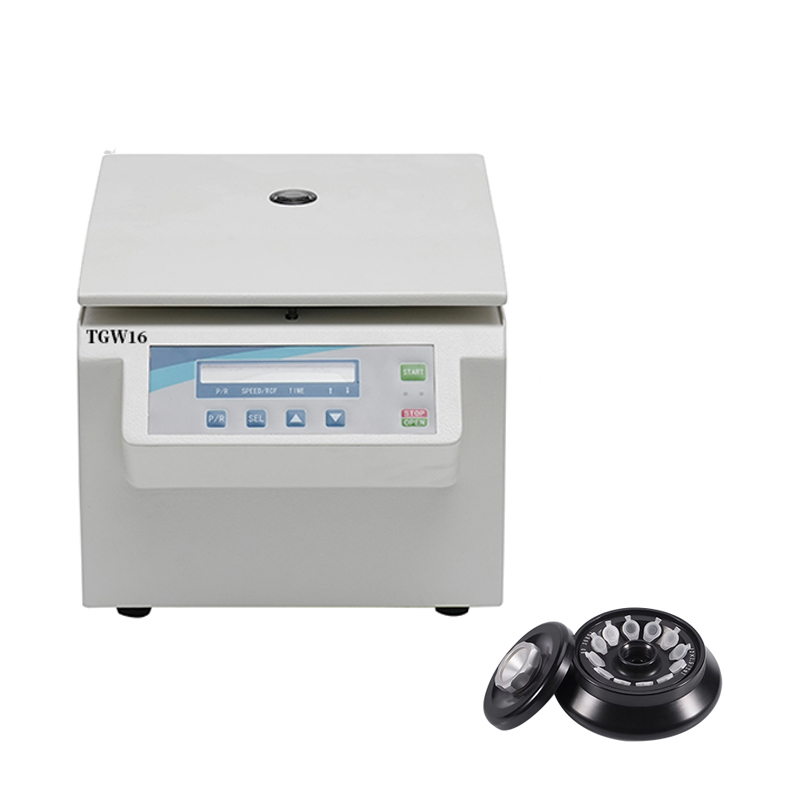

TGW16 Micro High Speed Centrifuge
Features:
1. Brushless motor, no pollution, free-maintenance.
2. Microprocessor control, LCD display which indicates the speed, time, RCF in operation, 10 kinds of brake setting, operate simply.
3. Electric lid lock, super speed, imbalance protection.
4.The centrifuge body is made of high quality steel, stainless steel chamber, safe and reliable.
5. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
6. 3 tiers protection steel cover and get the ideal centrifugation result.
TGW16Technical Parameter：
Max. Speed | 16000rpm |
Max. RCF | 19040×g |
Max. Capacity | 10×5ml |
Time Range | 0~99min59s |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 355×270×205mm |
Net Weight(Kg) | 16KG |
Certificates | CE,ISO & Calibration report are available |

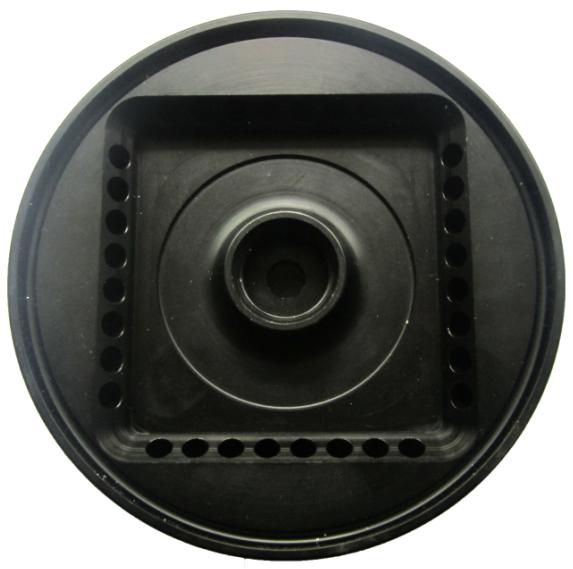

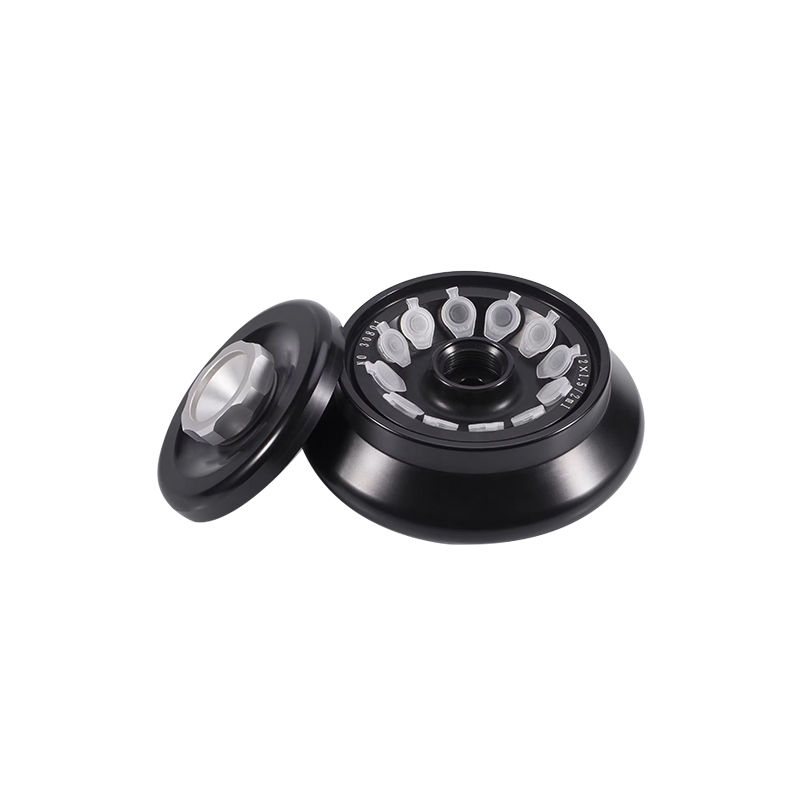

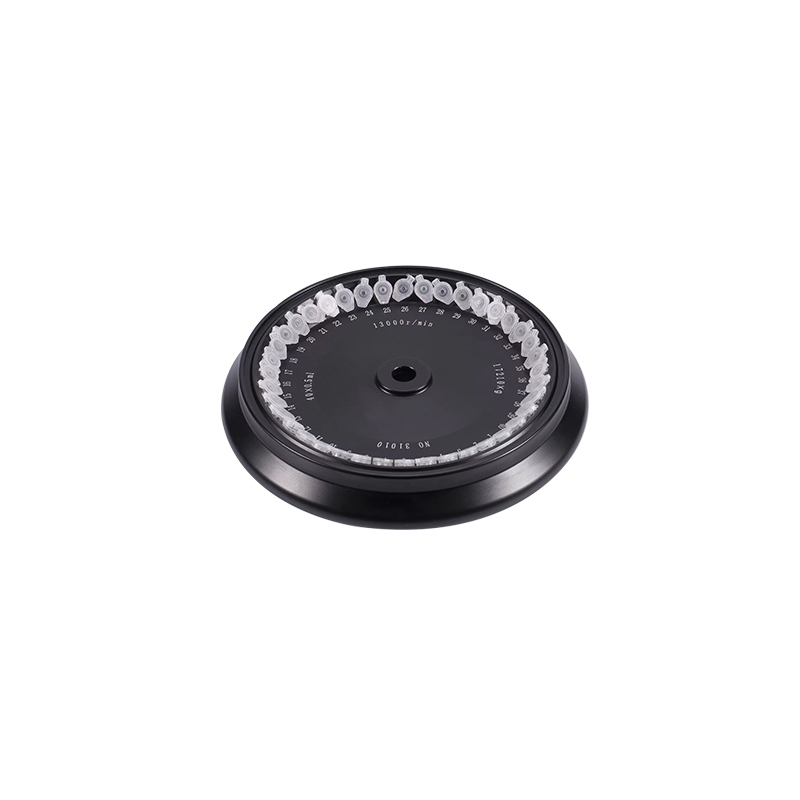

Matched Rotors for TGW16
Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max.RCF（×g） |
NO31001 | Angle Rotor | 16000 | 40×0.2ml | 19040 |
NO31002 | Angle Rotor | 16000 | 24×0.5ml | 18480 |
NO31003 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
NO31004 | Angle Rotor | 16000 | 10×5ml | 17880 |
NO31005 | Angle Rotor | 14000 | 20×1.5/2ml | 15580 |
