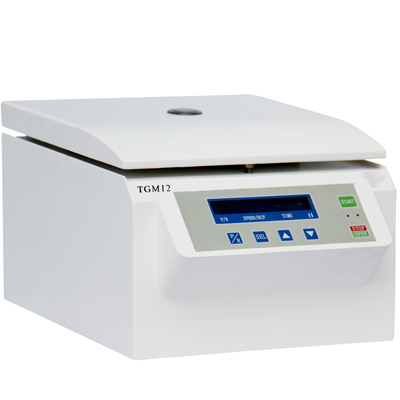

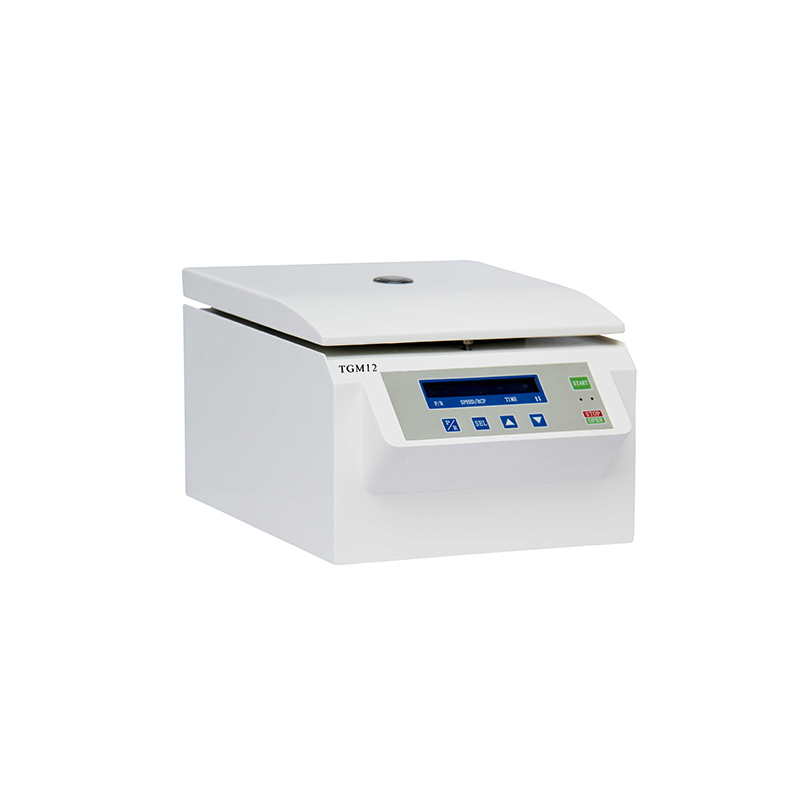

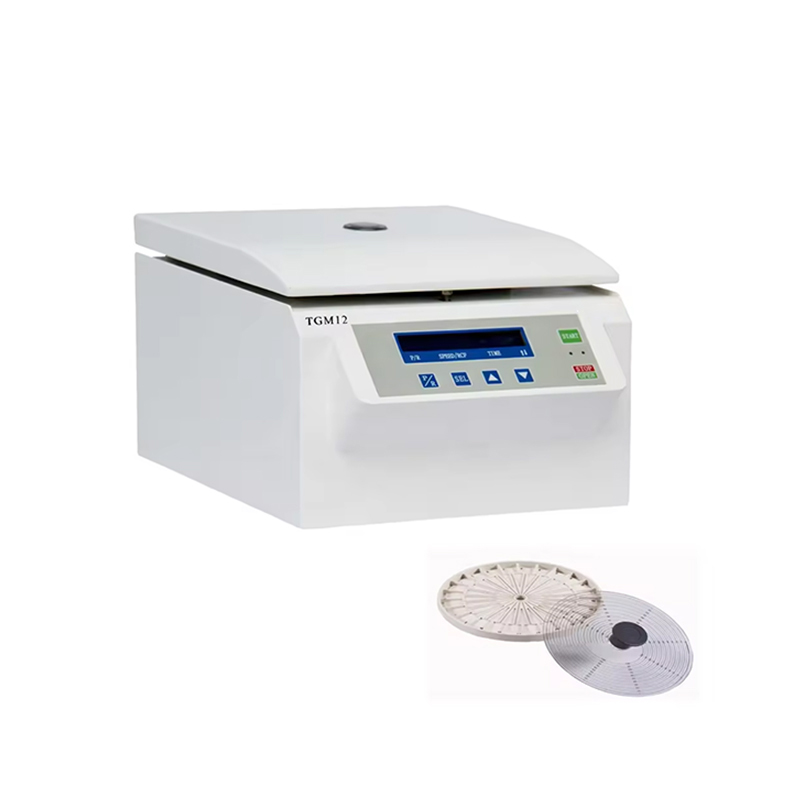

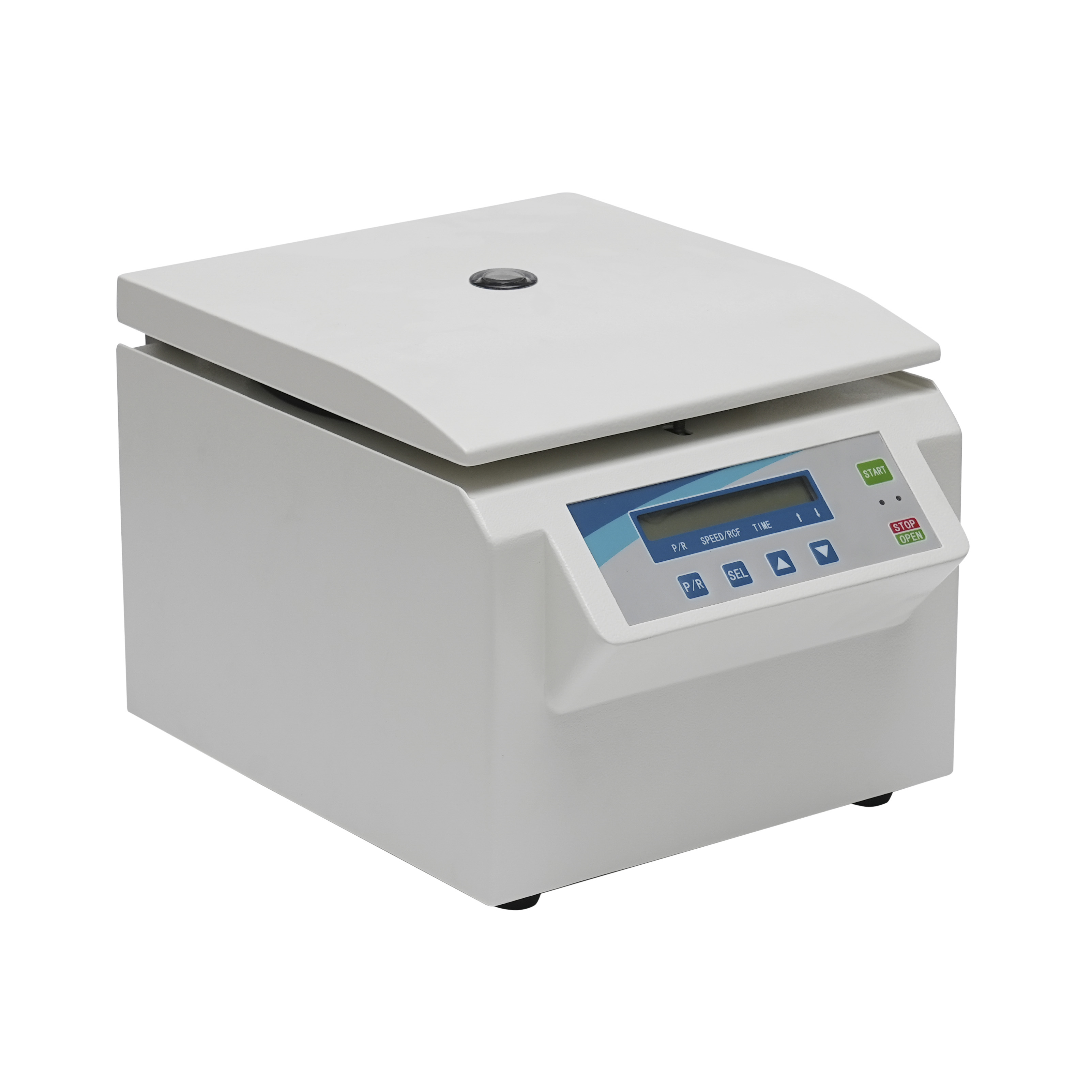

TGM12 Hematocrit Centrifuge
Application：TGM12 is specific centrifuge for Dengue Fever.
TGM12 Hematocrit Centrifuge
Application：
TGM12 is specific centrifuge for Dengue Fever.
Features:
1.Adopts micro brushless motor, free-maintenance, no powder pollution, micro-computer control, LCD displays the time and speed.
2. Electric lid lock, easy and reliable.
3. Over-speed and imbalance protection.
4. Frame is 3 tires protection steel jacket, with stainless steel chamber.
TGM12 Technical Parameter：
Max. Speed | 12000rpm |
Max. RCF | 15800xg |
Max. Capacity | 24pcs Capillary |
Time Range | 0~99min59s |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 355×270×205mm |
Net Weight(Kg) | 13KG |
Certificates | CE,ISO & Calibration report are available |

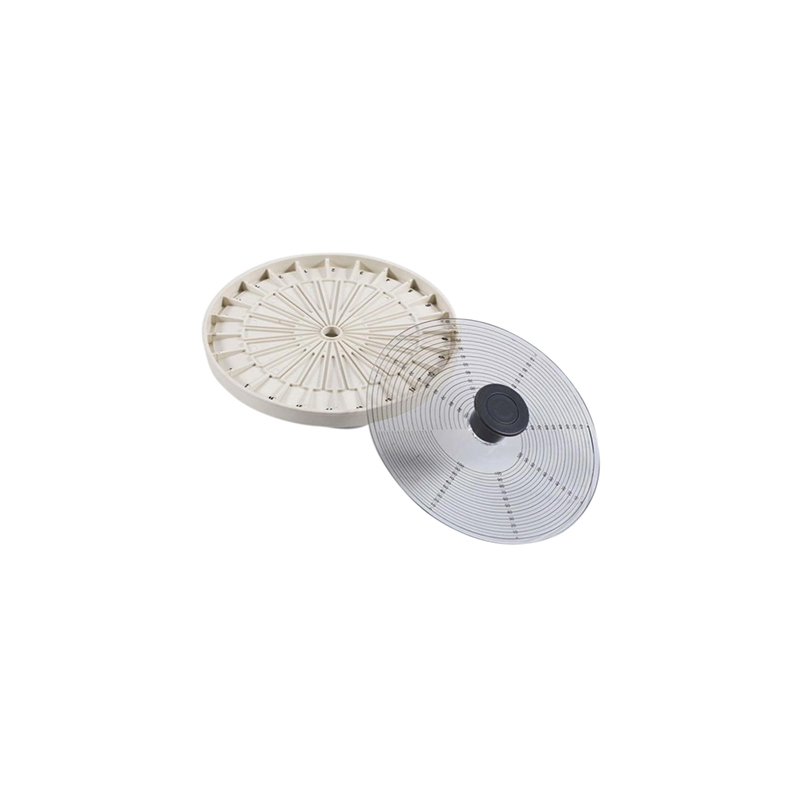

Matched Rotors for TGM12
Rotor Photo | Max speed(rpm) | Max capacity | Max RCF（×g) |
  |
12000
| 24 pieces vessel | 15800 |
