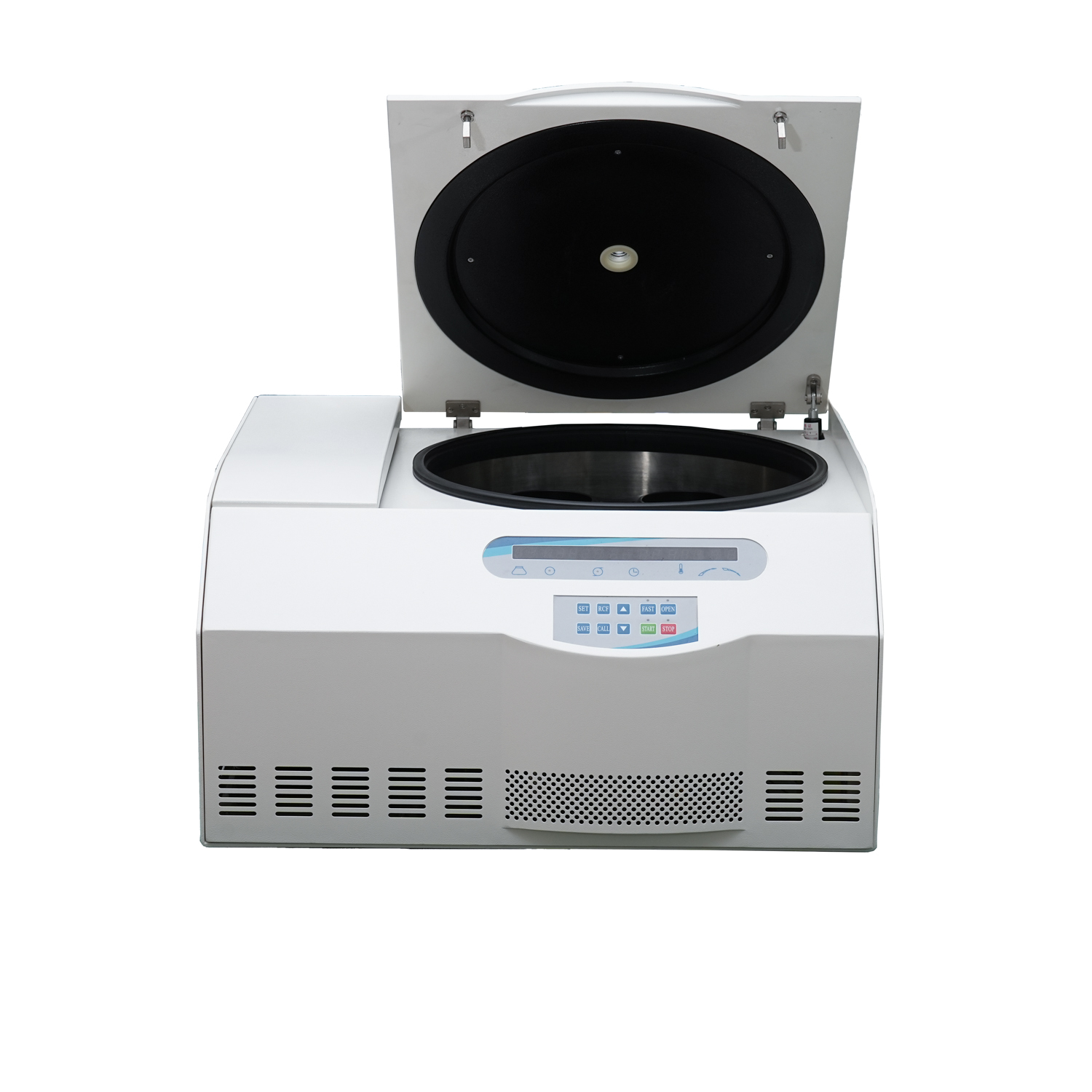

TGL18 High Speed Refrigerated Centrifuge
TGL18 High Speed Refrigerated Centrifuge
TGL18 High Speed Refrigerated Centrifuge
Features
1. Refrigerated centrifuge. Widely used for laboratory, chemistry and hospital.
2. Pre-cooling design, 10 kinds of acceleration and deceleration
3. More than 10 rotors for your choice
4. High speed, low noise, compact design and small vibration
5. User-friendly LED display provides speed, time and temperature parameters.
6. Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.
TGL18 Technical Parameter：
Max. Speed | 21000rpm |
Max. RCF | 30910×g |
Max. Capacity | 4×800ml |
Time Range | 0~99h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature | -20℃-40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |

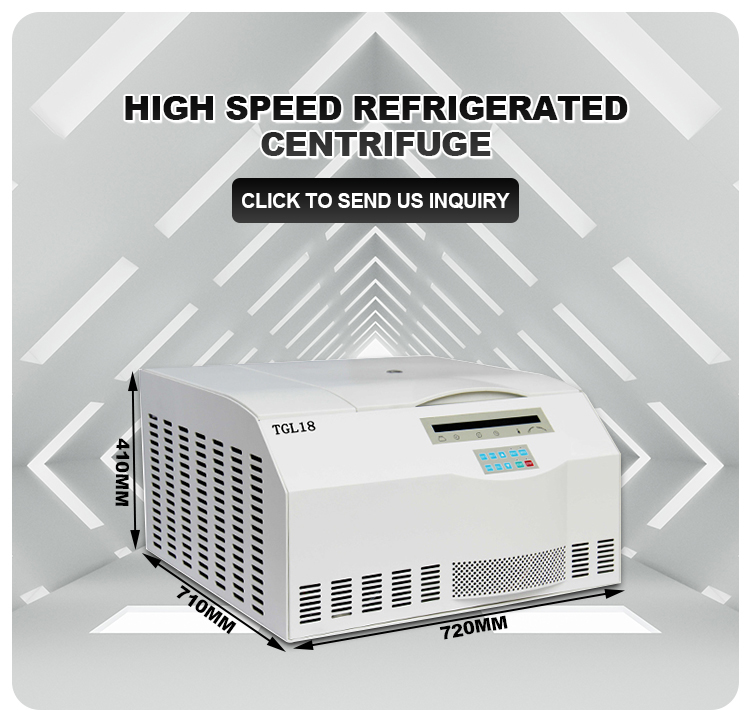

Size (W x D x Hmm) | 720×710×410mm |
Net Weight(Kg) | 130KG |
Certificates | CE,ISO & Calibration report are available |

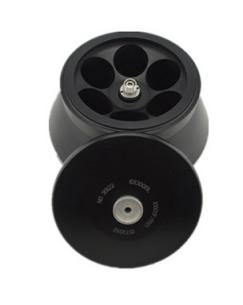

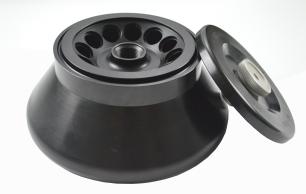

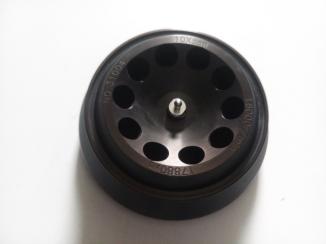

Matched Rotors for TGL18
Order No | Rotor | Rotor Max Speed(r/min) | Volume(ml) | RCF(×g) |
G18-1 | Swing Rotor | 4000 | 4×750ml | 3450 |
G18-2 | Microplate rotor | 4000 | 4×4×96 well | 2940 |
G18-3 | Microplate rotor | 4000 | 2×4×96 well | 3210 |
G18-4 | Microplate rotor | 4000 | 2×3×48 well | 2300 |
G18-5 | Swing rotor | 4000 | 4×40×7ml vacuum tube | 3270 |
G18-6 | 4000 | 4×40×5ml vacuum tube | 2890 | |
G18-7 | 4000 | 4×28×10ml vacuum tube | 3130 | |
G18-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
G18-9 | Fixed Rotor | 16000 | 4×8PCR | 15760 |
G18-10 | Fixed Rotor | 15000 | 6×8PCR | 21420 |
G18-11 | Fixed Rotor | 16000 | 8×8PCR | 17480 |
G18-12 | Fixed Rotor | 15000 | 12×8PCR | 22930 |
G18-13 | Fixed Rotor | 15000 | 40×0.5ml | 22920 |
G18-14 | Fixed Rotor | 21000 | 12×1.5ml | 30910 |
G18-15 | Fixed Rotor | 16000 | 24×1.5ml | 23440 |
G18-16 | Fixed Rotor | 14000 | 30×1.5ml | 20800 |
G18-17 | Fixed Rotor | 13000 | 48×1.5ml | 17930 |
G18-18 | Fixed Rotor | 16000 | 16×5ml | 22020 |
G18-19 | Fixed Rotor | 16000 | 6×10ml | 21500 |
G18-20 | Fixed Rotor | 15000 | 12×10ml | 22680 |
G18-21 | Fixed Rotor | 13000 | 16×10ml | 19490 |
G18-22 | Fixed Rotor | 13000 | 8×15ml | 17790 |
G18-23 | Fixed Rotor | 11000 | 12×15ml | 14330 |
G18-24 | Fixed Rotor | 5000 | 24×15ml | 3500 |
G18-25 | Fixed Rotor | 5000 | 30×15ml | 3830 |
G18-26 | Fixed Rotor | 14000 | 6×30ml | 19060 |
G18-27 | Fixed Rotor | 13000 | 6×50ml(conical) | 18840 |
G18-28 | Fixed Rotor | 13000 | 6×50ml(round) | 18730 |
G18-29 | Fixed Rotor | 5000 | 12×50ml | 3860 |
G18-30 | Fixed Rotor | 4000 | 24×50ml | 2970 |
G18-31 | Fixed Rotor | 13000 | 4×85ml | 18940 |
G18-32 | Fixed Rotor | 12000 | 4×100ml | 14850 |
G18-33 | Fixed Rotor | 10000 | 6×100ml | 11380 |
G18-34 | Fixed Rotor | 4000 | 12×100ml | 2970 |
G18-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
G18-36 | Swing Rotor | 15000 | 4×5ml | 19920 |
G18-37 | Vertical rotor | 16000 | 16×5ml | 16450 |
G18-38 | Vertical rotor | 14000 | 8×30ml | 19750 |
