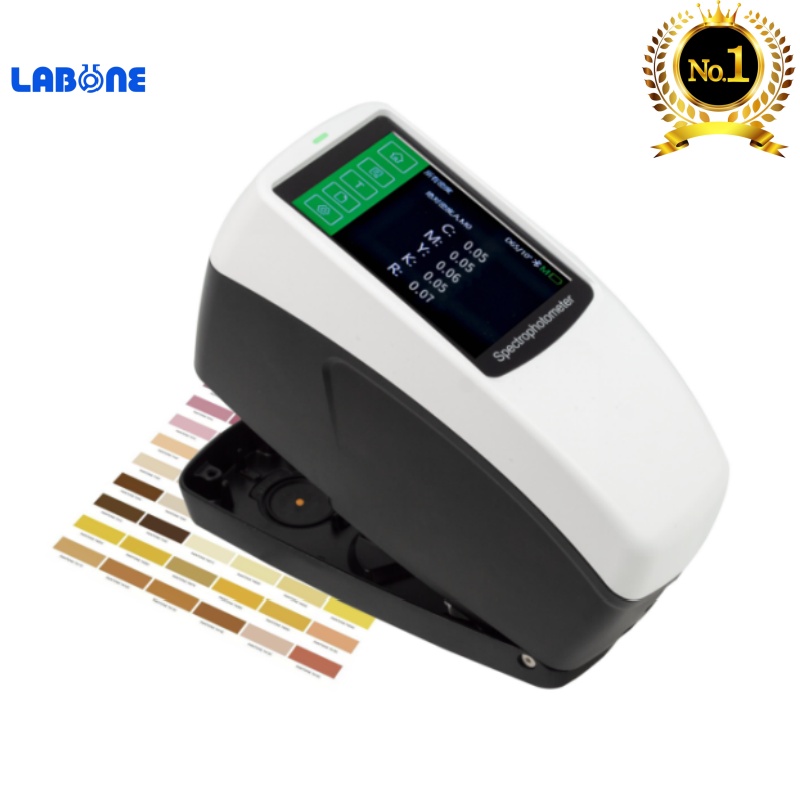

DS 526、DS 528、DS 530 Color Densitometer

DS 526、DS 528、DS 530  Color Densitometer

Suitable for printing and packaging industries

Solve the color quantization problem of CMYK and spot colors

Provide quantitative operating guidance to printing press staff

DS 52X series supports 5 measurement calibers

The DS 52X series Color Densitometer supports 5 apertures, Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm,and can be flexibly applied to a variety of samples of different sizes and testing conditions.

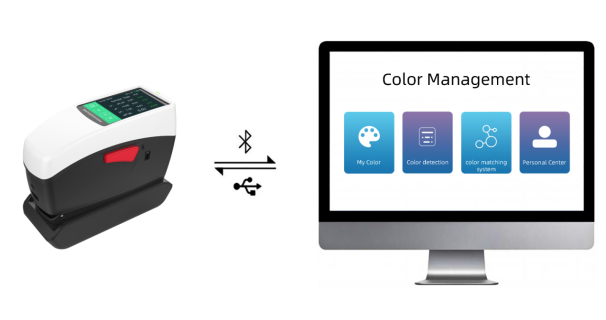

Use the powerful PC-side color management system ColorExpert

The DS 52X series Color Densitometer comes with the Windows color management system ColorExpert, which can be connected to the DS 52X series Color Densitometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

1.In the "My Colors" function module, users can collect or create new color libraries they need among

hundreds of color libraries shared by other users. Electricity The brain software and mobile APP can share an account, aSuitable for printing and packaging industries Solve the color quantization problem of CMYK and spot colors Provide quantitative operating guidance to printing press staffnd the color library data follows the account to achieve information synchronization between PC and mobile terminals.

2.In the "Color Detection" function module, users can calibrate, measure, and set up the

spectrophotometer through computer software. Users can use the colors in the cloud database as standard samples to measure color differences, view spectra, color difference charts, standard sample data, and export the desired data test report.

3.In the "Color Matching System" function module, it can provide users with a more convenient and

efficient color matching process. After the instrument measures the color of the sample, the system calculates the formula in the formula center and automatically corrects the color, finally achieving an accurate match. Suitable for computer automatic color matching applications in paints, coatings, printing, textiles and other fields.

4.In the "Personal Center" function module, users can edit their personal information, search or delete

connected instrument information, manage downstream users, and manage color libraries shared with downstream users.

2、Brief table of model distinctions

3、Product parameters

※Diffuse illumination/8° direction reception, including specular reflected light/removing specular reflected light

※※After the whiteboard is calibrated, measure the whiteboard 30 times at 5-second intervals and measure the standard deviation of the results using the MAV caliber.
