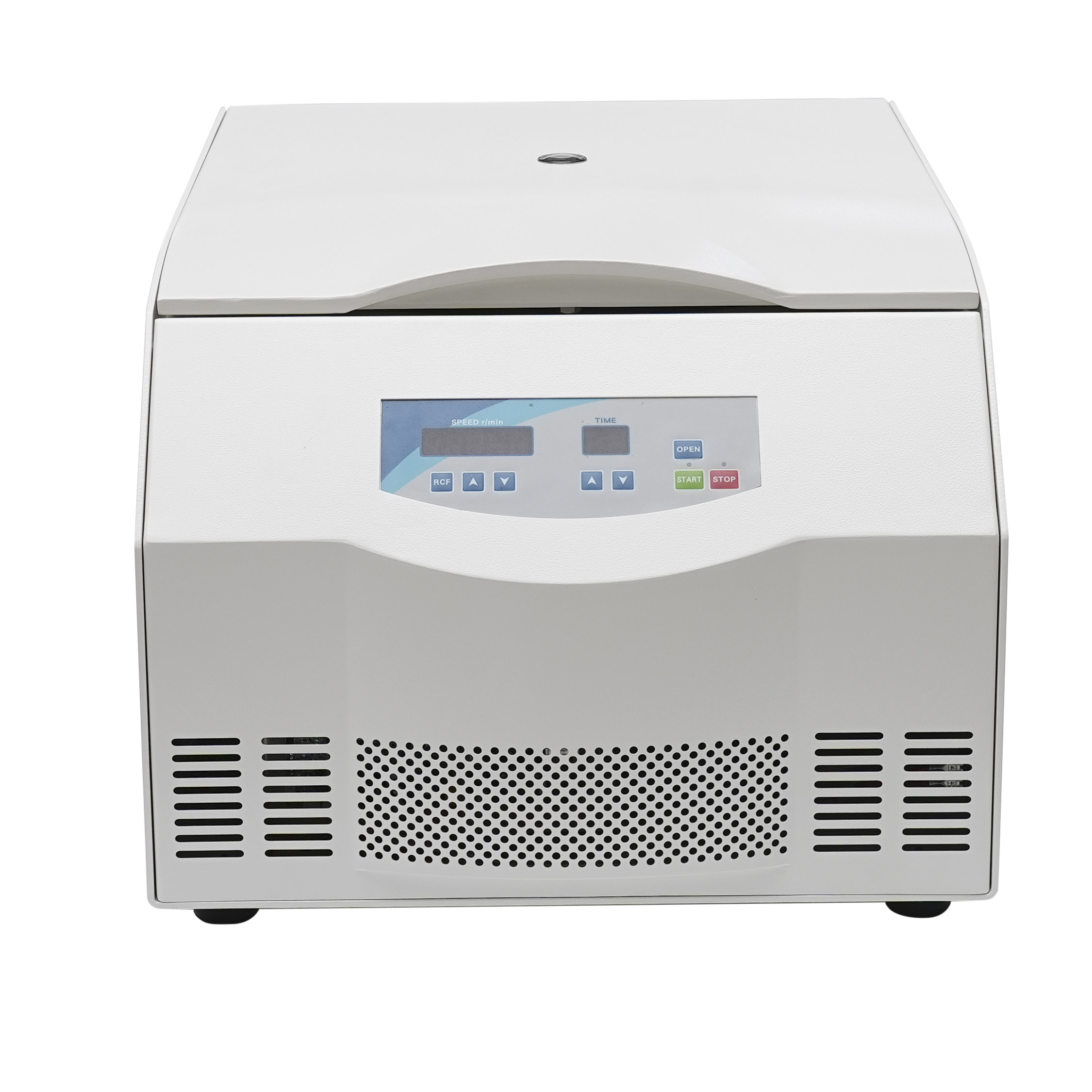

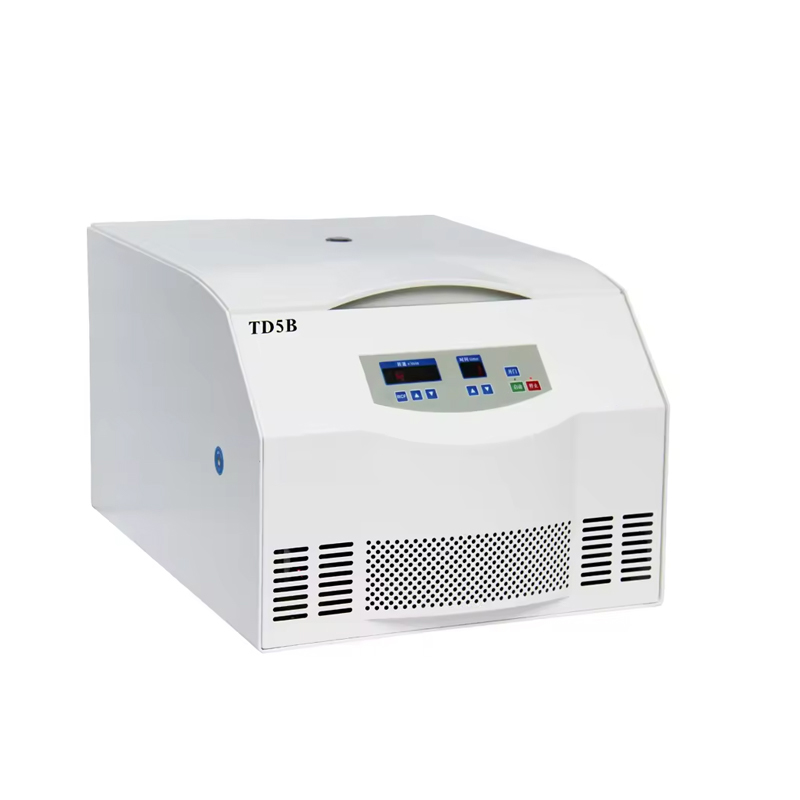

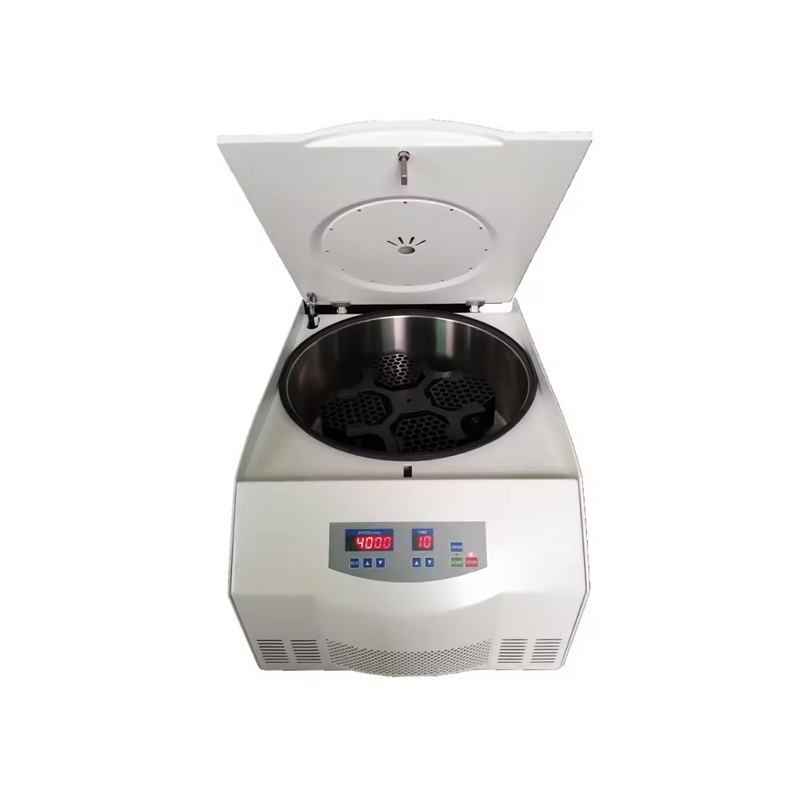

TD5B Large Capacity Low Speed Centrifuge
TD5B Large Capacity Low Speed Centrifuge
TD5B Large Capacity Low Speed Centrifuge
Features:
1. Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, TD5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5.10 kinds of accelerating and decelerating speed for your choice.
TD5B Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×800ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 685×500×385mm |
Net Weight(Kg) | 67KG |
Certificates | CE,ISO & Calibration report are available |

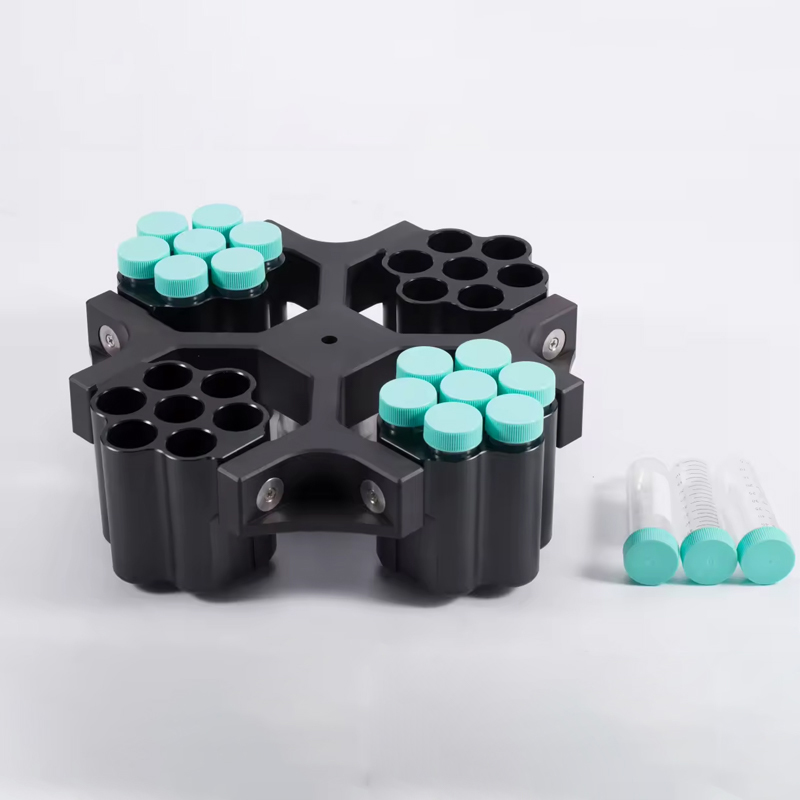

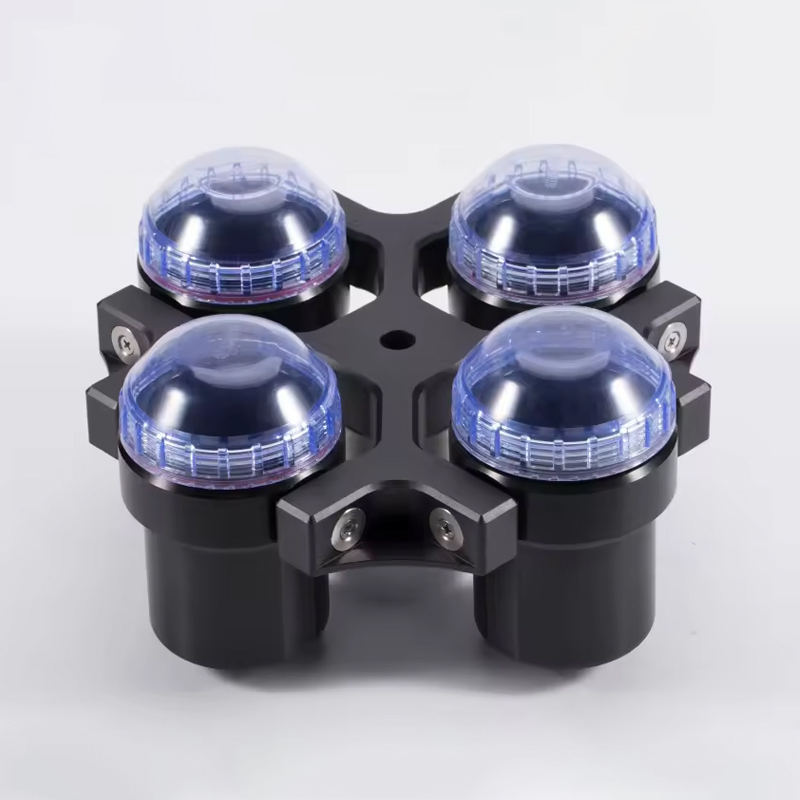

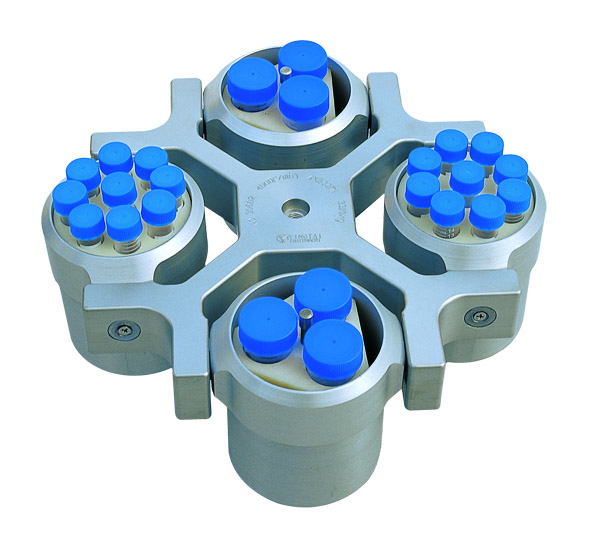

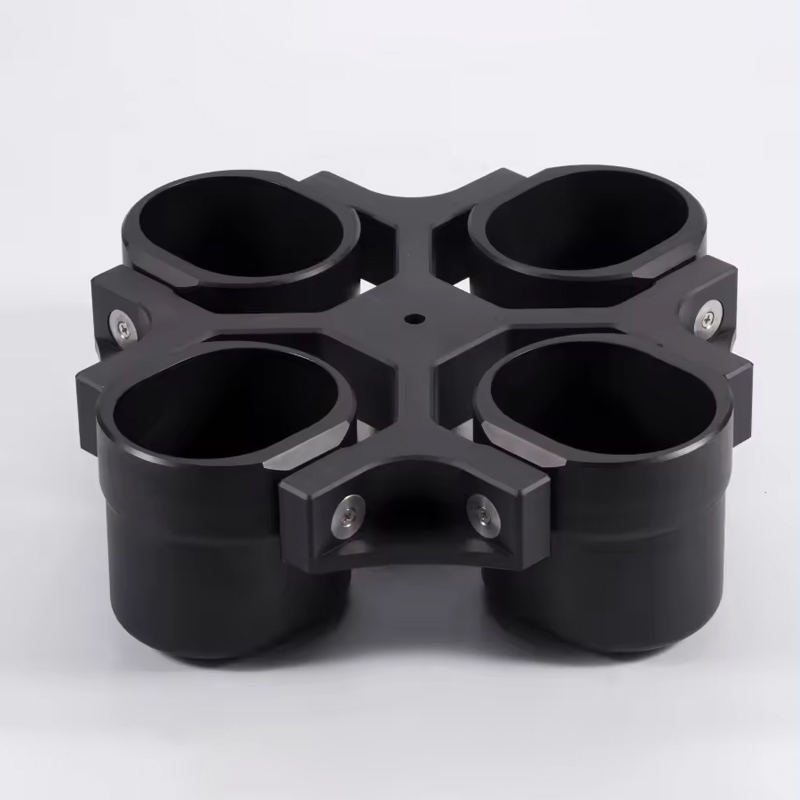

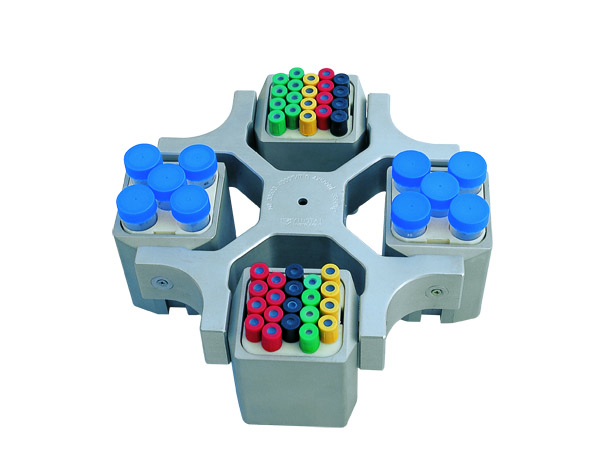

Matched Rotors for TD5B
Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
5B-1 | Swing Rotor | 4000 | 4×800ml | 3450 |
5B-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
5B-3 | Swing Rotor | 4000 | 4×500ml | 3380 |
5B-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |

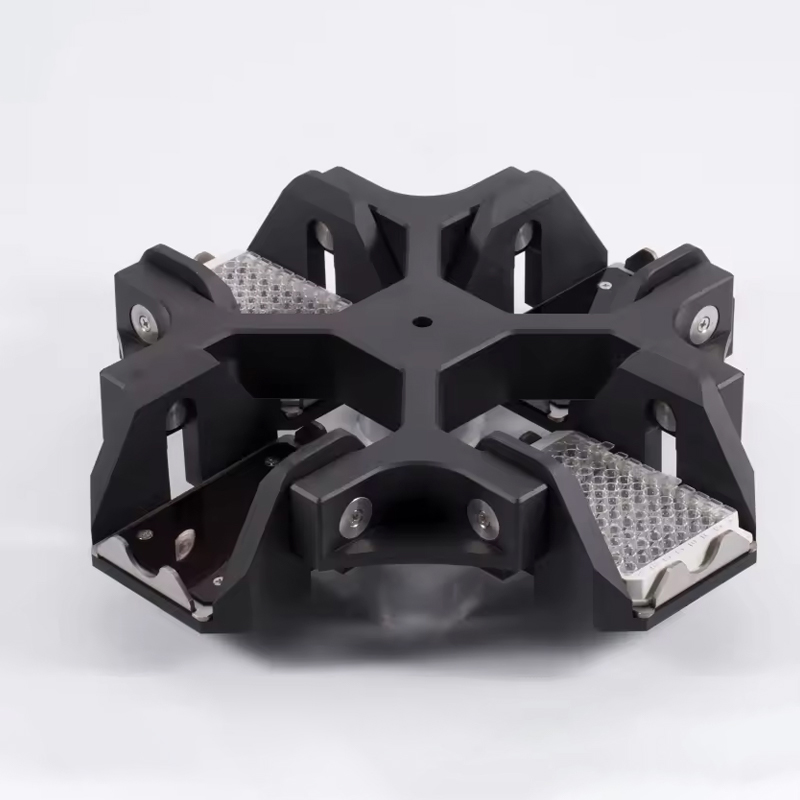

5B-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
5B-6 | 2×3×48(well) | 2300 | ||
5B-7 | Swing rotor | 5000 | 4×1×50ml | 4730 |
4×1×100ml | 4730 | |||
4000 | 4×2×100ml | 3020 | ||
4000 | 4×2×50ml | 3200 | ||
4000 | 4×4×15ml | 3200 | ||
4000 | 4×6×15ml | 3200 | ||
5B-8 | Swing rotor | 4000 | 4×8×15ml | 3200 |
4000 | 4×12×5ml vacuum tube | 2480 | ||
4000 | 4×12×7ml vacuum tube | 2760 | ||
4000 | 4×12×10ml vacuum tube | 2880 | ||
4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
5B-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
4000 | 4×31×5ml Khan tubes | 2480 | ||
5B-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
4000 | 4×31×7ml Khan tubes | 3140 | ||
4000 | 4×30×7ml vacuum tube | 3140 | ||
4000 | 4×30×5ml vacuum tube | 3140 | ||
4000 | 4×40×7ml vacuum tube | 3270 | ||
4000 | 4×18×10ml vacuum tube | 3140 | ||
5B-11 | Swing rotor | 4000 | Dairy bottle | 3830 |
5B-12 | Fixed rotor | 5000 | 6×15ml | 2540 |
5B-13 | 5000 | 12×15ml | 3080 | |
5B-14 | 5000 | 24×15ml | 3500 | |
5B-15 | 5000 | 30×15ml | 3830 | |
5B-16 | 5000 | 4×50ml | 2520 | |
5B-17 | 5000 | 6×50ml | 2850 | |
5B-18 | 5000 | 12×50ml | 3860 | |
5B-19 | 4000 | 24×50ml | 2970 | |
5B-20 | 5000 | 4×100ml | 2630 | |
5B-21 | 5000 | 6×100ml | 3130 | |
5B-22 | 4000 | 12×100ml | 2970 |
Adapter for 800ml and 500ml bucket
Cup | 5ml | 7ml
| 10ml
| 15ml
| 50ml
|
800ml（Round Cup） | 23pcs/cup | 23 | 19 | 14 | 5 |
500ml（Round Cup） | 18pcs/cup | 18 | 14 | 9 | 3 |
500ml（Square Cup） | 20pcs/cup | 20 | 16 | 12 | 5 |
