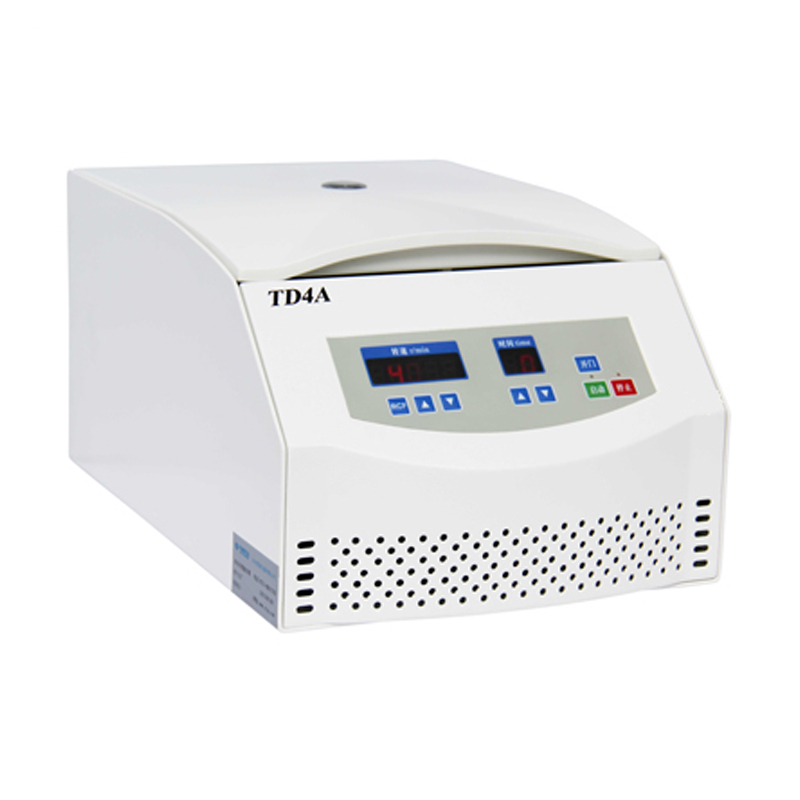

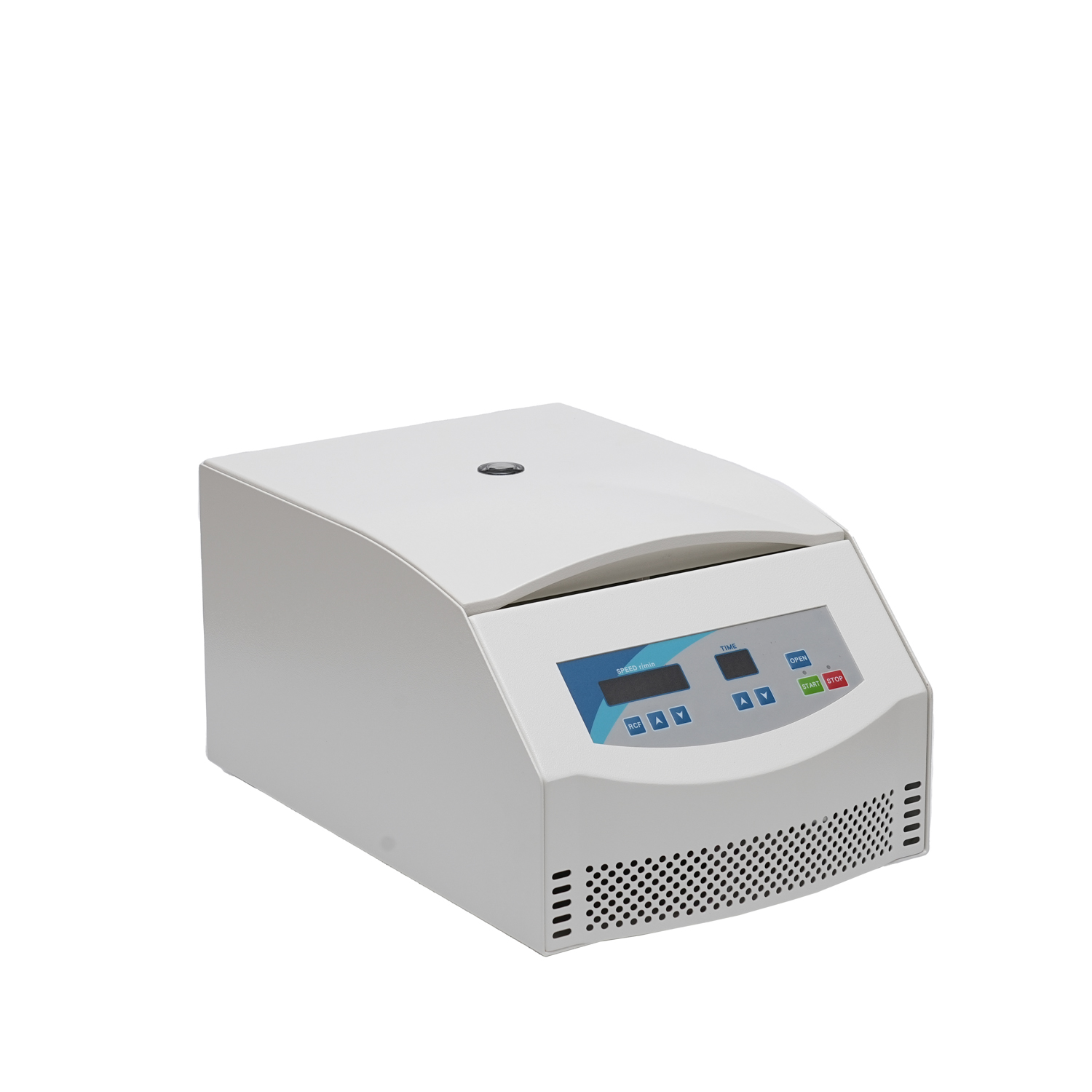

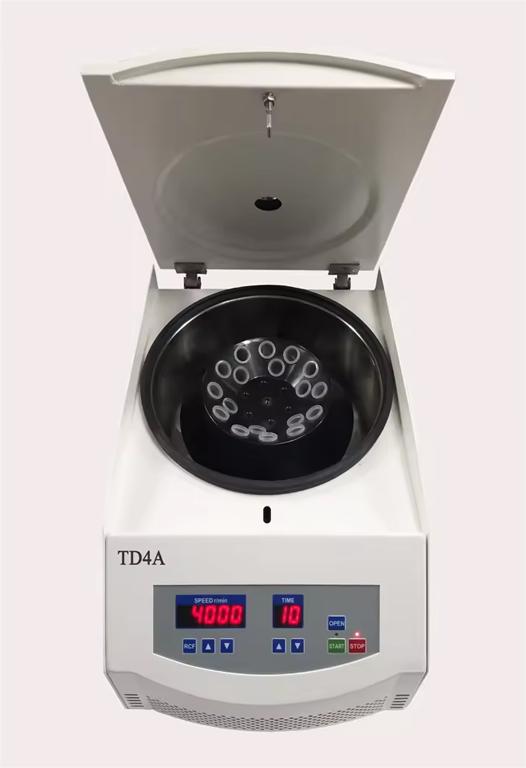

TD4A Low Speed Centrifuge

TD4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.

Send request

Ask for price

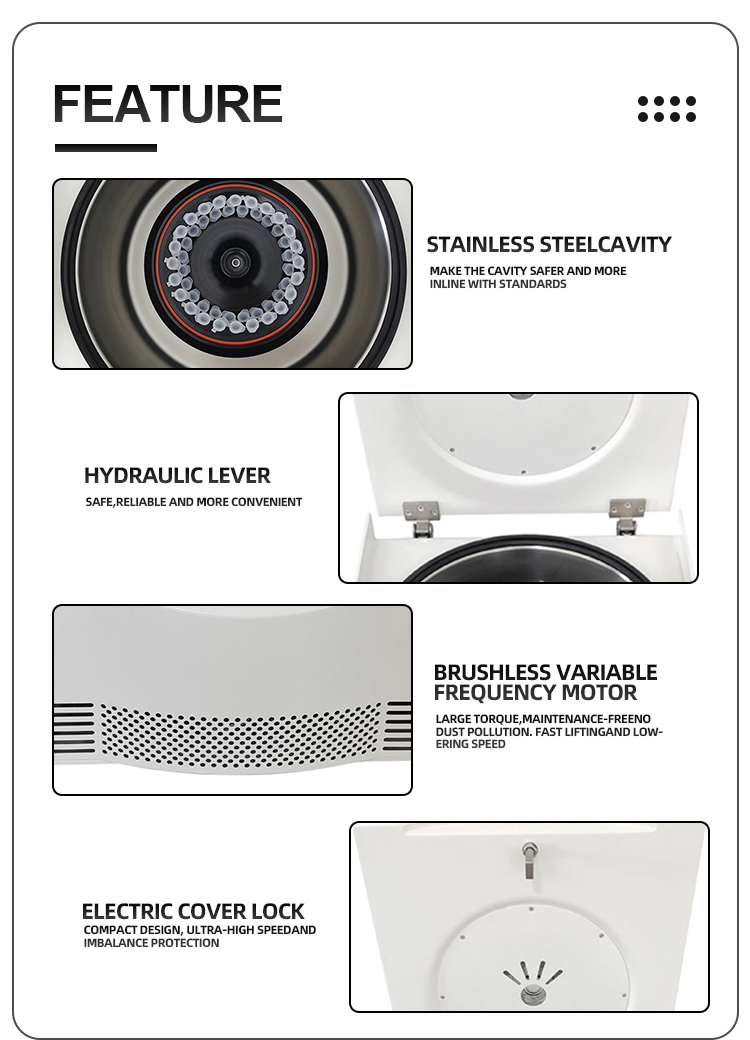

Features

1. TD4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.

2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.

3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.

4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.

5. Micro computer control system, LED display the RCF，time and speed.

6 .Electric lid lock, compact design, super speed and imbalance protection.

TD4A Technical Parameter：

Max. Speed	4000rpm
Max. RCF	2390×g
Max. Capacity	6×50ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 45
Temperature	Normal
Acc/Dec	10 Kinds
Speed Accuracy	±10r/min
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ

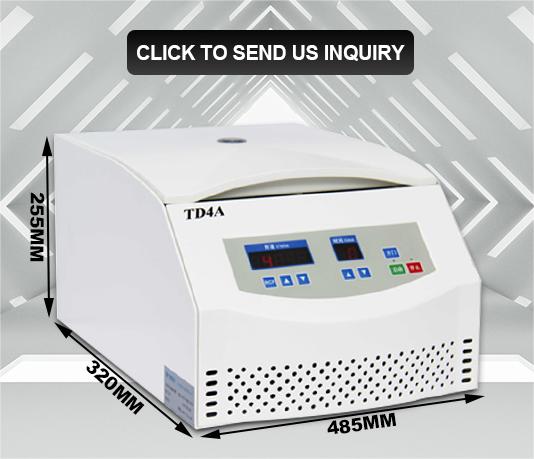

Size (W x D x Hmm)	485×320×255mm
Net Weight(Kg)	18KG
Certificates	CE,ISO & Calibration report are available

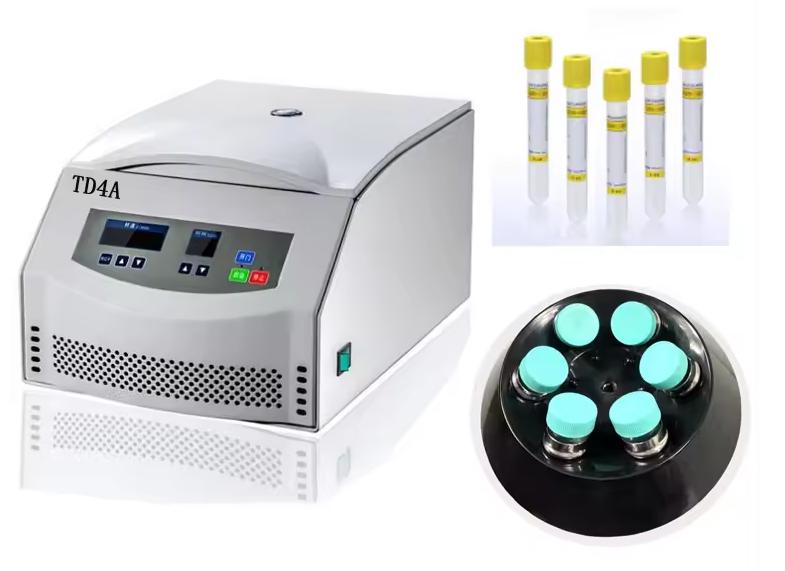

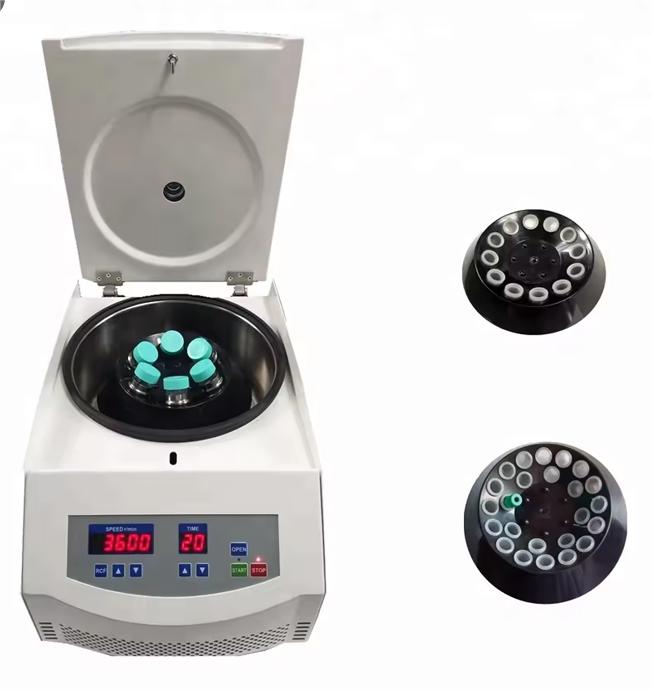

Matched Rotors for TD4A

Order No	Rotors	Max speed r/min	Volume(ml)	Max RCF(g)
21413	TD4A	4000	24×10ml	2200
21415	Swing rotor	4000	6×10ml Vacuum tube	2390
21416			6×7ml Vacuum tube adapter
21417			6×5ml Vacuum tube adapter
NO32666			8×10ml Vacuum tube	2470
NO32665			8×7mlVacuum tube adapter
NO32664			8×5mlVacuum tube adapter
NO32667	Angle Rotor	4000	12×10ml Vacuum tube	2150
NO32668			12×7ml Vacuum tube adapter
NO32669			12×5ml Vacuum tube adapter
No31605	Angle rotor	4000	30x7/5ml	2250
No31604	Angle rotor	4000	18×10ml	2250
No31607	Angle rotor	4000	24x10ml	2200
No31602	Angle rotor	4000	12×15ml/7ml/5ml	2150
No31603	Angle rotor	4000	12×20ml	2220
No31606	Angle rotor	4000	6x50ml	2100
