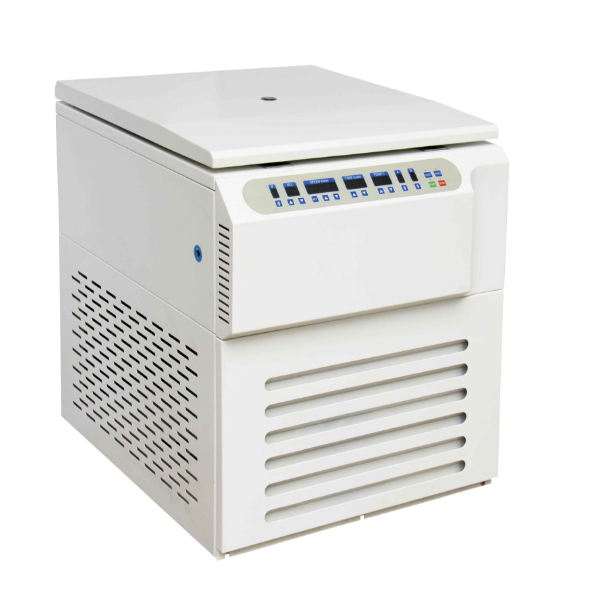

GL21M Floor Standing High Speed Refrigerated Centrifuge
Features
1. Brushless frequency motor for model GL21 which in great torque, free maintenance, no powder pollution, quick in speed up and down.
2. The flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3. Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. There are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. Micro computer control system, LED(digital) display the temperature、time and speed.
6. Automatically electric lid lock, compact design, super speed and imbalance protection.
7. The centrifuge body is made of high-quality steel, safe and reliable.
GL21M Technical Parameter：
Max. Speed | 21000rpm |
Max. RCF | 46140×g |
Max. Capacity | 4×800ml |
Timer | 1~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 65 |
Temperature Range | -20~40℃ |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V 50HZ/60HZ |
Size (L x W x Hmm) | 800×740×930mm |
Net Weight(Kg) | 300KG |
Certificates | CE,ISO & Calibration report are available |

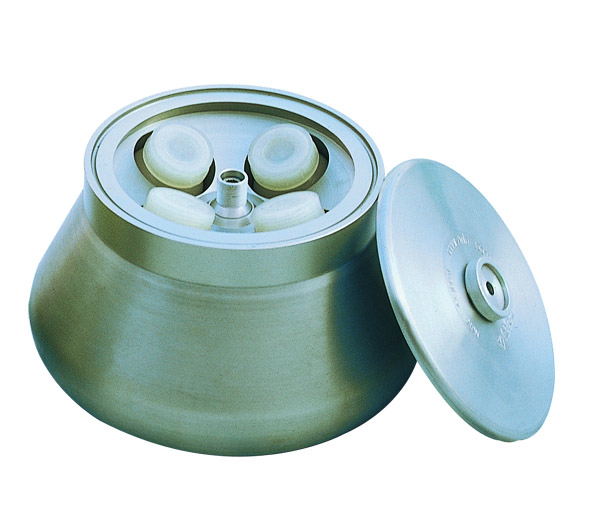

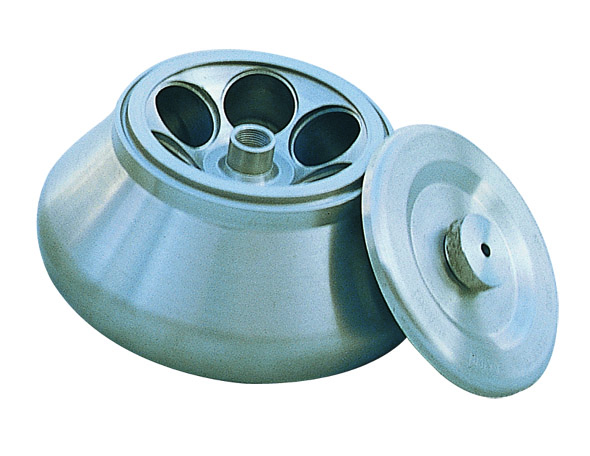

Matched Rotors for GL21M
Order No | Rotors Type | Max speed r/min | Volume(ml) | Max RCF(g） |
21M-1 | Angle rotor | 21000 | 12x10ml | 44440 |
21M-2 | Angle rotor | 20000 | 16x10ml | 46140 |
21M-3 | Angle rotor | 20000 | 8x30/20ml | 42040 |
21M-4 | Angle rotor | 20000 | 6x50ml | 44700 |
21M-5 | Angle rotor | 15000 | 8×50ml | 27540 |
21M-6 | Angle rotor | 15000 | 6x70ml | 25480 |
21M-7 | Angle rotor | 12000 | 8×100ml | 19610 |
21M-8 | Angle rotor | 11000 | 4×300ml | 18120 |
21M-9 | Angle rotor | 10000 | 6×300ml | 15730 |
21M-10 | Angle rotor | 9000 | 6×500ml | 14860 |
21M-11 | Swing Rotor | 4000 | 4×800ml | 3450 |
21M-12 | Swing Rotor | 15000 | 4×5ml | 21670 |
21M-13 | Swing Rotor | 13000 | 4×30ml | 23580 |
21M-14 | Swing Rotor | 10000 | 4×50ml | 16240 |

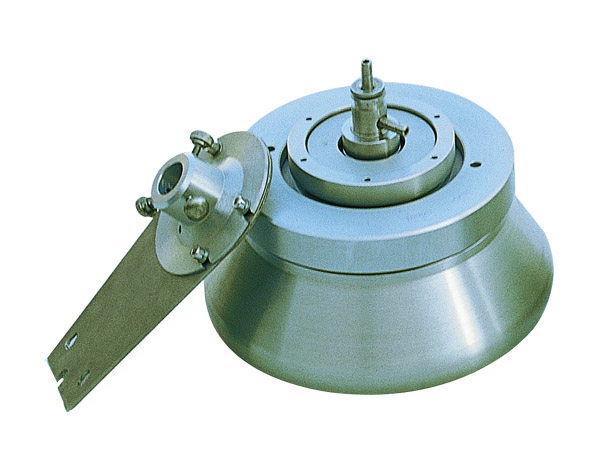

With Continuous centrifugal rotor
Order No | Rotor Type | Max speed r/min | Max Volume(ml) | Max RCF(g） | Standard Flow | Deposit |
No30128 | Continuous centrifugal rotor | 17000 | 1000ml | 31390 | 285-350ml/min | 500ml |
No30129 | Continuous centrifugal rotor | 14000 | 1800ml | 21710 | 220-500ml/min | 500ml |
No30130 | Continuous centrifugal rotor | 8000 | 3000ml | 9450 | 220-500ml/min | 1600ml |
No30131 | Continuous centrifugal rotor | 8000 | 1800ml | 8600 | 220-500ml/min | 1000ml |
